Product Information
Wall ventilation hood with energy-efficient LED lighting and backlit controls for easy use.
Inside the Box
- Non-return flap
- Reducer from 150 to 125 mm Ø

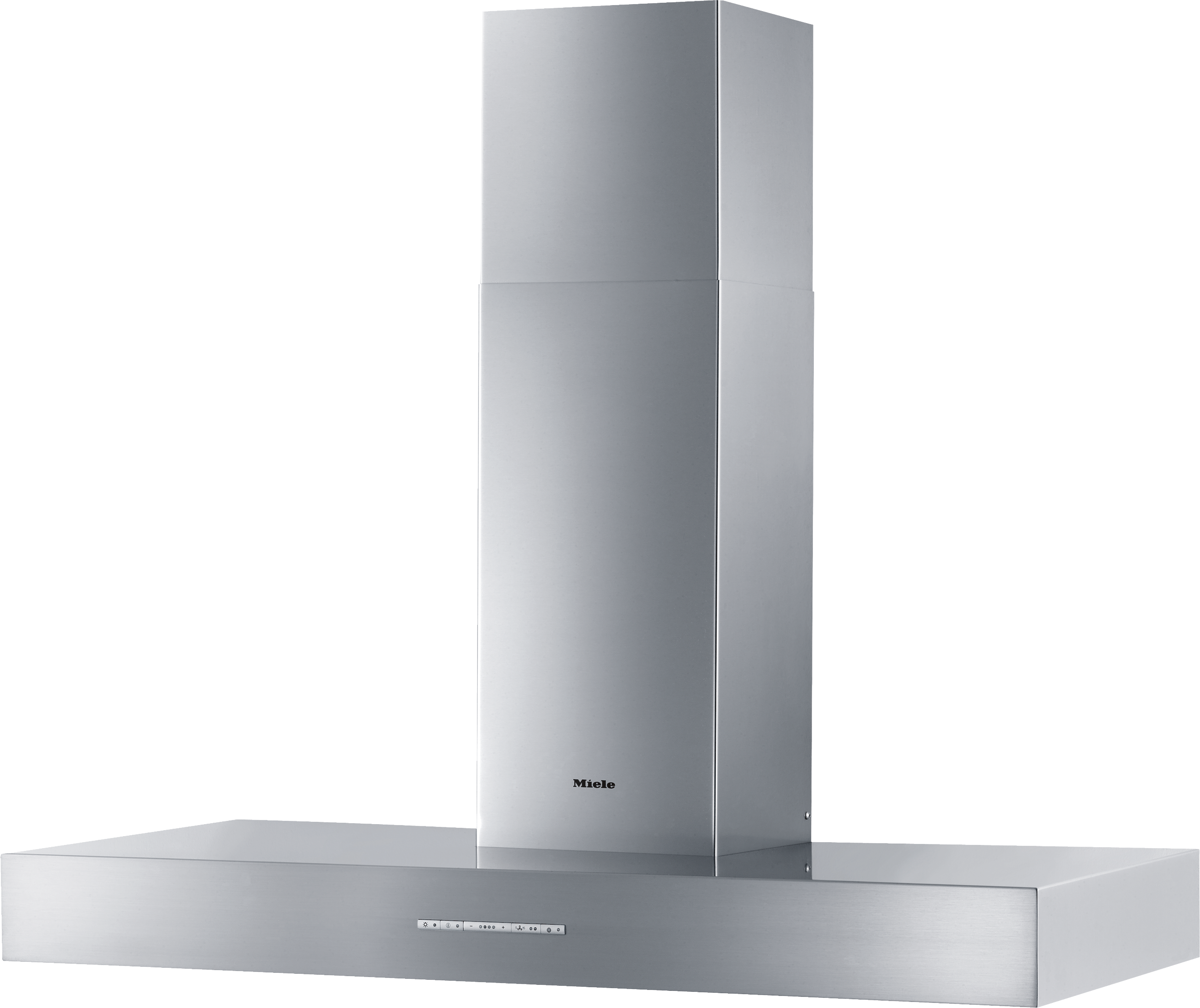

DA 5428 W Puristic Arca
Wall ventilation hood with energy-efficient LED lighting and backlit controls for easy use.
- Subject to technical changes; no liability accepted for the accuracy of the information given.
Product Information
Wall ventilation hood with energy-efficient LED lighting and backlit controls for easy use.
Inside the Box
- Non-return flap
- Reducer from 150 to 125 mm Ø
Your advantages
Stainless-steel grease filters (10-layer)
Easy to use and effective against grease
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Miele CleanCover
Convenience and safety in detail
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Silence
Performance and convenience as standard
Efficient and quiet: The fan is effectively insulated with special soundproofing mats.
Con@ctivity 3.0
Smart controls
Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.
Features depend on model – images are only examples and used for explanation purposes
User convenience (2)
Delayed shutdown
Automatic blower run-on
Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
filter saturation indicator
Countdown time conveniently in view
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Safety (1)
Safety turn off
Always on the safe side
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Setup/function (1)
Con@ctivity 3.0
Smart controls
Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.
Features (3)
Stainless-steel grease filters (10-layer)
Easy to use and effective against grease
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Miele CleanCover
Convenience and safety in detail
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Silence
Performance and convenience as standard
Efficient and quiet: The fan is effectively insulated with special soundproofing mats.
Product data sheet
Design
| Wall ventilation hood | • |
Operating modes
| Recirculated mode | Exhaust air |
Design
| Color | Stainless steel |
User convenience
| Miele@home | • |
| Automatic function | Con@ctivity 3.0 |
| Electronic controls | • |
| Operation | Light-touch switches with LEDs |
| Miele@mobile app | • |
| Power levels (number excl. Intensive) | 3 |
| Booster levels | 1 |
| Programmable Intensive switch-off | • |
| Delayed shutdown for 5 or 15 minutes | • |
| Grease filter saturation indicator | • |
| Grease filter saturation indicator | • |
| Acoustic package | • |
| CleanCover | • |
Cleaning convenience
| Easy-to-clean CleanCover hood liner | • |
Filter system
| Number of dishwasher-safe stainless-steel grease filters | 4 |
Lighting
| LED ClearView lighting | • |
| Number x W | 4 x 3 W |
| Light intensity in Lx | 400 lx |
| Color temperature in K | 3000 Kelvin |
Blower
| Dual-action blower | • |
| AC motor | • |
Exhaust air
| Maximum air throughput in cfm according to HVI | 418 |
| Air throughput | Values upon request |
Safety
| Safety shut-off | • |
Technical data
| Overall min. height for vented and external in in. (mm) | 29 3/8 (745) |
| Overall max. height for vented and external in in. (mm) | 41 5/8 (1055) |
| Overall min. height for recirculation in in. (mm) | 34 1/2 (875) |
| Overall max. height for recirculation in in. (mm) | 46 3/4 (1185) |
| Canopy width in in. (mm) | 47 1/4 (1198) |
| Canopy height in in. (mm) | 4 3/4 (120) |
| Depth of hood canopy in in. (mm) | 20 1/2 (520) |
| Minimum distance above electric cooktops in in. (mm) | 24 1/8 (610) |
| Minimum height above gas cooktop (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm | 26 (660) |
| Net weight in lbs. (kg) | 83 (37.5) |
| Length of electrical wire in ft. (m) | 2 (0.8) |
| Standard plug fitted | • |
| Total connected load in kW | 0.362 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Number of phases | 1 |
Installation note
| Vent connection at top | • |
| Vent connection at top and rear | • |
| Diameter of vent connection in in. (mm) | 6 (150) |
| Telescopic chimney | • |
Standard accessories
| Non-return flap | • |
| Reducer from 150 to 125 mm Ø | • |
Downloads, CAD, & apps
- Product sheetPDF
- Warranty conditionsPDF
- Mounting planPDF
- Operating and Installation instructionsPDF
Follow the link and you will find all the resources you need for planning and installing any of our products
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorized experts.
Descriptions
DA 5428 W(Installation drawing)
