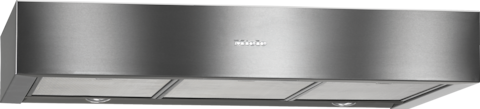

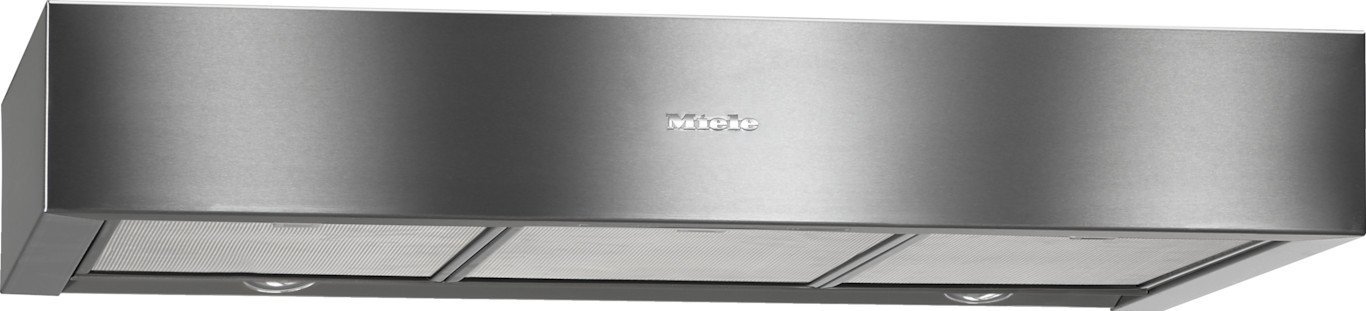

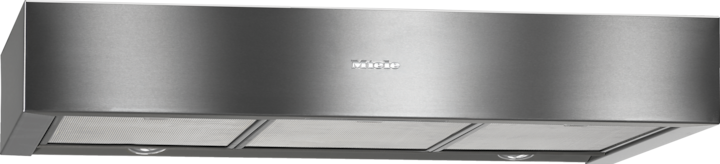

Cooker hoods - DA 1280 Stainless steel - 1
Cooker hoods - DA 1280 Stainless steel - 1

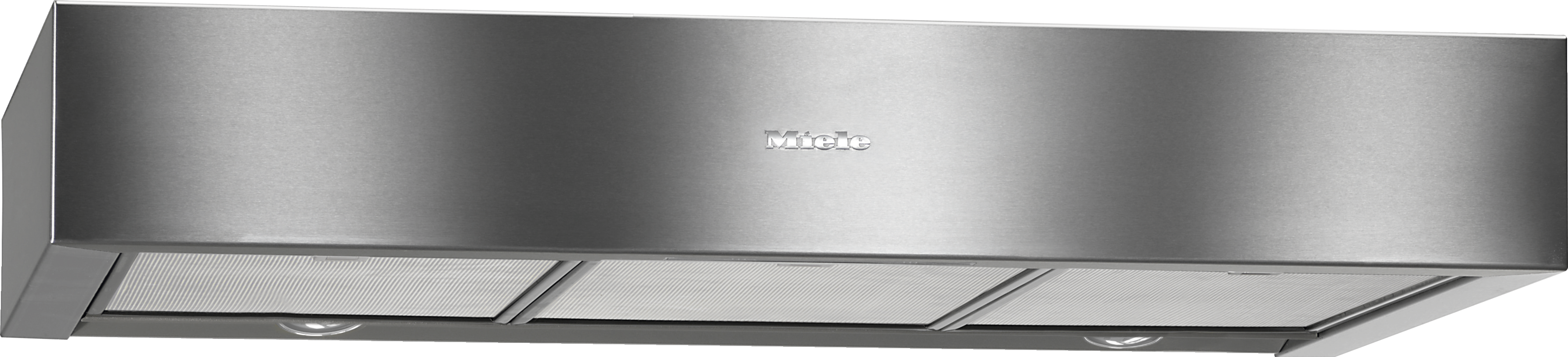

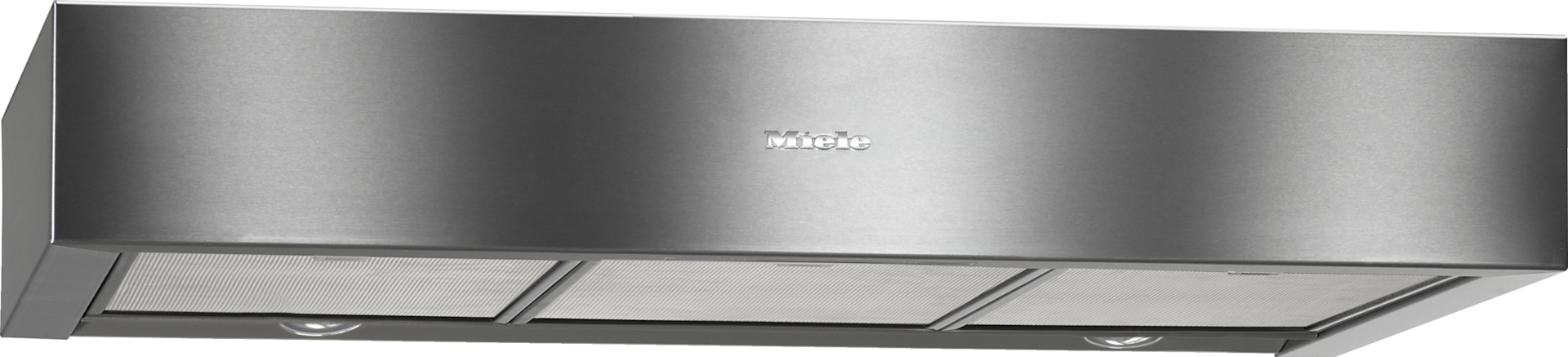

30-inch built-under ventilation hood

DA 1280 Stainless steel

with energy-efficient LED lighting and sliding switch for simple operation.
Color:Stainless steel
sale price$999.00



Product details

  • Puristic design – space-saving solution 30 (760) in (mm) wide
  • Powerful – in Booster level
  • Efficient filtration-10-ply stainless steel grease filters
  • Safe and easy to clean -Miele CleanCover
  • Suitable for every home - vented or recirculating

Product data sheet

Built-under ventilation hood
Recirculated modeCan be retrofitted
OdorFree charcoal filter (order separately)DKF 18-900
ColorStainless steel
Recessed knob controls
Slide switch
OperationSlide switch
Power levels (number excl. Intensive)3
Booster levels1
CleanCover
Easy-to-clean CleanCover hood liner
Number of dishwasher-safe stainless-steel grease filters3
LED ClearView lighting
Number x W2 x 3 W
Light intensity in Lx275 lx
Color temperature in K3000 Kelvin
Single-action blower
AC motor
Maximum air throughput in cfm according to HVI220
Air throughputValues upon request
Canopy width in in. (mm)30 (760)
Canopy height in in. (mm)5 (125)
Depth of hood canopy in in. (mm)19 3/4 (500)
Net weight in lbs. (kg)29 (12.9)
Length of electrical wire in ft. (m)4 (1.5)
Standard plug fitted
Total connected load in kW0.286
Voltage in V120
Fuse rating in A15
Frequency in Hz60
Number of phases1
Vent connection at top
Diameter of vent connection in in. (mm)6 (150)
Installation template
Non-return flap
Recirculation deflector
EAN4002515774403

What's included

Non-return flap
Recirculation deflector
Easy to use and effective against grease
Stainless-steel grease filters (10-layer)

Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.

Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.

Features

Easy to use and effective against grease
Stainless-steel grease filters (10-layer)

Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.

Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.

Matching products and accessories

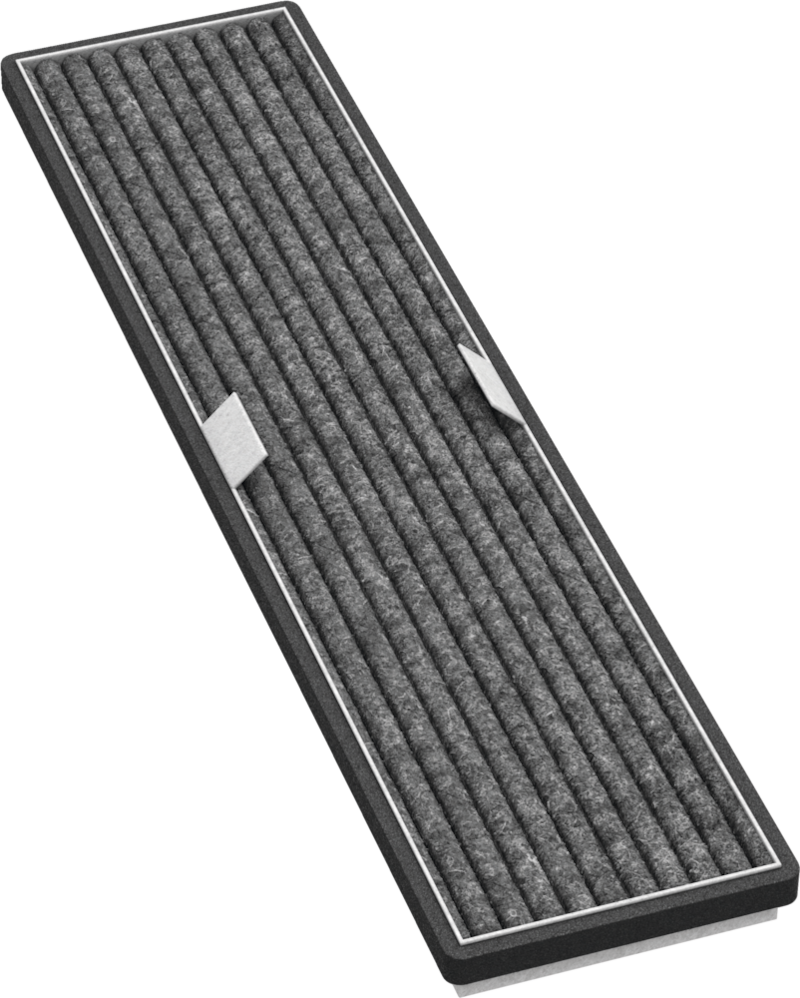

OdorFree Charcoal Filter
DKF 18-900

OdorFree Charcoal Filter

prevents unpleasant odors in the kitchen.

$110.00

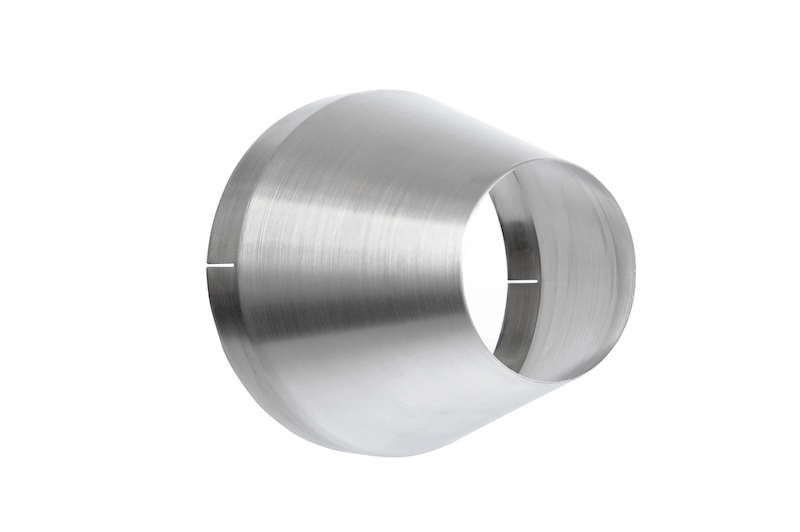

Reducing collar

For reducing the exhaust air vent cross-section.

$125.00

Downloads

Warranty conditions
PDF
Downloads
Product sheet
PDF
Downloads
Operating and Installation instructions
PDF
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000013/200001346/20000134617.png
Descriptions
DA 1180, Stainless steel (installation drawing)
Installation drawings
