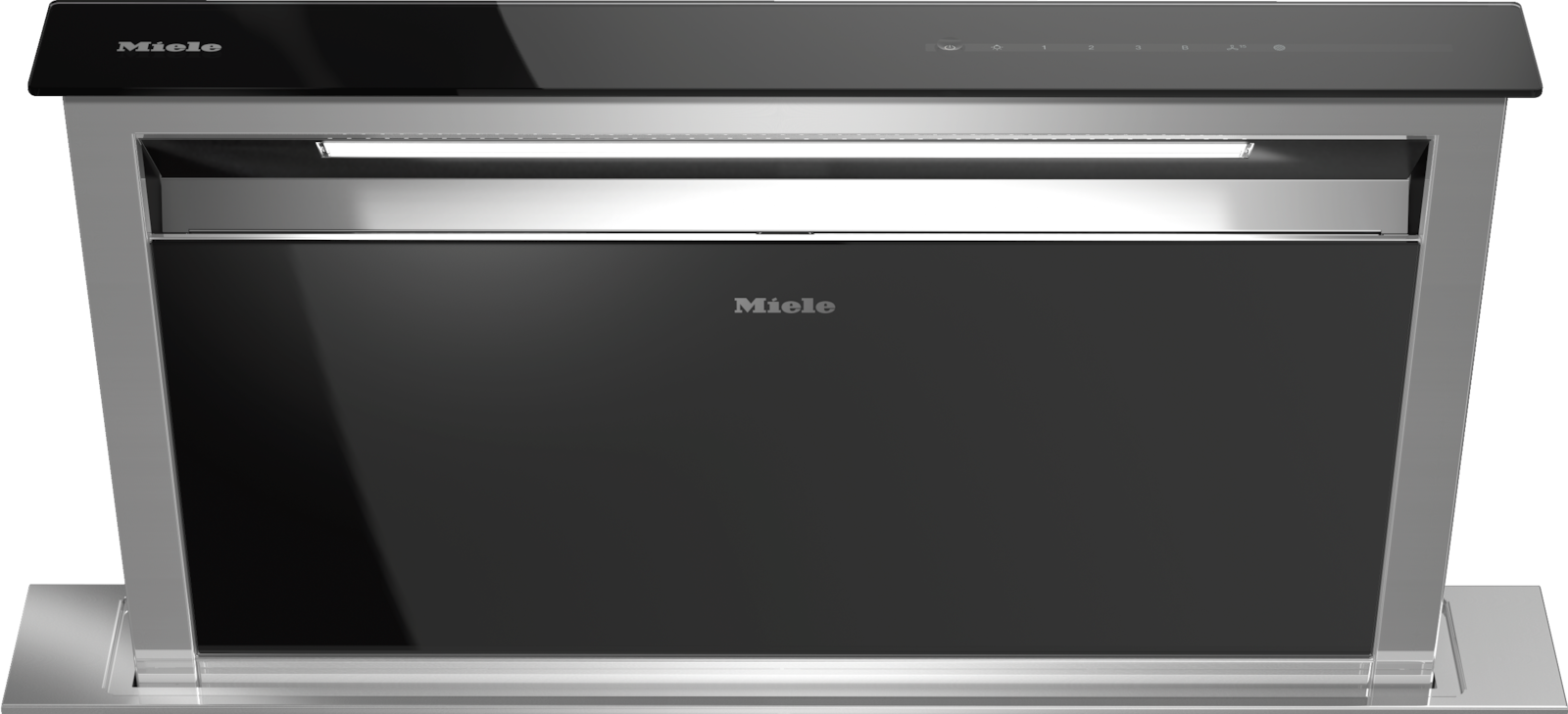

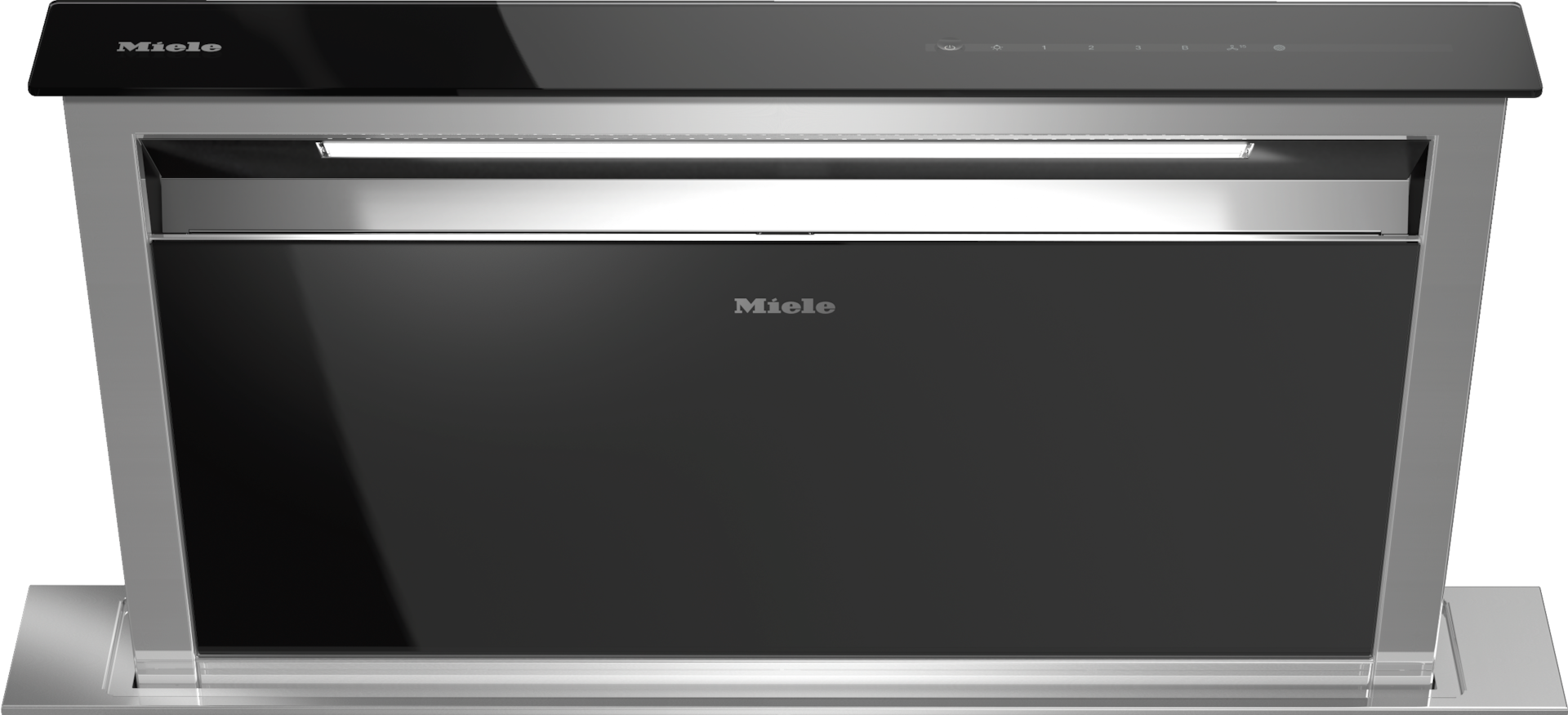

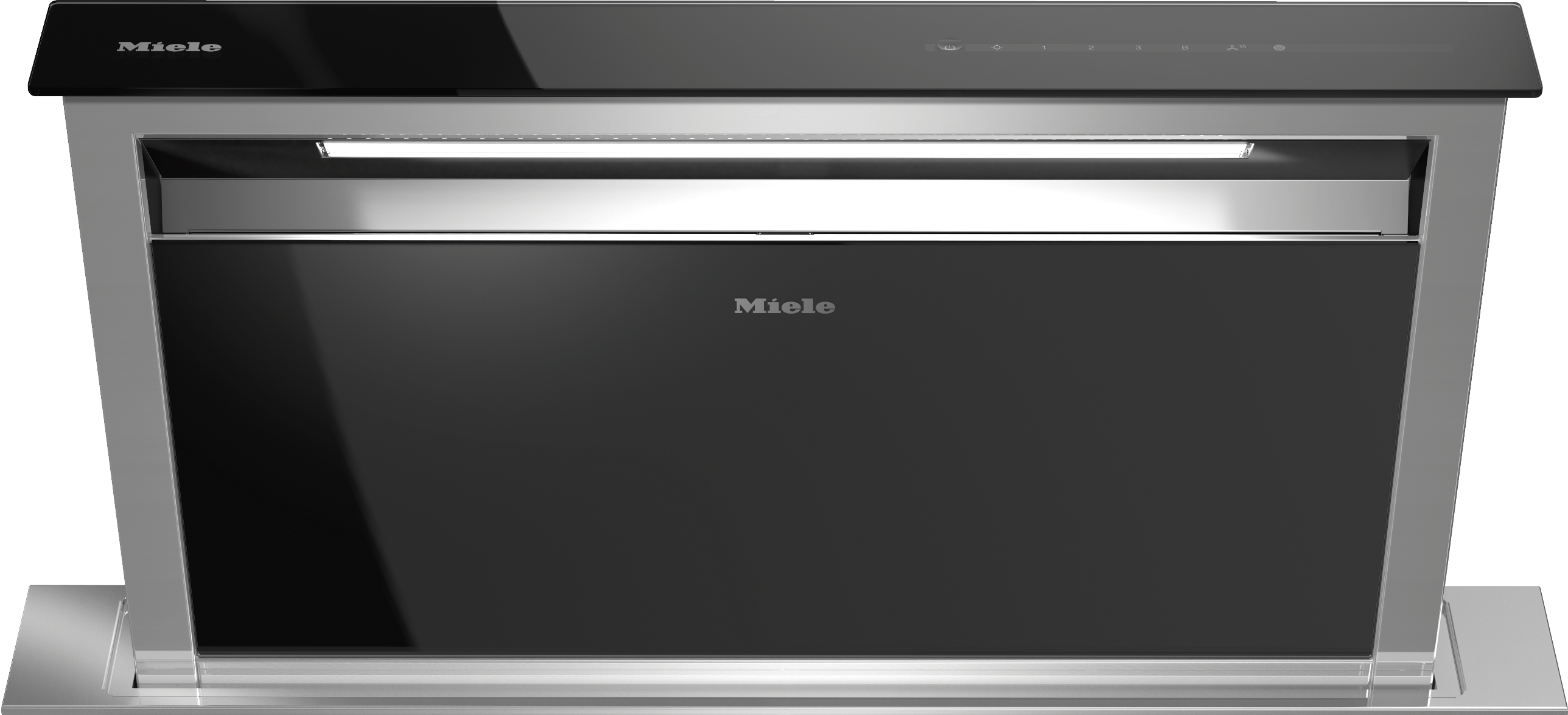

36-inch countertop extractor
DA 6891 Stainless steel
optional external or internal blower for maximum versatility.
Color:Stainless steel
sale price$2,950.00
Product details
- Striking design - telescopic canopy 36 1/8 (916) in (mm) inches wide.
- Powerful – in Booster level
- Practical - 15-minute automatic blower run-on
- Suitable for every home - vented or recirculating
- For perfect functionality -accessories for proper venting
Downdraft
Recirculated modeCan be retrofitted
Recirculation conversion kit (order separately)DUU 2900-900
OdorFree charcoal filter (order separately)DKF 18-900
Edge extraction
Electronic controls
OperationLight-touch switches with LEDs
Power levels (number excl. Intensive)3
Booster levels1
Run-on time 15 min.
Hood in Motion
Dishwasher-safe grease filters2
Number x W1x6W
Light intensity in Lx280 lx
Color temperature in K4000 Kelvin
Maximum air throughput in cfm according to HVI240
Safety shut-off
Single-ply safety glass (ESG)
Overall hood height for vented mode and external in inches (mm)41 1/2 (1052)
Overall height for recirculation mode ventilation hoods in mm41 1/2 (1052)
Overall min. height for vented and external in in. (mm)41 1/2 (1052)
Overall max. height for vented and external in in. (mm)41 1/2 (1052)
Overall min. height for recirculation in in. (mm)41 1/2 (1052)
Overall max. height for recirculation in in. (mm)41 1/2 (1052)
Canopy width in in. (mm)36 1/8 (916)
Canopy height in in. (mm)25 1/2 (646)
Depth of hood canopy in in. (mm)13 7/8 (351)
Net weight in lbs. (kg)60 (27.0)
Length of electrical wire in ft. (m)4 (1.5)
Standard plug fitted
Total connected load in kW0.346
Voltage in V120
Fuse rating in A10
Frequency in Hz60
Number of phases1
Vent connection top,rear,side,bottom
Diameter of vent connection in in. (mm)6 (150)
Reducer from 150 to 125 mm Ø
EAN4002515823972
Reducer from 150 to 125 mm Ø
Always on the safe side
Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Blowercy single panel instead of metal grease filter
Edge vented
Efficient and good-looking: With edge extraction, the grease filters are covered by a panel.
Matching products and accessories
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.
Descriptions
DA 6881, DA 6891 Downdraft (Installation drawing)
1) The DAG 600 motor can be rotated for installation, so exhaust air can be extracted upwards, left, right or downwards., 2) The connection box can be positioned anywhere in the cabinet. The DA 6891 can be mounted to the left, right or behind the fan., 3) Cover for use with the DAG 1000 external fan. The DAG 600 or the cover for the DAG 1000 fan can also be installed in the same position at the back of the appliance.
Descriptions
DA 6881, DA 6891 Downdraft (Installation drawing)
1) Stepped cut-out for granite or marble worktops, 2) If downdraft system and hob are installed in separate cut-outs it is important to ensure sufficient stability of ridges.
Descriptions
DA 6881, DA 6891 Downdraft (Installation drawing)
1) Exhaust air can be extracted to the left or right, 2) Exhaust air extraction downwards, a) Hob overlap, b) Hob cut-out, 3) If a downdraft system and a hob are installed in separate cut-outs it is important to ensure sufficient stability of ridges., If the appliances is installed behind the downdraft system it must be ensured that there is adequate space. We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
