Island décor hood

DA 4248 V D Puristic Varia Stainless steel

with energy-efficient LED lighting and backlit controls for easy use.
Color:Stainless steel
sale price$5,299.00



Product details

  • Timeless design – stainless steel canopy 47 1/4 (1198) in (mm) wide
  • Unique user convenience –Con@ctivity
  • Motorized chimney
  • Powerful – in Booster level
  • Energy-efficient and quiet

Product data sheet

Island ventilation hood
Recirculated modeExhaust air
ColorStainless steel
Miele@home
Automatic function Con@ctivity
Electronic controls
OperationLight-touch switches with LEDs
Power levels (number excl. Intensive)3
Booster levels1
Programmable Intensive switch-off
Delayed shutdown for 5 or 15 minutes
Grease filter saturation indicator
Grease filter saturation indicator
Acoustic package

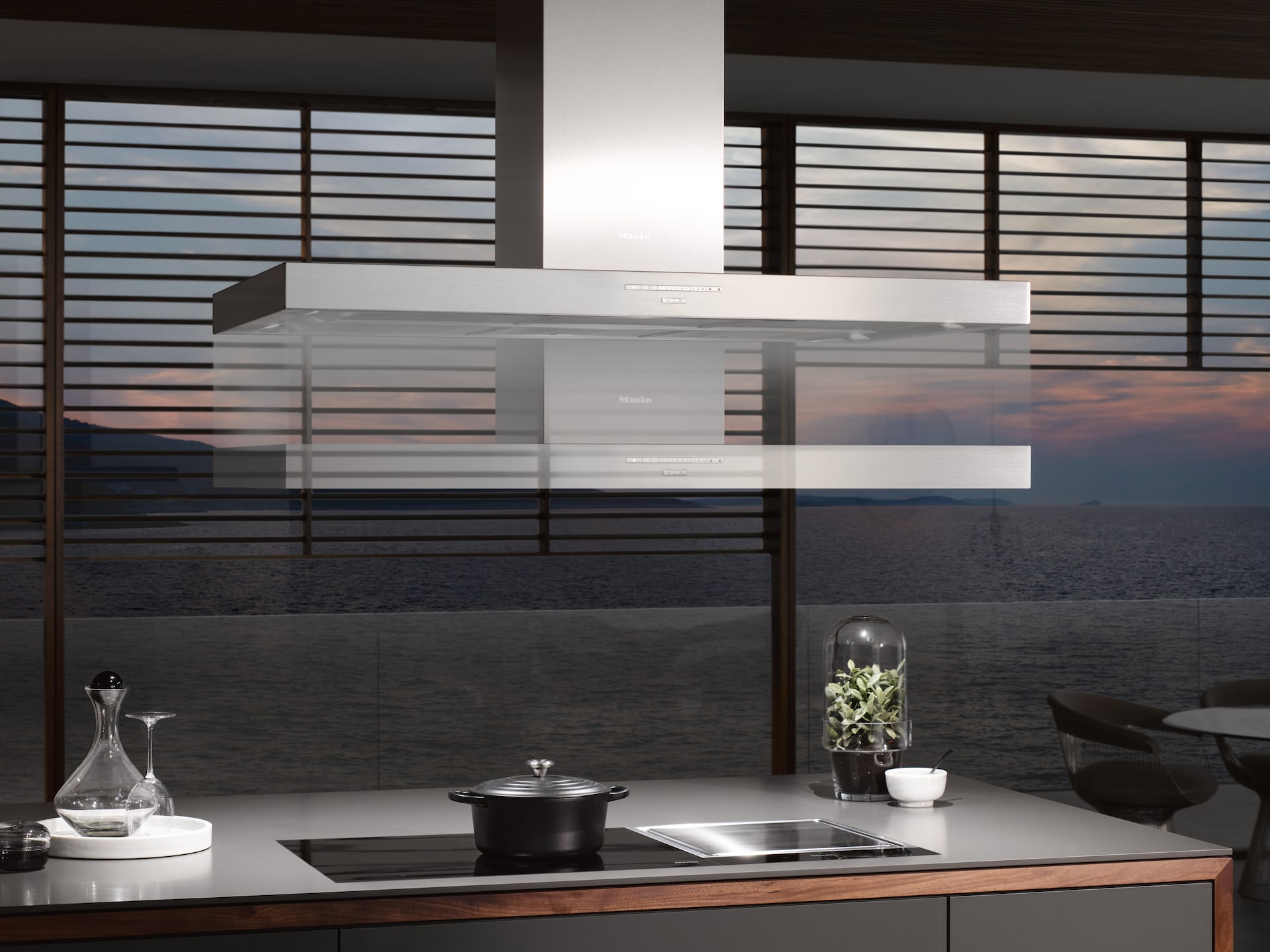

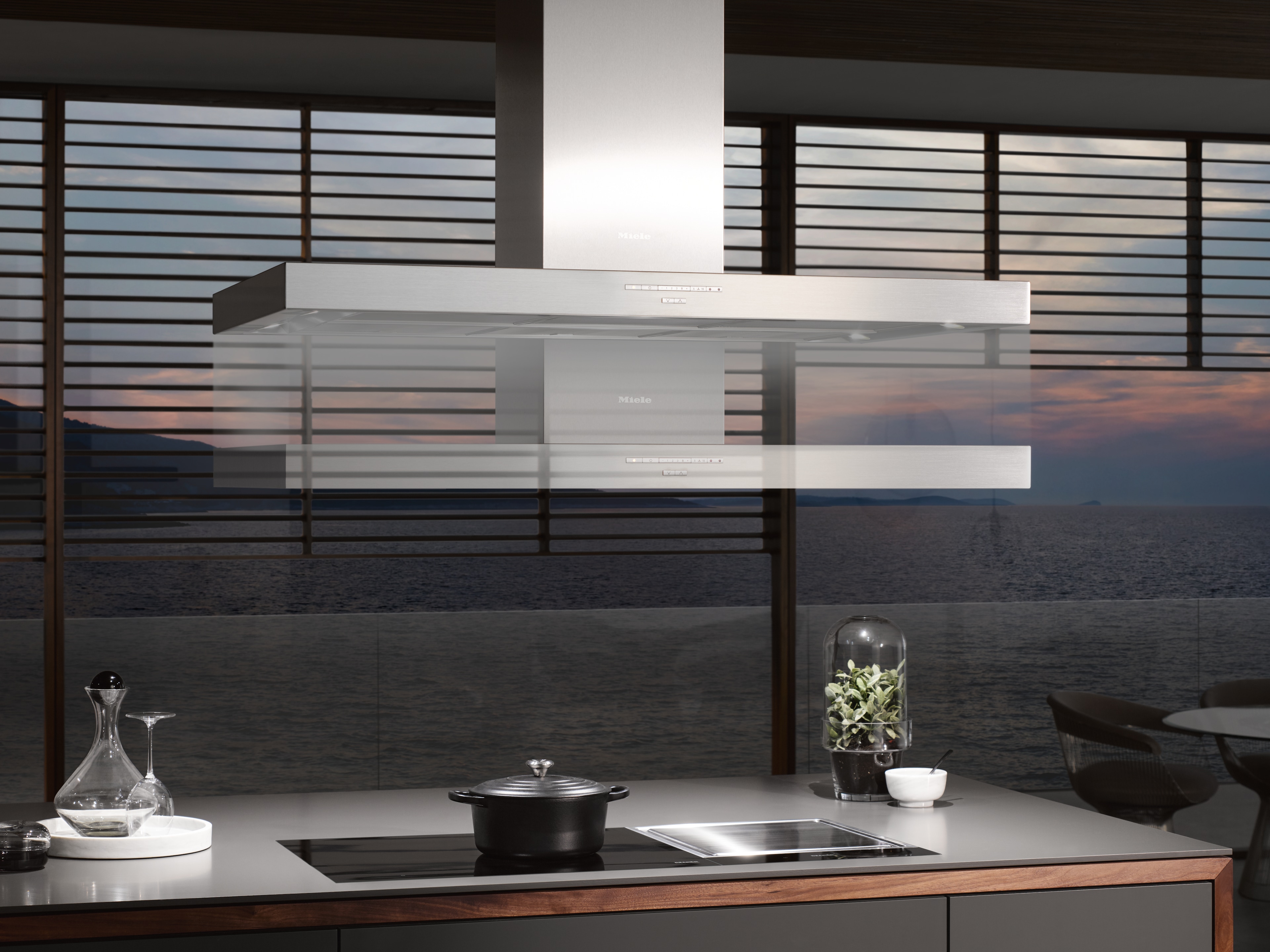

Hood in Motion
CleanCover
Easy-to-clean CleanCover hood liner
Number of dishwasher-safe stainless-steel grease filters6
LED ClearView lighting
Number x W4 x 3 W
Light intensity in Lx600 lx
Color temperature in K3500 Kelvin
Light dimmer function
Dual-action blower
AC motor
Maximum air throughput in cfm according to HVI430
Air throughputValues upon request
Safety shut-off
Overall hood height for vented mode and external in inches (mm)29 3/4 (755)–41 1/4 (1045)
Overall min. height for vented and external in in. (mm)29 3/4 (755)
Overall max. height for vented and external in in. (mm)41 1/4 (1045)
Canopy width in in. (mm)47 1/4 (1198)
Canopy height in in. (mm)2 7/8 (70)
Depth of hood canopy in in. (mm)27 1/2 (698)
Minimum distance above electric cooktops in in. (mm)24 1/8 (610)
Minimum height above gas cooktop (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm26 (660)
Net weight in lbs. (kg)109 (49.0)
Hard-wired
Total connected load in kW0.512
Voltage in V120
Fuse rating in A15
Frequency in Hz60
Number of phases1
Vent connection at top
Diameter of vent connection in in. (mm)6 (150)
Telescopic chimney
Non-return flap
Communication module for Con@ctivity XKM 2000 DAXKS 3000 Z
EAN4002515990162

What's included

Non-return flap
Communication module for Con@ctivity XKM 2000 DA
Easy to use and effective against grease
Stainless-steel grease filters (10-layer)

Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.

Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.

Performance and convenience as standard
Silence

Efficient and quiet: The fan is effectively insulated with special soundproofing mats.

Automatic operation for intelligent blower control
Con@ctivity

Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.

User convenience

Automatic blower run-on
Delayed shutdown

Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."

Countdown time conveniently in view
filter saturation indicator

Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.

Automatic operation for intelligent blower control
Con@ctivity

Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.

Safety

Always on the safe side
Safety turn off

Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.

Features

Easy to use and effective against grease
Stainless-steel grease filters (10-layer)

Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.

Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.

Performance and convenience as standard
Silence

Efficient and quiet: The fan is effectively insulated with special soundproofing mats.

Matching products and accessories

MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

$15.99
 MicroCloth HyClean, 1 cloth
GP MI H 0011 W

 MicroCloth HyClean, 1 cloth

 Antibacterial multi-purpose cloth for improved hygiene.

$11.99

Downloads

Warranty conditions
PDF
Downloads
Product sheet
PDF
Downloads
Operating and Installation instructions
PDF
Downloads
Fitting Instructions
PDF
Downloads
rvt
ZIP
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000011/200001160/20000116037.png
Descriptions
DA 4248 V (Installation drawing) USA
1) Installation area/site, 2) Installation alternatively with spacer frame, 3) A supply lead, and for vented mode flexible vent ducting, must be pre-fitted for the connection in the ceiling to the connection of the cooker hood.
