MasterCool™ freezer

F 2412 SF Stainless steel/CleanSteel

Name: F 2412 SF
Brand: Miele
SKU: 11503310
Price: 8549 USD
Availability: OutOfStock

For high-end design and technology on a large scale.

Color:Stainless steel/CleanSteel

$8,549.00

Product details

Push2openfor convenient door-opening assistance
Light floods the interior thanks to LED elements –BrilliantLight
Fresh ice cubes from theIceMakerwith plumbed water connection
Convenient control thanks to color touch displayMasterSensor

Product data sheet

Freezer

Built-in

Built-in integrated

Door hinge sideLeft

Convertible hinging

Can be installed side-by-side

Front colorStainless steel/CleanSteel

LightingBrilliantLight

Networking with Miele@home

NoFrost

IceMaker with mains water connection

Push2open

FullAccess

EasyClean

MaxLoad hinge

Electronic temperature display and controlMasterSensor

SuperFrost

No. of temperature zones1

Sabbath mode

Eco mode

Door baskets – small1

Door baskets – large3

Number of shelves3

Number of freezer baskets2

Energy Star Qualified

Lock function

Acoustic door alarm

Acoustic temperature alarm, freezer section

Optical door alarm

Optical temperature alarm

Niche width in inches (mm), min.18 (457)

Niche width in inches (mm), max.18 (457)

Niche height in inches (mm), min.84 1/8 (2134)

Niche height in inches (mm), max.84 1/8 (2134)

Niche depth in in.(mm)24 1/8 (610)

Appliance width in in.(mm)17 7/8 (451)

Appliance height in in.(mm)83 3/4 (2125)

Appliance depth in in.(mm)24 (608)

Weight in lbs.(kg)301 (136.1)

Type of mountingFixed door

Current consumption in milliampere (mA)4000

Voltage in V110-120

Fuse rating in A10

Number of phases1

Frequency in Hz60

Wire length in ft (m)9 (3.0)

Replacing bulbsCustomer Service

Available display languages via MultiLingua

français
eesti
ελληνιкά
čeština
繁體中文
slovenčina
latviesu
slovenščina
中文
polski
lietuviu
français (FR)
magyar
nederlands
hrvatski
yкраїнська
bahasa malaysia
deutsch
english (GB)
italiano
türkçe
日本語
suomi
dansk
română
english (AU)
english (CA)
español
srpski
english
العربية
svenska
français (CA)
norsk
pусский
português
english (US)
한국어

EAN4002516321873

Ice cubes for cold drinks

MasterCool™ - IceMaker

Produced quickly and stored: The IceMaker, which can be controlled separately, produces up to 150 ice cubes per day.

Defrosting is a thing of the past

MasterCool – NoFrost

Convenient: A sophisticated NoFrost system saves you the hassle of defrosting and cleaning the appliance.

Perfectly lit

MasterCool – BrilliantLight

Soft and attractive: High-quality LED strips offer perfect illumination and a beautiful lighting.

The perfect solution for a handleless design

MasterCool – Push2open

This appliance integrates perfectly into handleless kitchens, as the door opens by pressing the front.

Cleverly networked

Miele@home^1,

Make your life smart: Thanks to Miele@home^1,, you can cleverly network your domestic appliances – for more options.

User convenience

Defrosting is a thing of the past

MasterCool – NoFrost

Convenient: A sophisticated NoFrost system saves you the hassle of defrosting and cleaning the appliance.

Convenient operation with a tap of a finger

MasterCool – MasterSensor

Incredibly convenient: A whole range of settings can be made easily with a tap of a finger.

Perfectly lit

MasterCool – BrilliantLight

Soft and attractive: High-quality LED strips offer perfect illumination and a beautiful lighting.

The perfect solution for a handleless design

MasterCool – Push2open

This appliance integrates perfectly into handleless kitchens, as the door opens by pressing the front.

Cleverly networked

Miele@home^1,

Make your life smart: Thanks to Miele@home^1,, you can cleverly network your domestic appliances – for more options.

Special features

Ice cubes for cold drinks

MasterCool™ - IceMaker

Produced quickly and stored: The IceMaker, which can be controlled separately, produces up to 150 ice cubes per day.

Innovation

Safe handling guaranteed

MasterCool – MaxLoad hinge

Strong and robust: The door hinges are able to withstand high loads and make it easy to open large doors.

Matching products and accessories

KWF 2000

IntensiveClear 2.0

Water filter with active charcoal for MasterCool F 2xx2 and KF 2xx2.

Side-by-side kit

For the high-quality side-by-side installation of MasterCool models.

GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

GP MI H 0011 W

MicroCloth HyClean, 1 cloth

Antibacterial multi-purpose cloth for improved hygiene.

Stainless-steel toe-kick panel

for high-end panelwork of MasterCool toe-kicks.

Downloads

Warranty conditions

PDF

Downloads

Product sheet

PDF

Downloads

Operating and Installation instructions

PDF

Downloads

dwg

ZIP

Downloads

ifc

ZIP

Downloads

rfa

ZIP

Downloads

rvt

ZIP

Downloads

fbx

ZIP

Downloads

PNG

Downloads

Energy label

PDF

Downloads

Energy label

JPEG

Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000016/200001632/20000163254.png

Descriptions

F2413Vi, F2471Vi, F2471SF, F2461Vi, F2411Vi, F2411SF, installation, MasterCool, installation drawings

1. View from the front, 2. Mains Connection cable, L = 3000 mm (118 inch), 3. Water inlet positon, L = 2000 mm (not for KON USA), 4. No water/ELT conections permitted in this area

Downloads

https://media.miele.com/images/2000006/200000657/20000065730.png

Descriptions

Side-by-side, MasterCool, without partition wall, with heating mat (Sketch) (with footnote)

1) Heating mat KSK 2001 (EU, AUS, CN) or KSK 2002 (US, CA, MX, BR)

Downloads

https://media.miele.com/images/2000015/200001536/20000153688.png

Descriptions

MasterCool, top view, doorway, installation drawings

Installation drawings

Downloads

https://media.miele.com/images/2000016/200001617/20000161754.png

Descriptions

Sideview, MasterCool, Sketch

Installation drawings

Downloads

https://media.miele.com/images/2000015/200001516/20000151604.png

Descriptions

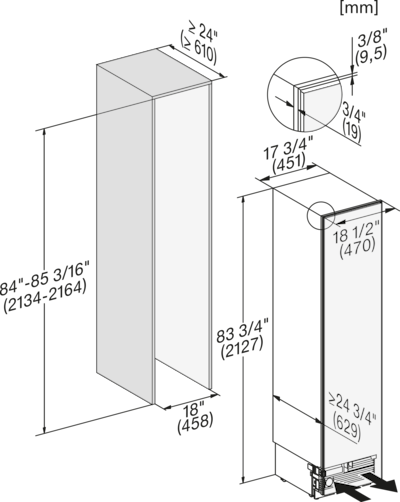

F2412SF, F2411SF, MasterCool, inner space, installation drawings

Installation drawings

Downloads

https://media.miele.com/images/2000016/200001626/20000162600.png

Descriptions

Side-by-Side, MasterCool, footnote, installation drawings

1. KSK 2001/2002, 2. Device A, 3. Device B, A = niche device A, B = niche device B

Downloads

https://media.miele.com/images/2000018/200001842/20000184290.png

Descriptions

Opening angle 90°/115°, right side stop, MasterCool (Sketch) with footnote

A) Appliance door , F 2411 Vi: 525 mm (20 2/3 inch);, F 2412 Vi, F 2412 SF, F 2413Vi, F 2472 Vi, F 2472 SF: 525 mm (20 2/3 inch);, F 2671 Vi: 677 mm (26 2/3 inch); , F 2672 Vi, F 2672 SF: 677 mm (26 2/3 inch);, F 2812 SF, F 2812 Vi, F 2813 Vi: 829 mm (32 2/3 inch);, F 2912 Vi, F 2912 SF: 982 mm (38 2/3 inch);, B) Furniture front (max. 38 mm) (1 1/2 inch), C) Door handle, D) Distance from the door to the wall (without furniture front and door handle): , F 2411 Vi: 237 mm (9 1/3 inch);, F 2412 Vi, F 2412 SF, F 2472 Vi, F 2472 SF: 237 mm (9 1/3 inch);, F 2672 Vi, F 2672 SF: 296 mm (11 2/3 inch);, F 2811 Vi: 363 mm (14 1/3 inch);, F 2812 SF, F 2812 Vi: 363 mm (14 1/3 inch);, F 2912 Vi, F 2912 SF: 428 mm (16 7/8 inch);, E) ONLY valid for SF versions: A + 25 mm (1 inch)

Downloads

Open Source Licence

PDF

Downloads

1.Additional digital offer from Miele & Cie. KG. All smart applications are made possible with the Miele@home system. The range of functions can vary depending on the model and the country.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
