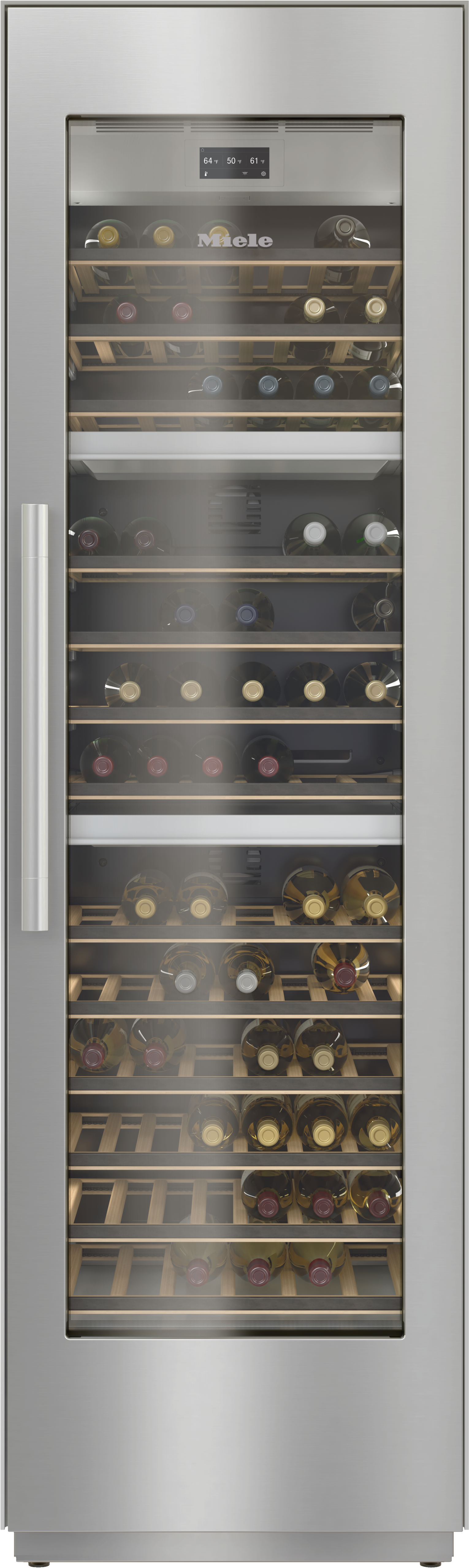

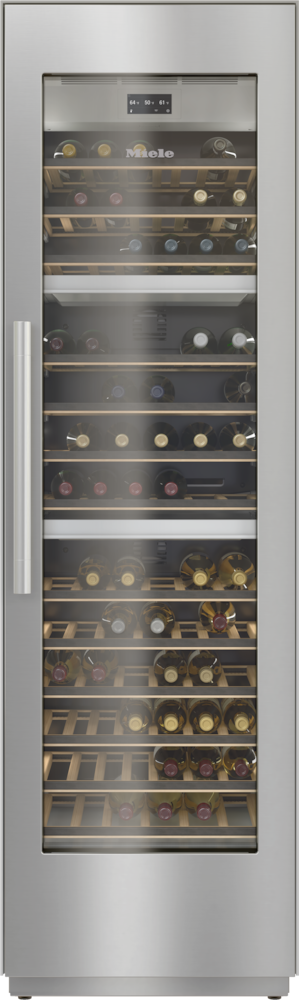

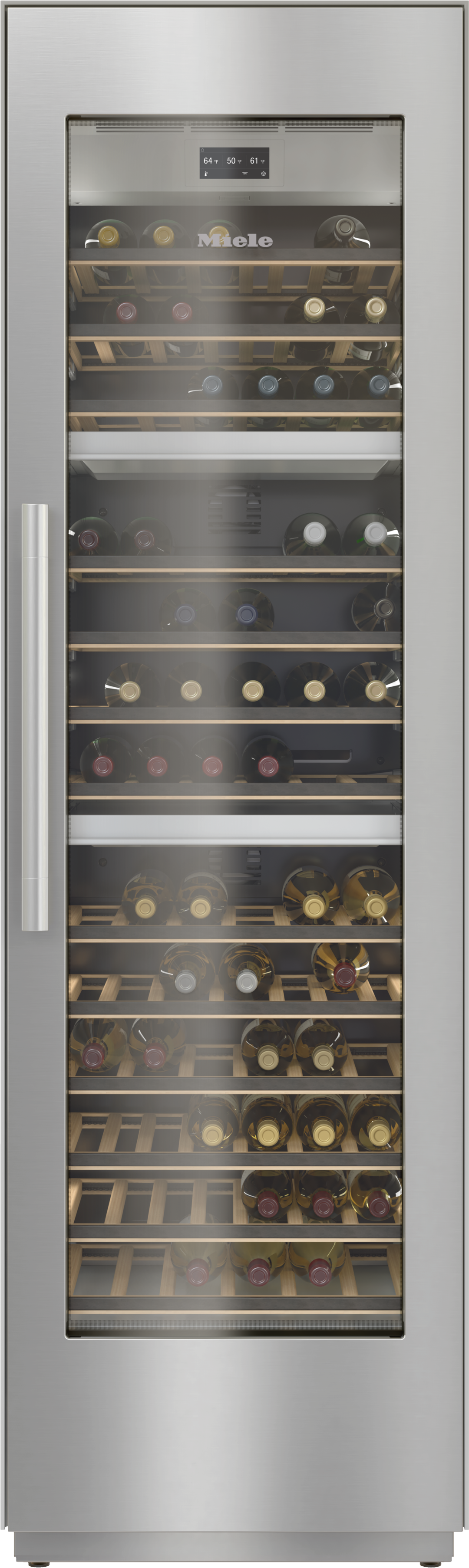

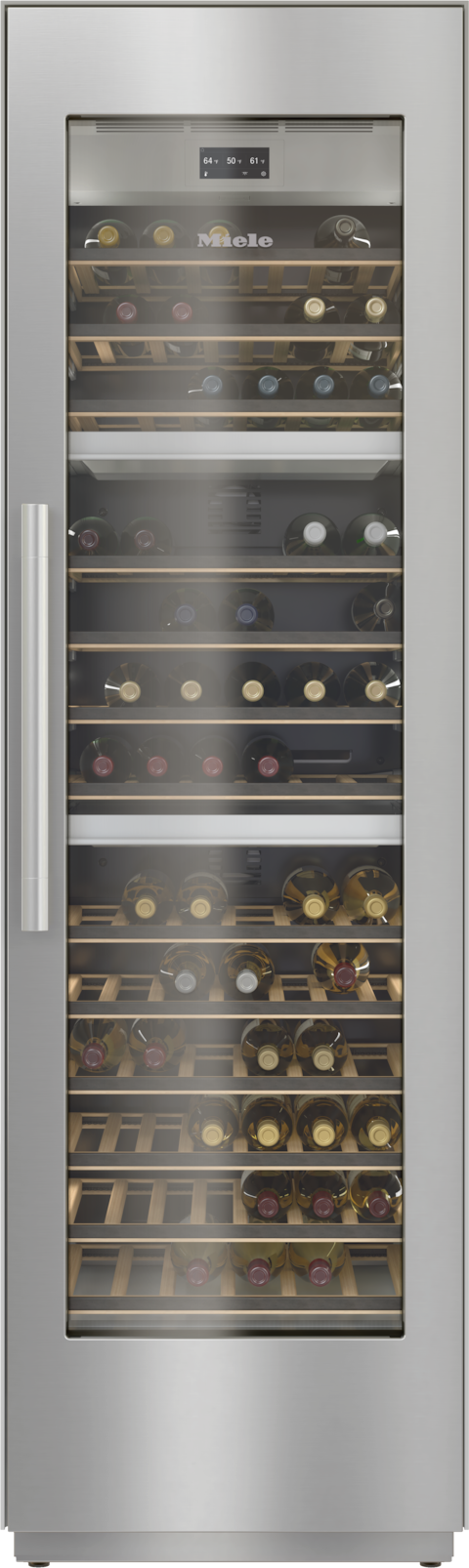

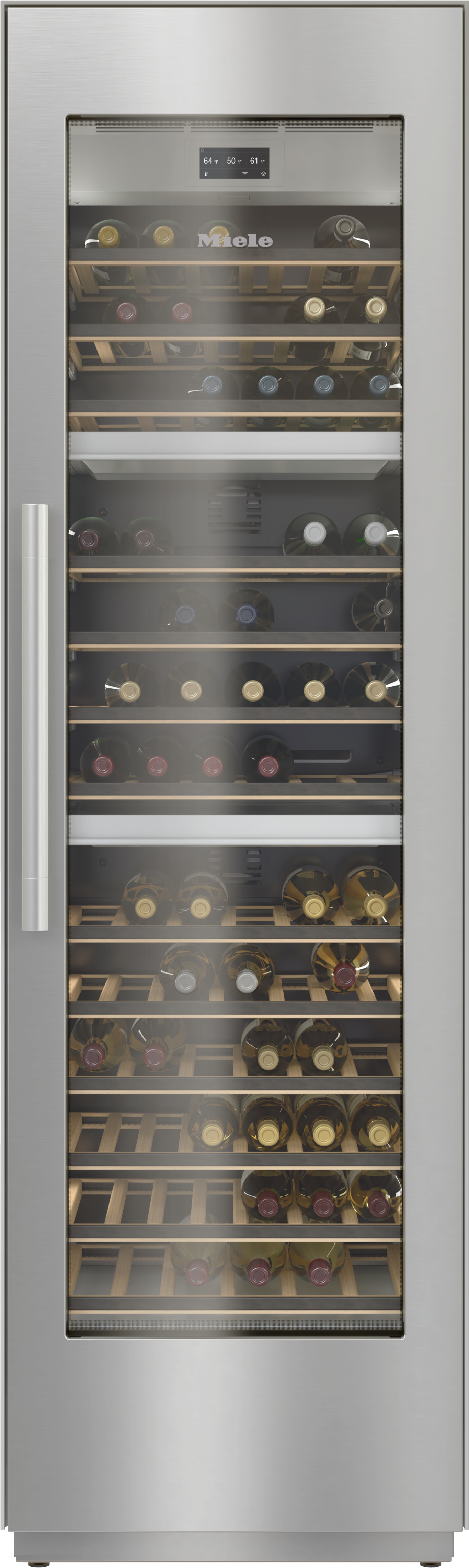

MasterCool Wine Conditioning Unit
KWT 2602 SF Stainless steel/CleanSteel
For high-end design and technology on a large scale.
Color:Stainless steel/CleanSteel
sale price$9,499.00
Product details
- Push2openfor convenient door-opening assistance

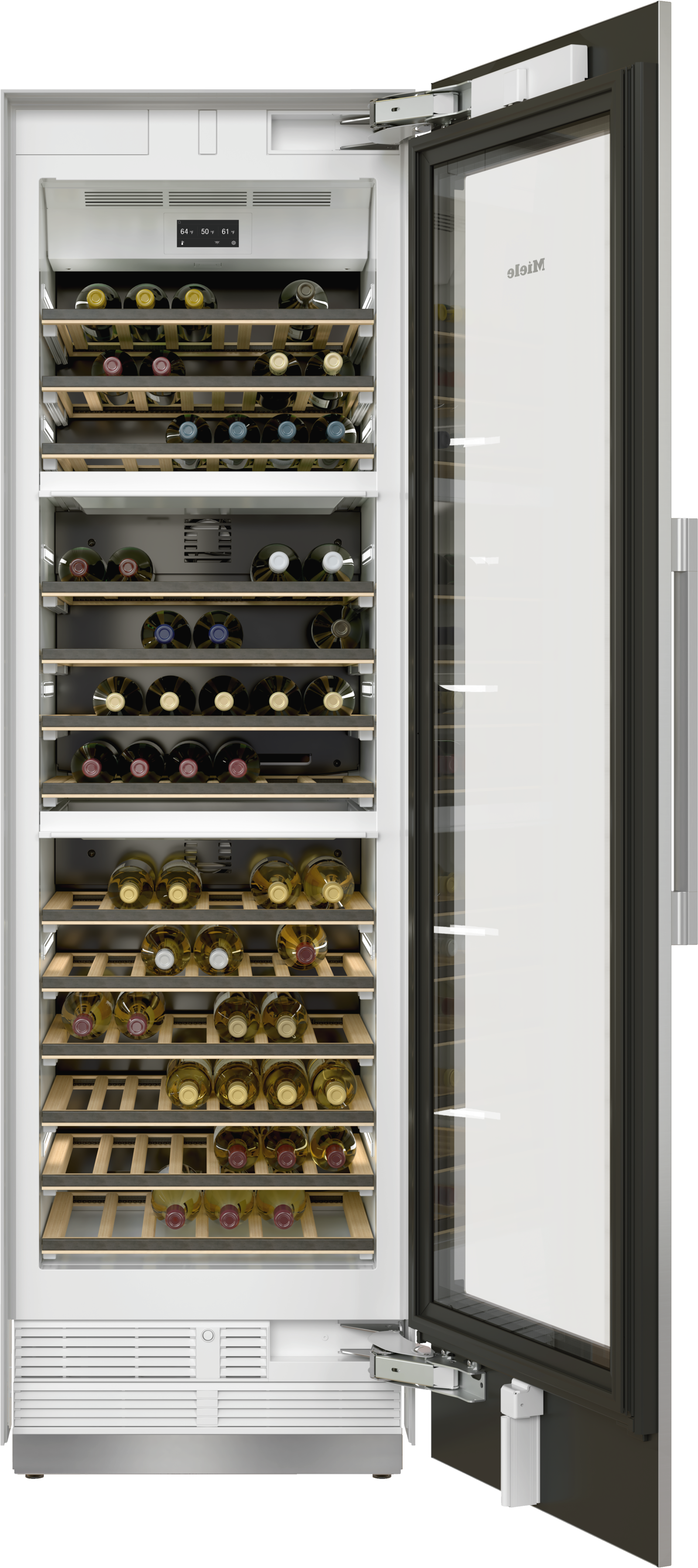

- Various wines at the perfect temperature – 3 temperature zones
- Flexible storage of large wine bottles thanks toFlexiFrame
- Light floods the interior thanks to LED elements –BrilliantLight
- Communication with the machine could not be easier –WiFi Conn@ct
Built-in integrated
Door hinge sideright
Front colorStainless steel/CleanSteel
LightingBrilliantLight
Networking with Miele@home
DynaCool
Push2open
MaxLoad hinge
Number of FlexiFrame wooden racks13
Wire Rack materialBeechwood
NoteBoard

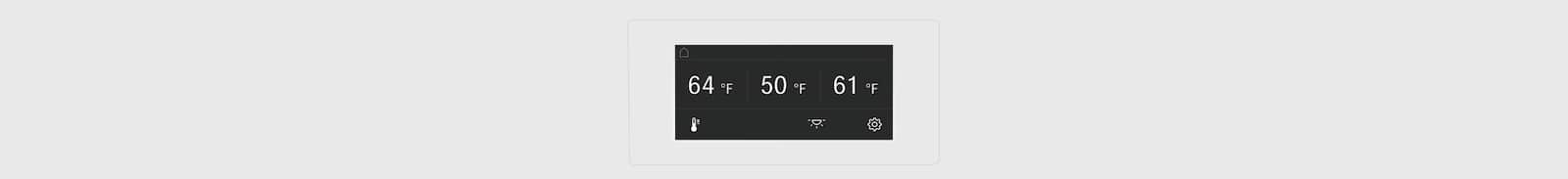

Electronic temperature display and controlMasterSensor
No. of temperature zones3
Min. temperature setting range in °F (°C)5
Sabbath mode
Lock function
Acoustic door alarm
Acoustic temperature alarm
Optical door alarm
Optical temperature alarm
Niche width in inches (mm), min.24 1/8 (610)
Niche width in inches (mm), max.24 1/8 (610)
Niche height in inches (mm), min.84 1/8 (2134)
Niche height in inches (mm), max.84 1/8 (2134)
Niche depth in in.(mm)24 1/8 (610)
Weight in lbs.(kg)360 (163.0)
Type of mountingFixed door
Wine compartment in L13.38 (379)
Pantry compartment in l379
Total usable capacity in cu. ft. (l)13.38 (379)
0.75 l Bordeaux bottle capacity (no. of bottles)104 bottles
Current consumption in milliampere (mA)4000
Voltage in V110-120
Fuse rating in A10
Number of phases1
Frequency in Hz60
Wire length in ft (m)9 (3.0)
ContourLine handle
Available display languages via MultiLingua
- eesti
- français
- ελληνιкά
- čeština
- 繁體中文
- slovenčina
- latviesu
- slovenščina
- 中文
- polski
- lietuviu
- français (FR)
- magyar
- nederlands
- hrvatski
- yкраїнська
- bahasa malaysia
- english (GB)
- italiano
- deutsch
- türkçe
- 日本語
- dansk
- suomi
- română
- english (AU)
- english (CA)
- español
- english
- srpski
- العربية
- svenska
- norsk
- français (CA)
- pусский
- english (US)
- português
- 한국어
EAN4002516322962
ContourLine handle
The perfect solution for a handleless design
MasterCool – Push2open
This appliance integrates perfectly into handleless kitchens, as the door opens by pressing the front.
Perfect food storage
MasterCool – DynaCool
Storage freedom: A fan ensures a uniform temperature throughout the entire unit.
The perfect solution for a handleless design
MasterCool – Push2open
This appliance integrates perfectly into handleless kitchens, as the door opens by pressing the front.

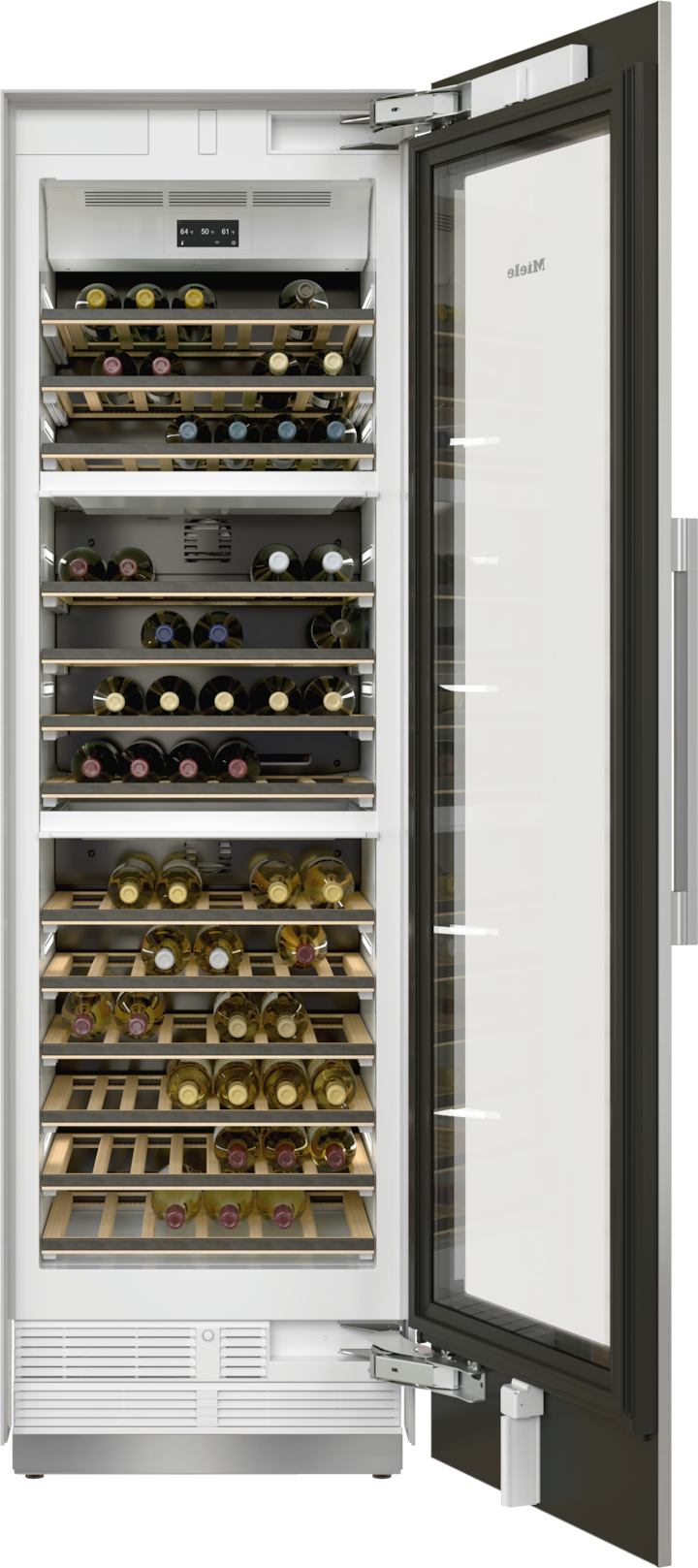

Perfectly lit
MasterCool – BrilliantLight
Soft and attractive: High-quality LED strips offer perfect illumination and a beautiful lighting.
Safe handling guaranteed
MasterCool – MaxLoad hinge
Strong and robust: The door hinges are able to withstand high loads and make it easy to open large doors.
Matching products and accessories
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.
Descriptions
KWT2602SF, KWT2612SF, KWT2662SFS, KWT2601SF, KWT2611SF, KWT2661SFS, installation, MasterCool (US, CA)
Installation drawings
Descriptions
Opening angel 90°/115°, right side stop, MasterCool (Sketch) *footnote
A) Appliance door width, K 2601 Vi, K 2601 SF, KWT 2601 Vi, KWT 2601 SF, KWT 2661 ViS, KWT 2661 SFS: 677 mm (26 2/3 , inch);, K 2602 Vi, K 2602 SF, KWT 2602 Vi, KWT 2602 SF, KWT 2662 ViS, KWT 2662 SFS: 677 mm (26 2/3 , inch);, K 2801 Vi, K 2801 SF, KF 2801 Vi, KF 2801 SF: 829 mm (32 2/3 inch);, K 2802 Vi, K 2802 SF, KF 2802 Vi, KF 2802 SF: 829 mm (32 2/3 inch);, K 2901 Vi, K 2901 SF, KF 2901 Vi, KF 2901 SF: 982 mm (38 2/3 inch);, K 2902 Vi, K 2902 SF, KF 2902 Vi, KF 2902 SF: 982 mm (38 2/3 inch);, B) Furniture front (max. 38 mm) (1 1/2 inch), C) Door handle, D) Distance door to wall (without furniture front and door handle): , K 2601 Vi, K 2601 SF, KWT 2601 Vi, KWT 2601 SF, KWT 2661 ViS, KWT 2661 SFS: 296 mm (11 2/3 , inch);, K 2602 Vi, K 2602 SF, KWT 2602 Vi, KWT 2602 SF, KWT 2662 ViS, KWT 2662 SFS: 296 mm (11 2/3 , inch);, K 2801 Vi, K 2801 SF, KF 2801 Vi, KF 2801 SF: 363 mm (14 1/3 inch);, K 2802 Vi, K 2802 SF, KF 2802 Vi, KF 2802 SF: 363 mm (14 1/3 inch), K 2901 Vi, K 2901 SF, KF 2901 Vi, KF 2901 SF: 428 mm (16 7/8 inch), K 2902 Vi, K 2902 SF, KF 2902 Vi, KF 2902 SF: 428 mm (16 7/8 inch), E) ONLY valid for SF versions: A + 25 mm (1 inch)
Descriptions
KWT2602Vi/SF, KWT2612Vi/SF, KWT2601Vi/SF, KWT2611Vi/SF, inner space, MasterCool, installation drawings
Installation drawings
Descriptions
Side-by-side, MasterCool, without partition wall, with heating mat (Sketch) (with footnote)
1) Heating mat KSK 2001 (EU, AUS, CN) or KSK 2002 (US, CA, MX, BR)
Descriptions
Side-by-Side, MasterCool, footnote, installation drawings
1. KSK 2001/2002, 2. Device A, 3. Device B, A = niche device A, B = niche device B
Descriptions

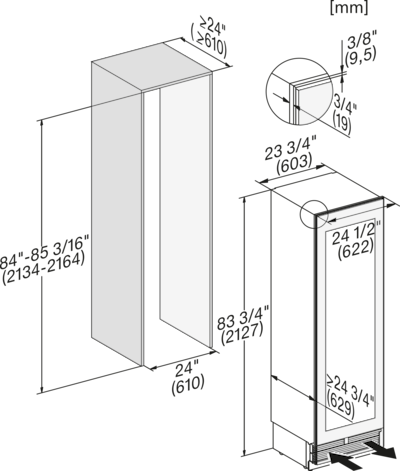

Installation, MasterCool, *footnote, installation drawings
1. View from the front, 2. Mains connection cable, L = 3000 mm (118 inch), 3. No water/ELT connections permitted in this area Open Source Licence
