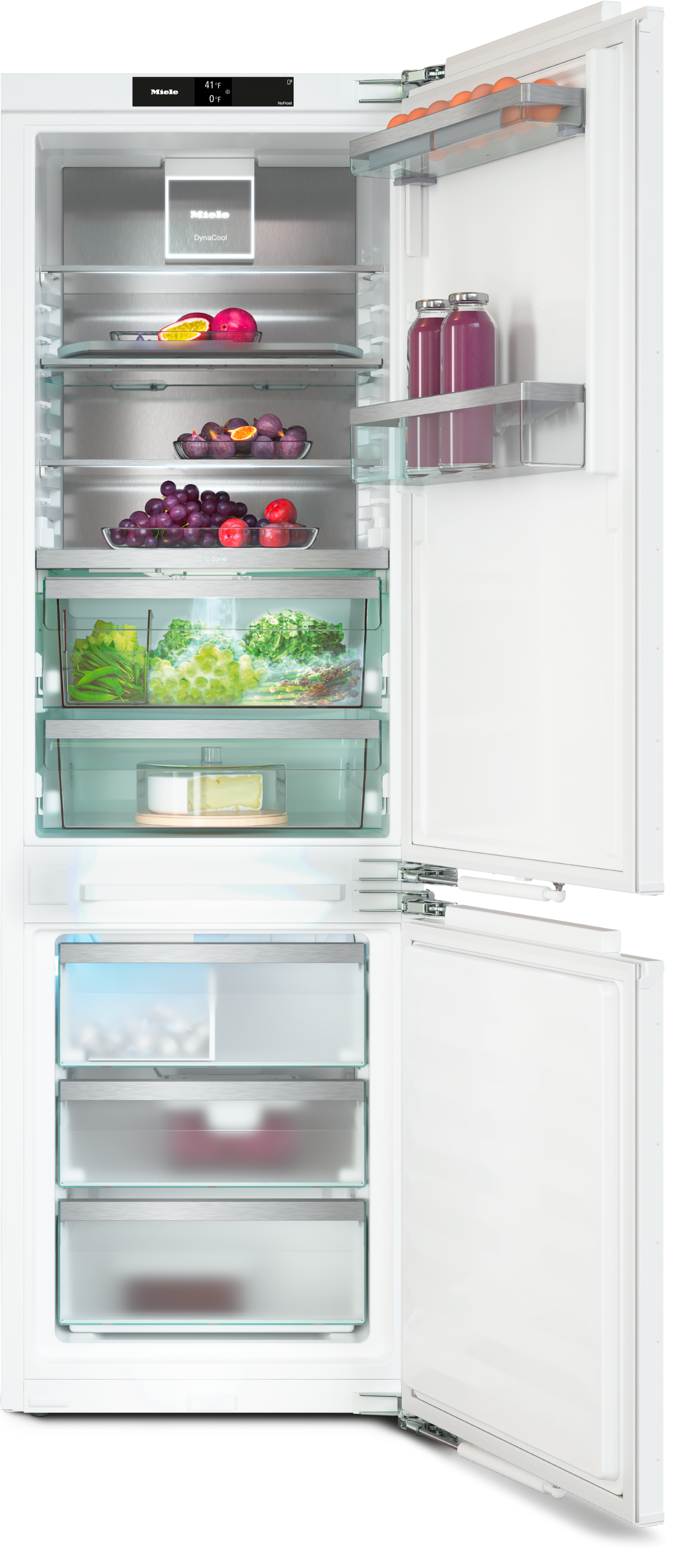

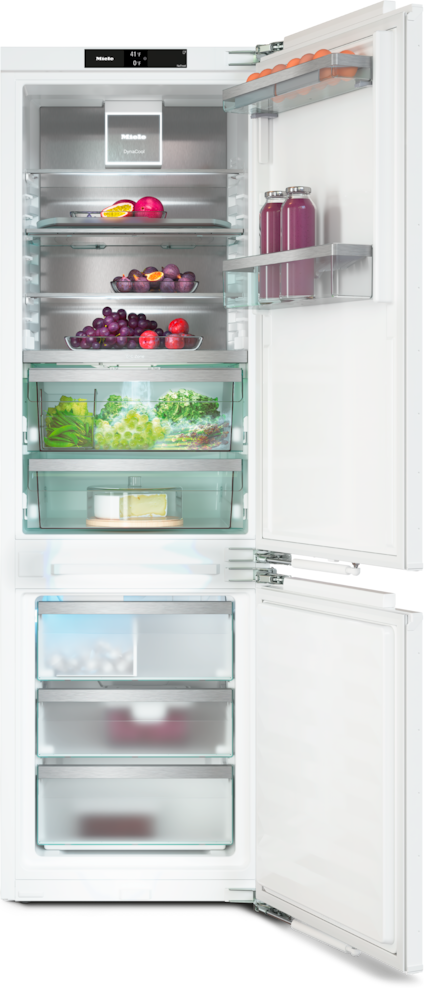

PerfectCool fridge-freezer

KFN 7795 D

PerfectFresh Active, DynaCool, and IceMaker for outstanding appearance.
sale price$4,449.00



Product details

  • Fresh 5x longer with active humidification –PerfectFresh Active
  • Ice cubes thanks to the plumbedIceMaker
  • Individually adjustable glass shelf lighting withFlexiLight 2.0
  • No icing up of food and no need to defrost thanks toNoFrost
  • Uniform temperature distribution inside the appliance –DynaCool

Product data sheet

Fridge-freezer
Built-in
Built-in integrated
Door hinge sideright
Convertible hinging
Type of lightingFlexiLight 2.0
Freezer compartment lightingLED
Fan lighting
Freshness system lighting
IceMaker lighting
Networking with Miele@home
Freshness systemPerfectFresh Active
Fine adjustment inner door
ComfortClean
DynaCool
NoFrost
DuplexCool
ComfortSize
VarioRoom
SoftClose door closing damper
SelfClose
IceMaker with plumbed water connection

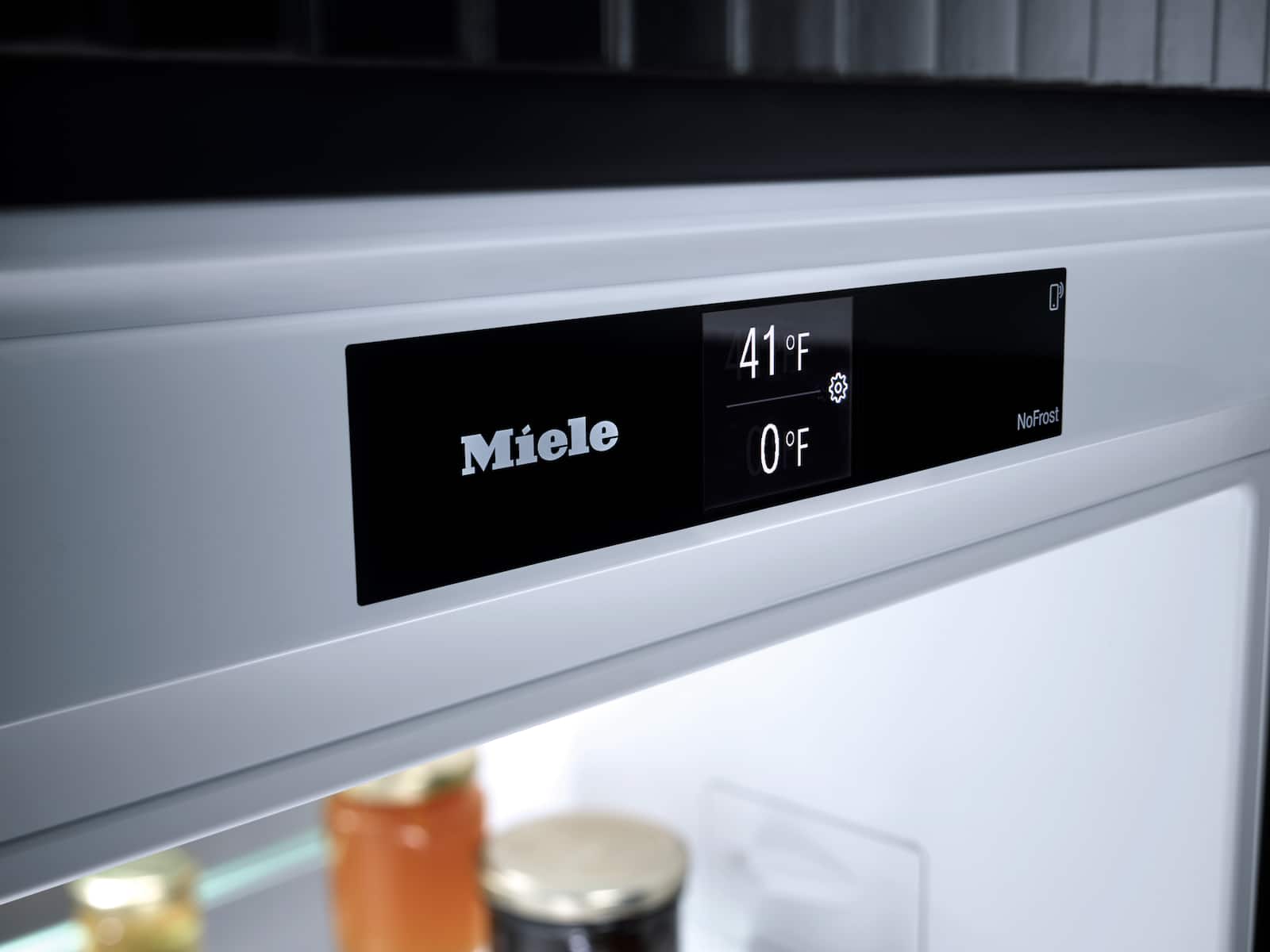

Electronic temperature display and controlFreshTouch
Fridge compartment can be switched offYes
Independent temperature control of fridge and freezer compartments
Super Cooling
SuperFrost
No. of temperature zones3
Sabbath mode
Party mode
Holiday mode
No. of shelves4
of which illuminated2
No. of PerfectFresh drawers2
Dry back wallClean Touch Steel
FlexiTray
Number of door racks for cans1
Door rack for bottles1
Door shelves2
Number of freezer drawers3
of which on runners2
Energy Star Qualified
Lock function
Acoustic door alarm
Acoustic temperature alarm, freezer section
Optical door alarm
Optical temperature alarm
Power cut indication for freezer compartment
Niche width in inches (mm), min.22 1/8 (560)
Niche width in inches (mm), max.22 1/2 (570)
Niche height in inches (mm), min.69 7/8 (1772)
Niche height in inches (mm), max.70 1/2 (1788)
Niche depth in in.(mm)21 3/4 (550)
Appliance width in in.(mm)22 1/8 (559)
Appliance height in in.(mm)69 3/4 (1770)
Appliance depth in in.(mm)21 1/2 (546)
Weight in lbs.(kg)165 (74.4)
Type of mountingFixed door
Maximum fridge compartment door front weight in lbs. (kg)40 (18)
Maximum freezer compartment door front weight in lbs. (kg)27 (12)
Climatic classificationSN-T
including PerfectFresh zone in l2.51 (71)
Total usable capacity in cu. ft. (l)8.69 (246)
Storage time in case of fault in h9
Current consumption in milliampere (mA)3000
Voltage in V115
Fuse rating in A10
Number of phases1
Frequency in Hz60
Wire length in ft (m)7 (2.2)
Replacing bulbsCustomer Service
Egg rack
PerfectFresh organization box
EAN4002516424925

What's included

Egg rack
PerfectFresh organization box
Cleverly networked
Miele@home1,

Make your life smart: Thanks to Miele@home1, , you can cleverly network your domestic appliances – for more options.

Overview of food; easy to remove items
FlexiTray

Maximum convenience: the pivotable glass shelf allows items to be removed easily, even from a full refrigerator.

Maximum flexibility
Fine adjustment on inner door

Adaptable: the heights of the inner door shelves can be adjusted to make the best use of space.

A new approach from Miele to keep your food fresh!
PerfectFresh Active

An ideal climate: active humidification and the perfect temperature keep food fresh up to 5 times longer.

A perfect view of your food
FlexiLight 2.0

Entirely glare-free: the illuminated shelves can be custom-positioned in the refrigerator for maximum flexibility.

Special features

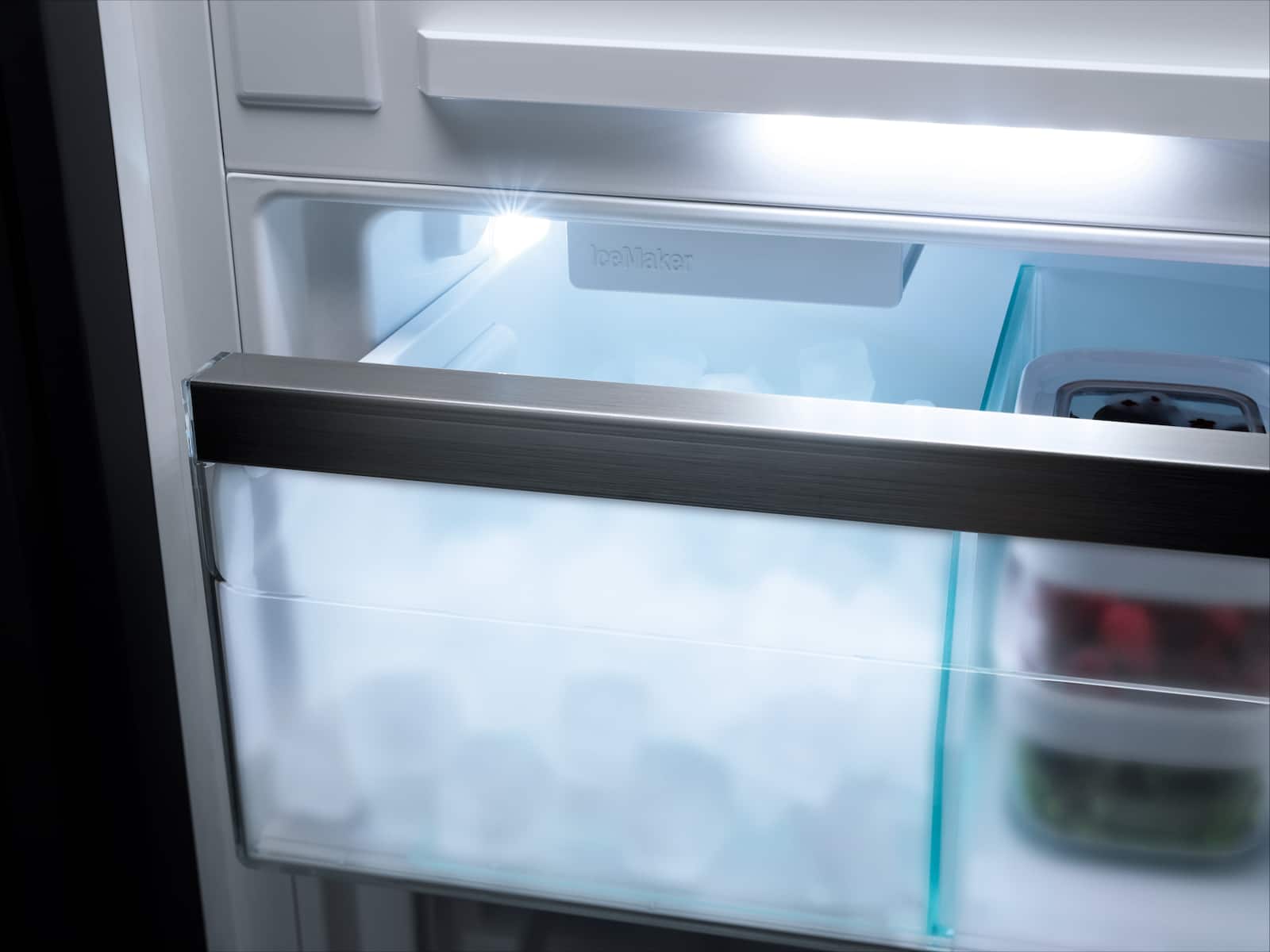

Ice cubes for cold drinks
IceMaker

Fresh ice, fully automatically: produces up to 100 ice cubes per day with ease thanks to plumbed water connection.

A new approach from Miele to keep your food fresh!
PerfectFresh Active

An ideal climate: active humidification and the perfect temperature keep food fresh up to 5 times longer.

User convenience

Cleverly networked
Miele@home1,

Make your life smart: Thanks to Miele@home1, , you can cleverly network your domestic appliances – for more options.

Overview of food; easy to remove items
FlexiTray

Maximum convenience: the pivotable glass shelf allows items to be removed easily, even from a full refrigerator.

Maximum flexibility
Fine adjustment on inner door

Adaptable: the heights of the inner door shelves can be adjusted to make the best use of space.

Defrosting is a thing of the past
NoFrost

No more defrosting: the circulation cooling system prevents ice from developing, saving the hassle of defrosting.

Ideal storage conditions for food and wine
DynaCool

Even temperature distribution: a fan ensures excellent circulation and distribution of the cold air.

Dishwasher-safe shelves on the inside of the door
ComfortClean

Easy to clean: the high-quality door shelves can be cleaned easily in the dishwasher.

Appliance door closes softly
SoftClose

Quiet and reliable closing: the gently self-closing doors prevent items from falling out.

Convenient food storage
ComfortSize

Practical storage: the extensive depth makes it possible to place a whole baking tray on the bottom drawer level.

A perfect view of your food
FlexiLight 2.0

Entirely glare-free: the illuminated shelves can be custom-positioned in the refrigerator for maximum flexibility.

Matching products and accessories

odor-absorbing Active AirClean filter
KKF-RF

odor-absorbing Active AirClean filter

prevents unpleasant odors in the refrigerator.

$68.00
MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

$15.99
 MicroCloth HyClean, 1 cloth
GP MI H 0011 W

 MicroCloth HyClean, 1 cloth

 Antibacterial multi-purpose cloth for improved hygiene.

$11.99

Downloads

Operating instructions/Installation instructions
PDF
Downloads
Warranty conditions
PDF
Downloads
Product sheet
PDF
Downloads
Fitting Instructions
PDF
Downloads
dwg
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads
fbx
ZIP
Downloads
PNG
Downloads

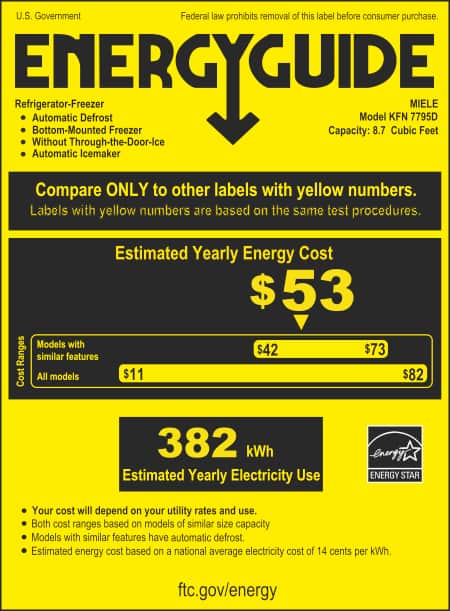

Energy label
PDF
Downloads
Energy label
JPEG
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000018/200001812/20000181237.png
Descriptions

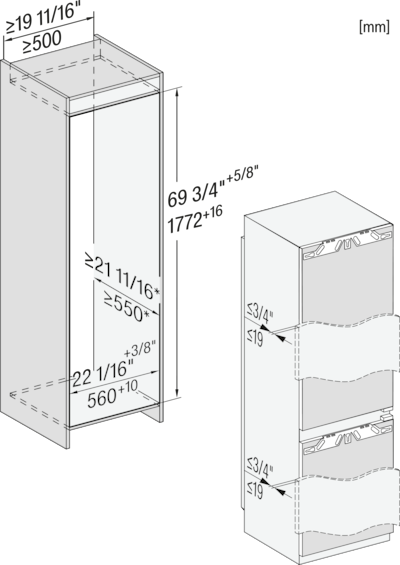

KFN7734D, KFN7734C, KFN7784D, KFN7795D, built-in (*footnote) (installation drawings) (US)
*The declared energy consumption was calculated in a 560 mm deep niche. The appliance is fully functional in a 550 mm niche but the energy consumption will be slightly higher.
Downloads
https://media.miele.com/images/2000018/200001812/20000181241.png
Descriptions
KFN7795D, installation (*footenote) (installation drawings) (US)
*1. View from the front, 2. Mains connection cable, L = 2100 mm, 3. Ventilation cut-out min. 200 cm², 4. Ventilation, 5. No connections permitted in this area, 6. Water connection L = 2000 mm
Downloads
https://media.miele.com/images/2000018/200001812/20000181239.png
Descriptions

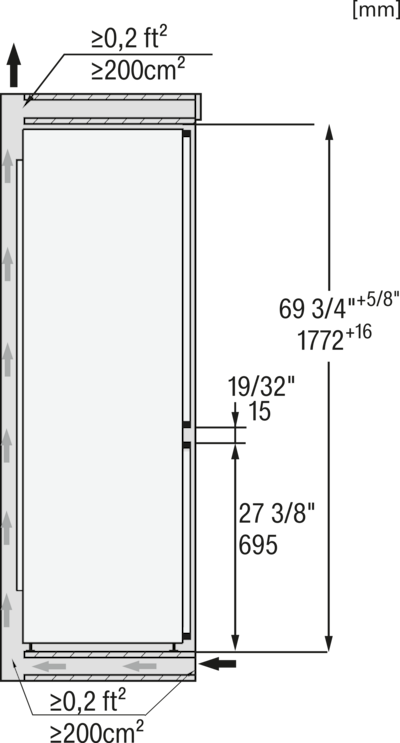

KFN7734D, KFN7734C, KFN7784D, KFN7795D, side view (installation drawings) (US)
