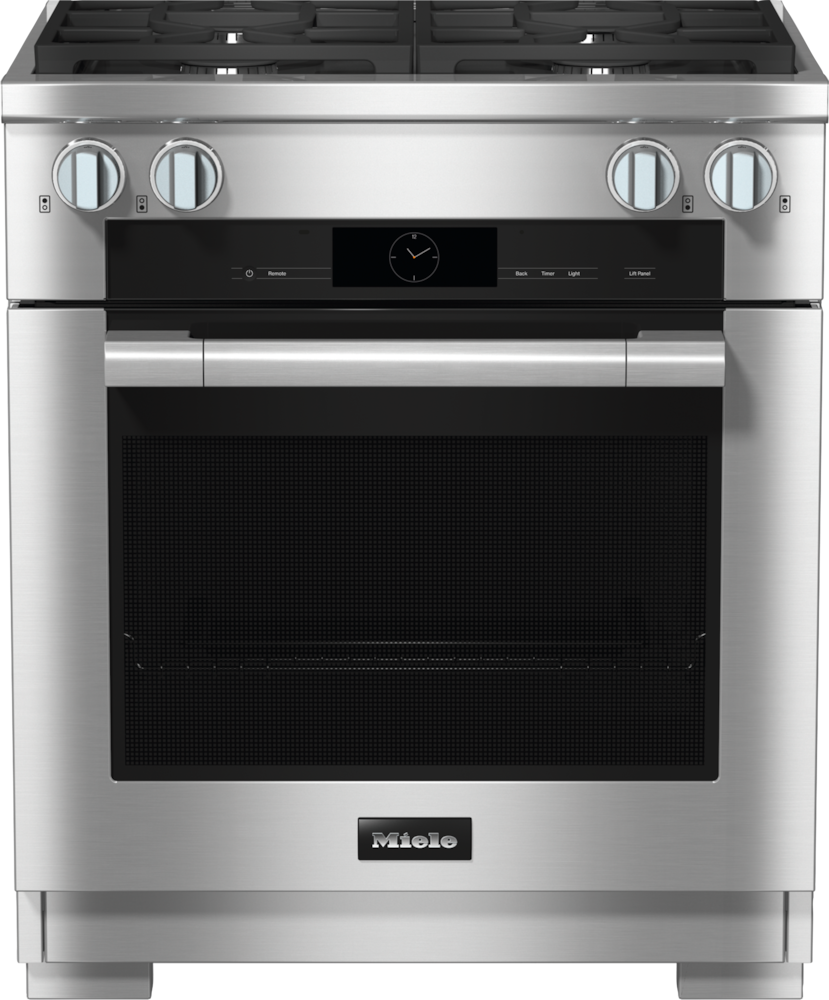

30" Range

HR 1924-3 LP DF Clean Touch Steel

Dual Fuel model with M Touch.

Color:Clean Touch Steel

sale price$8,499.00



Product details

  • Network-enabled WiFi appliance – Miele@home
  • Plenty of space for cooking - four powerful burners
  • Perfect baking and roasting results -Moisture plus

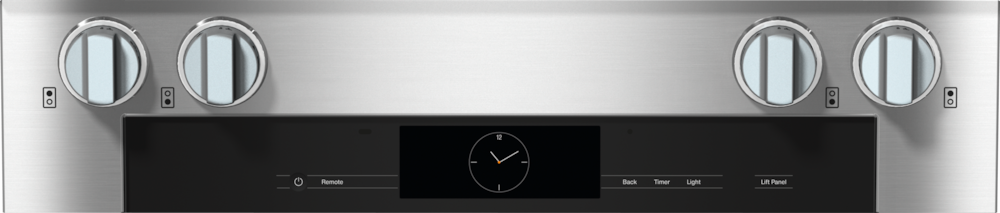

  • Ergonomic and easy operation - motorized lift-up control panel
  • Precise cooking temperature –Wireless Precision Probe

Product data sheet

Dual fuel
Gas typeLiquid propane
Range
Appliance width in inches30
Defrost
Auto roast
Maxi Broil
Broil
Booster
Convection Bake
Convection Roast
Intensive
Moisture plus
Slow roast
Surround
Browning
Bake
Convection Roast
Special modes
Appliance colorClean Touch Steel
Oven displayM Touch
Wireless Precision Probe
Keep-warm function
Crisp function
Number of gas burners4
Number of TrueSimmer burners x power in BTU1 x 8.000
Number of power burners x power in BTU1 x 12.500
Number of high burners x power in BTU3 x 19.500
True Simmer function
GasStop
Networking with Miele@home
Precision knobs
Illuminated knob
ComfortSwivel handle
Motorized lift-up control panel
Sabbath program
MultiLingua
MyMiele
Time synchronization
Time of day display
Date display
Minute minder
Automatic switch-off
Programmable cooking time
Actual temperature display
Default temperatures
Acoustic signal when desired temperature is reached
FavoritesYes
Individual settings
Timed bursts of steam
CleanGlass door
Door contact switch
SoftClose oven door/ SoftOpen
Oven cavity volume in cu. ft. (l)4.59 (130) ft³ (l)
Number of oven shelf levels6
No. of halogen lampsdouble
TwinPower hot air fans
Energy-saving lighting circuit
Residual heat utilization
Rapid PreHeat
Stainless-steel front with partial Clean Touch Steel finish
Oven with self-cleaning program
Catalyzer
Catalyzer
ComfortClean dishwasher-safe grates
Cooktop surfaceBlack enamel
Appliance cooling system with cool touch front
Safety cut-out
System lock
Door contact switch
Door lock during self cleaning
Appliance height min in in.(mm)37 1/8 (942)
Appliance height max in in.(mm)38 5/8 (980)
Appliance depth in in. (depth) with bullnose27 3/4 (702)
Power Rating in V120
Convertible voltage in V240/208
Fuse rating in A30
Number of phases1
Fresh water connection for Moisture Plus
Plumbed water connection for Moisture Plus1.5
Anti-splash insert1
Self Clean ready baking and roasting rack2
Self clean ready baking and roasting racks with rail system1
Side racks self clean ready1
PerfectClean perforated baking tray1
EAN4002516486763

What's included

Anti-splash insert (1)
Self Clean ready baking and roasting rack (2)
Self clean ready baking and roasting racks with rail system (1)
Side racks self clean ready (1)
PerfectClean perforated baking tray (1)

Maintenance

Removes odors and grease from cooking vapours
AirCleanCatalyzer

Reduces grease and odors and prevents deposits from collecting on furniture, walls and curtains.


Efficiently protects and makes cleaning easier
ComfortClean Dishwasher-Safe Grates

Fast cleaning: Remove the pot rests and wash in the dishwasher. Fast clean-up with dishwasher-safe grates.


Treat yourself to minimum effort
Self Clean Oven and Self Clean Ready Accessories

Less cleaning effort: The grease residue is broken down, helping to keep the oven and cooking accessories clean.


Protection for immaculate stainless steel surfaces
Clean Touch Steel™Front

No fingerprints on stainless steel: surface has special finish which keeps clean without special cleaning agents.


User convenience

Perfect ergonomic design
ComfortSwivel Handle

Convenient opening and closing: The ergonomic twist handle makes operating the appliance door easy.


Save frequently used settings
Favorites

For favorite dishes: Simply select operating mode, temperature and duration and save settings for repeated use.


Appliance configuration according to your wishes
Individual settings

You decide: Language, buzzer tones, display brightness and much more can be individually adjusted.


Leave time management to your oven
Timer Function

Always on time: The start time, finish time and duration of the cooking process are easy to select.


Everything is well thought through
Soft Open and Soft Close

The Range oven door effortlessly opens and closes, preventing the door from shutting or slamming.


Cleverly networked
Appliance networking with Miele@home1,

Make your life smart: thanks to Miele@home you can cleverly network your domestic appliances – for more options.


Special features

Added moisture for optimal results.
Moisture Plus

Improved roasting and baking: moisture ensures an incredibly light dough and a nicely browned crust.


Targeted moisture reduction in compartment
Crisp function

For a crispy finish: Some food is cooked better using dry heat, such as pizza or French fries.


Efficiency and sustainability

Conserve heat and energy
Residual Heat Utilization

Ecological and economical: Miele ovens turn off early and use residual heat to complete the cooking process.


Oven cabinets

Your guarantee for perfect results
Rapid PreHeat

The All Gas Range allows for constant airflow resulting in quick preheat times, powerful bake and broil elements.


Reaches the desired temperature very quickly
TwinPower Convection Blowers and Power Convection Blower

Quickly ready for use: 2 hot air blowers heat the oven very rapidly with optimum hot air distribution.


Safety

Pleasantly cool surfaces
Cooling System and Cool-Touch Fronts

Maximum protection: All surfaces on and around the appliance remain cool and can be touched safely.


Automatic switch-off for maximum safety
Safety functions

Your guardian angel: If you forget to switch off the appliance, the safety switch-off steps in for you.


Operating modes

Surround

Multi-purpose, classic function: perfect results on all traditional baking and roasting dishes.


Moisture Plus

As if fresh from the baker: moisture ensures an incredibly light dough and a nicely browned crust.


Intensive

Crispy bases, tasty toppings: For pizza, quiche or flans, the base will be crispy, the topping will be moist.


Auto Roast

Meat stays tender: Meat is seared at a high temperature and cooked to perfection with individual temperatures.


Convection Roast

Crispy on the outside, succulent inside: Ideal for chicken, duck, joints, rolled meat and many other meat dishes.


Bake

Individual requirements: For dishes which need to be cooked in a bain marie or browned from below.


Favorites

For favorite dishes: Simply select operating mode, temperature and duration and save settings for repeated use.


Maxi Broil

Versatile function for indoors: For grilling large quantities of steak, sausages, kebabs, etc.


Broil

Designed for small quantities: Ideal for small amounts of food such as steak and sausages. Perfect every time.


Browning

Perfect finish: The final touch - ideal for gratins, glazing and browning


Slow Roasting

For perfect results: With low temperatures, meat recipes automatically become specialities.


Special Modes

The ideal assistant for special tasks: for example thawing, dehydrating, heating up or quick pre-cooking.


Sabbath

Miele's unique Sabbath mode allows individuals up to 72 hours of pre-programmed cooking in their oven.


Crisp function

For a crispy finish: Some food is cooked better using dry heat, such as pizza or French fries.


Defrosting

Gentle on frozen food: Frozen food is gently defrosted under ideal conditions using cool air.


Convection Bake

Perfectly soft and light: ideal for gentle baking on up to two levels.


Convection Roast

Perfectly soft and light: ideal for gentle roasting on up to two levels.


Downloads

Warranty conditions
PDF
Downloads
Product sheet
PDF
Downloads
Operating and Installation instructions
PDF
Downloads
Operating and Installation instructions
PDF
Downloads
rvt
ZIP
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000013/200001359/20000135985.png
Descriptions
HR1924 (installation drawing)
E = Electric Connection, W = Water connection, G = Gas connection
Downloads
https://media.miele.com/images/2000017/200001741/20000174152.png
Descriptions
HR19x4, HR193x, HR195x (installation drawing)
(x) = Toe-kick height adjustment 5" - 6 1/2" (127 mm - 165.1 mm)
Downloads
https://media.miele.com/images/2000018/200001801/20000180175.png
Descriptions
HR11xx, HR19xx, HR 17xx - Installation drawing
1 Anti-tip device , 2 Screws, 3 Locking nut
Downloads
https://media.miele.com/images/2000018/200001801/20000180176.png
Descriptions
HR11xx, HR19xx - Installation drawing
1 Anti-tip device , 2 Screws, 3 Locking nut
Downloads
https://media.miele.com/images/2000018/200001801/20000180177.png
Descriptions
HR11xx, HR19xx, HR17xx - Installation drawing
1 Anti-tip device , 2 Screws, 3 Locking nut
Downloads
https://media.miele.com/images/2000018/200001801/20000180179.png
Descriptions
HR11xx, HR19xx, HR17xx - Installation drawing
X 3 13/16" (97 mm): HR1124, HR1134, HR1135, HR1136, HR1724, HR1924, HR1934, HR1935, HR1936, HR1954, HR1955, HR1956, , X 3 1/4" (82 mm): HR1134-2, HR1134-3, HR1135-2, HR1135-3, HR1136-2, HR1136-3, HR1924-2, HR1924-3, HR1934-2, HR1934-3, HR1935-2, HR1935-3, HR1936-2, HR1936-3, HR1954-2, HR1954-3, HR1955-2, HR1955-3, HR1956-2, HR1956-3
Downloads
https://media.miele.com/images/2000018/200001801/20000180180.png
Descriptions
HR11xx, HR19xx, HR17xx - Installation drawing
1 Toe kick cover , 2 Locking clamp
Downloads
https://media.miele.com/images/2000018/200001801/20000180189.png
Descriptions
HR11xx, HR19xx, HR17xx - Installation drawing
A = Distance between the rear of the range to the supporting wall
Downloads
https://media.miele.com/images/2000018/200001801/20000180187.png
Descriptions
HR19xx - Installation drawing
① Maximum depth of top cabinet , ② Minimum distance to bottom edge of top cabinet , ③ Distance from the floor to cooktop surface, ④ Minimum distance to combustible surfaces , , E = Electric connection, W = Water connection, G = Gas connection , , (A) Width of cabinet opening, (B) Minimum distance between the top of the cooking area and the bottom of an unprotected combustible surface. Minimum distance to a protected combustible surface or when a Miele Ventilation Hood is installed. For all other Hoods please consult the manufacturer's specifications for required distances., (C) Maximum connection width right and left , (D) Maximum connection height , (E) Maximum connection depth
Downloads
https://media.miele.com/images/2000018/200001801/20000180181.png
Descriptions
HR11xx, HR19xx, HR17xx - Installation drawing
1 Opening in the range housing , 2 Bolt of the anti-tip device , 3 Locking clamp with slot
Downloads
https://media.miele.com/images/2000019/200001971/20000197113.png
Descriptions
HR1924-3, HR1934-3, HR1935-3, HR1936-3, (*Fußnote) Side view, installation drawing
(x) = Toe-kick height adjustment 5” - 6 1/2” (127 mm - 165.1 mm)
Downloads
https://media.miele.com/images/2000019/200001996/20000199656.png
Descriptions
HR11xx-3, HR14xx-3, HR16xx-3i, HR17xx-3, HR19xx-3 installation drawings
30", ① 20 ¾” / 527,6 mm, ② 16 5/8” / 422,6 mm, ③ 2 ½” / 64 mm, ④ 1 11/16” / 43 mm, ⑤ 1 11/16” / 42,5 mm, , 36", ① 28 9/16” / 725 mm, ② 22 5/8” / 575 mm, ③ 2 ½” / 64 mm, ④ 1 11/16” / 43 mm, ⑤ 1 11/16” / 42,5 mm
Downloads
https://media.miele.com/images/2000019/200001996/20000199676.png
Descriptions
HR1924-3 (installation drawing)
(x) = Toe-kick height adjustment 5" - 6 1/2" (127 mm - 165.1 mm)
Downloads
https://media.miele.com/images/2000019/200001996/20000199692.png
Descriptions
HR1924-3, HR1934-3, HR1935-3, HR1936-3, HR1954-3, HR1955-3, HR1956-3 (installation drawing)
Installation drawings
