Handleless vacuum sealing drawer, 24" width and 5 5/8" height

EVS 7010 AM Obsidian black

for professional vacuum sealing of food.

Color:Obsidian black

sale price$3,399.00



Product details

  • Remaining fresh for longer – storage and portioning of food
  • Intense taste sensations – food marination
  • Preparation of food for sous-vide cooking
  • Easy handling –Touch controlandfully telescopic runners
  • Push2open– opening the drawer couldn’t be easier

Product data sheet

Built-in vacuum drawer
VitroLine
ArtLine
No Handles
ColorObsidian black

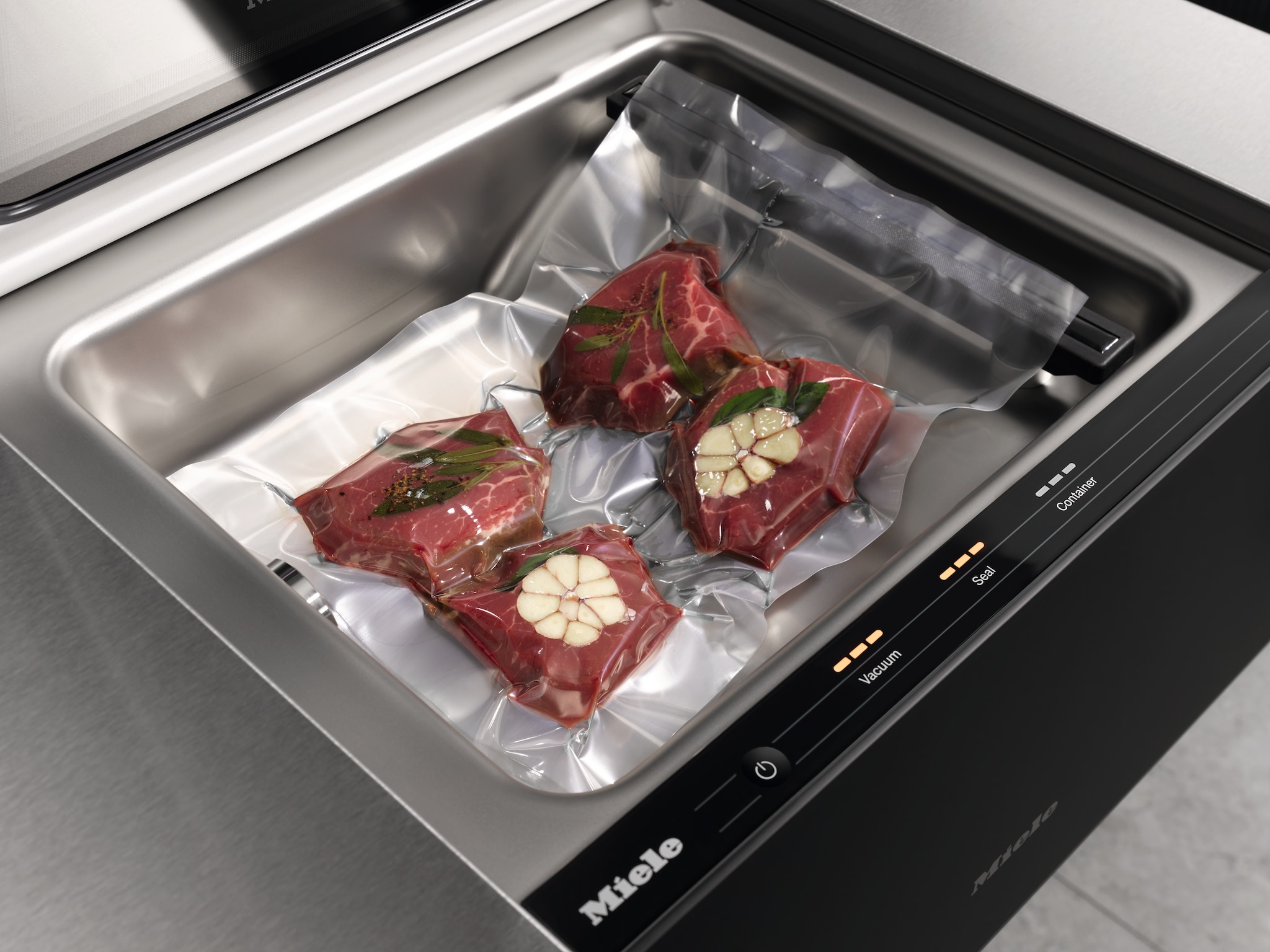

Preparing for Sous Vide cooking
Longer food storage life
Marinating food
Vacuuming
Vacuum sealing food
Marinating food
Dividing food into portions
Vacuum sealing containers
Resealing original packaging
Sealing jars
Vacuum sealing liquids
Stainless-steel vacuum sealing chamber capacity in l8
Minimum bag size in inch (mm)9 7/8 (250)
Maximum bag size in mm13 7/8 (350)
Push2open mechanism
Fully telescopic runners for easy loading and unloading
Control panel with sensor control
Control panel with text
Timers
Stop programming
Timer function
Min. vacuum settings1
Max. vacuum settings3
LED vacuum setting indicator
Min. vacuum settings for external containers1
Max. vacuum settings for external containers3
LED vacuum strength indicator for external containers
Sealing duration settings1 - 3
LED sealing duration indicator
Stop function
Stainless-steel vacuum chamber
Pump capacity in m³/h2.35 (4)
Flush control panel
Note regarding moisture removal from the vacuum pump
Replaceable sealing bar
Safety cut-out
Appliance width in in. (mm)23 1/2 (595)
Appliance height in in. (mm)5 5/8 (141)
Appliance depth in in. (mm)22 1/2 (570)
Appliance dimensions (W x H x D) in inches (mm)23 1/2 (595) x 5 5/8 (141) x 22 1/2 (570)
Useable interior height in in. (mm)3 1/4 (80)
Voltage in V120
Frequency in Hz60
Fuse rating in A10
Number of phases1
Connection wire with plugYes
Wire length in ft. (m)5 (1.8)
Adapter for vacuum-sealing container1
Vacuum sealing bag support1
EAN4002516491408

What's included

Adapter for vacuum-sealing container (1)
Vacuum sealing bag support (1)

User convenience

Perfectly prepared

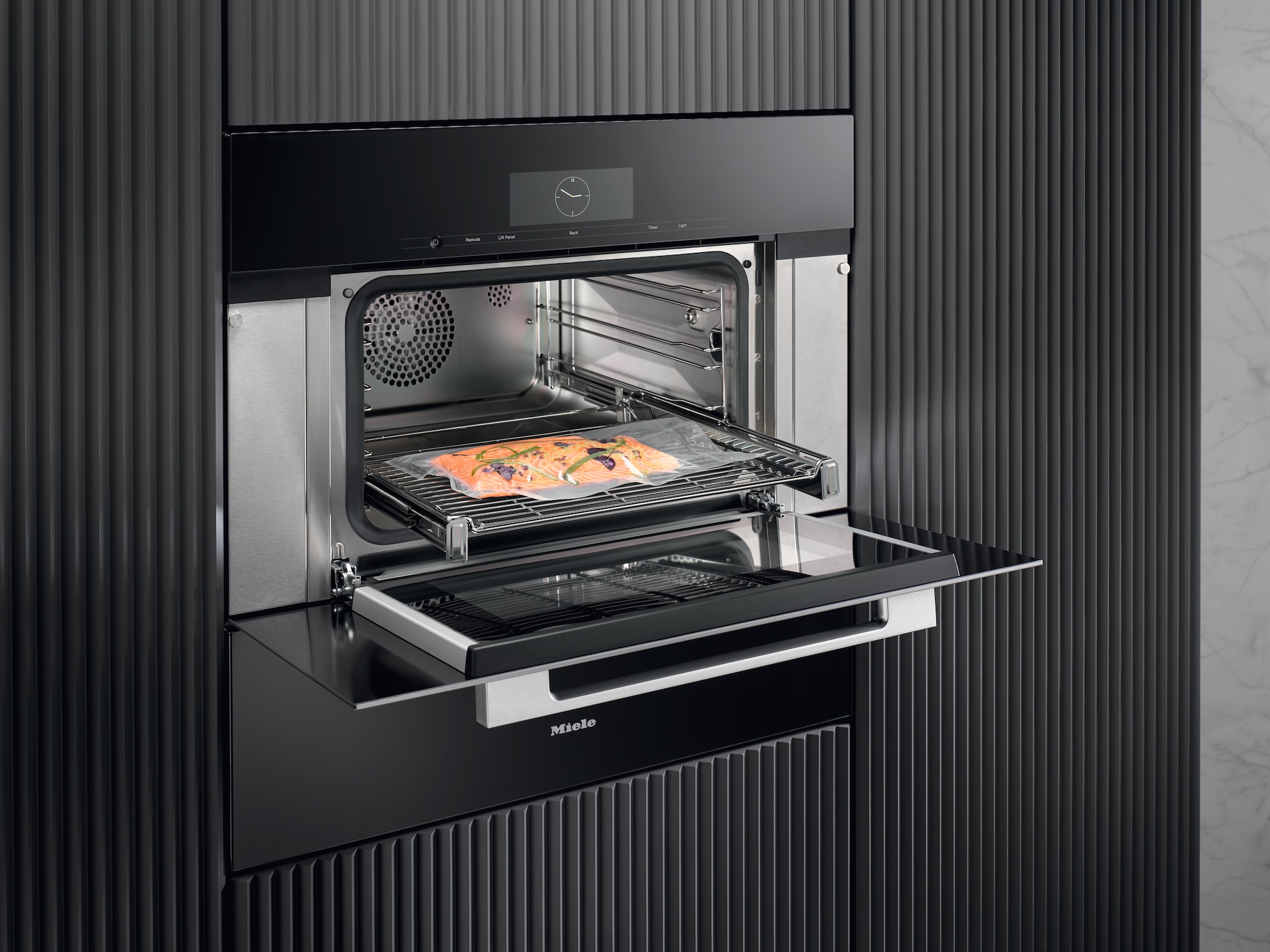

Preparation for sous-vide cooking

Perfect for sous-vide cooking: Vacuum-sealed foods retain their flavor and nutrients.


One touch is all it takes

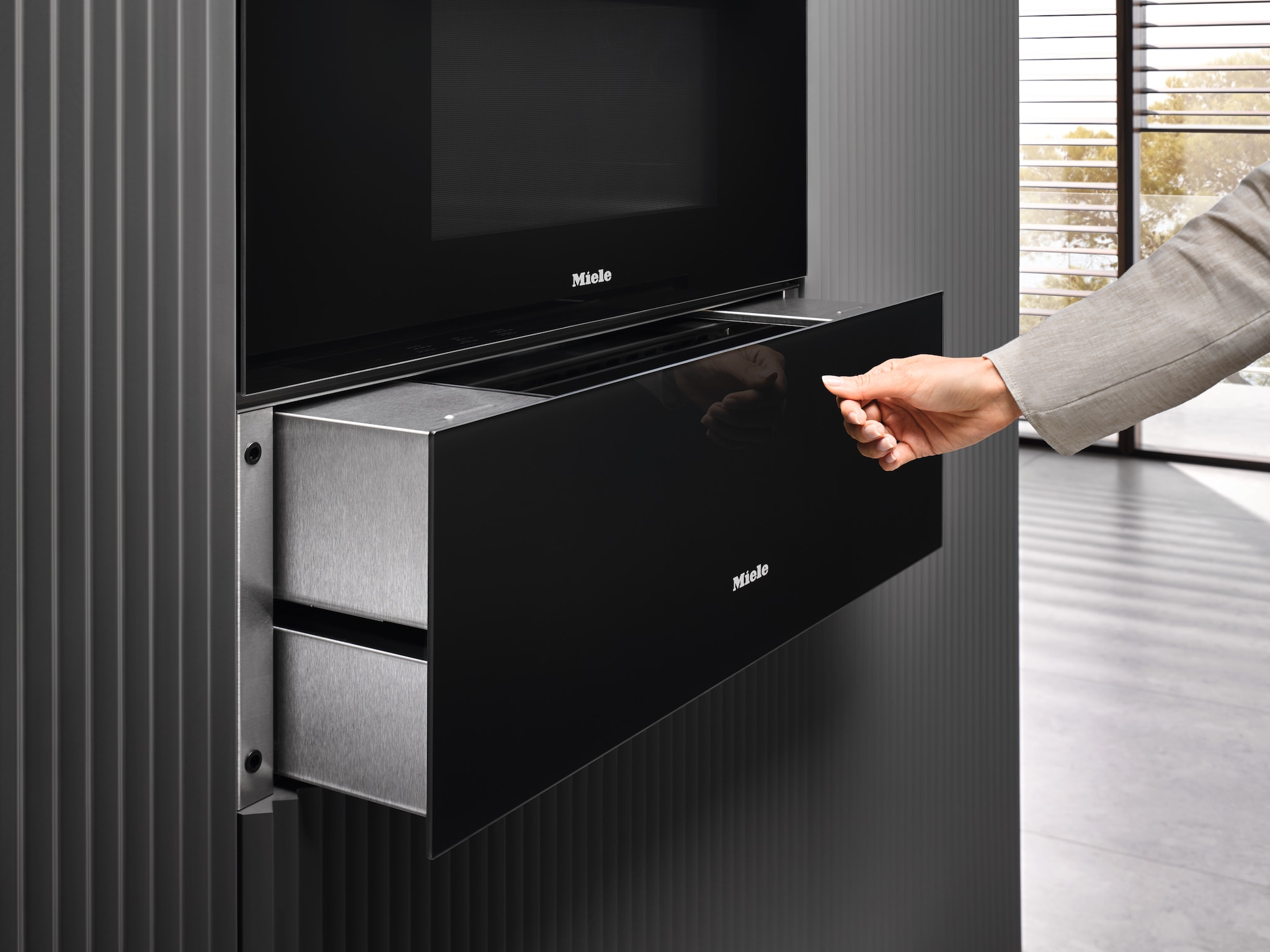

Push2open

Open in no time: Light pressure on the drawer is all it takes.


Enough space for every size
Large useable space

Whether large or small volumes: The useable space is suitable for bags up to a size of 10 x 14" (250 x 350 mm.


Wide range of options
Wide range of applications

With our vacuum-sealing drawer, you can divide food into portions, prepare it for storage, and much more.


Practical and ergonomic
Fully telescopic runners

So convenient: you can open the drawer fully so it is easy to load or unload.


Customizable vacuum-sealing duration
Variable vacuum-sealing duration

Perfect for every bag thickness: You can choose from 3 sealing settings, depending on the material of the bag.


Intuitive and minimalist

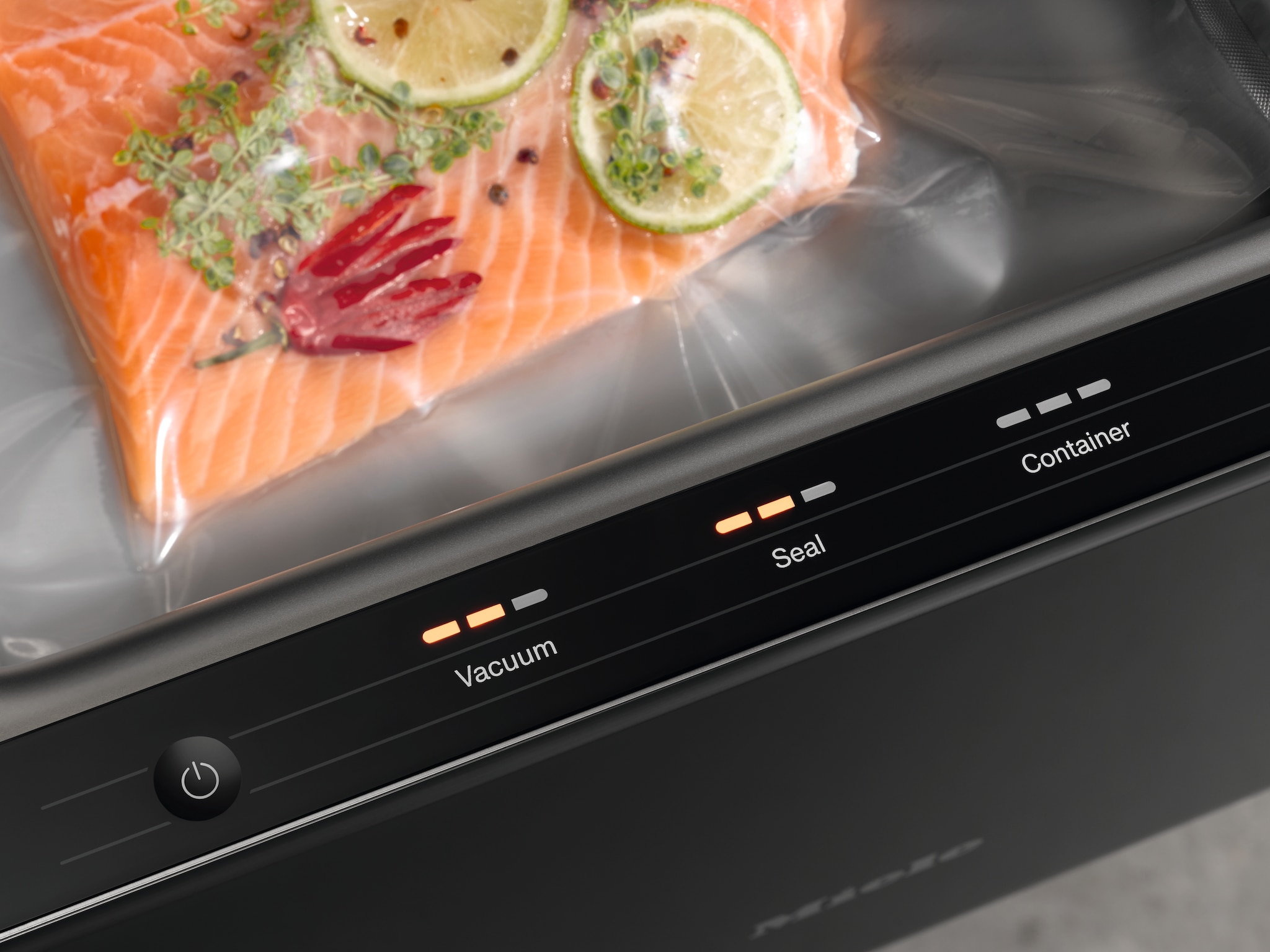

SensorTouch controls

Elegant and easy to clean: A state-of-the-art, flush-mounted touch panel makes the appliance convenient to use.


Special features

Food that lasts longer and is perfectly prepared
Vacuum-sealing

Ideal conditions: Vacuum-seal food for storage, portioning, marinating, and resealing.


Suitable for every application
Three vacuum settings

Customize: You can choose from 3 settings when vacuum-sealing – there is one that suits any food you may cook.


Gourmet versatility

Longer storage life
Longer storage life

Store food in ideal conditions: Vacuum seal your food to keep it fresher for longer.


The right amount
Portioning

Whether you’re cooking a feast or dinner for one – make individual portions for storing or sous-vide cooking.


Maximum taste
Marinating

Create amazing taste sensations by vacuum sealing food with herbs and marinades.


Always in perfect condition
Vacuum sealing in containers

Preserving food in containers: Delicate foodstuffs such as fruit or herbs are left intact.


Food stays fresh – even once opened
Re-sealing

Keep food tasting fresh: Reseal opened packaging gently and securely.


Tightly sealed
Sealing jars

Store food securely to keep it fresh: Pesto, baby food, and much more can be vacuum sealed in jars.


Securely stored
Vacuum sealing liquids

Save space and store food securely: Even liquids can be easily vacuum sealed in a plastic bag.


Downloads

Warranty conditions
PDF
Downloads
Product sheet
PDF
Downloads
Operating and Installation instructions
PDF
Downloads
rvt
ZIP
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000017/200001724/20000172414.png
Descriptions

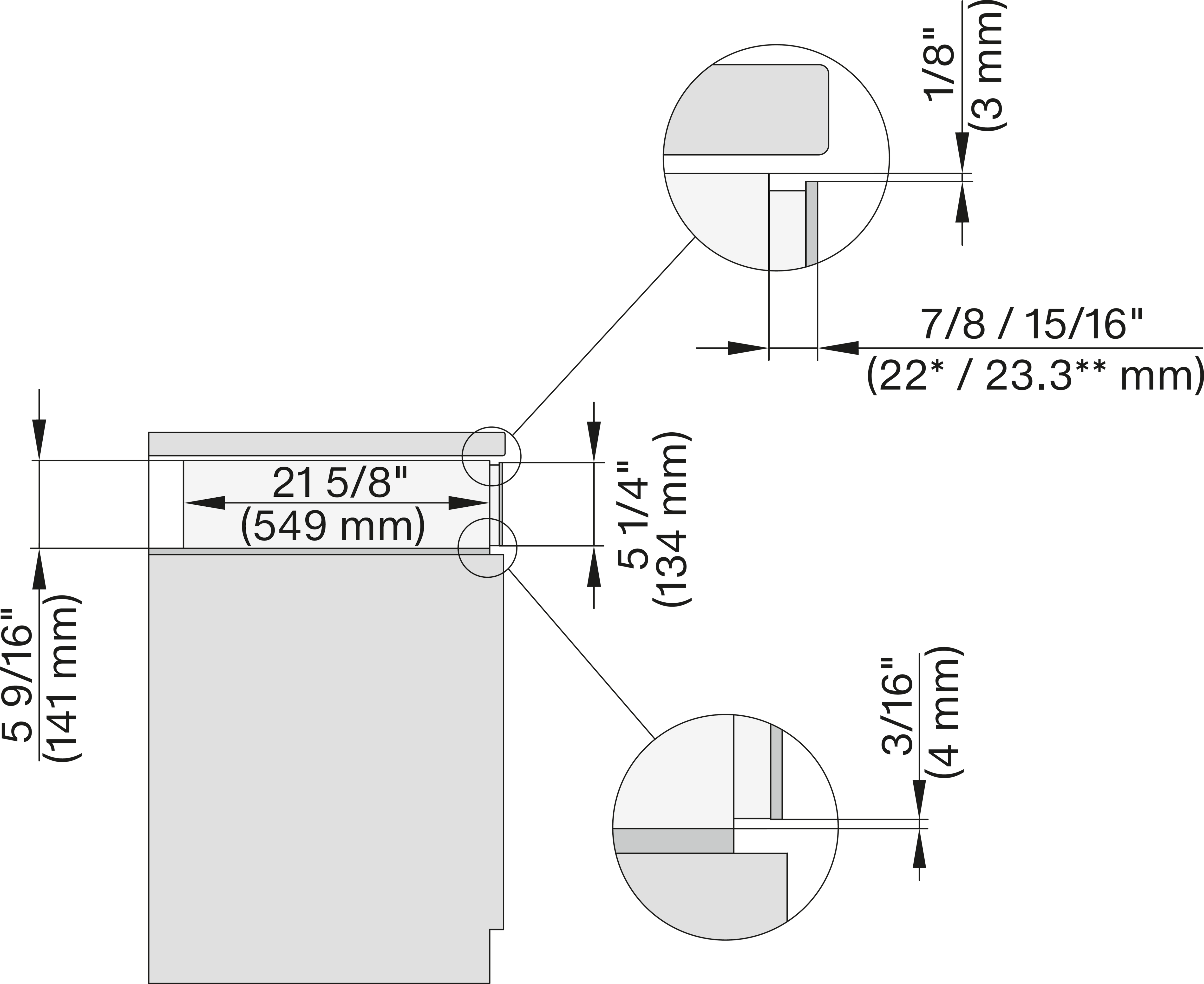

side view Flush inset built-under EVS, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads

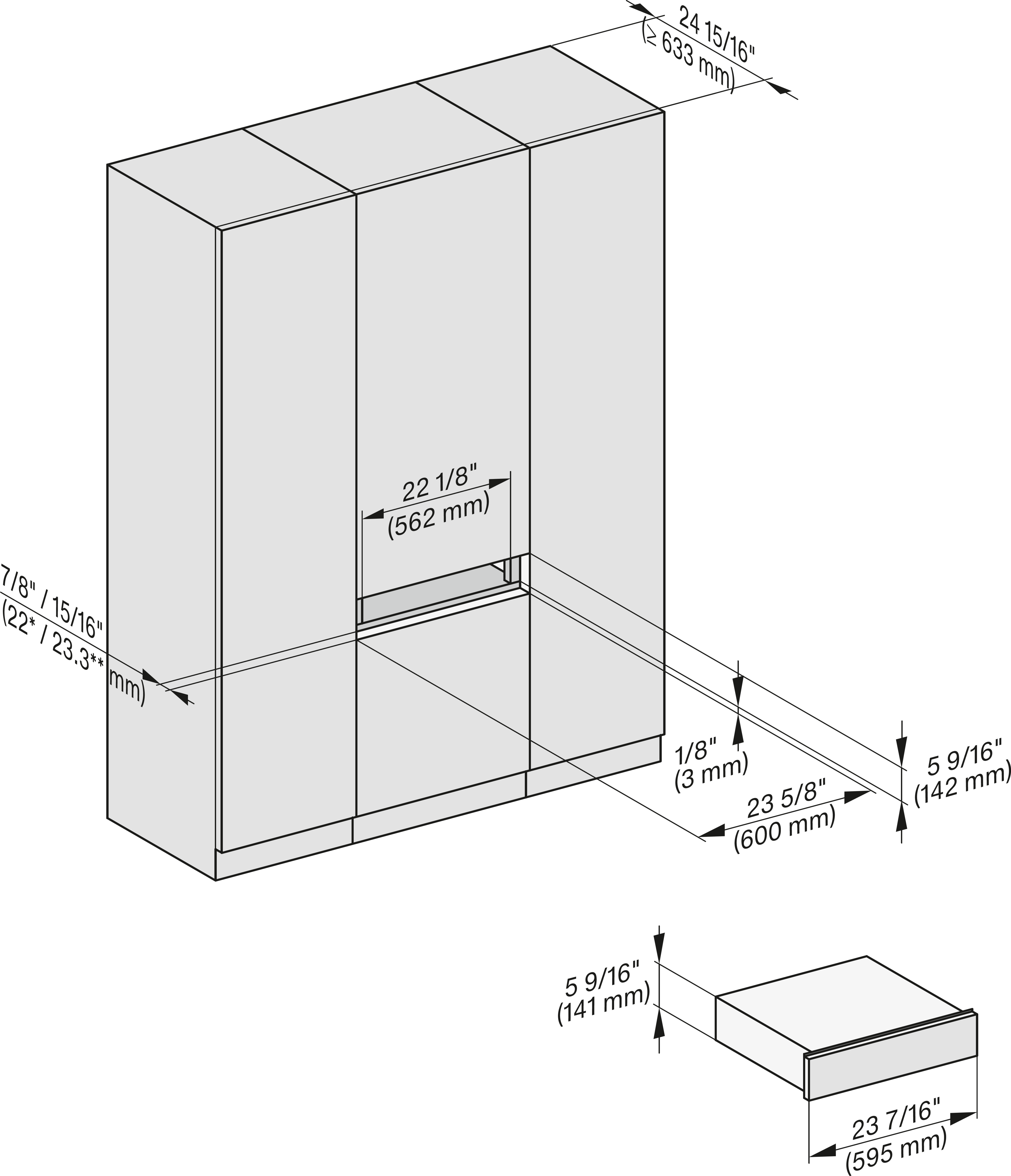

https://media.miele.com/images/2000017/200001724/20000172420.png
Descriptions
installation Flush inset ESW6x14 EVS, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001724/20000172426.png
Descriptions

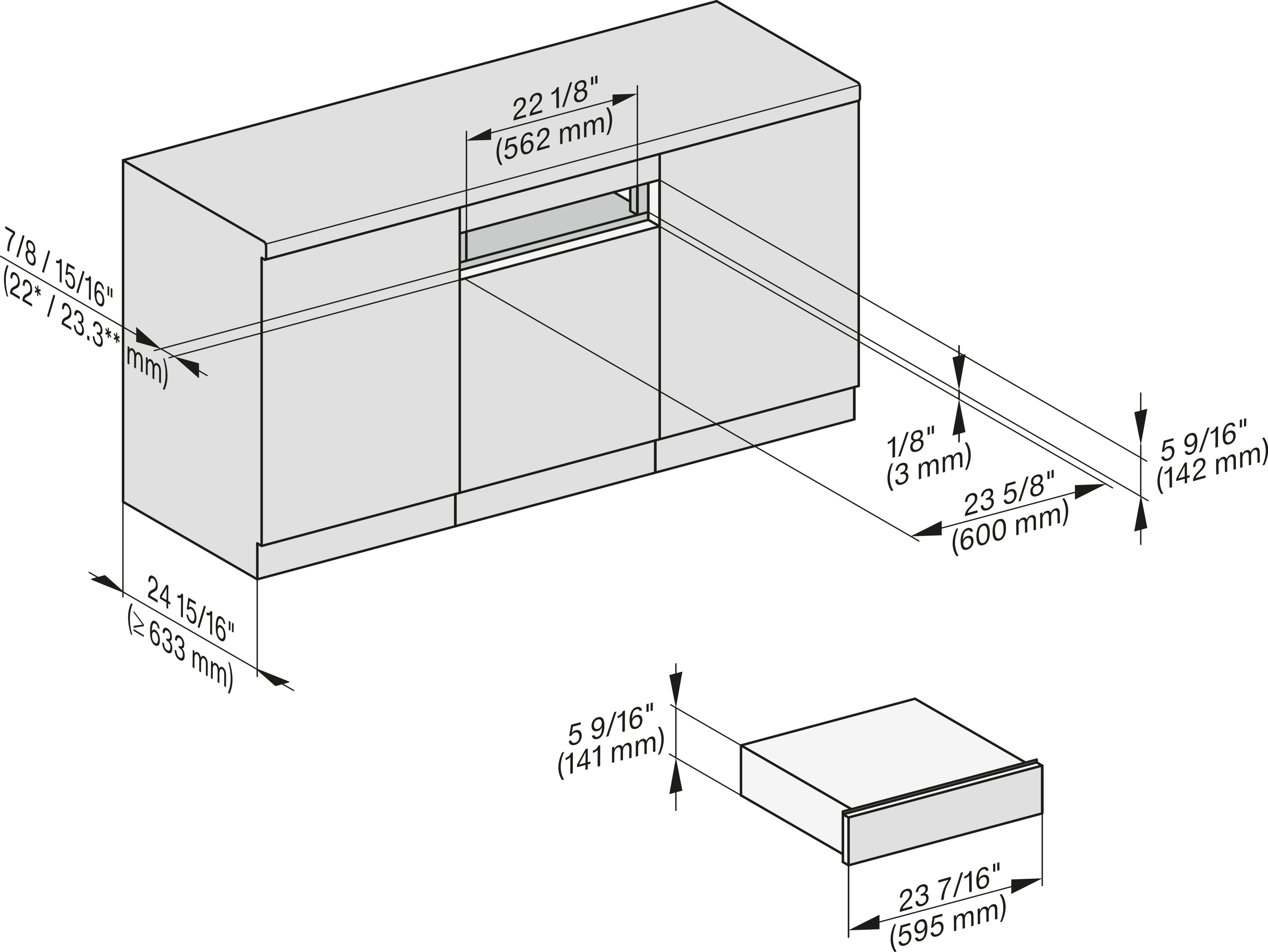

installation Flush inset built-under EVS, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads

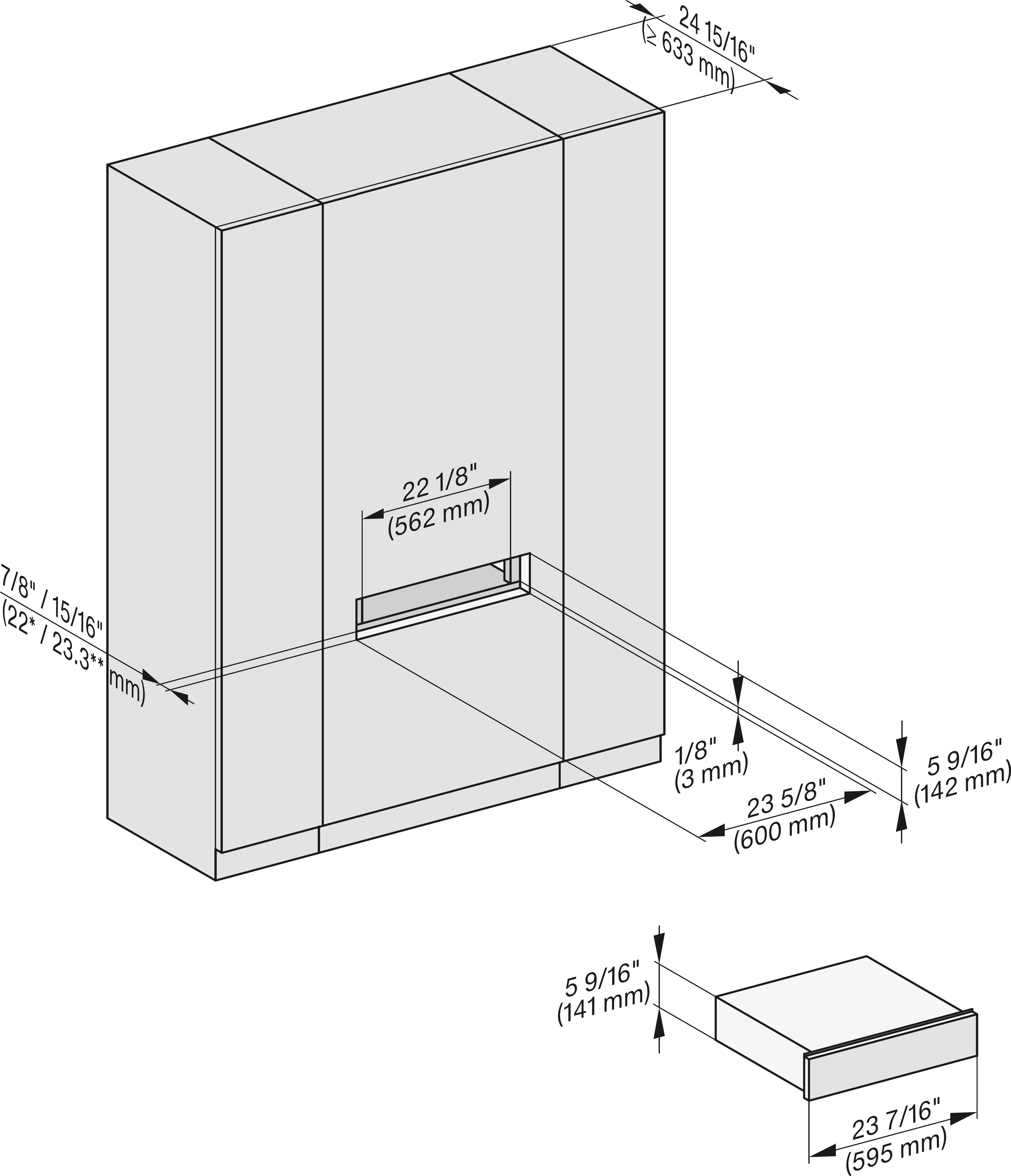

https://media.miele.com/images/2000017/200001724/20000172432.png
Descriptions
installation Flush inset wide front ESW6x14 EVS, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001724/20000172438.png
Descriptions
installation Flush inset built-under wide front EVS, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001724/20000172447.png
Descriptions

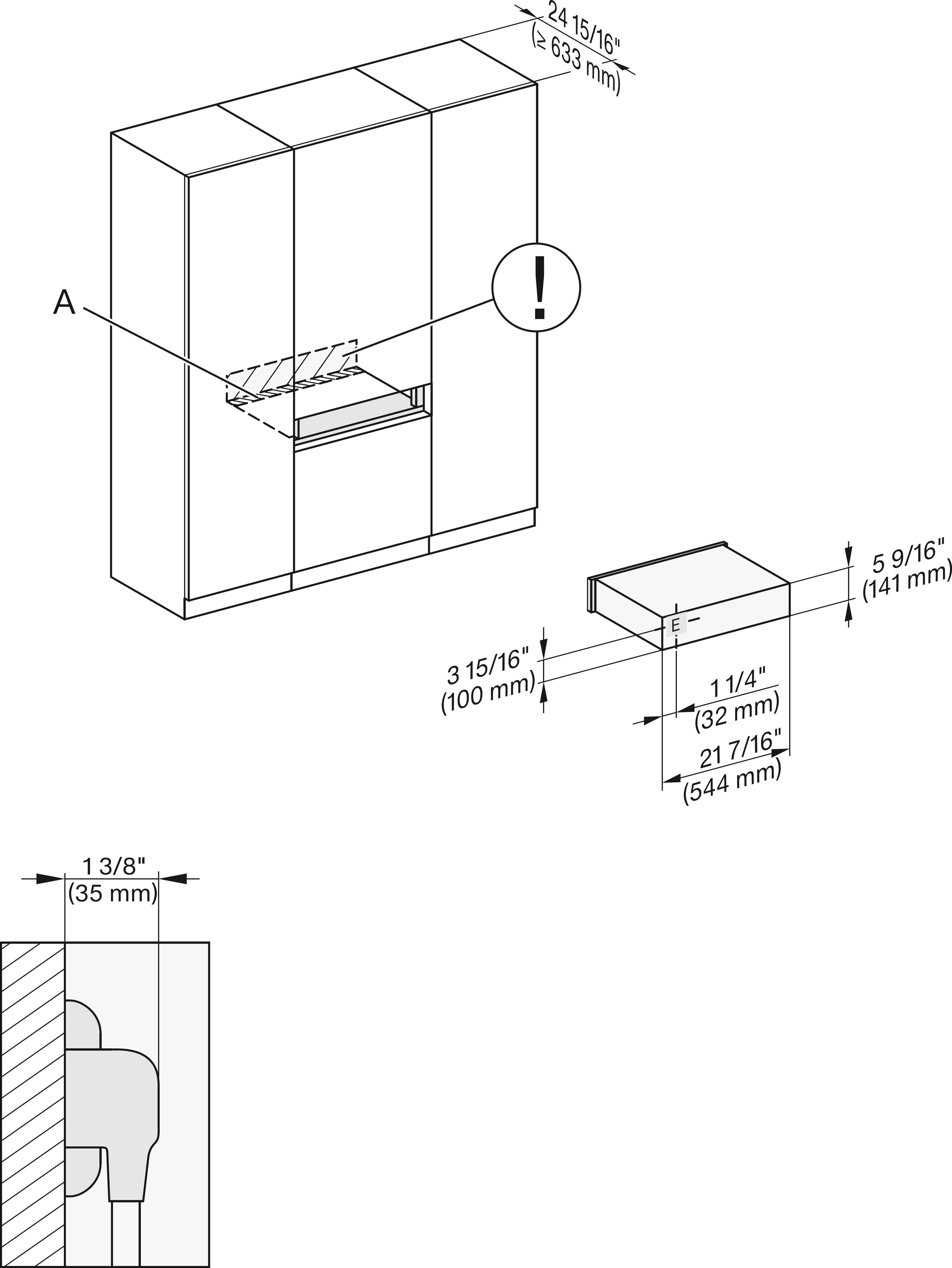

installation Flush inset ESW6x14 EVS, installation drawing, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection, n
Downloads
https://media.miele.com/images/2000017/200001724/20000172456.png
Descriptions

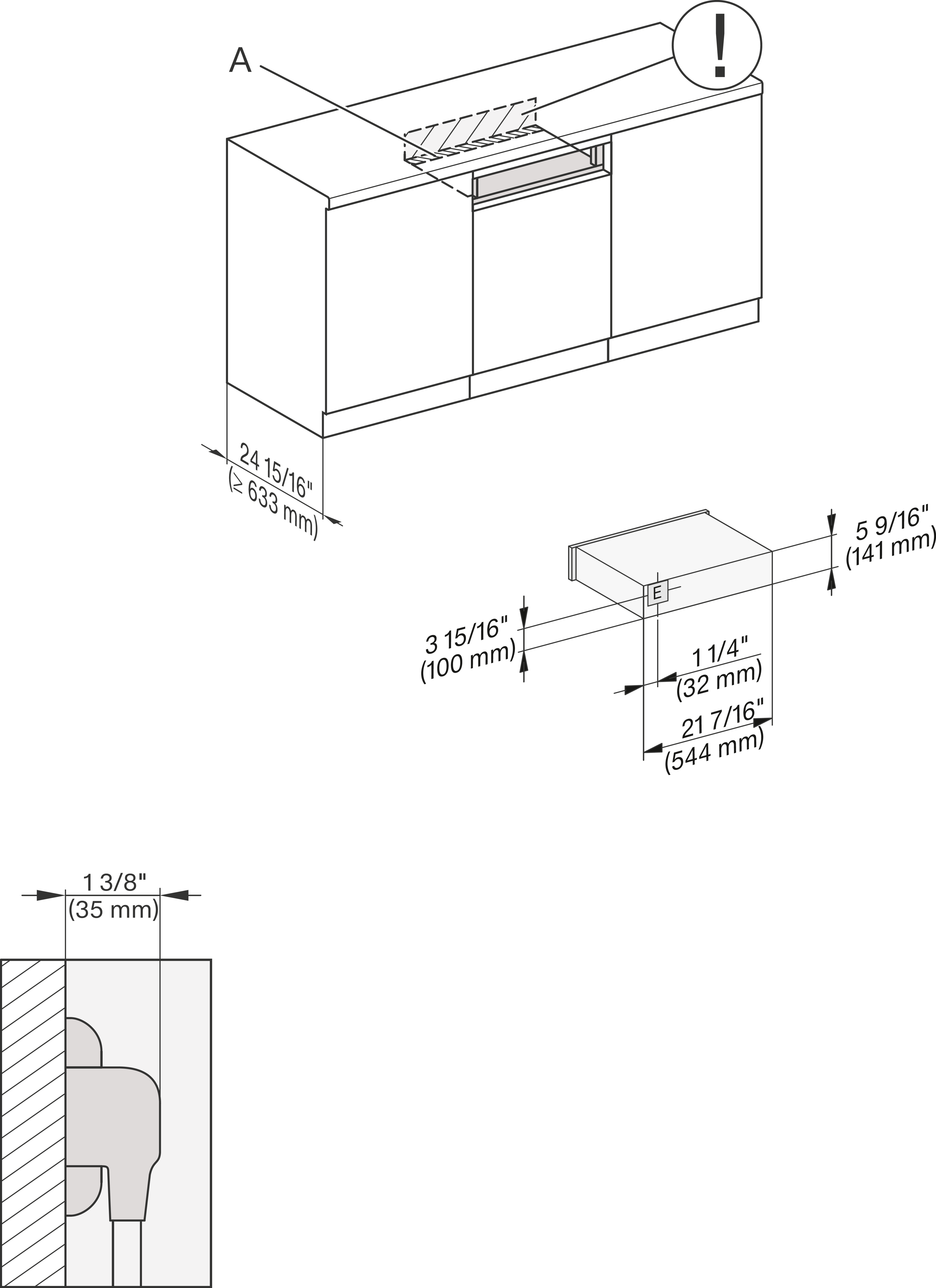

installation Flush inset built-under EVS, installation drawing, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001724/20000172465.png
Descriptions

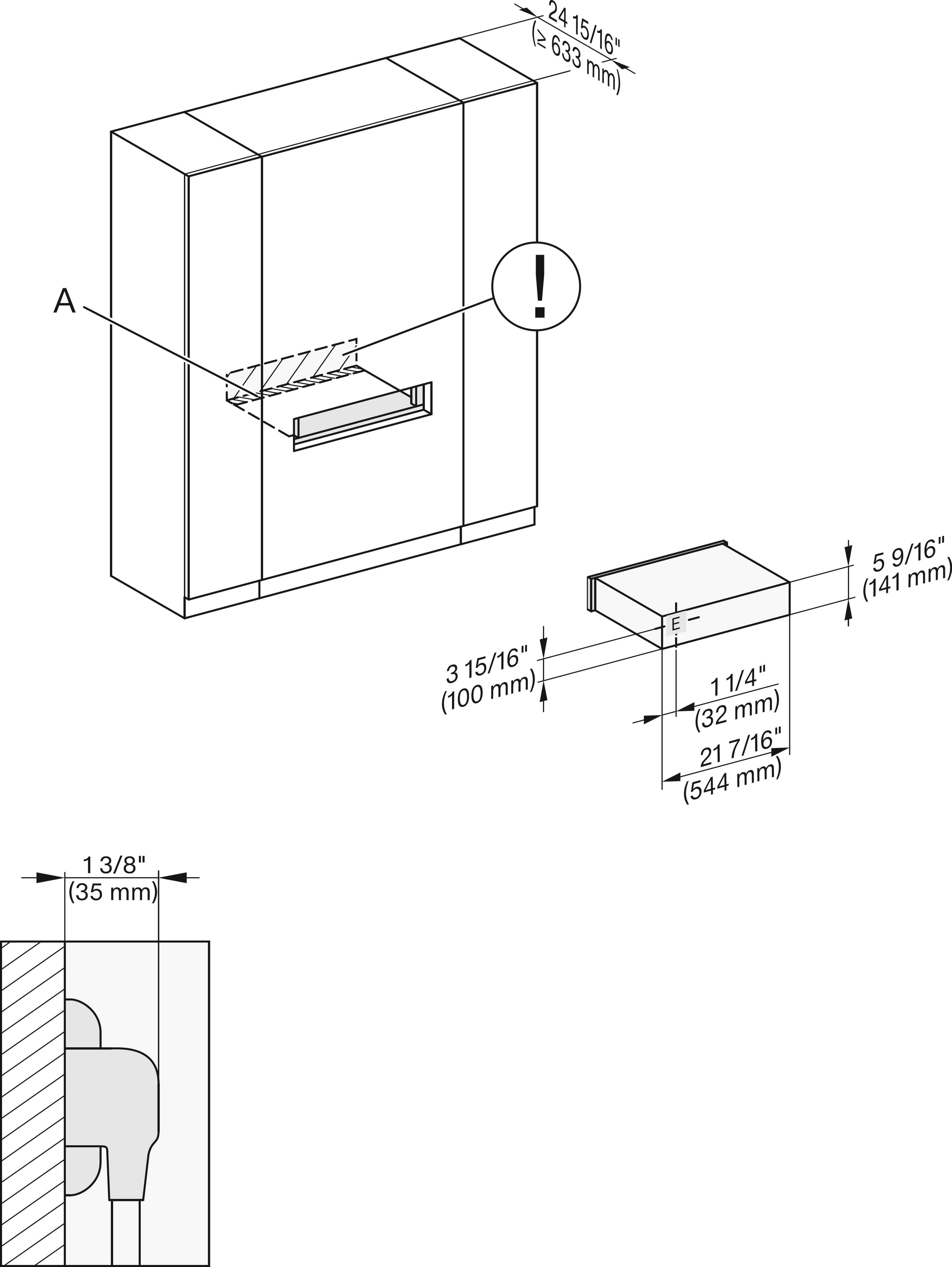

installation Flush inset wide front ESW6x14 EVS, installation drawing, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection, n
Downloads

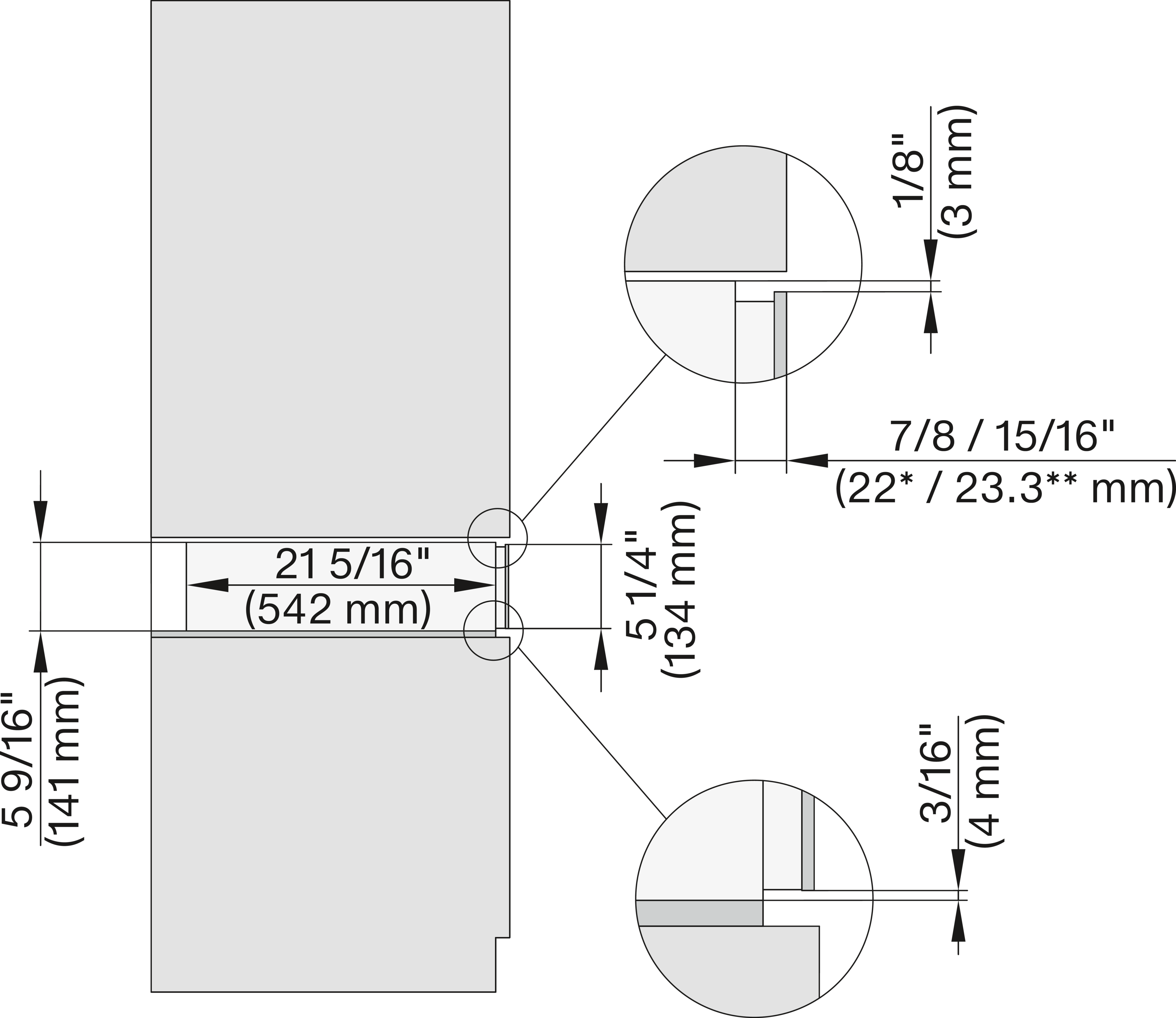

https://media.miele.com/images/2000017/200001724/20000172405.png
Descriptions
side view, Flush inset ESW6x14, EVS, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001724/20000172474.png
Descriptions

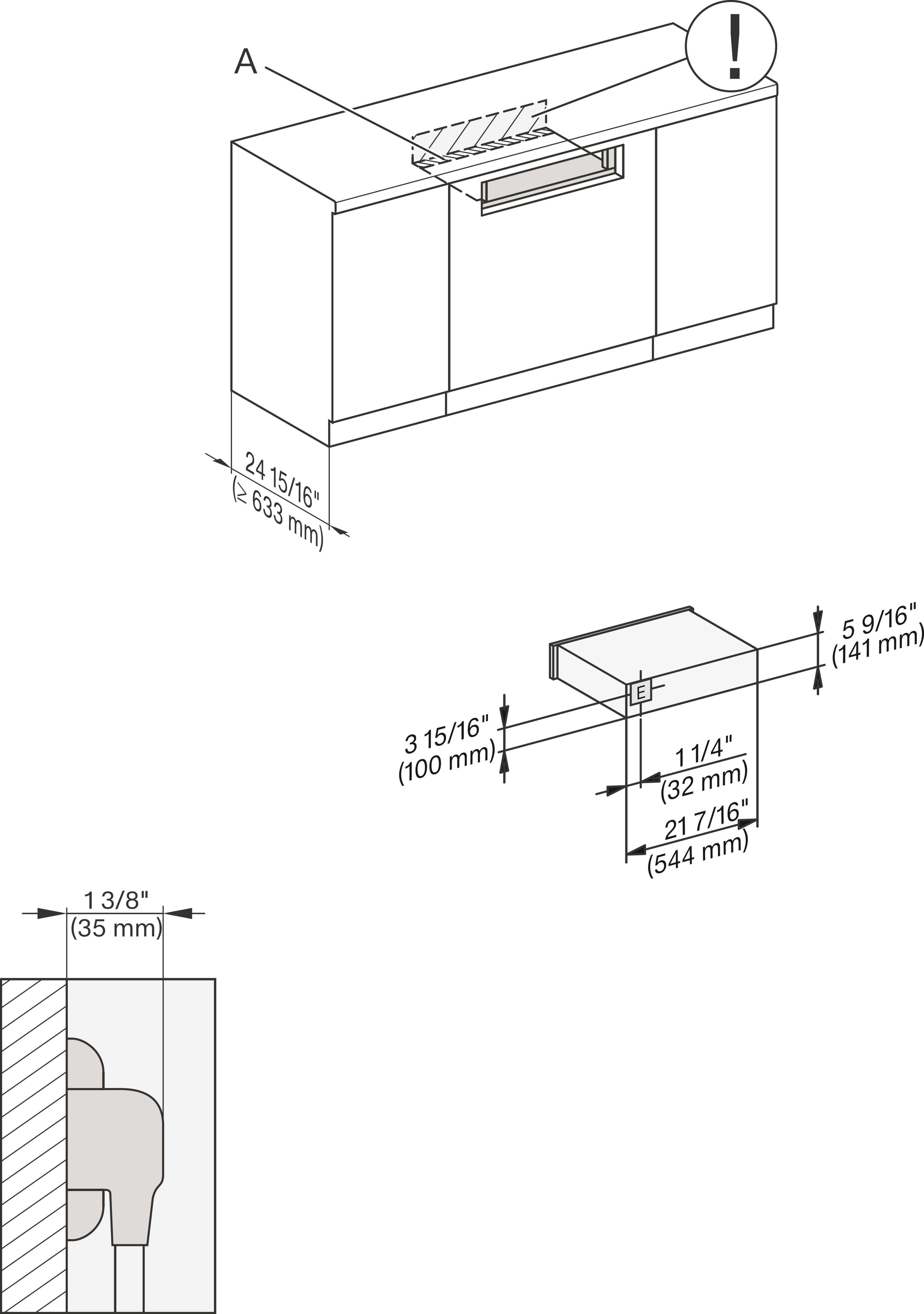

installation Flush inset built-under wide front EVS, installation drawing, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads

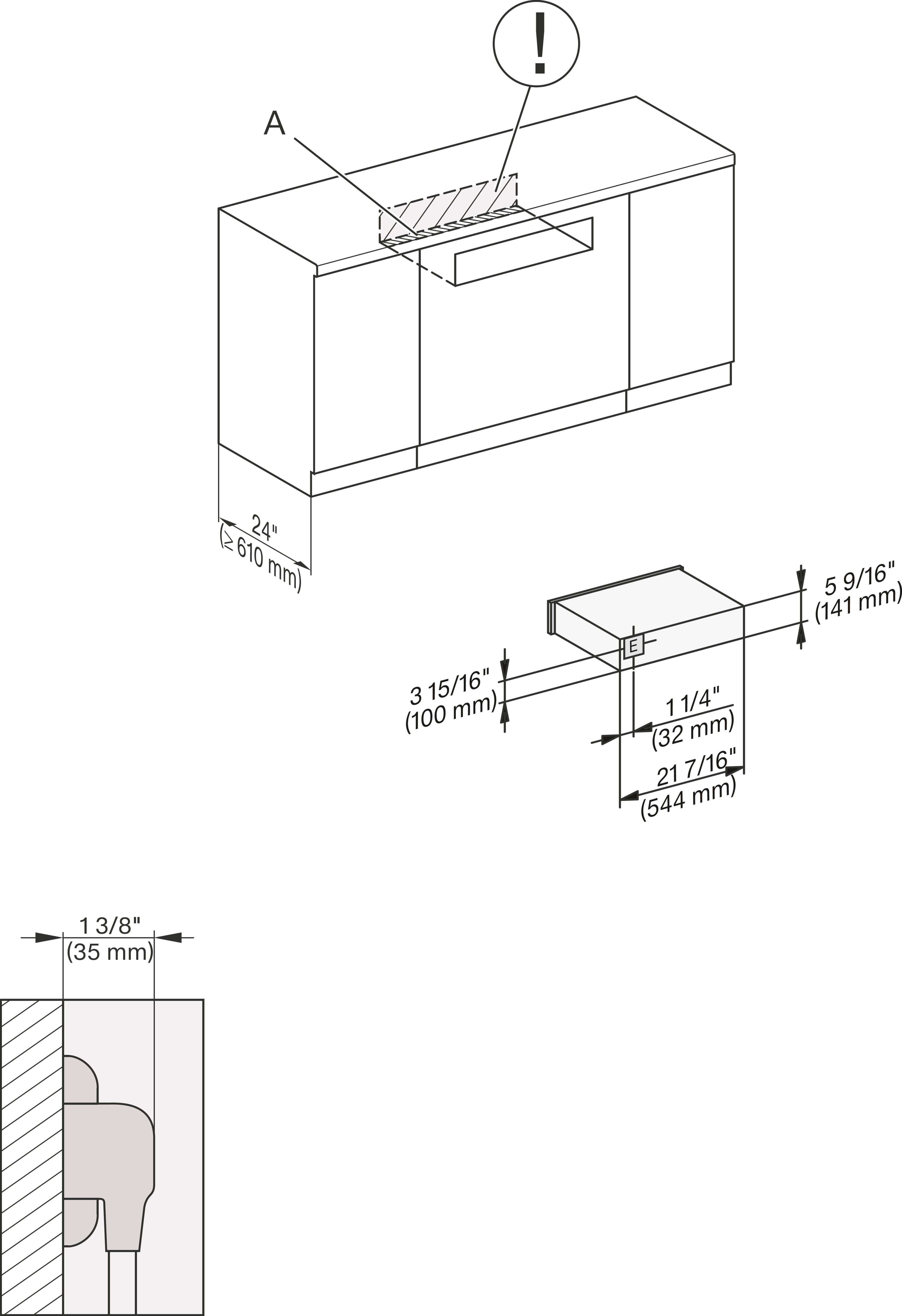

https://media.miele.com/images/2000017/200001725/20000172555.png
Descriptions
installation Proud built-under wide front EVS, installation drawing, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001724/20000172486.png
Descriptions

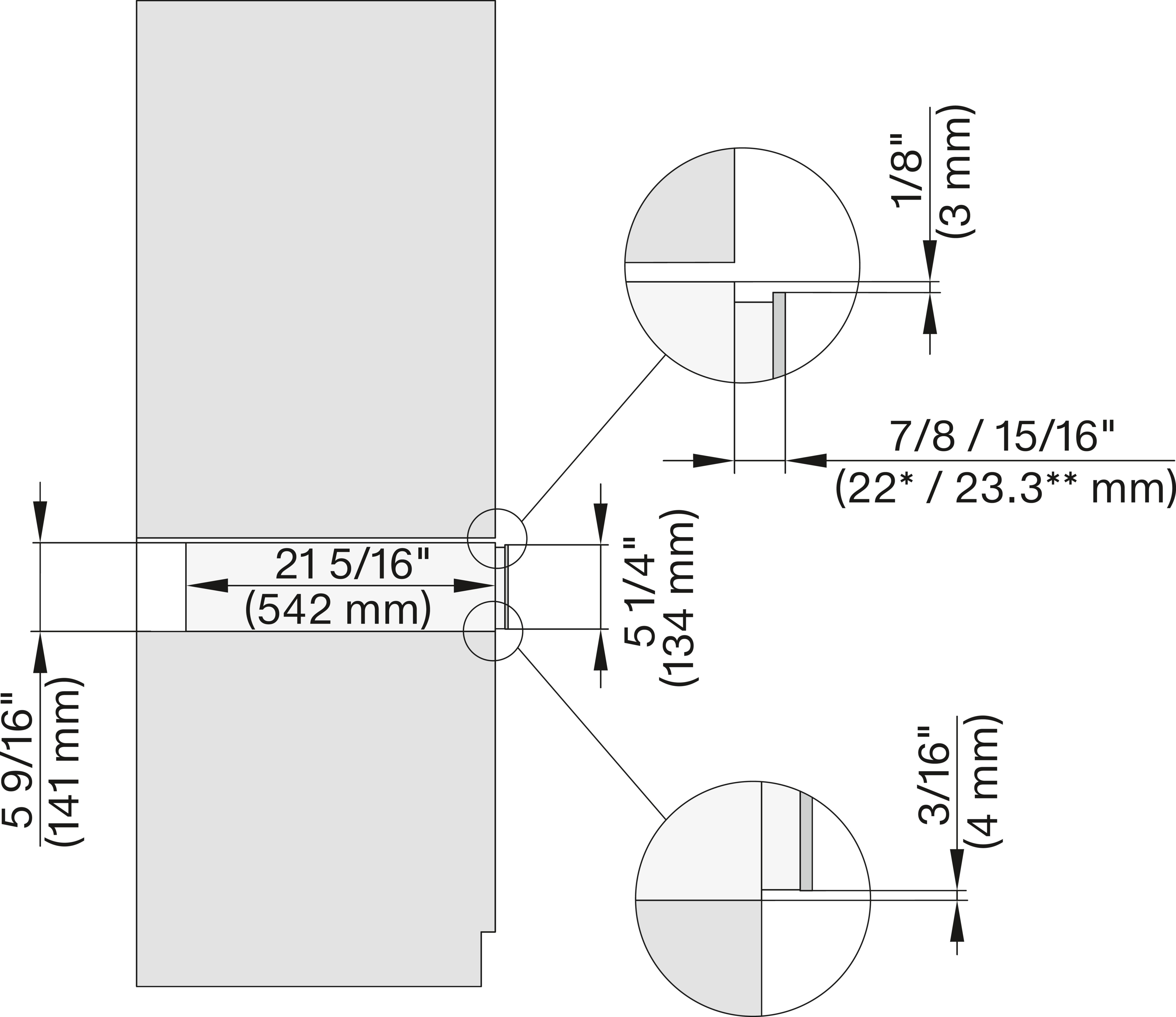

side view Proud ESW6x14 EVS, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads

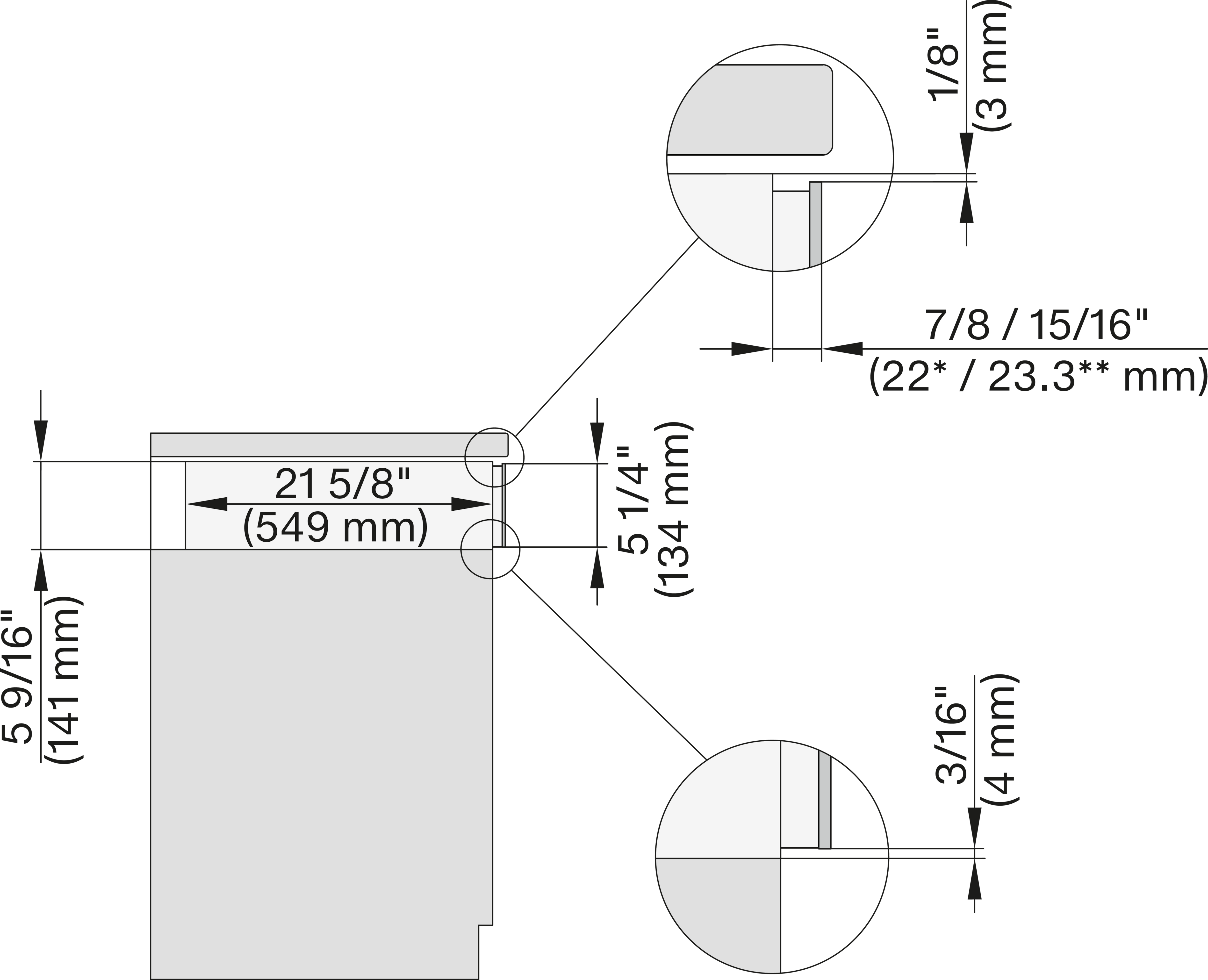

https://media.miele.com/images/2000017/200001724/20000172495.png
Descriptions
side view Proud built-under EVS, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001725/20000172501.png
Descriptions

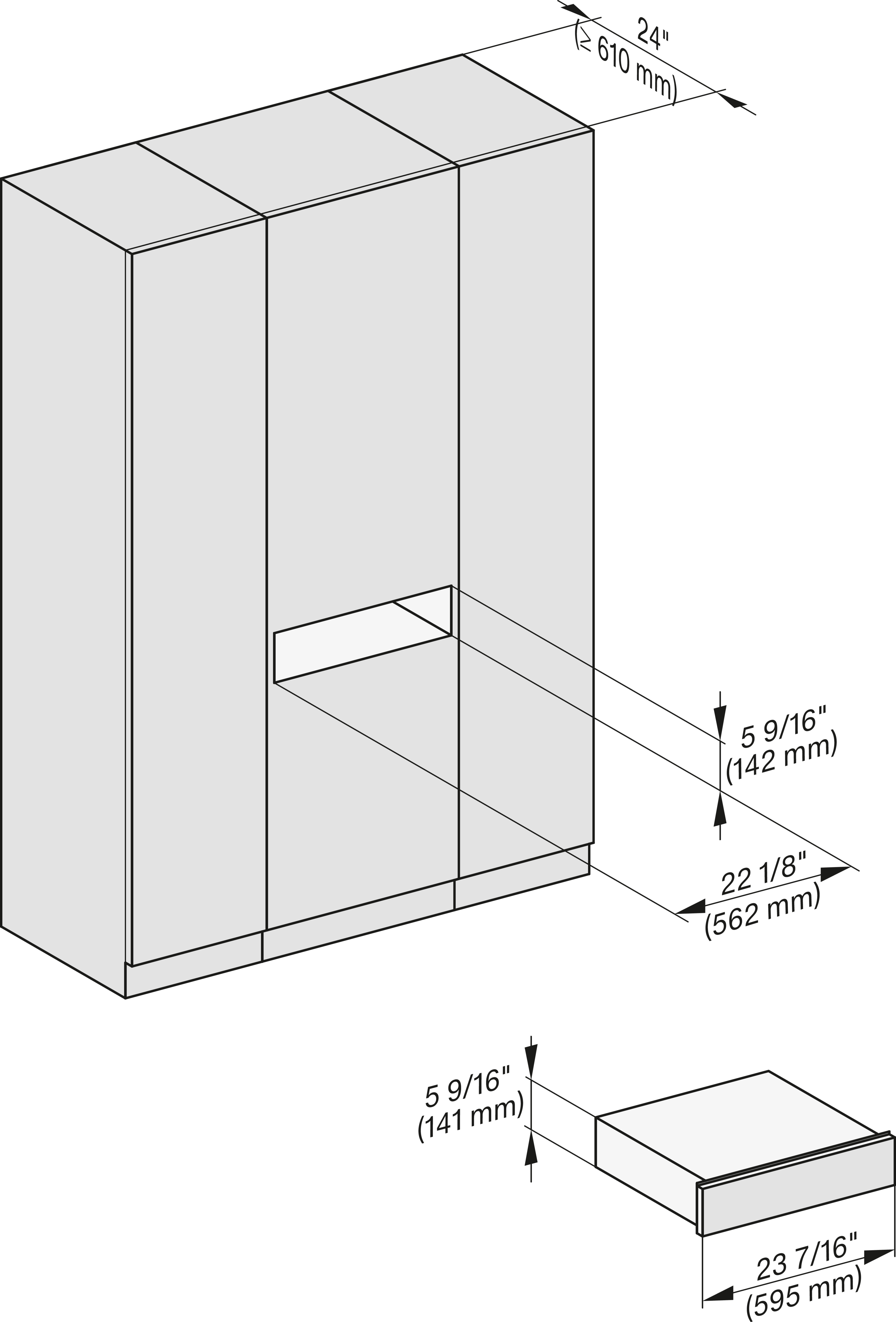

installation Proud ESW6x14 EVS, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads

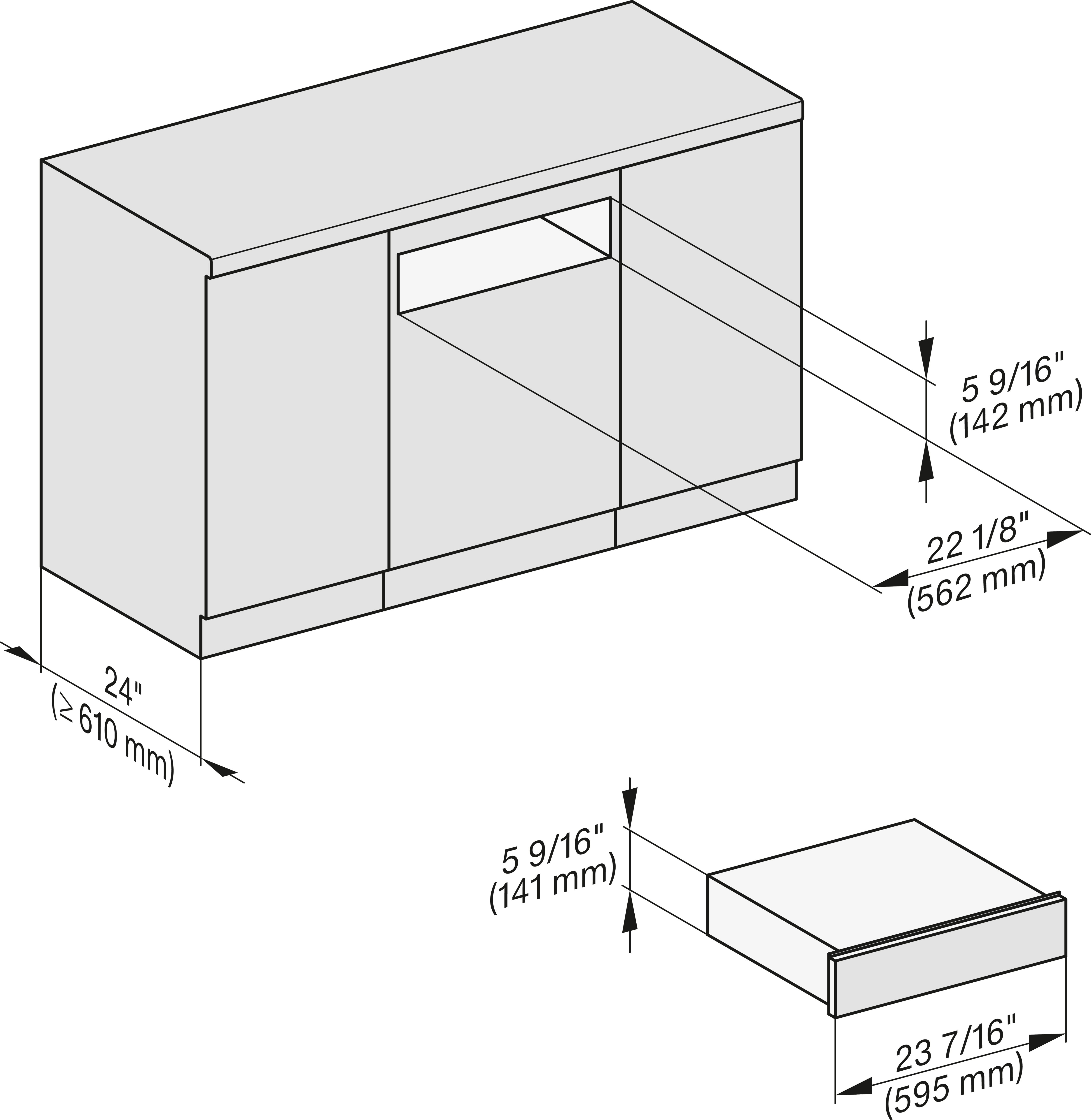

https://media.miele.com/images/2000017/200001725/20000172507.png
Descriptions
installation Proud built-under EVS, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads

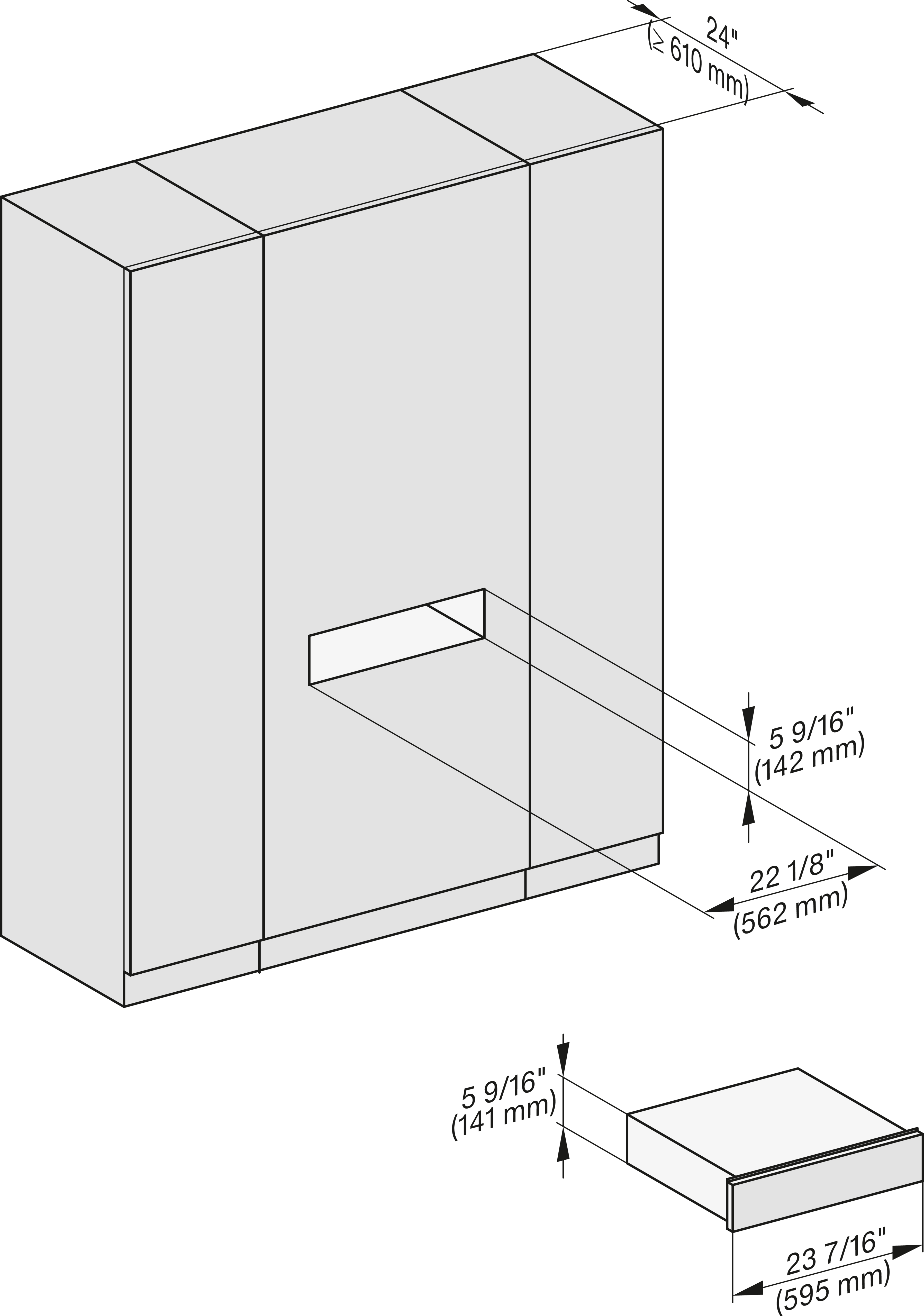

https://media.miele.com/images/2000017/200001725/20000172513.png
Descriptions
installation Proud wide front ESW6x14 EVS, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001725/20000172519.png
Descriptions

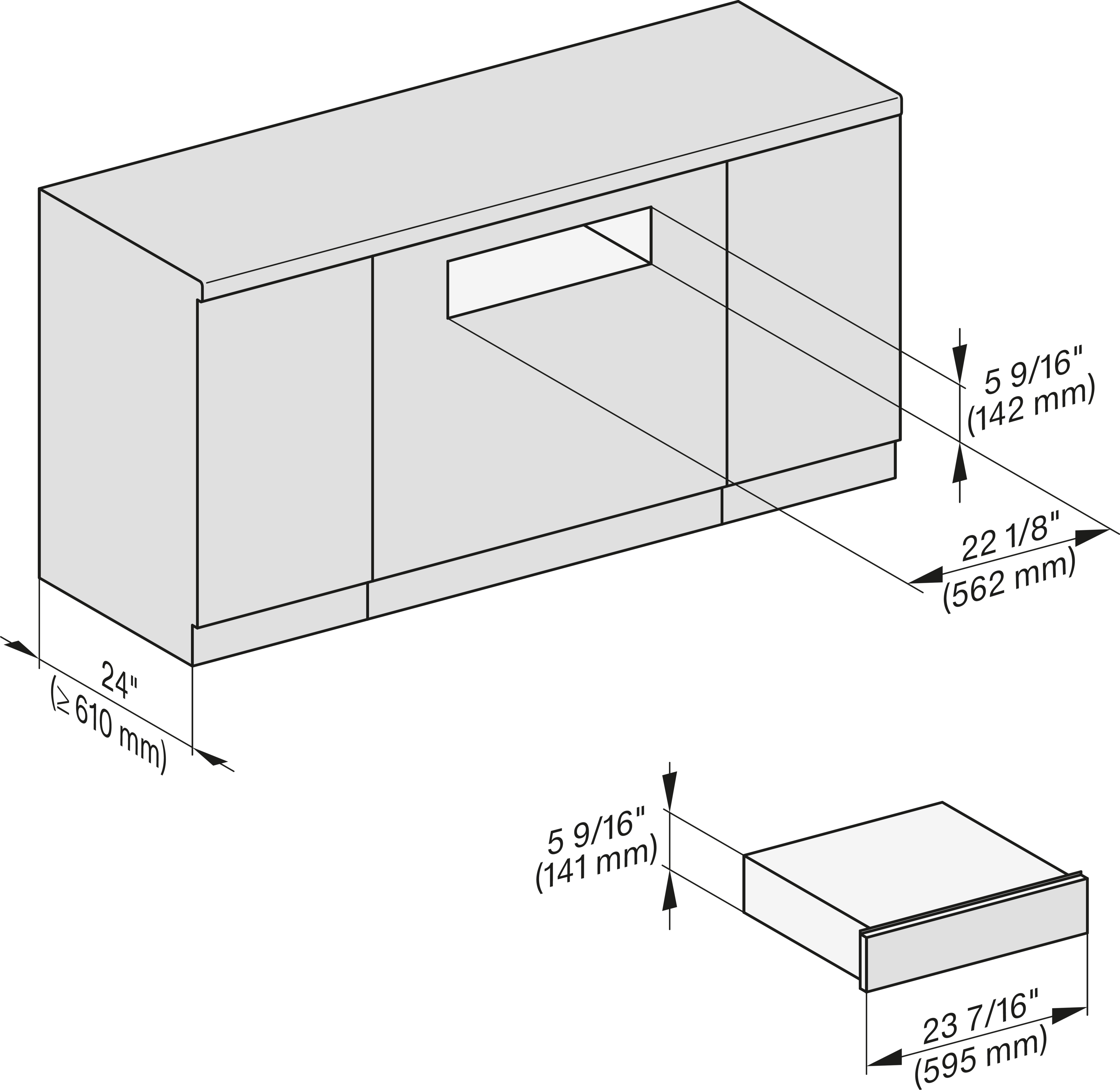

installation Proud built-under wide front EVS, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001725/20000172528.png
Descriptions
installation Proud ESW6x14 EVS, installation drawing, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection, n
Downloads
https://media.miele.com/images/2000017/200001725/20000172537.png
Descriptions

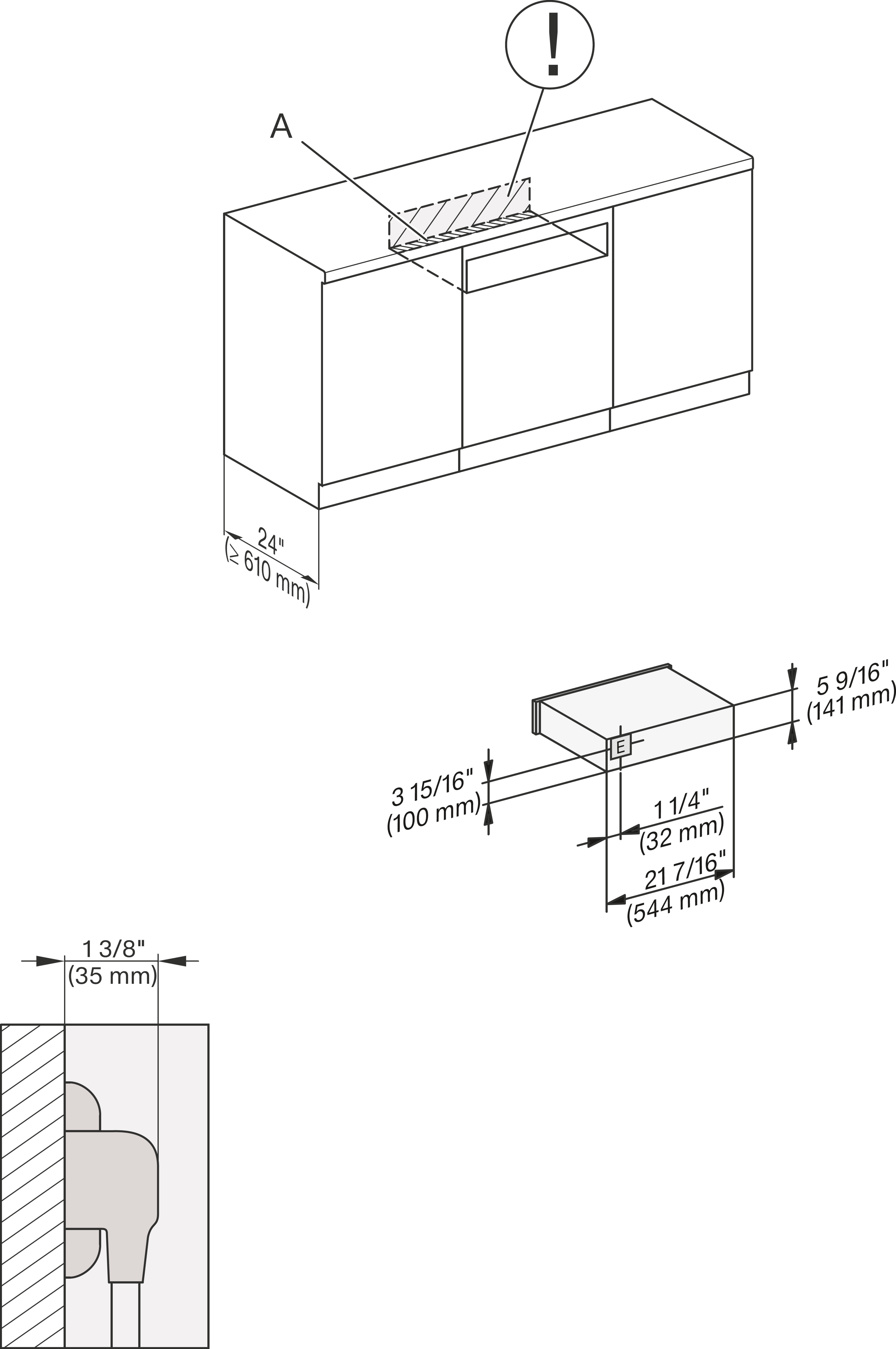

installation Proud built-under EVS, installation drawing, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads

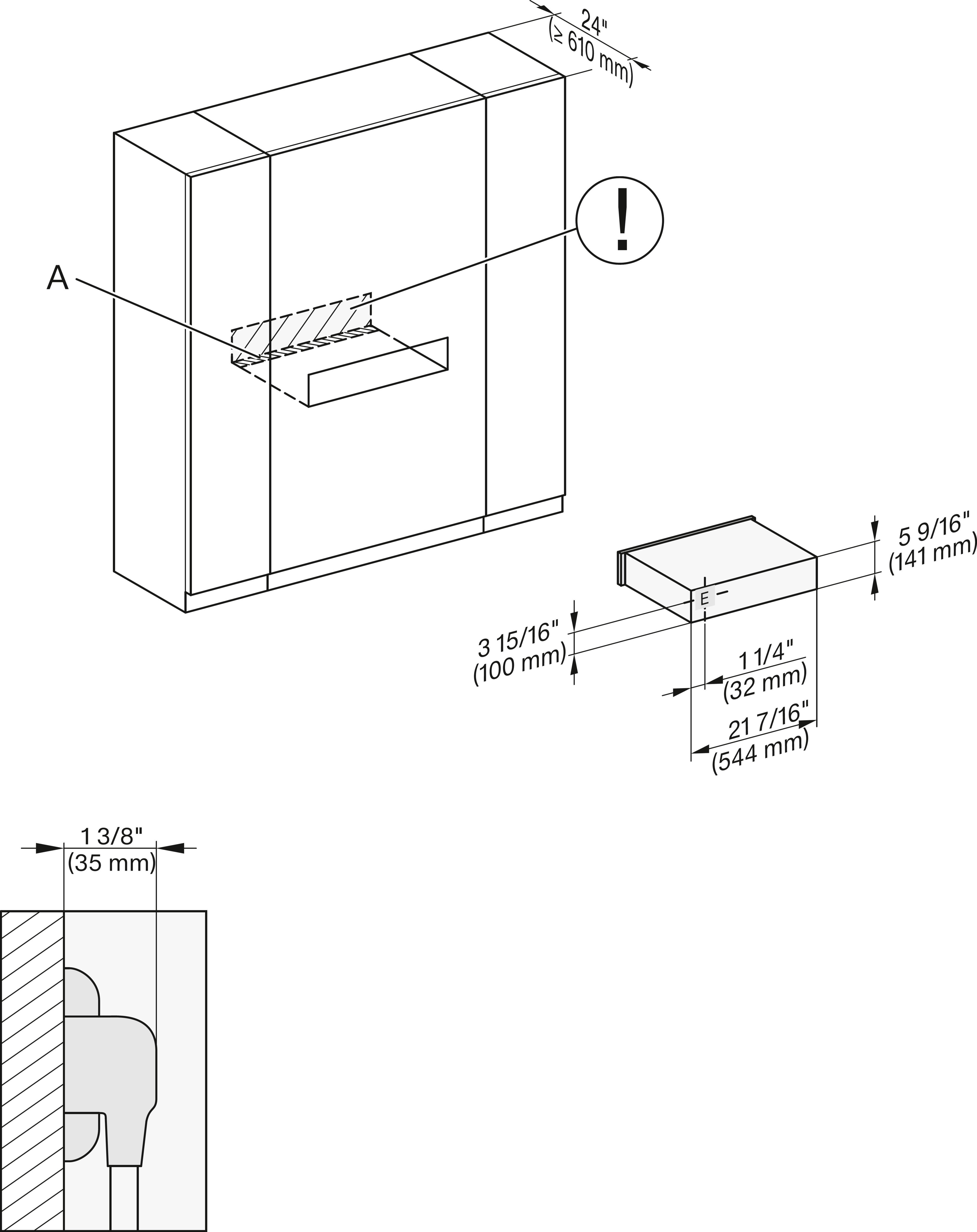

https://media.miele.com/images/2000017/200001725/20000172546.png
Descriptions
installation Proud wide front ESW6x14 EVS, installation drawing, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection, n
Downloads
https://media.miele.com/images/2000017/200001755/20000175522.png
Descriptions
side view, Proud, combi, 650S, ESW
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175427.png
Descriptions
DGC7x4x, ESW7x10, EVS7010, side view, 30 Zoll, Flush inset, combi, XL
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175437.png
Descriptions
H7x40BM+EBA7848, ESW7x10, EVS7010, side view, 30 Zoll, Flush inset, combi, 450S, ESW
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001755/20000175513.png
Descriptions

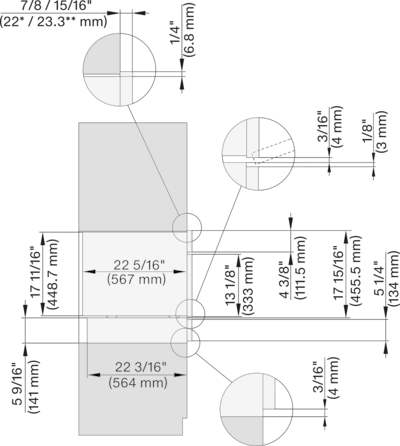

DGC7x40, ESW7x10, EVS7010, side view, 30 Zoll, Proud, combi,XL
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads

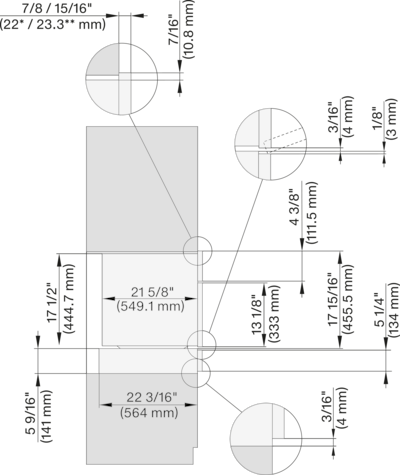

https://media.miele.com/images/2000017/200001755/20000175521.png
Descriptions
H7x40BM+EBA7848, ESW7x10, EVS7010, side view, 30 Zoll, Proud, combi, 450S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001755/20000175531.png
Descriptions
DGC7xxx, H7x40BM, ESW7x10, EVS, Einbau, 30 Zoll, Proud, combi, 450S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001755/20000175533.png
Descriptions
H7x6xBP+EBA7848, ESW7x10, EVS7010, Einbau, 30 Zoll, Proud, combi, 650S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001755/20000175542.png
Descriptions
DGC7x4x, H7x40BM, ESW7x10, EVS7010, Einbau, 30 Zoll, Proud, combi, wide front, 450S
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001755/20000175544.png
Descriptions
H7x6xBP+EBA7848, ESW7x10, EVS7010, Einbau, 30 Zoll, Proud, combi, wide front, 650S
Installation drawings
Downloads

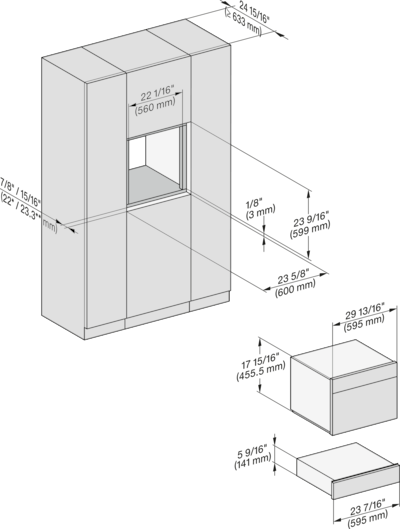

https://media.miele.com/images/2000017/200001754/20000175449.png
Descriptions
DGC7x40, DGC7485, H7x40BM, ESW7x10, EVS7010, Einbau 30 Zoll, Flush inset, combi, 450S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175451.png
Descriptions
H7x6xBP+EBA7848, ESW7x10, EVS7010, Einbau, 30 Zoll, Flush inset, combi, 650S, ESW
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175460.png
Descriptions

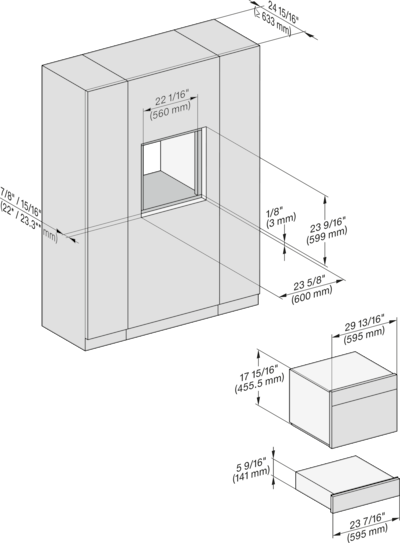

DGC7xxx, H7x40BM, ESW7x10, EVS7010, Einbau, 30 Zoll, Flush inset, combi, wide front, 450S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175462.png
Descriptions
H7x6x+EBA7868, ESW7x10, EVS7010, Einbau, 30 Zoll, Flush inset, wide front, 650S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
