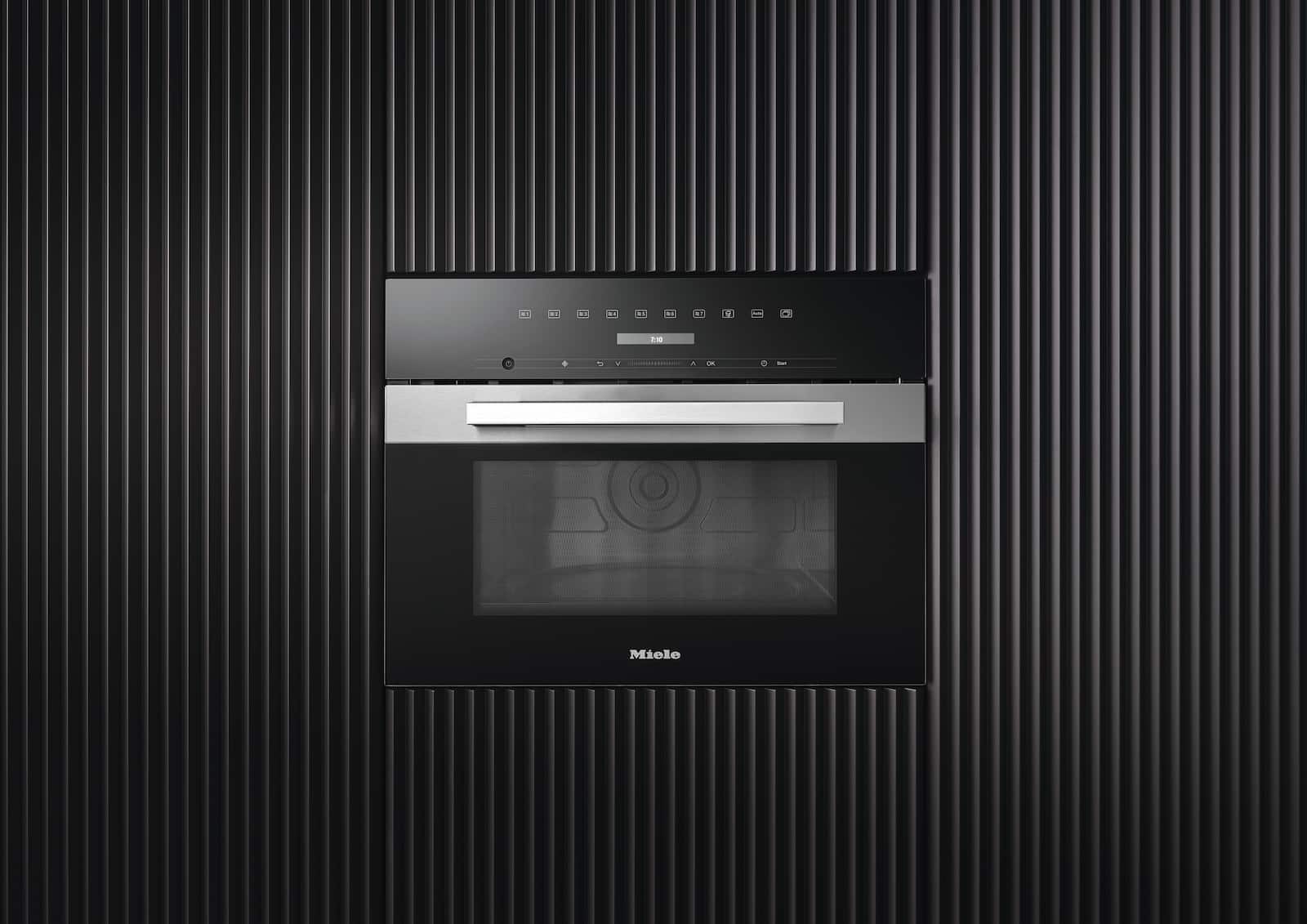

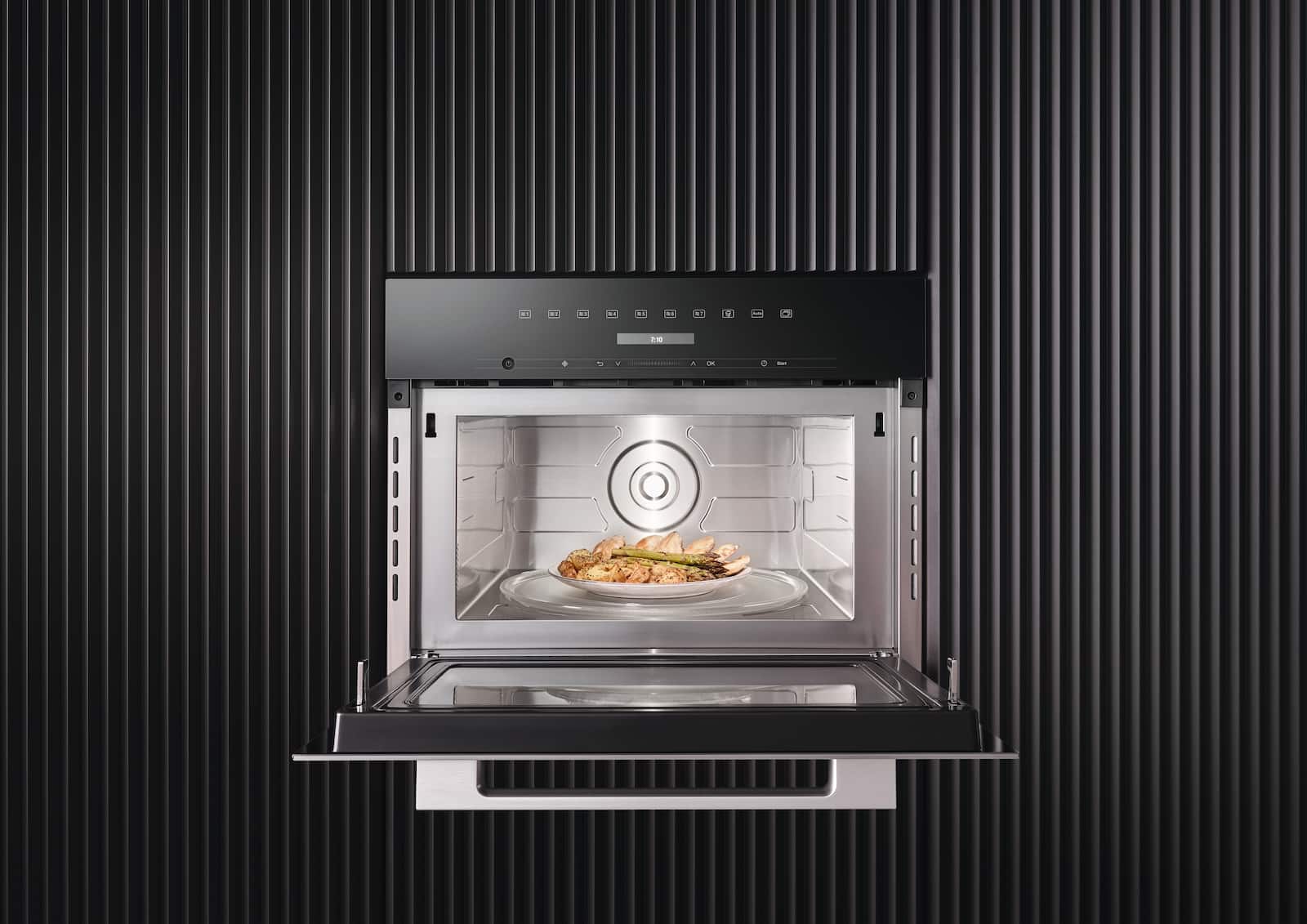

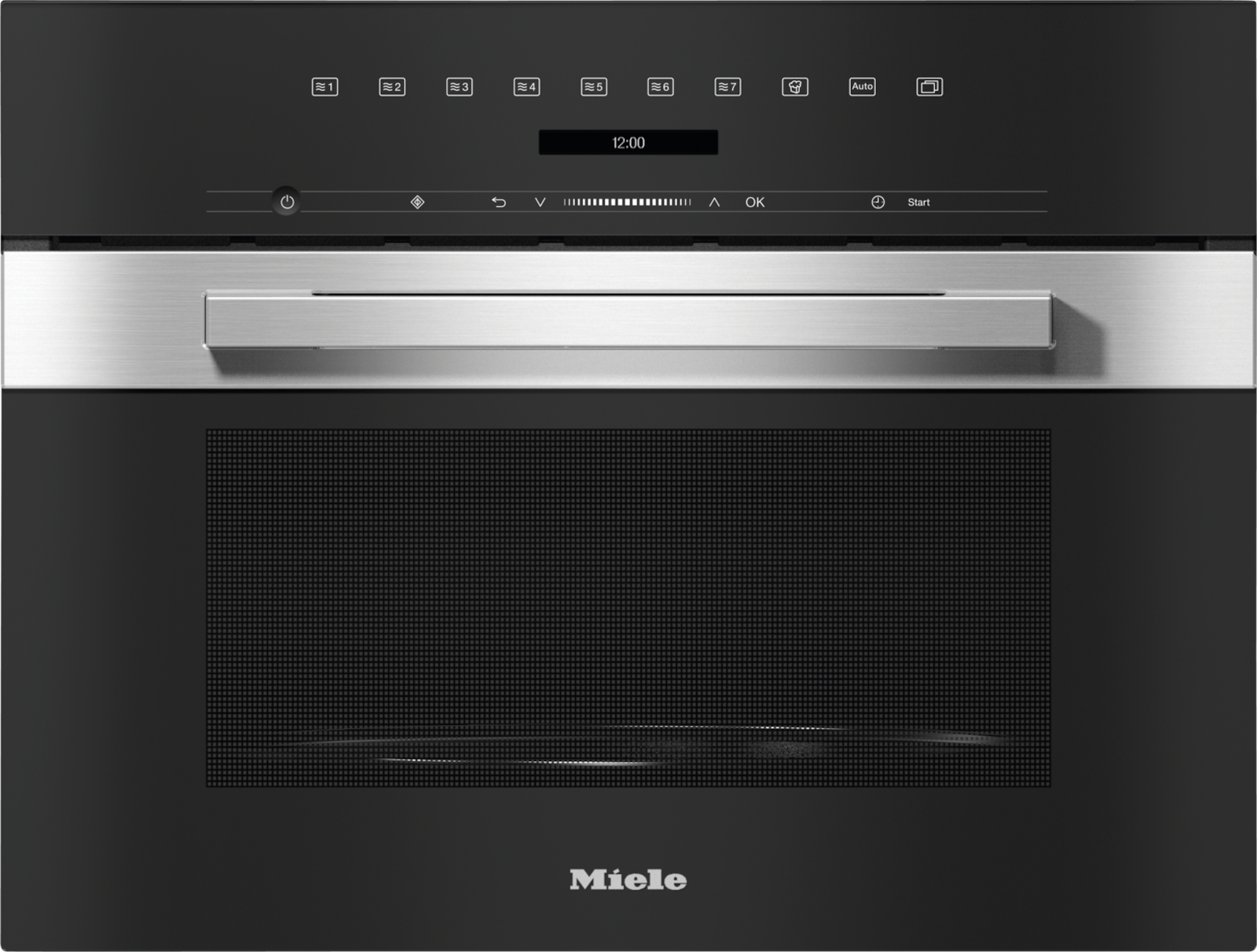

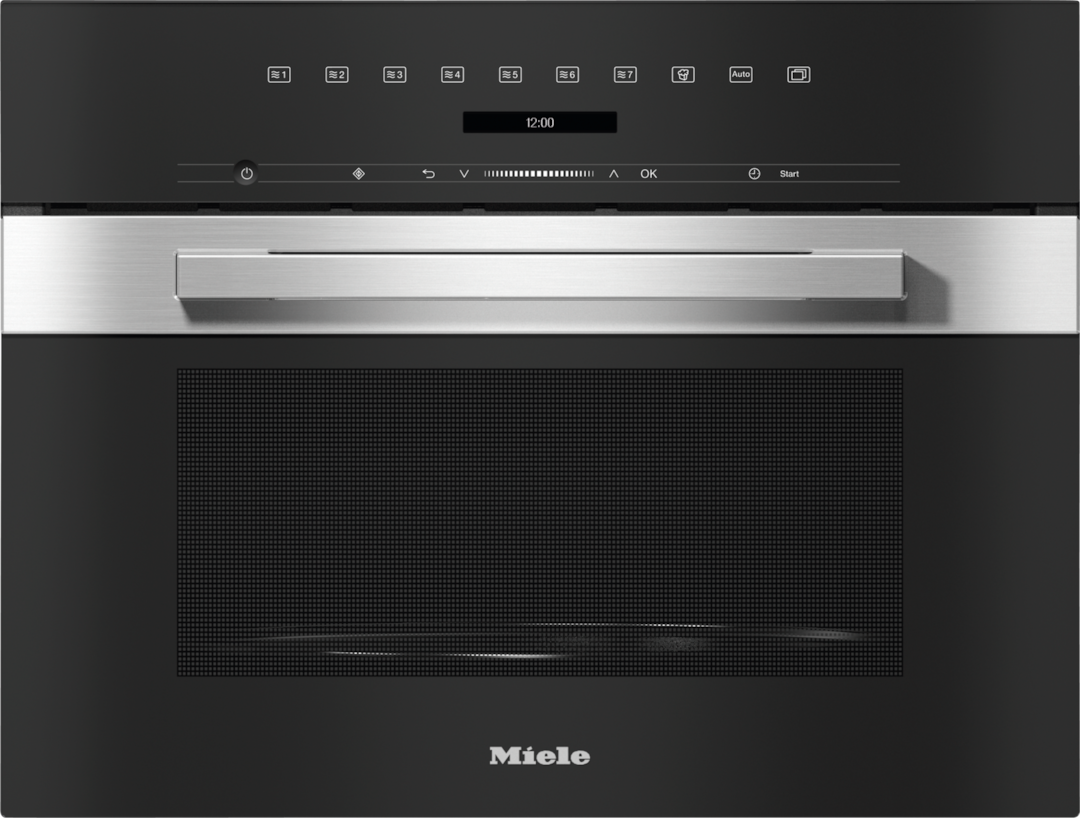

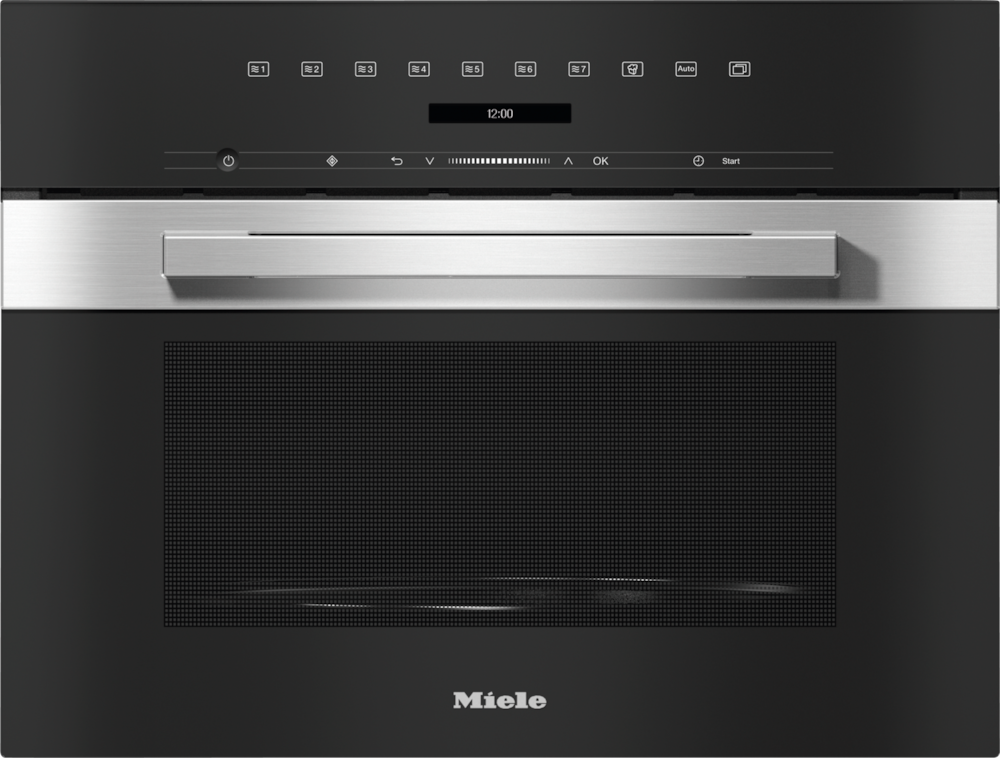

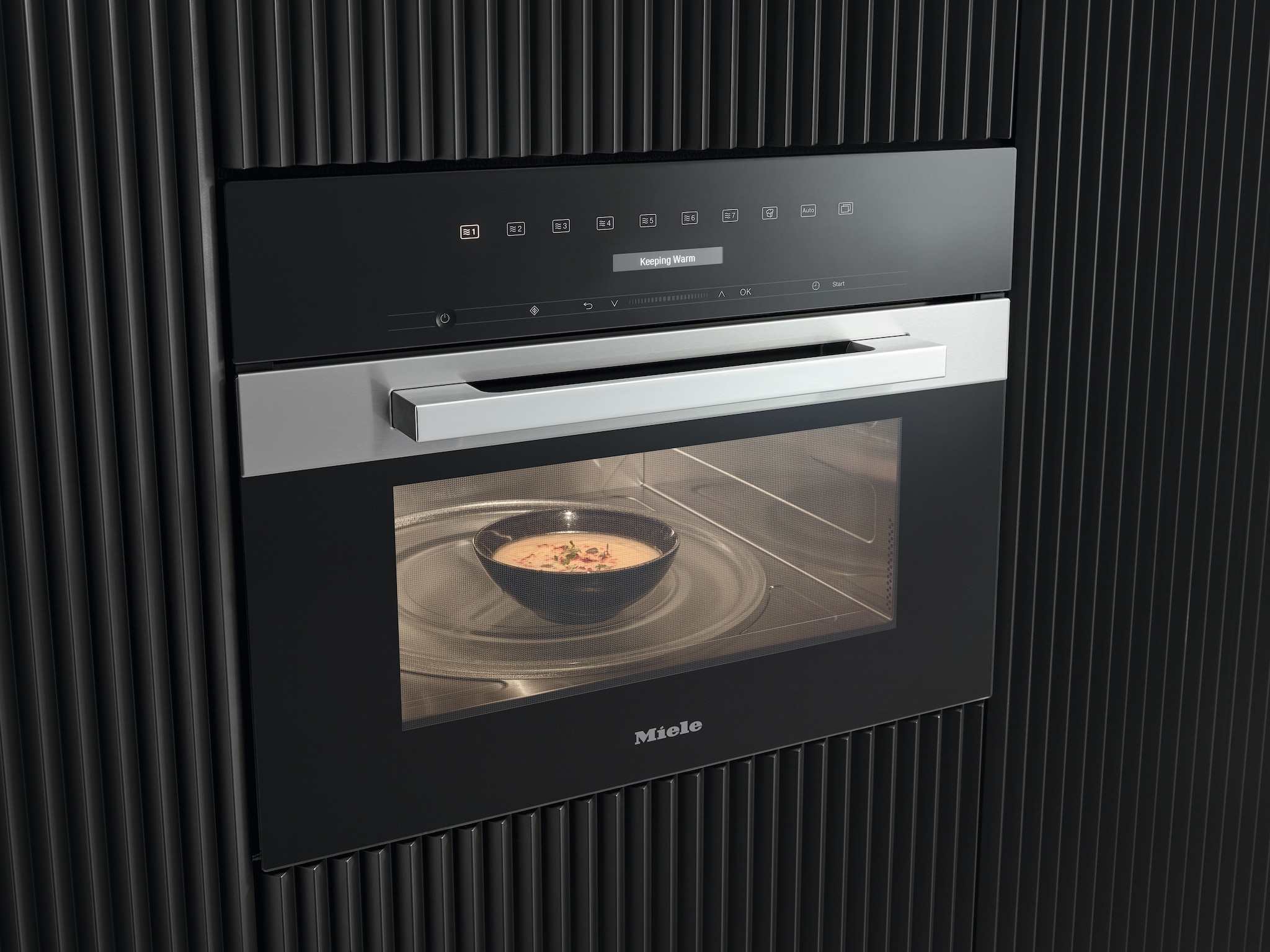

Built-in microwave oven, 24" width

M 7240 TC AM Clean Touch Steel

in a design that is the perfect complement with controls on the top.

Color:Clean Touch Steel

sale price$2,399.00



Product details

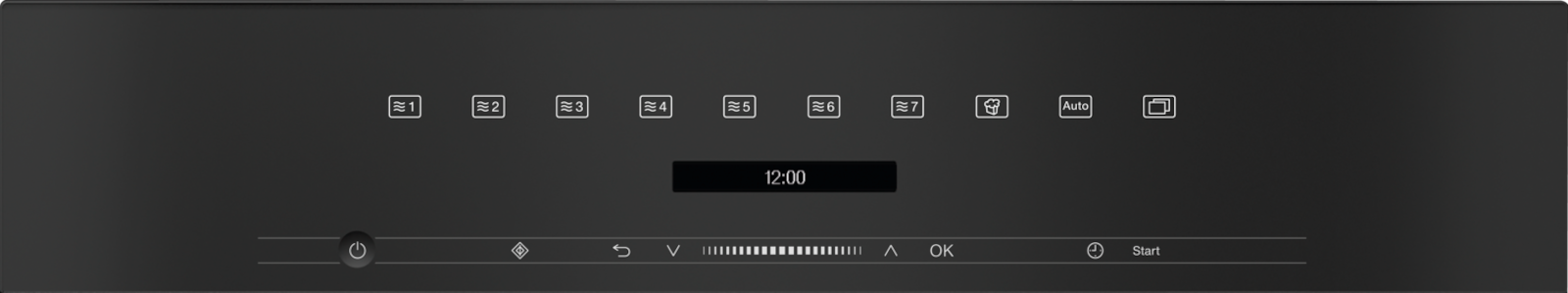

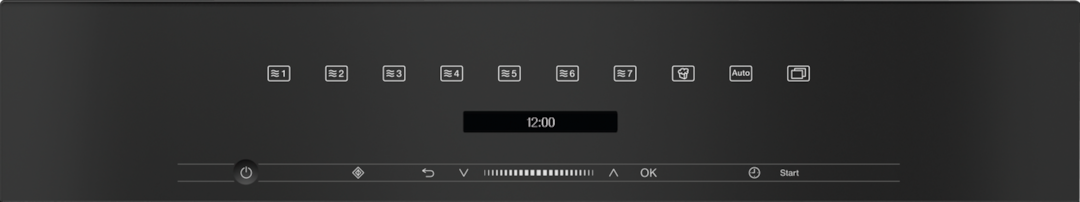

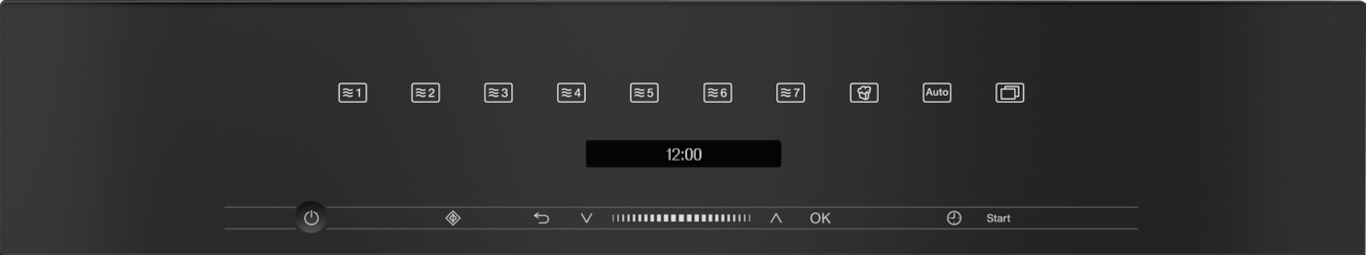

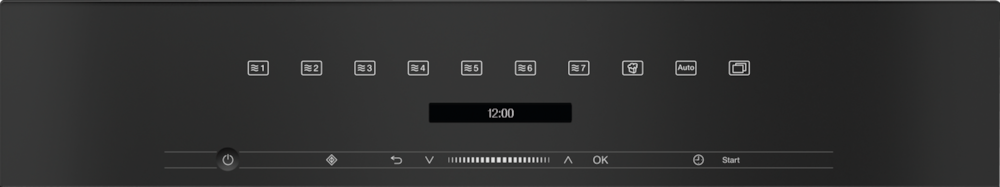

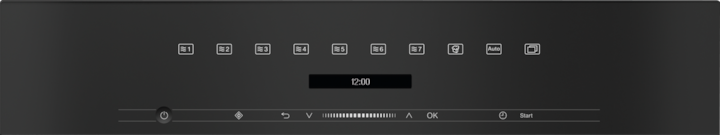

  • Clear text display with sensor controls – DirectSensor S
  • Perfect defrosting and cooking –Automatic Programs
  • Plenty of space – 1.62 cu. ft. oven capacity & 15 3/4" turntable
  • Very powerful microwave – 900 W
  • What you want at the touch of a button –Popcorn button

Product data sheet

Built-in microwave oven
PureLine
TopControl
Keep-warm function
Microwave
MasterChef automatic programs
DisplayDirectSensor S
SoftOpen
SoftClose
MultiLingua
Popcorn function
Timers
Time of day display
Minute minder
Programmable cooking time
Minute Plus button
Individual settings
Night dimmingYes
Clean Touch Steel surface
Stainless-steel oven cavity
CleanGlass door
Appliance cooling system and cool touch front
System lock
Safety switch
Child lock "Door" in display
Cavity volume in cu.ft (l)1.62 (46)
Door hinge sideBottom
Oven interior lighting1 LED spot
Cavity height in in. (cm)9 1/4 (23.2)
Turntable diameter in in. (cm)16 (40.6)
Electronically controlled microwave power
Microwave power levels1-7
Maximum microwave output in W900
Niche dimensions (W x H x D) in inches (mm)22 1/4 (562)-22 3/8 (568) x 17 3/4 (450)-17 7/8 (452) x 550
Niche width min. in inches (mm)22 1/4 (562)
Niche width max. in inches (mm)22 3/8 (568)
Niche height min. in inches (mm)17 3/4 (450)
Niche height max. in inches (mm)17 7/8 (452)
Niche depth in in. (mm)550
Appliance dimensions (W x H x D) in inches (mm)23 1/2 (595) x 18 (456) x 22 1/8 (560)
Niche-independent venting
Weight in lbs. (kg)63 (28.3)
Total connected load in kW1.6
Power Rating in V120
Frequency in Hz60
Fuse rating in A10
Number of phases1
Connection wire with plug
Length of power cord in in. (m)2.10
Turntable1
Available display languages via MultiLingua
  • français
  • ελληνιкά
  • čeština
  • 繁體中文
  • slovenčina
  • slovenščina
  • 中文
  • polski
  • magyar
  • nederlands
  • hrvatski
  • yкраїнська
  • bahasa malaysia
  • deutsch
  • italiano
  • türkçe
  • dansk
  • 日本語
  • suomi
  • română
  • español
  • english
  • srpski
  • العربية
  • svenska
  • norsk
  • pусский
  • português
  • 한국어
EAN4002516540618

What's included

Turntable (1)

Maintenance

Functional through and through

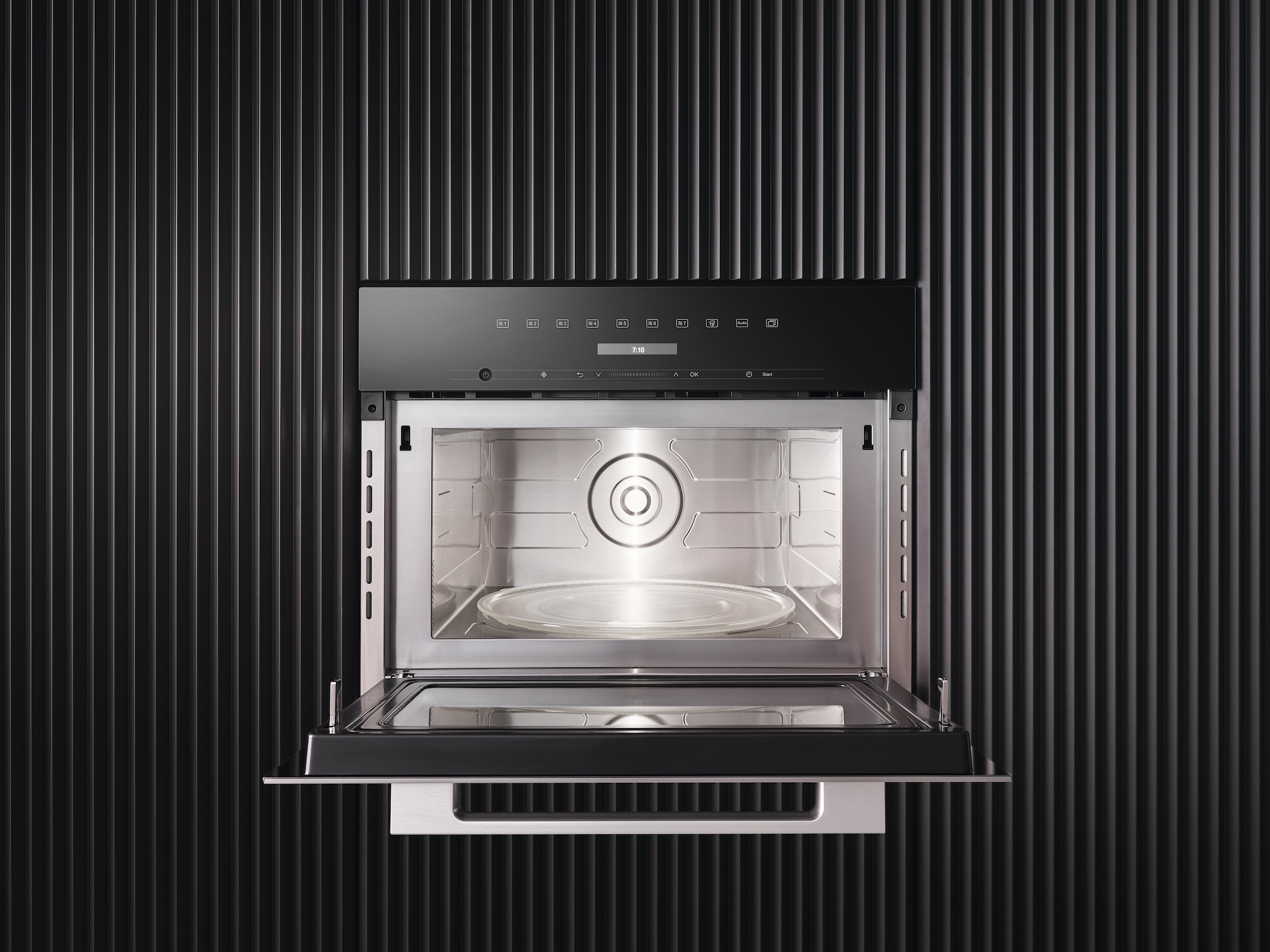

Stainless steel oven compartment

Very efficient: The stainless steel interior guarantees perfect microwave distribution and easy cleaning.


A finish for flawless stainless steel surfaces

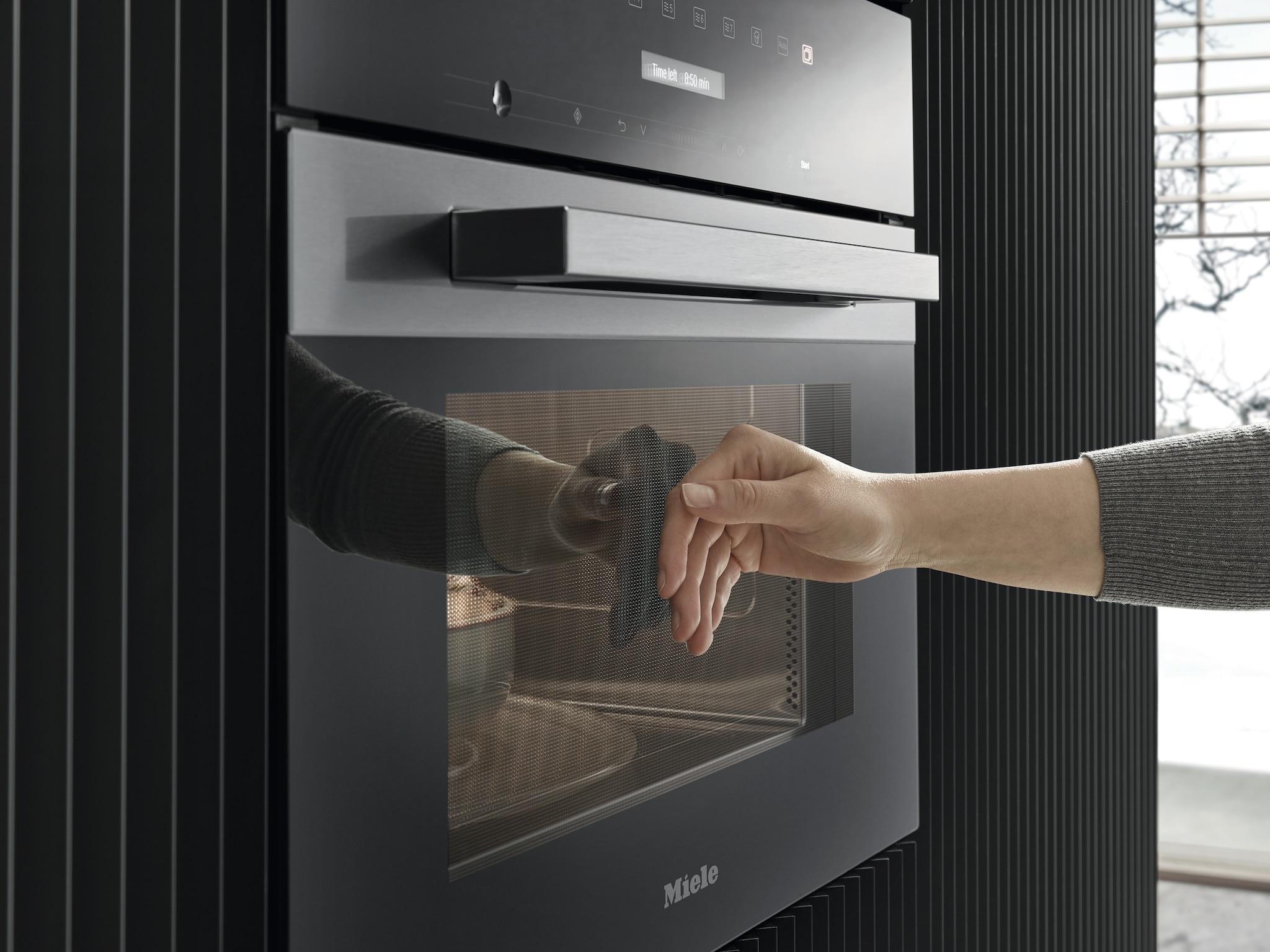

Clean Touch Steel

No fingerprints on stainless steel: The surface is protected and no special cleaning agents are required.


User convenience

Great results every time
Automatic Programs

Conjure up dishes with ease: Simply set the program and the weight, for example – the appliance will do the rest.


Peak performance at the touch of a button
Minute Plus button

Saves time: Activate maximum microwave power directly – to suit your habits.

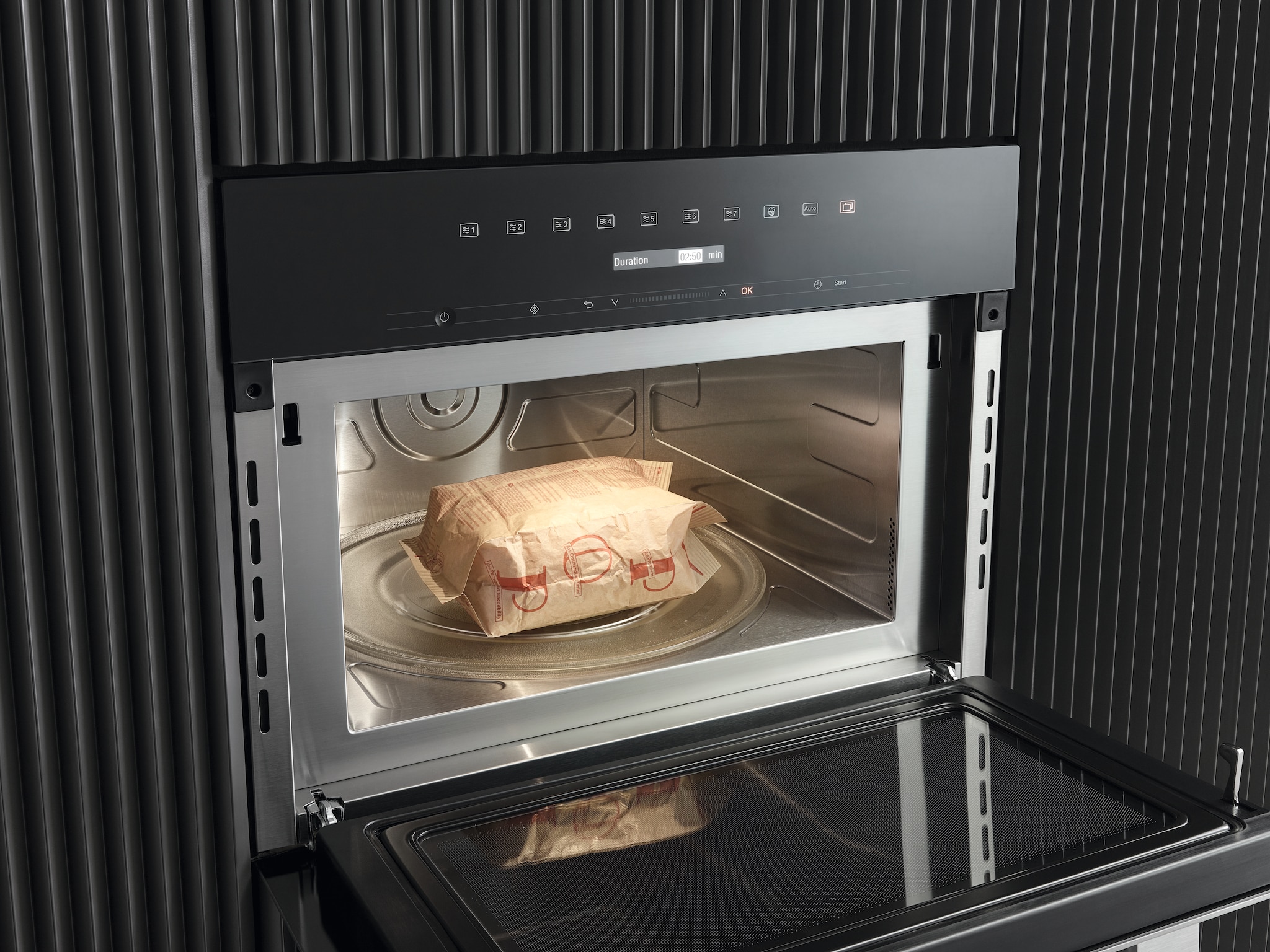

Fresh popcorn at the touch of a button
Popcorn button

That cinema feeling in your own home: With our Popcorn button you can make perfect popcorn quickly and easily.


At the ideal temperature
Automatic keeping warm function

Incredibly convenient: Your microwave keeps prepared dishes at a ready-to-serve temperature for up to 15 minutes.


Leave time management to your microwave oven

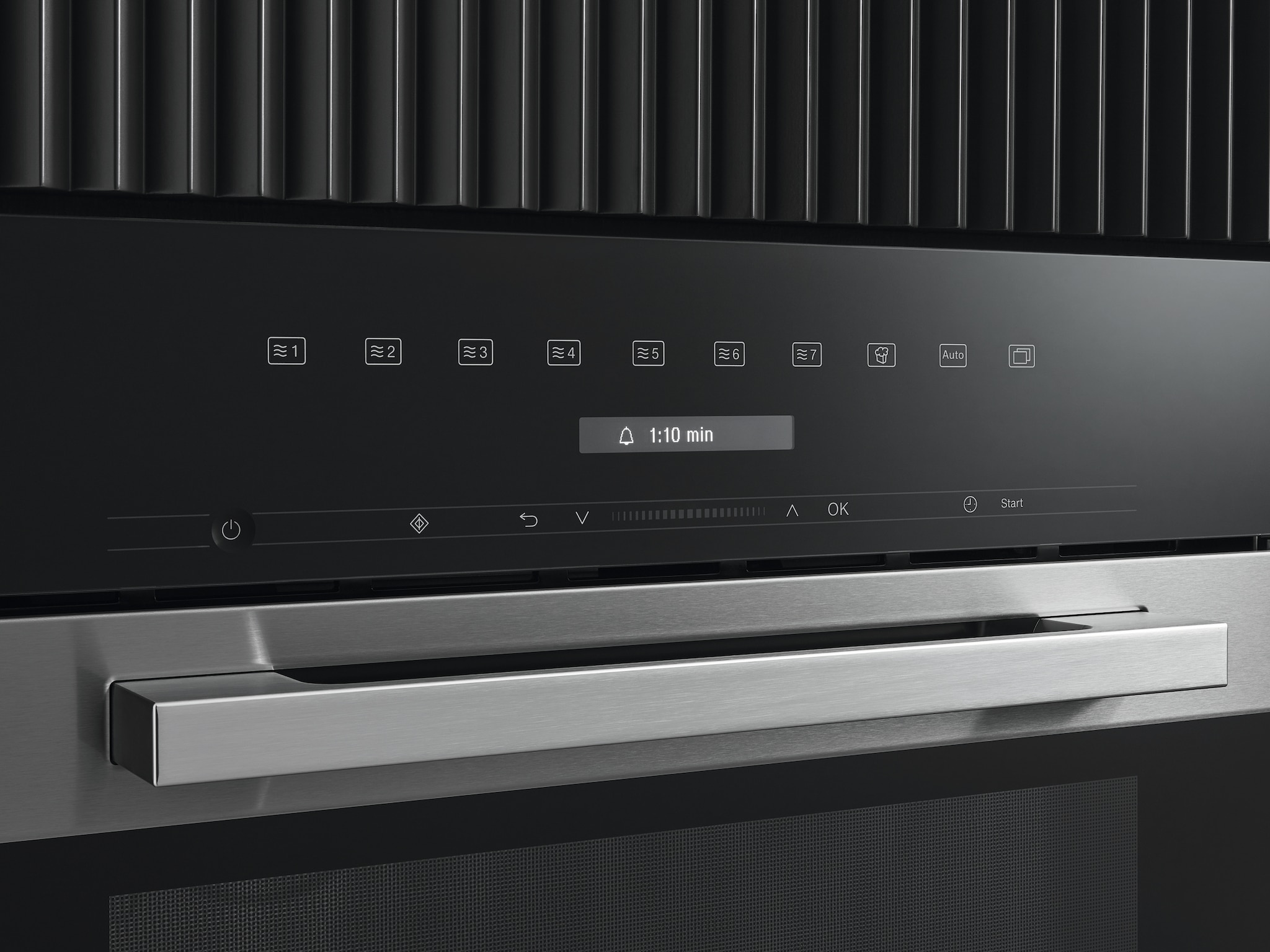

Timer functions

Always on time: Set the start time, finish time, and duration of the cooking process, or the kitchen timer.


Incredibly easy to understand

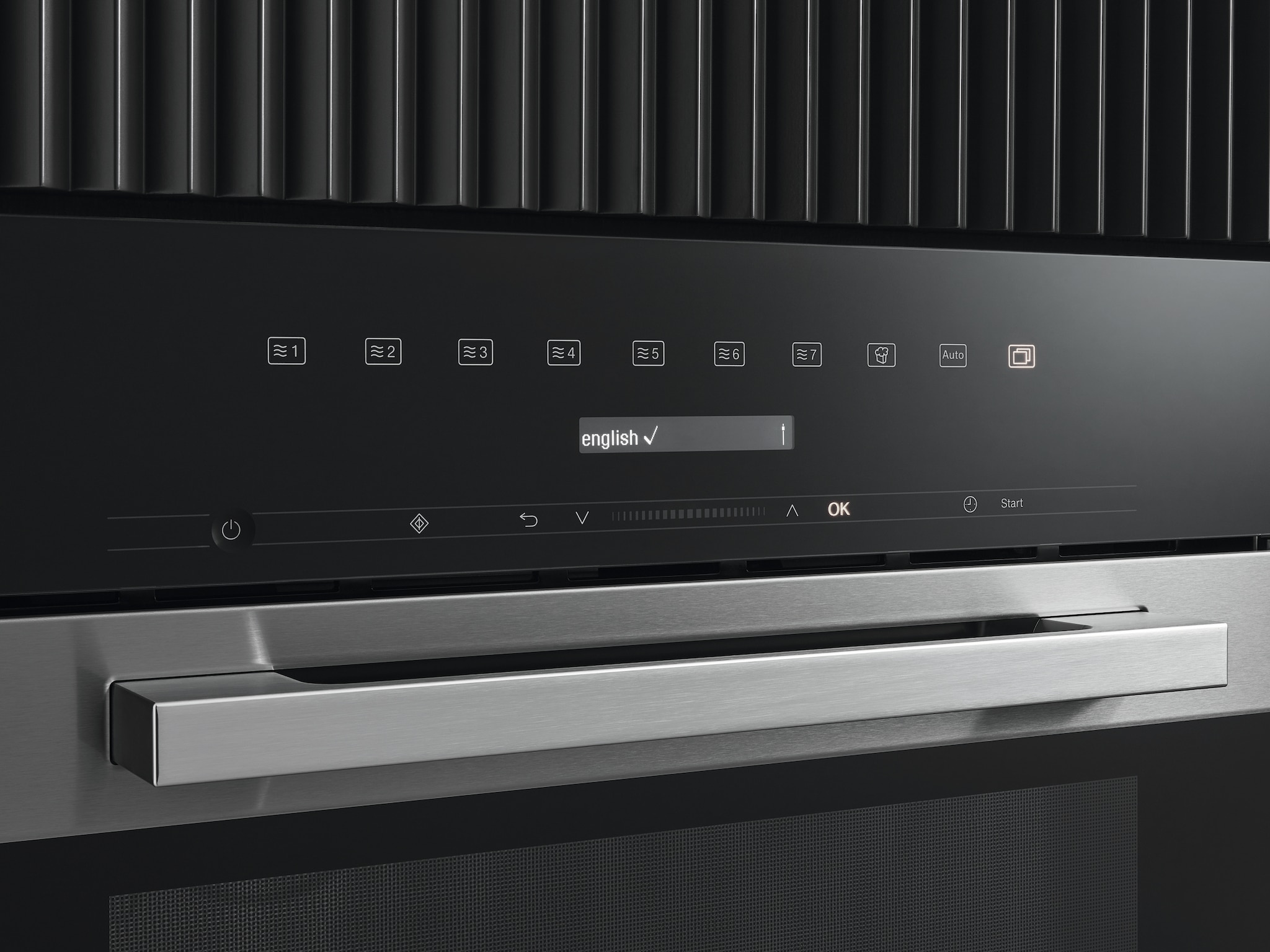

MultiLingua

For users who speak different languages: The controls can be set to numerous languages.


Gourmet versatility

Starters

Small treats. A variety of starters can be made in the microwave in no time at all.


Soups

A popular starter: All types of soup can be made as a tasty starter.


Meat

All dish types: Pork, beef, lamb, or venison – meat dishes are easy to cook in the microwave oven.


Fish

Good for body and soul: Fish dishes are not only delicious, but also healthy and very popular all over the world.


Side dishes

Simply indispensable: Potatoes, rice, and pasta are an extremely nutritious part of any meal.


Vegetables

Fresh and healthy: Vegetables can be cooked in the microwave in a variety of ways for healthy results.


Sauces

The perfect addition: Only when a sauce is added is the dish complete.


Casseroles

Unlimited combinations: Casseroles will never be boring with varying side dishes or sauces.


Stews

Varieties: Seasonal ingredients guarantee exceptional stews with and without meat.


Desserts

Sweet temptations: The finale of a fine meal can be made in various ways in the microwave.

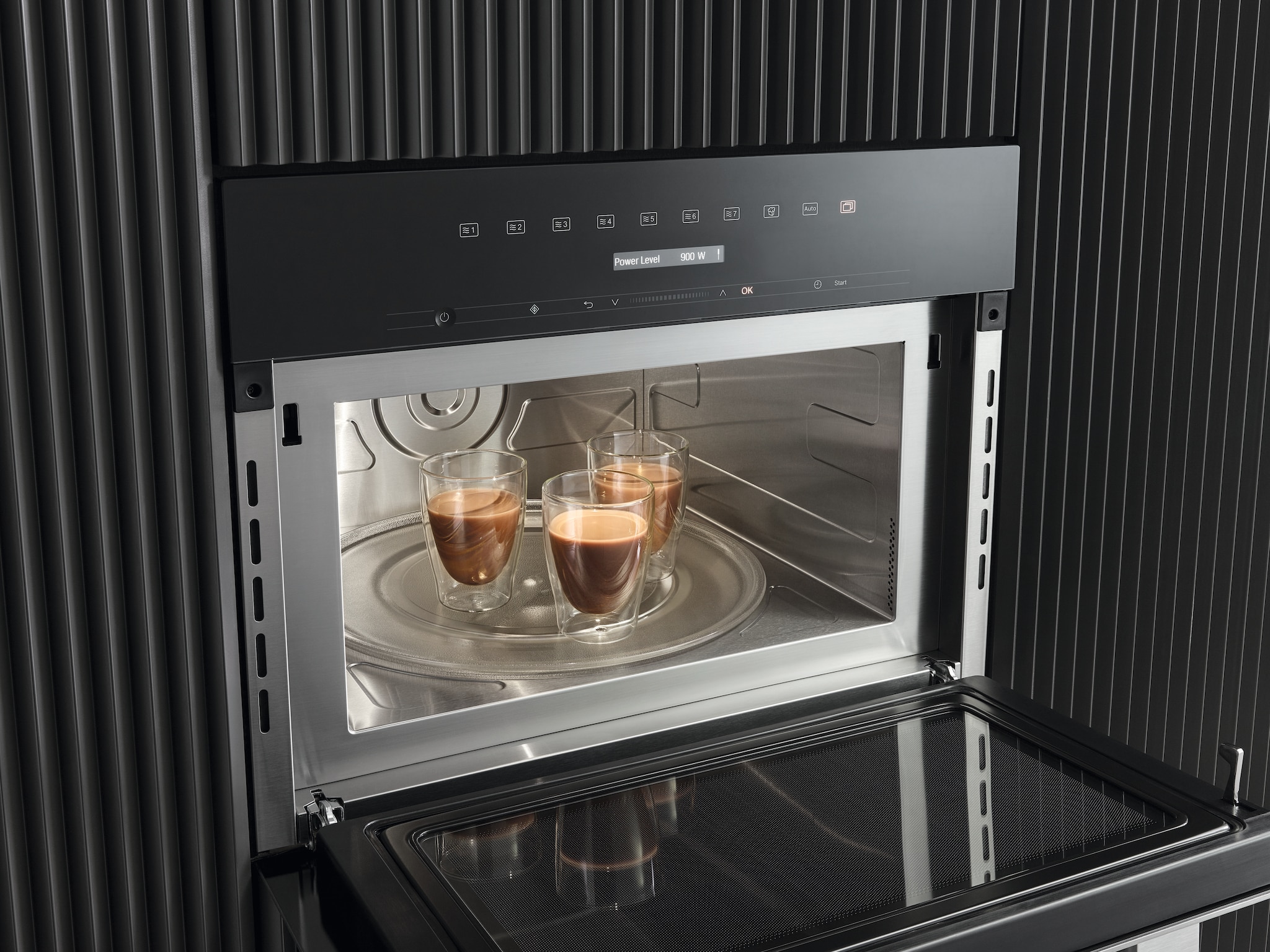

Drinks

Warming from the inside: Enjoy classic or customized drinks to suit your mood.


Defrost

When you’re in a hurry: Delicate foods such as butter, cream, or tender fillet are quickly defrosted.


Keeping warm

If you are running late: After cooking, food is automatically kept warm for up to 15 minutes.


Reheating

As if freshly cooked: Food, drinks, and baby food are heated at 450 to 900 W.


Preserving

Always available: Preserving small portions of sweet or savory dishes in jars up to 0.5 l.


Jam

Sweet breakfast delights: Small amounts of jam are particularly easy to make in the microwave oven.


Melting chocolate and butter

No burning: Chocolate and butter melt to perfection at 450 W.


Proofing dough

Soft bread and delicious cakes: The microwave oven can proof covered yeast dough at 80 W.


Safety

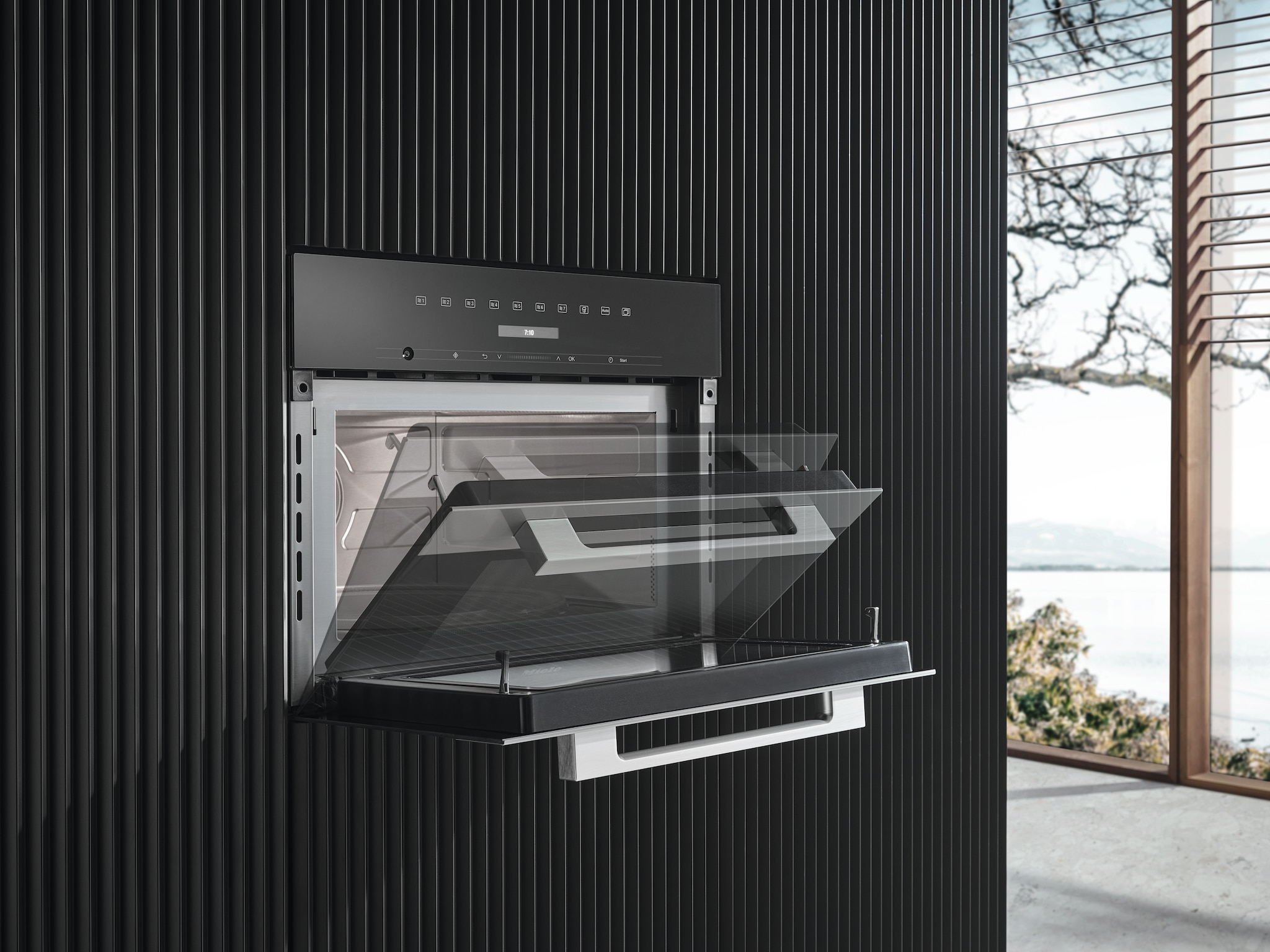

Gentle door movement
SoftOpen and SoftClose

Sophisticated and elegant: The door opens and closes with a gentle movement – right to the very end.


Only the food gets hot
Touch-cool front

Protection against burns: The appliance stays relatively cool – including on the outside of the door.


Downloads

Operating and Installation instructions
PDF
Downloads
Warranty conditions
PDF
Downloads
Product sheet
PDF
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
rfa
ZIP
Downloads
ifc
ZIP
Downloads
rvt
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000018/200001895/20000189569.png
Descriptions
M7240TC, Einbau,30 Zoll, Proud, breite Front, Oberschrank - Skizze - NA
Installation drawings
Downloads
https://media.miele.com/images/2000018/200001895/20000189570.png
Descriptions
M7240TC(+EBA7848), Einbau, 30 Zoll, Proud, breite Front, Oberschrank - Skizze - NA
Installation drawings
Downloads
https://media.miele.com/images/2000018/200001895/20000189574.png
Descriptions
M7240TC(+EBA7848), Einbau, 30 Zoll, Proud, Oberschrank - Skizze - NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, ! - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., , E = Electric connection
Downloads
https://media.miele.com/images/2000018/200001895/20000189576.png
Descriptions
M7240TC(+EBA7848), Einbau, 30 Zoll, Proud, breite Front, Oberschrank - Skizze - NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, ! - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., , E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001753/20000175321.png
Descriptions
M7240TC(+EBA7848), side view, 30 Zoll, Flush Inset
7/8“ - 22* mm – Glass, 15/16“ - 23.3** mm – Stainless steel
Downloads
https://media.miele.com/images/2000017/200001753/20000175322.png
Descriptions
M7240TC(+EBA7848), side view, 30 Zoll, Flush Inset, built-under
7/8“ - 22* mm – Glass, 15/16“ - 23.3** mm – Stainless steel
Downloads
https://media.miele.com/images/2000017/200001753/20000175330.png
Descriptions
M7240TC Einbau, 30 Zoll, Flush inset
7/8“ - 22* mm – Glass, 15/16“ - 23.3** mm – Stainless steel
Downloads
https://media.miele.com/images/2000017/200001753/20000175331.png
Descriptions
M7240TC+EBA7848, Einbau, 30 Zoll, Flush inset
7/8“ - 22* mm – Glass, 15/16“ - 23.3** mm – Stainless steel
Downloads
https://media.miele.com/images/2000017/200001753/20000175332.png
Descriptions
M7x4xTC, Einbau, 30 Zoll, Flush inset, wide front
7/8“ - 22* mm – Glass, 15/16“ - 23.3** mm – Stainless steel
Downloads
https://media.miele.com/images/2000017/200001753/20000175333.png
Descriptions
M7240TC+EBA7848, Einbau, 30 Zoll, Flush inset, wide front
7/8“ - 22* mm – Glass, 15/16“ - 23.3** mm – Stainless steel
Downloads
https://media.miele.com/images/2000017/200001753/20000175334.png
Descriptions
M7240TC, Einbau, 30 Zoll, Flush inset, built-under
7/8“ - 22* mm – Glass, 15/16“ - 23.3** mm – Stainless steel
Downloads
https://media.miele.com/images/2000017/200001753/20000175335.png
Descriptions
M7240TC+EBA7848, Einbau, 30 Zol, Flush inset, built-under
7/8“ - 22* mm – Glass, 15/16“ - 23.3** mm – Stainless steel
Downloads
https://media.miele.com/images/2000017/200001753/20000175336.png
Descriptions
M7240TC, Einbau, 30 Zoll, Flush Inset, built-under, wide front
7/8“ - 22* mm – Glass, 15/16“ - 23.3** mm – Stainless steel
Downloads
https://media.miele.com/images/2000017/200001753/20000175337.png
Descriptions
M7240TC+EBA7848, Einbau, 30 Zoll, Flush inset, built-under, wide front
7/8“ - 22* mm – Glass, 15/16“ - 23.3** mm – Stainless steel
Downloads
https://media.miele.com/images/2000017/200001753/20000175346.png
Descriptions
M7240(+EBA7848), Installation , 30 Zoll, Flush inset
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001753/20000175347.png
Descriptions
M7240(+EBA7848), Installation , 30 Zoll, Flush inset, built-under
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001753/20000175348.png
Descriptions
M7240(+EBA7848), Installtion , 30 Zoll, Flush inset, wide front
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001753/20000175349.png
Descriptions
M7240(+EBA7848), Installation , 30 Zoll, Flush inset, wide front
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001753/20000175377.png
Descriptions
M7240TC, M7240TC+EBA7848, 30 Zoll, Proud
7/8“ - 22* mm – Glass, 15/16“ - 23.3** mm – Stainless steel
Downloads
https://media.miele.com/images/2000017/200001753/20000175378.png
Descriptions
M7240TC, M7240TC+EBA7848, 30 Zoll, Proud, built-under
7/8“ - 22* mm – Glass, 15/16“ - 23.3** mm – Stainless steel
Downloads
https://media.miele.com/images/2000018/200001895/20000189579.png
Descriptions
M7240SC(+EBA7848), Seitenansicht, 30 Zoll, Flush, inset, Oberschrank - Skizze - NA
7/8“ - 22* mm – Glass, 15/16“ - 23.3** mm – Stainless steel
Downloads
https://media.miele.com/images/2000017/200001753/20000175387.png
Descriptions
M7240TC, Einbau, 30 Zoll, Proud
Installation drawings
Downloads
https://media.miele.com/images/2000018/200001895/20000189593.png
Descriptions
M7240SC(+EBA7848), Installation, 30 Zoll, Flush, inset, breite Front, Oberschrank - Skizze - NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, ! - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., , E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001753/20000175388.png
Descriptions
M7240TC+EBA7848, Einbau, 30 Zoll, Proud
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001753/20000175389.png
Descriptions
M7240TC, Einbau, 30 Zoll, Proud, wide front
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001753/20000175390.png
Descriptions
M7240TC+EBA7848, Einbau, 30 Zoll, Proud, wide front
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001753/20000175391.png
Descriptions
M7240TC, Einbau, 30 Zoll, Proud, built-under
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001753/20000175392.png
Descriptions
M7240TC+EBA7848, Einbau, 30 Zoll, Proud, built-under
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001753/20000175393.png
Descriptions
M7240TC, Einbau, 30 Zoll, Proud, built-under, wide front
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001753/20000175394.png
Descriptions
M7240TC+EBA7848, Einbau, 30 Zoll, Proud, built-under, wide front
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001754/20000175403.png
Descriptions
M7240TC(+EBA7848), Installation, 30 Zoll, Proud
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001754/20000175404.png
Descriptions
M7x4xTC(+EBA7848), Installation, 30 Zoll, Proud, built-under
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001754/20000175405.png
Descriptions

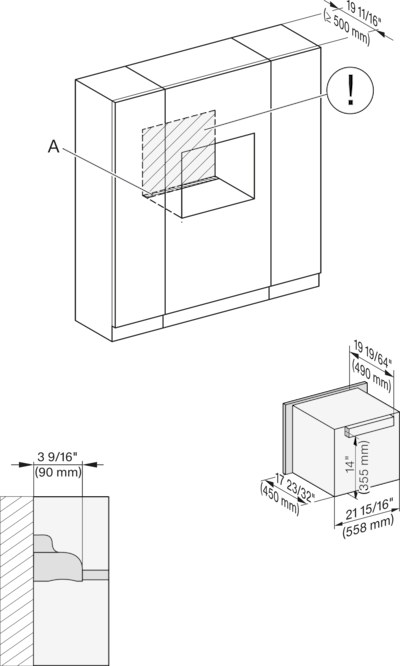

M7240TC(+EBA7848), Installation, 30 Zoll, Proud, wide front
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001754/20000175406.png
Descriptions

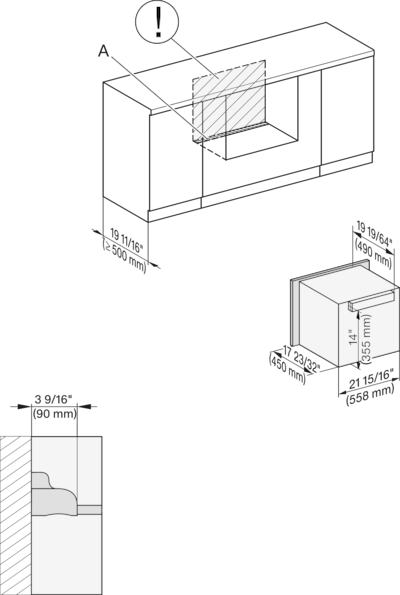

M7240TC(+EBA7848), Installation, 30 Zoll, Proud, built-under, wide front
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000018/200001895/20000189591.png
Descriptions

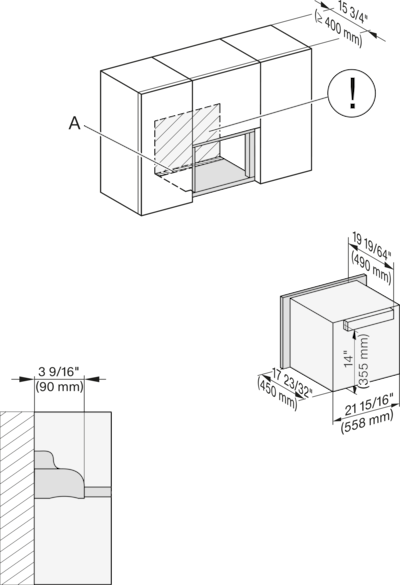

M7240SC(+EBA7848), Installation, 30 Zoll, Flush, inset, Oberschrank - Skizze - NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, ! - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., , E = Electric connection
Downloads
https://media.miele.com/images/2000018/200001895/20000189587.png
Descriptions

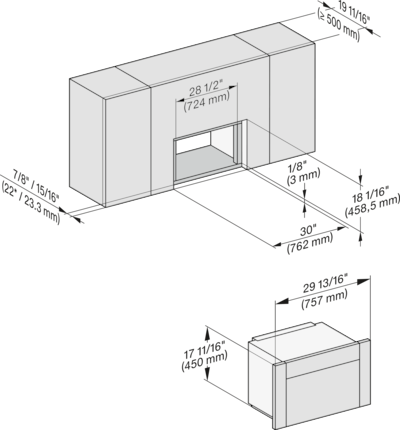

M7240SC(+EBA7848), Einbau, 30 Zoll, Flush, inset, breite Front, Oberschrank - Skizze - NA
Installation drawings
Downloads
https://media.miele.com/images/2000018/200001895/20000189586.png
Descriptions

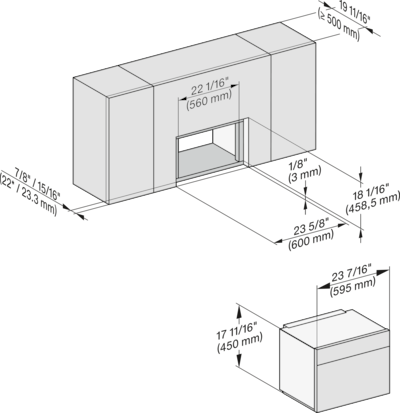

M7240TC, Einbau,30 Zoll, Flush, inset, breite Front, Oberschrank - Skizze - NA
Installation drawings
Downloads
https://media.miele.com/images/2000018/200001895/20000189584.png
Descriptions

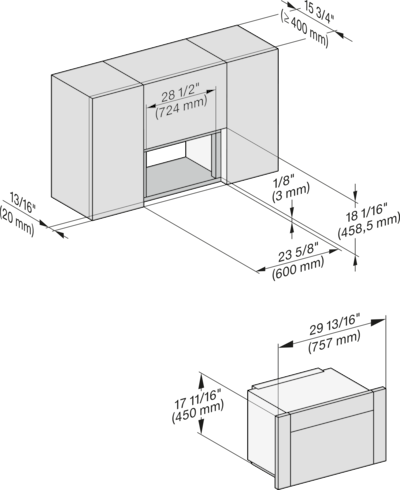

M7240SC(+EBA7848), Einbau, 30 Zoll, Flush, inset, Oberschrank - Skizze - NA
Installation drawings
Downloads
https://media.miele.com/images/2000018/200001895/20000189583.png
Descriptions

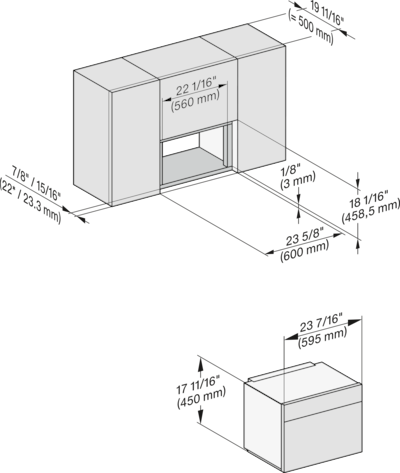

M7240TC, Einbau,30 Zoll, Flush, inset, Oberschrank - Skizze - NA
Installation drawings
Downloads
https://media.miele.com/images/2000018/200001895/20000189562.png
Descriptions

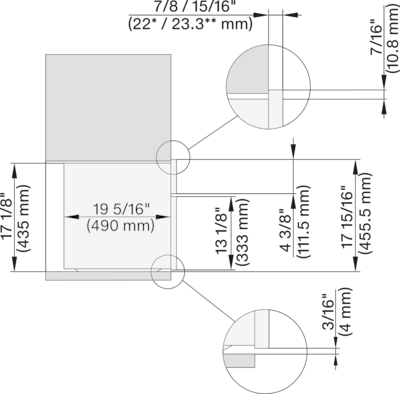

M7240TC(+EBA7848), Seitenansicht, 30 Zoll, Proud, Oberschrank - Skizze - NA
7/8“ - 22* mm – Glass, 15/16“ - 23.3** mm – Stainless steel
Downloads
https://media.miele.com/images/2000018/200001895/20000189566.png
Descriptions

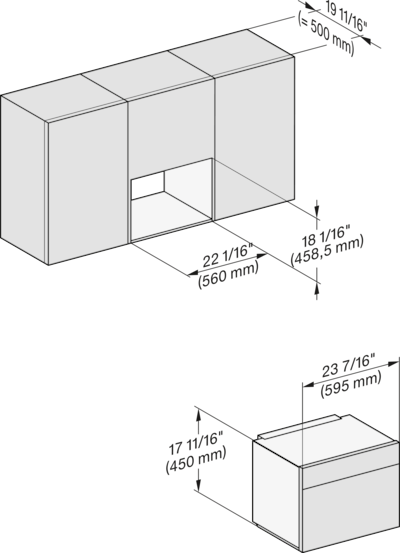

M7240TC, Einbau,30 Zoll, Proud, Oberschrank - Skizze - NA
Installation drawings
Downloads
https://media.miele.com/images/2000018/200001895/20000189567.png
Descriptions

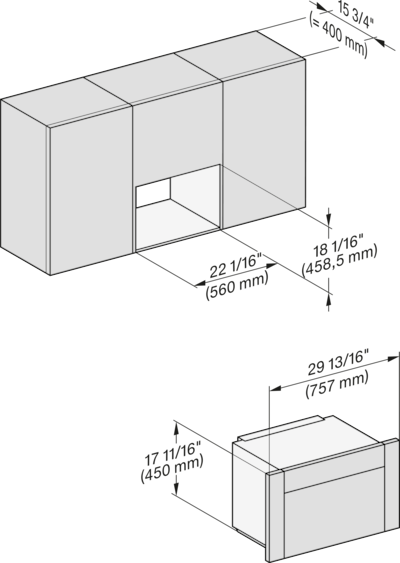

M7240TC(+EBA7848), Einbau, 30 Zoll, Proud, Oberschrank - Skizze - NA
Installation drawings
Downloads

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
