Hobs - KMR 1354-3 LP EDST/CLST - 1
Hobs - KMR 1354-3 LP EDST/CLST - 2
Hobs - KMR 1354-3 LP EDST/CLST - 1
Hobs - KMR 1354-3 LP EDST/CLST - 2

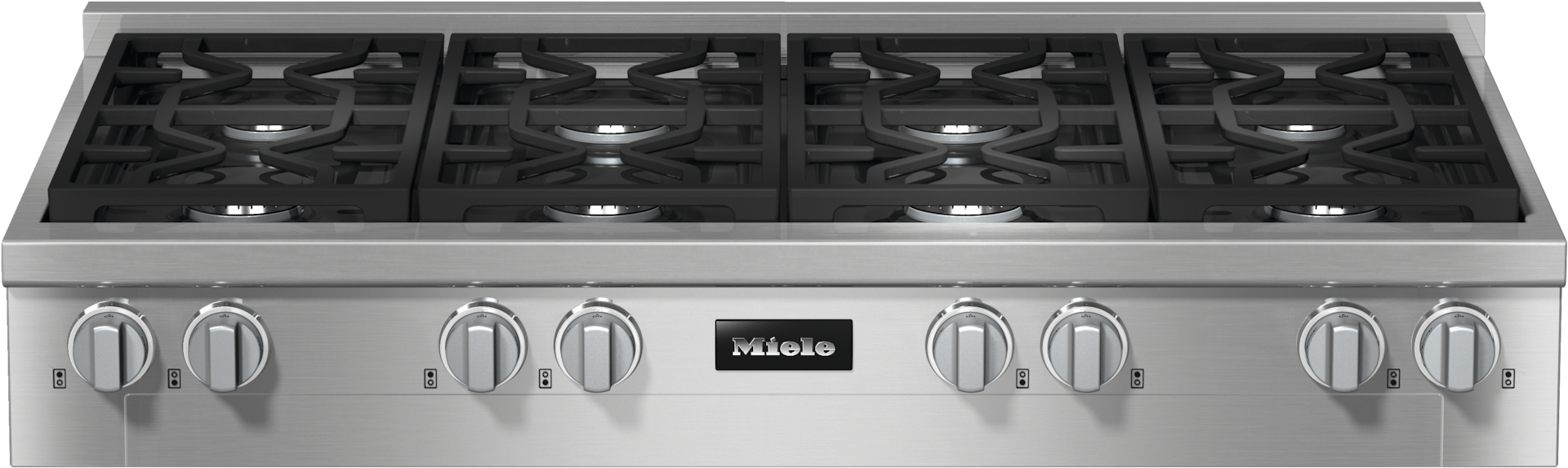

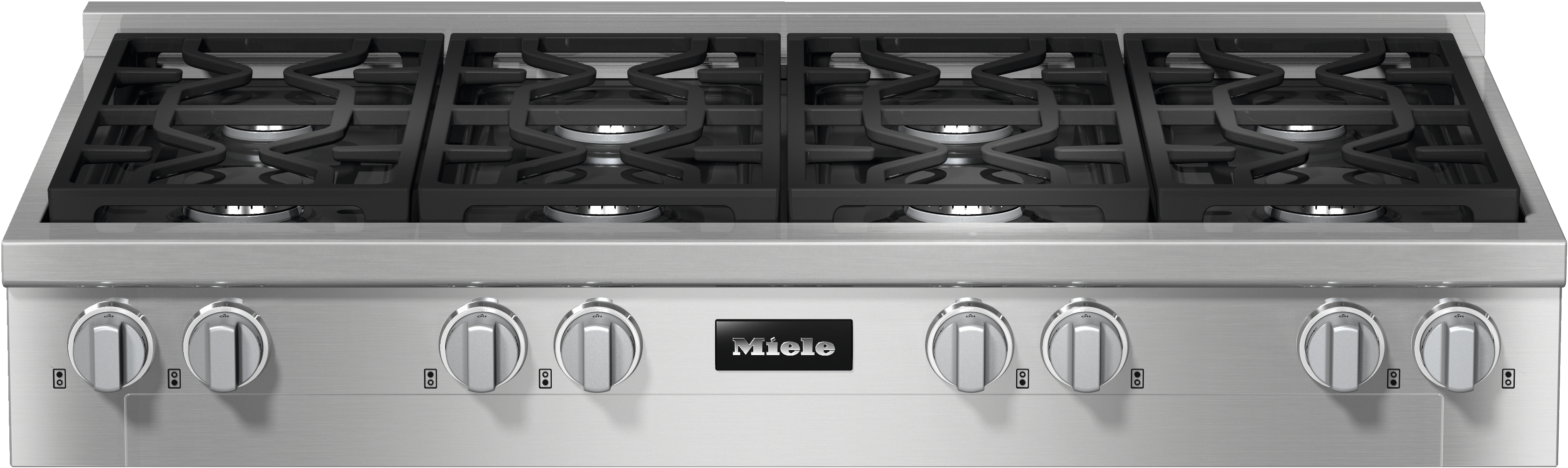

48-inch Range Top

KMR 1354-3 LP EDST/CLST

with 8 burners for professional applications
sale price$5,899.00



Product details

  • Professional design - 48 (1219) in (mm) wide in stainless steel with Clean Touch Steel™ finishing
  • Direct control - metal knobs with light ring
  • Easy cleaning - ComfortClean dishwasher-safe grates
  • Broad performance spectrum – burner w. up to19,500 BTU (5.7 kW)
  • Convenient and safe - automatic re-ignition for all burners

Product data sheet

Fuel typeGas
Rangetop
CasingStainless steel
Front panelCleanSteel
Genuine metal knobs
Cast iron pot rests (matte black enameled)
Number of gas burners8
Positionfront left
TypeUltra high-speed burner
Minimum power output in BTU/hr1700
Maximum power output in BTU/hr19500
Max. rating in W5700
Positionrear left
TypeHigh-speed burner
Minimum power output in BTU/hr1200
Maximum power output in BTU/hr12500
Max. rating in W2900
PositionRear center left
TypeUltra high-speed burner
Minimum power output in BTU/hr1700
Maximum power output in BTU/hr19500
Max. rating in W4000
PositionRear center right
TypeUltra high-speed burner
Minimum power output in BTU/hr1700
Maximum power output in BTU/hr19500
Max. rating in W4000
Positionrear right
TypeHigh-speed burner
Minimum power output in BTU/hr1200
Maximum power output in BTU/hr12500
Max. rating in W2900
Positionfront right
TypeUltra high-speed burner
Minimum power output in BTU/hr1700
Maximum power output in BTU/hr19500
Max. rating in W5700
PositionCenter right front
TypeUltra high-speed burner
Minimum power output in BTU/hr1700
Maximum power output in BTU/hr19500
Max. rating in W5700
PositionCenter left front
TypeUltra high-speed burner
Minimum power output in BTU/hr1700
Maximum power output in BTU/hr19500
Max. rating in W5700
True Simmer function
Operation via genuine metal knobs with backlit
Dishwasher-safe trivets
Single-piece cooktop surround
Automatic re-ignition
Dimensions (width) in in. (mm)48 (1219)
Dimensions (height) in in. (mm)7 5/8 (191)
Dimensions (depth) in in. (mm) with bullnose27 1/4 (692)
Dimensions (depth) in in. (mm) without bullnose25 5/8 (650)
Weight in lbs. (kg)149 (68)
Total output in BTU/hr142000
Total connected load in kW41.600
Voltage in V120
Fuse rating in A10
Number of phases1
Power cord length in in. (m)3 (1.2)
EAN4002516537052
Efficiently protects and makes cleaning easier
ComfortClean Dishwasher-Safe Grates

Fast cleaning: Remove the pot rests and wash in the dishwasher. Fast clean-up with dishwasher-safe grates.

Perfect results with the simmer function
Continuous simmer

The perfect temperature and even heat for simmering: Whether you are melting chocolate or thickening a sauce.

Elegant back-lighting
Backlit Precision Knobs

With QuickStart there's no need to press or hold the control in order to switch the burners on.

Protection for immaculate stainless steel surfaces
Clean Touch Steel™Front

No fingerprints on stainless steel: surface has special finish which keeps clean without special cleaning agents.

Maintenance

Efficiently protects and makes cleaning easier
ComfortClean Dishwasher-Safe Grates

Fast cleaning: Remove the pot rests and wash in the dishwasher. Fast clean-up with dishwasher-safe grates.

Protection for immaculate stainless steel surfaces
Clean Touch Steel™Front

No fingerprints on stainless steel: surface has special finish which keeps clean without special cleaning agents.

User convenience

Elegant back-lighting
Backlit Precision Knobs

With QuickStart there's no need to press or hold the control in order to switch the burners on.

Special features

Perfect results with the simmer function
Continuous simmer

The perfect temperature and even heat for simmering: Whether you are melting chocolate or thickening a sauce.

Matching products and accessories

MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

$15.99
 MicroCloth HyClean, 1 cloth
GP MI H 0011 W

 MicroCloth HyClean, 1 cloth

 Antibacterial multi-purpose cloth for improved hygiene.

$11.99
Fiskars “All Steel” starter pan set (4 pieces)
KMTS 5704-2

Fiskars “All Steel” starter pan set (4 pieces)

stainless-steel cookware with a matte brushed finish exclusively for Miele.

$529.00
Wok ring
RWR 1000

Wok ring

for Ranges and Rangetops

$95.00

Downloads

Warranty conditions
PDF
Downloads
Product sheet
PDF
Downloads
Operating and Installation instructions
PDF
Downloads
rvt
ZIP
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000013/200001369/20000136987.png
Descriptions
KMR1354 G/LP, KMR1355 G/LP, KMR1356 G/LP, KMR1354-3, KMR1355-3, KMR1356-3 (installation drawings)
1) Side view, 2) Front view, 3) Rear view, 4) Gas connection, 5) Electrical connection,
Downloads

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
