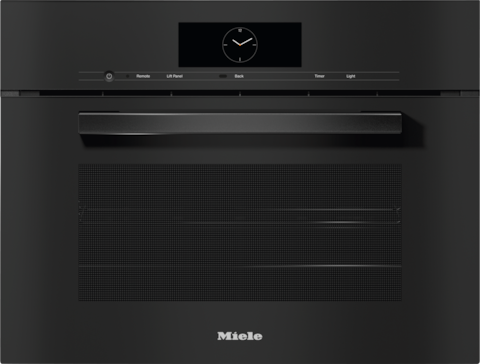

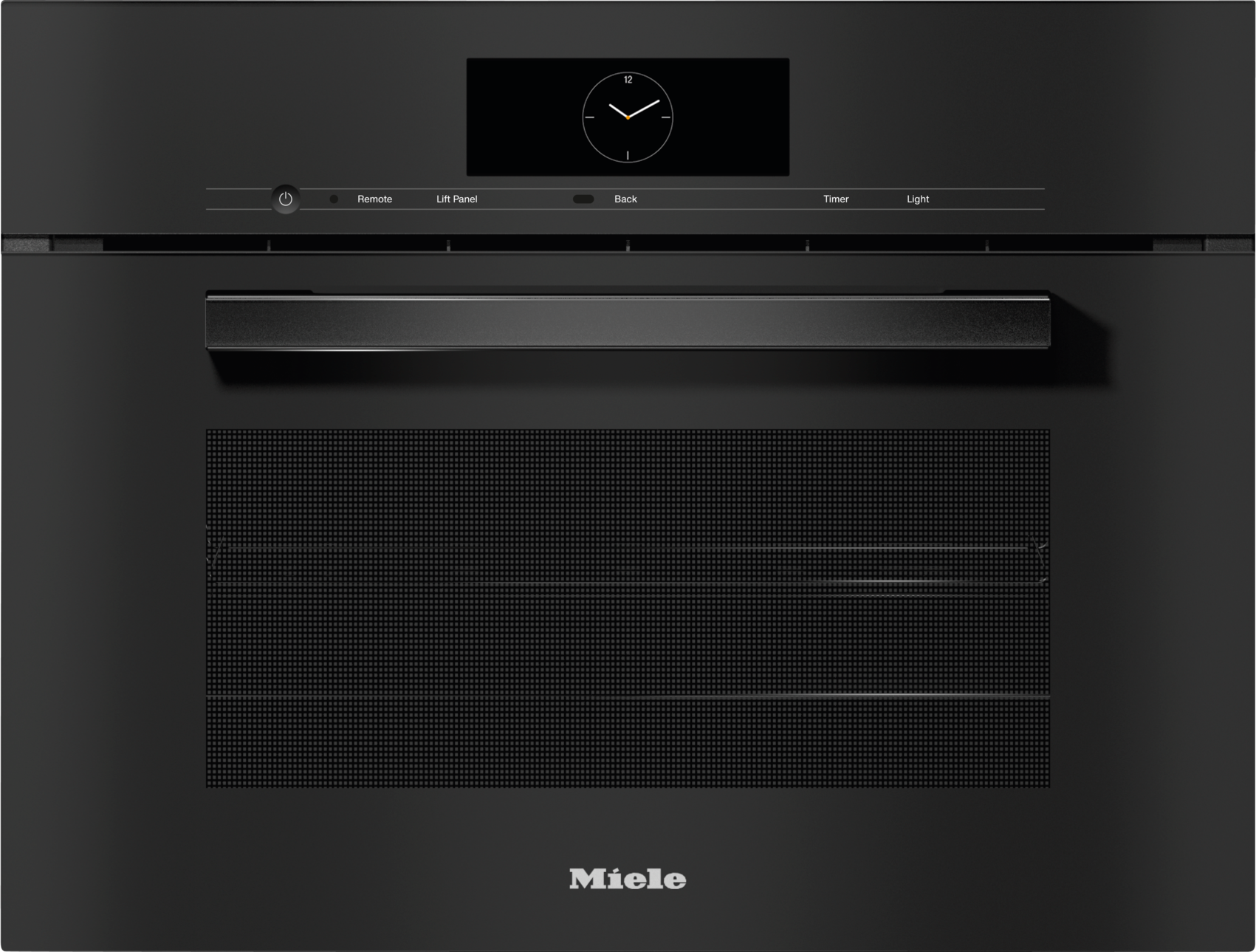

24" Compact Combi-Steam Oven XL

DGC 7840 AM Obsidian black

for steam cooking, baking, roasting with roast probe + menu cooking.

Color:Obsidian black

sale price$5,999.00



Product details

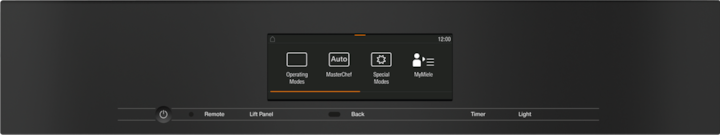

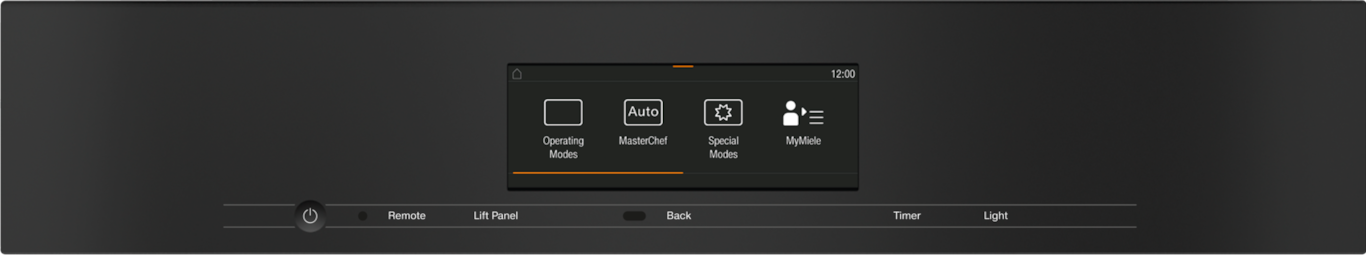

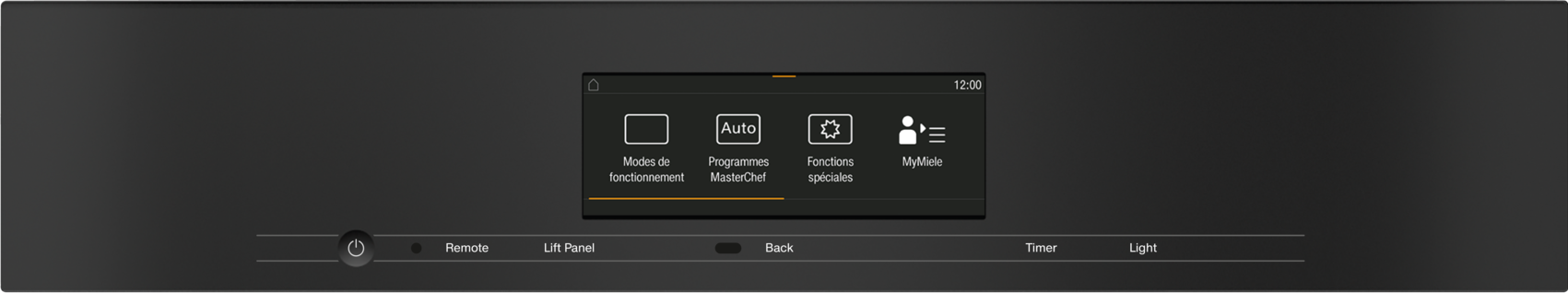

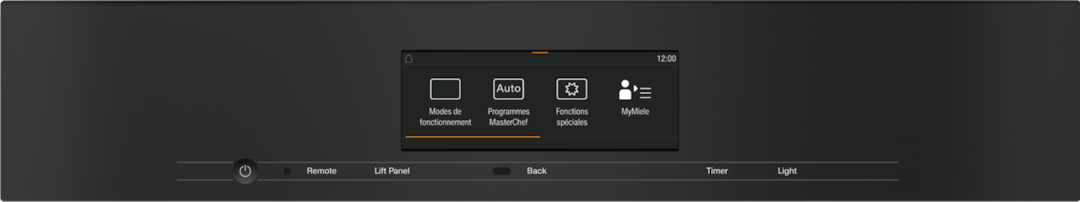

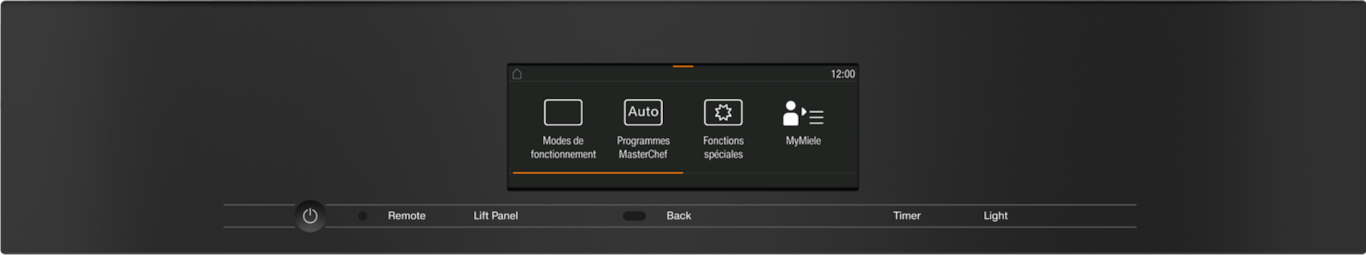

  • Large touch display with proximity sensor – M Touch + MotionReact
  • Perfect results –DualSteam technology
  • Crispy on the outside, succulent on the inside –Combi-Steam
  • Miele@home – network-enabled WiFi appliance + Miele Mix & Match
  • Easy cleaning –PerfectClean stainless steel oven compartment

Product data sheet

Combi-steam oven
VitroLine
Appliance colorObsidian black
Rapid PreHeat
Preheating
External steam generation
Climate sensor
Individual humidity settings in combination cooking
Menu cooking without transfer of taste
Miele Mix & Match
Roast probewired
Automatic programs with individual setting of the cooking result
Keep-warm function
Crisp Function
Convection Bake
Convection Roast
Surround
Steam cooking
Combi cooking
Combi-Steam
Combi-Steam with Convection Bake
Combi-Steam with Surround
Combi-Steam with Maxi Broil
Sous-vide
Intensive
Convection Broil
Maxi Broil
Broil
Broiling operating modes
Browning
Bake
Humidity Plus
Defrost
Roast with moisture
Reheating
Warm-up cookware
MasterChef automatic programs
Country-specific automatic programs
Special Modes
Networking with Miele@home
DisplayM Touch
Clear text on control panel
MotionReact proximity sensor
SoftOpen
SoftClose
MultiLingua
MyMiele
Show me how
Motorized lift-up control panel with SoftClose
Quantity-independent cooking
Steam cooking on up to 3 levels at the same time
Automatic menu cooking
Steam reduction before end of programme
Polyphonic acoustic signals
Timers
Time of day display
Date display
Minute minder
Programming start of cooking duration
Programming end of cooking duration
Programmable cooking time
Actual temperature display
Desired temperature display
Audible signal when desired temperature is reached
Default temperature
Favorites
Sabbath program
Individual settings
Stainless steel oven compartment with linen-weave pattern and PerfectClean finish
Foldable broil heater element
External steam generator
Maintenance programs
Soak program
Rinse program
Cavity drying program
Quick-release side racks
Removable side racks
Descaling
CleanGlass door
DualSteam
Fresh water container volume in l1.4
Fresh-water container tank behind motorized lift-up control panel with SoftClose
Condensate container behind motorized lift-up control panel with SoftClose
Drain filter
Appliance cooling system and cool touch front
Cooling system with cool touch front
Safety cut-out
Safety shut-off
System lock
Vapor cooling system
Sensor lock
Cavity volume in cu.ft (l)1.7 (48.0)
No. of rack levels3
Labeling of rack levels
Door hinge sideBottom
Oven interior lightingBrilliantLight
Oven mode temperatures in °F (°C)85-450 °F (30-230 °C)
Niche dimensions (W x H x D) in inches (mm)560-568 x 450-452 x 555
Niche width min. in inches (mm)560
Niche width max. in inches (mm)568
Niche height min. in inches (mm)450
Niche height max. in inches (mm)452
Niche depth in in. (mm)555
Appliance dimensions (W x H x D) in inches (mm)23 1/2 (595) x 18 (456) x 22 1/2 (569)
Appliance dimensions (W x H x D) in inches (mm)23 1/2 (595) x 18 (456) x 22 1/2 (569)
Weight in lbs. (kg)92 (41.5)
Total connected load in kW2.800-3.700
Power Rating in V0
Usable voltage range in V240/208
Frequency in Hz60
Fuse rating in A20
Number of phases2
Connection wire with plug
Length of power cord in in. (m)2
Replacing bulbsCustomer Service
Universal tray with PerfectClean HUBB 711
Wire rack with PerfectClean HBBR 711
PerfectClean FlexiClip telescopic runners HFC 71 (pair)1
Wired food probe1
Removable side racks with PerfectClean (pair)1
Perforated stainless-steel cooking containers2
Solid stainless steel cooking containers1
Descaling tablets2
Available display languages via MultiLingua
  • français
  • ελληνιкά
  • čeština
  • 繁體中文
  • slovenčina
  • slovenščina
  • 中文
  • polski
  • magyar
  • nederlands
  • hrvatski
  • yкраїнська
  • bahasa malaysia
  • italiano
  • deutsch
  • türkçe
  • dansk
  • suomi
  • 日本語
  • română
  • español
  • english
  • srpski
  • العربية
  • svenska
  • norsk
  • pусский
  • português
  • 한국어
EAN4002516487623

What's included

Universal tray with PerfectClean HUBB 71 (1)
Wire rack with PerfectClean HBBR 71 (1)
PerfectClean FlexiClip telescopic runners HFC 71 (pair) (1)
Removable side racks with PerfectClean (pair) (1)
Perforated stainless-steel cooking containers (2)
Solid stainless steel cooking containers (1)
Descaling tablets (2)
Wired food probe (1)

Special features

Makes food crunchy and crisp
Crisp function

Perfect for pizza or fries: Reducing the moisture achieves a crispy, golden finish.


Maximum performance for consistent results
DualSteam

Optimum enjoyment: The steam spreads quickly and evenly – so you can enjoy perfect cooking results.


Moisture and dry heat: the ideal combination
Combi-Steam ovens

Pure enjoyment: perfect results when baking and roasting with a combination of dry and moist heat.


Everything in a single appliance
3 in 1

A space-saving combination: convection oven, steam oven, and Combi-Steam for maximum flexibility when cooking!


Perfect results with little effort
MasterChef

Cooking delicious dishes with ease: fish, meat, or vegetables – fully automatic cooking.


Retains nutrients and protects the appliance
Automatic keeping warm function

Prevents food from cooling down: Food is automatically kept warm for 15 minutes after the cooking duration ends.


For a complete menu
Automatic menu cooking

Cook several components at the same time: The temperature, cooking duration, and sequence are set automatically.


Different amounts, same cooking duration
Quantity-independent cooking

Always the same time: Whether 1/4 lb or 2 lb, the cooking duration always stays the same.


User convenience

Cleverly networked
Appliance networking with Miele@home1,

Make your life smart: thanks to Miele@home you can cleverly network your domestic appliances – for more options.


Gentle door movement
SoftOpen and SoftClose

Sophisticated and elegant: The door opens and closes with a gentle movement – right to the very end.


More than just a control element
Motorized lift-up control panel with SoftClose

Convenient: Open and close the lift-up control panel with the tap of a finger to access the water container.


Wide range of options
Wide range of applications

Steam cooking is also ideal for blanching, defrosting, reheating, proofing dough, or melting chocolate.


Let your oven take care of time management
Timers

Always on time: Set the start time, end time, and duration of the cooking process, or the kitchen timer.


Oven cabinets

A perfect view at all levels
​ClearView Lighting

Powerful and attractive: high-quality LED spotlights perfectly illuminate the oven compartment.


Innovative features
Stainless steel interior with PerfectClean

High-quality and easy to clean: Our Combi-Steam Ovens all feature a stainless-steel oven compartment.


Gourmet versatility

Vegetables

Nature at its best: Gentle cooking in the steam oven retains flavor and is also very healthy.


Side dishes

Always on hand: Potatoes, rice, and pasta go well with any dish and are extremely nutritious.


Fish/seafood

Healthy food straight from the sea: Fish and seafood are cooked to perfection, retaining their aroma and texture.


Meat

Juicy and succulent: Meat from the steam oven has an impressive, intense flavor.


Defrost

Gentle on frozen food: Defrost any frozen food gently at around 140°F ( 60°C) in ideal conditions.


Disinfecting baby bottles

Bacteria-free in just 15 minutes: quick and uncomplicated disinfection of baby bottles at 210°F (100°C).


Blanching

Ideal preparation: Blanch fruit or vegetables to maintain their quality and freshness.


Desserts

Save the best for last: You can prepare desserts in a variety of ways with the steam oven.


Cooking eggs

Eggs cooked to your preference. Cook your breakfast egg to perfection in minutes at 210°F (100°C)


Preserving

Fresher for longer: Preserving fruit, vegetables and meats is a breeze in the steam oven.


Sterilizing jars

Perfectly prepared: Glass jars can be sterilized thoroughly for fruit preserves.


Skinning

Skinning made simple: Tomatoes, nectarines, and almonds can be skinned in just 1 to 4 minutes in the steam oven.


Extracting juice

Transform any fruit into a delicious juice or jam: Steam ensures particularly gentle juice extraction.


Heating hand towels

Like a restaurant experience: Serve your guests hand towels warmed in the steam oven.


Proofing dough

Soft and light: This all-rounder even helps you master dough – it proofs beautifully at 105°F (40°C).


Making yogurt

Completely homemade: Create your very own yogurt in a 105°F (40°C) steam oven in just 5 hours.


Melting chocolate

Sweet temptation: At 195°F (90°C), chocolate melts without clumping or burning – perfect for cakes or cookies.


Soups

All sorts of soups can be made as a tasty starter.


Keeping warm

Eating later? Your steam oven will automatically keep food warm for up to 15 minutes.


Operating modes

Combi-Steam + Convection Bake

Optimum results: Additional moisture cooks bread, bread rolls, or meat professionally and to perfection.


Combi-Steam + Surround

Food is cooked evenly – which makes for the perfect bread.


Combi Broil

Fish and meat with a high fat content are particularly tender and succulent – with a crispy skin or crust.


Maxi Broil

Versatile function for indoors: so you can broil large quantities of steaks, sausages, kebabs, and more.


Intensive

Crispy bases, delicious toppings: pizza, quiche, or fresh fruit flans – crispy base, moist on top.


Humidity Plus

Conjure up delicious cakes: perfect choux pastry, pretzels, and cake batter as good as those from the bakery.


Surround

Multi-purpose, classic function: perfect results for all types of traditional baked and roasted dishes.


Browning

Finishing touch for the eye and palate: Perfect results when cooking gratins, baking toppings, and browning foods.


Bake

Individual requirements: for cooking food in a bain-marie or for browning from underneath.


Convection Broil

Crisp outside, succulent inside: ideal for chicken, duck, pork, rolled meat, and many other meat dishes.


Sabbath Program

Preprogram dishes up to 72 hours in advance: The unique Sabbath Program lets you make long-term plans.


Sous-vide cooking

Pure pleasure: meat, vegetables, or fruit cooked in a vacuum for the ultimate taste sensation.


Steam cooking

Gentle and healthy food preparation: cooking with steam retains many nutrients.


Setup/function

A great advantage: external steam
External steam generation

Steam generation outside the cooking compartment prevents limescale residues and ensures easy cleaning.


Downloads

Warranty conditions
PDF
Downloads
Product sheet
PDF
Downloads
Operating and Installation instructions
PDF
Downloads
rvt
ZIP
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000017/200001723/20000172395.png
Descriptions
Swivel range Flush inset DGC XL, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001723/20000172398.png
Descriptions
side view 30 inch Flush inset DGC XL, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001724/20000172479.png
Descriptions
side view 30 inch Proud DGC XL, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001754/20000175418.png
Descriptions
installation 30 inch Flush inset DGC XL, installation drawing, NA
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001753/20000175355.png
Descriptions
installation Proud 450S, installation drawing, NA
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001754/20000175423.png
Descriptions
installation 30 inch Flush inset wide front DGC XL, installation drawing, NA
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001754/20000175414.png
Descriptions
installation Flush inset wide front 450S, installation drawing, NA
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001724/20000172476.png
Descriptions
swivel range Proud DGC XL, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001753/20000175360.png
Descriptions
installation Proud wide front 450S, installation drawing, NA
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001753/20000175364.png
Descriptions
installation 30 inch Proud DGC XL, installation drawing, Na
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001753/20000175369.png
Descriptions
installation 30 inch Proud wide front DGC XL, installation drawing, NA
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001725/20000172556.png
Descriptions
DGC 6x00-1 + EBA 6808, H 6x00 BM + EBA 6808, DGC7xxx, H7xxx, EBA7848 Combi, Installation drawing, Flush inset, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001725/20000172558.png
Descriptions
DGC6x00-1+EBA 6808, H 6560B+EBA 6808, H 6x60 BP+EBA6808, DGC7xxx, H7xxx, EBA78x8 Combi, Install. drawi., Flush inset, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001727/20000172787.png
Descriptions
DGC 6x00-1 + EBA6808, H 6x00 BM+EBA 6808, DGC7x4x(+EBA7848), H7x40BM(+EBA7848),Combi, Installation drawing, Proud, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001727/20000172789.png
Descriptions
DGCxxxx-1+EBAx8x8, H6560B+EBA6808, HxxxxBP+EBAx8x8, Combi, Installation Drawing, Proud, Flush inset, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001754/20000175427.png
Descriptions
DGC7x4x, ESW7x10, EVS7010, side view, 30 Zoll, Flush inset, combi, XL
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001755/20000175513.png
Descriptions
DGC7x40, ESW7x10, EVS7010, side view, 30 Zoll, Proud, combi,XL
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175448.png
Descriptions
DGC7x4x, H7x40BM, Einbau, 30 Zoll, Flush inset, combi 450S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175449.png
Descriptions
DGC7x40, DGC7485, H7x40BM, ESW7x10, EVS7010, Einbau 30 Zoll, Flush inset, combi, 450S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001755/20000175570.png
Descriptions
DGC7x4x(+EBA7848), H7x40BM(+EBA7848), Installation, 30 Zoll, Proud, combi, wide front XL, 450S
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001754/20000175450.png
Descriptions
DGC7x4x, H7x40BM, H7x6xBP, Einbau, 30 Zoll Flush inset, combi, 650S, 450S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001755/20000175572.png
Descriptions
DGC7x4x(+EBA7848), H7x6xBP(+EBA7848), Installation, 30 Zoll, Proud, combi, wide front, 650S
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001754/20000175459.png
Descriptions
DGC7x4x, DGC7485, H7x40BM, Einbau, 30 Zoll, Flush inset, combi, wide front, 450S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175460.png
Descriptions
DGC7xxx, H7x40BM, ESW7x10, EVS7010, Einbau, 30 Zoll, Flush inset, combi, wide front, 450S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175461.png
Descriptions
DGC7xxx, H7x40BM, H7x6xBP, Einbau, 30 Zoll, Flush inset, combi, wide front, 650S, 450S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175466.png
Descriptions
DGC7xxx+EBA7848, H7x40BM (+EBA7848), Installation, 30 Zoll, Flushinset, combi, XL, 450S
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001754/20000175468.png
Descriptions
DGC7x4x(+EBA7848), H7x6xBP(+EBA7848), Installation, 30 Zol, Flush inset, combi, XL, 650S
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001754/20000175489.png
Descriptions
DGC7x40(+EBA7848), H7x40BM(+EBA7848), H7840+EBA6808, Installation, 30 Zoll, flush inset, combi, wide front, XL, 450S
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001754/20000175491.png
Descriptions
DGC7x4x(+EBA7848), H7x6x(+EBA7848), Installation, 30 Zoll, flush inset, combi, wide front, XL, 650S
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001755/20000175530.png
Descriptions
DDGC7xxx, H7x40BM, Einbau, 30 Zoll, Proud, combi, 450S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001755/20000175531.png
Descriptions
DGC7xxx, H7x40BM, ESW7x10, EVS, Einbau, 30 Zoll, Proud, combi, 450S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001755/20000175532.png
Descriptions
DGC7xxx, H7x4xBM, H7x6xBP, Einbau, 30 Zoll, Proud, combi, 650S, 450S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001755/20000175541.png
Descriptions
DGC7x4x, H7x40BM, Einbau, 30 Zoll, Proud, combi, wide front, 450S
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001755/20000175542.png
Descriptions
DGC7x4x, H7x40BM, ESW7x10, EVS7010, Einbau, 30 Zoll, Proud, combi, wide front, 450S
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001755/20000175543.png
Descriptions
DGC7x4x, H7x40Bm, H7x6xBP, Einbau, 30 Zoll, Proud, combi, wide front, 650S, 450S
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001755/20000175548.png
Descriptions
DGC7x4x(+EBA7848), H7x40BM(+EBA7848), Installation, 30 Zoll, Proud, combi, XL, 450S
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001755/20000175550.png
Descriptions
DGC7x4x(+EBA7848), H7x6x(+EBA7848), Installation, 30 Zoll, Proud, combi, XL, 650S
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000018/200001802/20000180244.png
Descriptions
Handle DGC74xx, DGC76xx, DGC78xx, PureLine - NA7000 - Installation drawing
DGC7470, DGC7670, DGC7870, DGC7875, DGC7680, DGC7685, DGC7880, DGC7885:, ① 19 11/16" / 500 mm, ② 17 1/2" / 444 mm, ③ 1 7/8 " / 47 mm, ④ 15/16" / 24 mm, ⑤ 1 1/4 " / 32,5 mm, ⑥ 2 9/16“ / 65 mm, , DGC7440, DGC7640, DGC7840, DGC7845, DGC7860, DGC7865:, ① 15 3/4“ / 400 mm, ② 14 3/16“ / 360 mm, ③ 1 7/8“ / 47 mm, ④ 15/16“ / 24 mm, ⑤ 1 1/4“ / 32,5 mm, ⑥ 2 9/16“ / 65 mm
Downloads
https://media.miele.com/images/2000018/200001895/20000189530.png
Descriptions
installation Flush inset 450S, installation drawing, NA
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel, DGC: Minimum installation height 36” - 914 mm from floor to the device installation surface
Downloads
  • 1.Additional digital offer from Miele & Cie. KG. All smart applications are made possible with the Miele@home system. The range of functions can vary depending on the model and the country.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
