Built-under fresh water dishwasher

PFD 401 U [208V]

ADA compliant, with baskets for hotels, restaurants and catering companies.


sale price$5,999.00



Product details

  • Max. cleaning performance2, : 380 plates/h or 20baskets/h
  • Flexible processing oftwo wire or plastic baskets per cycle
  • Max. user convenience withM Touch Flex full-touch color display
  • Always the right program -item-specific solutions
  • First-class results thanks tofresh water system

Product data sheet

ModelBuilt-under dishwasher
RangeMasterLine
ModelSpeedplus
Number of levels2
FrontStainless steel
LidWithout lid
Side wallsGalvanised
Suitable for small restaurants/bars
Suitable for hospitality industry
Suitable for Bed & Breakfast
Suitable for canteens
Suitable for offices
Suitable for small businesses
Suitable for fast food restaurants
Suitable for sports clubs
Circulation pump, Qmax in gal/min (l/min)103 (390)
Shortest program duration in min.6
Maximum final rinse temperature in °F (°C)158 (70)
Cleaning performance, plates/h380
Cleaning performance, baskets/h20
Service life in wash cycles28000
Control systemM Touch Flex
Max. delay start in h24
Countdown indicator
Dishwashing programs [number]11
Program sequence indicator
Choice of display language
Language-neutral operation
Electrical connection2 AC 208V 60HZ
Heater rating in kW5.400
Total connected load in kW5.800
Fuse rating in A30
Length of power cord in ft (m)6 (1.90)
Electrical connection3 AC 208V 60HZ
Heater rating in kW5.400
Total connected load in kW5.800
Fuse rating in A20
Cold water [number]1
Hot water [number]1
Required flow pressure in bar0.40-10
Drain hose [DN]22
Maximum delivery head for drain pump in inches (cm)39 3/8 (100)
Maximum water hardness in gpg (mmol/l)62.595 (10.70)
Water protection systemWaterproof system
Water consumption per wash cycle in gal (l)2.1 (8.00) gll (l)
Length of water inlet hose in inches (cm)67 (170)
Length of water drain hose in inches (cm)59 1/8 (150)
External dimensions, net height in inches32 5/16 (820)
Maximum height adjustment in inches (mm)60
External dimensions, net width in inches23 9/16 (598)
External dimensions, net depth in inches22 7/8 (580)
External dimensions, gross height in inches36 1/4 (920)
External dimensions, gross width in inches26 7/16 (670)
External dimensions, gross depth in inches29 3/16 (740)
Usable space in wash cabinet, width in inches (mm)22 1/16 (559)
Usable space in wash cabinet, height in inches (mm)21 1/8 (536)
Usable space in wash cabinet, depth of upper basket in inches (mm)18 11/16 (474)
Usable space in wash cabinet, depth of lower basket in inches (mm)20 3/8 (516)
In-feed height above floor in inches (mm)8 9/16 (216)
Required niche width in mm23 5/8 (600)
Net weight [kg]144 (65)
Gross weight in lbs.166 (75)
Maximum floor load in N/m²1200
Emission sound pressure level in workplace (LpA)47 dB(A) re 20 µPa
Sound power (LwA) in dB(A) re 1 pW59
Heat output to the room in Mj/h1.44
Universal
Super short
Short
SaniWash
Cold/Pre-wash
Glasses
Beer glasses
Cutlery
Plastic
Intensive
Reactivation
Drainage by pump
2 x E 816 inserts for plates
1 x APFD 215 upper basket
1 x APFD 220 lower basket for inserts
2 x APFD 420 insert for cutlery
Height-adjustable upper basket
Combinable with APFD 210 bottle basket
DryingNone
1 Combi dispenser/door for powder and liquid media
Adjustable temperature holding time
In-door salt container
Perfect GlassCare
Adjustable final rinse temperature
Optical interface
Highly effective filter system with filter monitoring
Wi-Fi
A wide range of accessories (optional)
External dispensing module for liquid cleaning agent
Complies with Machinery Directive 2006/42/EC
Splash protection IPX1
EMC radio suppressed
DIN 10512
DIN EN 17735
ETL
ADA compliant
EAN4002516577331

User convenience

An eye on the time
Delay start and time left display

For maximum flexibility, a delay start time of up to 24 hours can be selected.


Replenish salt conveniently
Door salt container

Ergonomic convenience: The salt container can be conveniently refilled without removing the lower basket.


Optimum features
Extensive range of accessories

Always perfect ergonomics and efficiency - with practical accessories, from special baskets to dispenser pumps.


Your dishwasher “speaks” multiple languages
Choice of display languages

Multi-talented: set various languages on the display so that you fully understand every piece of information.


The benchmark for modern user convenience

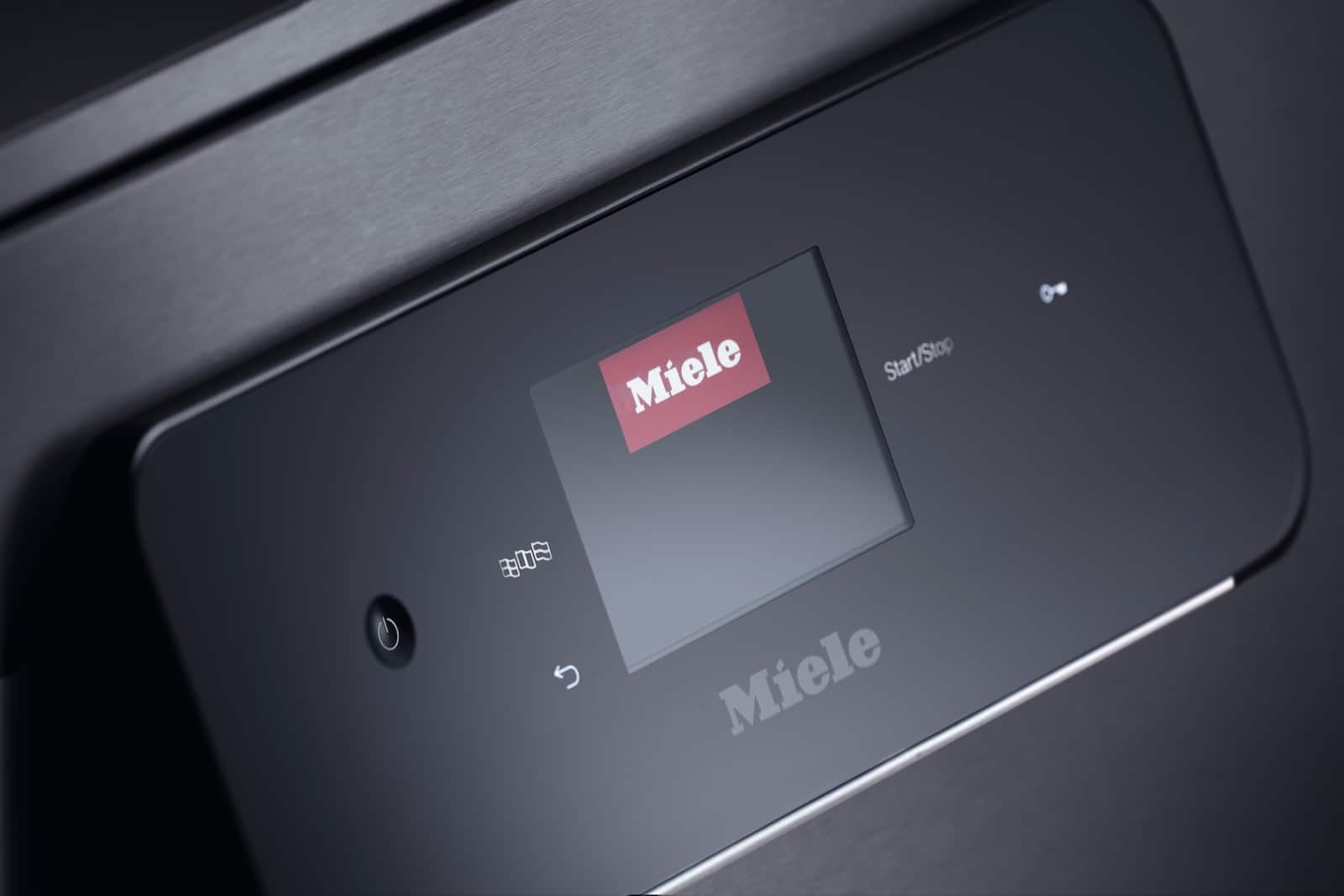

M Touch Flex controls

Use all dishwashing programs and machine functions conveniently with a tap on the clear text touch display.


Basket design

Spotless results and ergonomic operation
Professional baskets

Functional design for superb washing and reliable drying results.


Reliable internal cleaning of lumened instruments
Practical bottle basket

Bottles can be reliably cleaned inside using the APFD 210 basket, which is available to purchase separately.


Secure positioning of medication cups
Hygienic cleanliness down to the very last detail

Medication cups and lids can also be cleaned hygienically using inserts that are available separately.


Efficiency and sustainability

Optional dispensing of liquid agents
Connection for detergent dispenser module

An optional dispenser module can be connected for convenient and economical use of liquid agents.


Economical
Low consumption values

Economical and efficient: Miele Professional dishwashers stand out with low consumption values.


Professional and effective
Highly effective filter system

Outstanding dishwashing results and reliability are largely due to the highly effective filter system.


Economical
Efficient hot water connection

Connection to a hot water supply shortens the program run times, reducing energy consumption.


Large wash cabinet
Powerful cleaning performance on two levels

High capacity: The most diverse items can be arranged safely on two wash levels.


Performance

A gentle way to a perfect shine
Perfect GlassCare

A gentle way to a perfect shine: With Perfect GlassCare, your glasses are thoroughly and gently cleaned.


Variable adjustment options
Adjustable program parameters

Adjusting the program parameters as required ensures consistently perfect dishwashing results


Gleaming results in no time
Very short cycle times

Thanks to intelligent professional technology you can benefit from very short programs and perfect results.


Perfect Integration
Perfect integration under countertops

Perfect appearance thanks to dishwashers that can be built-under.


Quality

Water protection guarantee
Water protection guarantee1,

Maximum safety: Miele will bear the cost for prop. dam. resulting fr. a defect in the water prot. s. for 20 years.


Connectivity

Convenience & efficiency in demanding applications
Future-proof networking via WiFi

Fully informed with a high-performance network connection.


  • 1.For details please refer to our warranty terms and conditions for water protection.
  • 2.Depending on site conditions (temperature of incoming water / power connection) values given may vary.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
