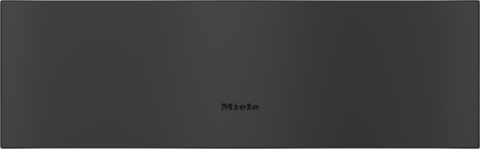

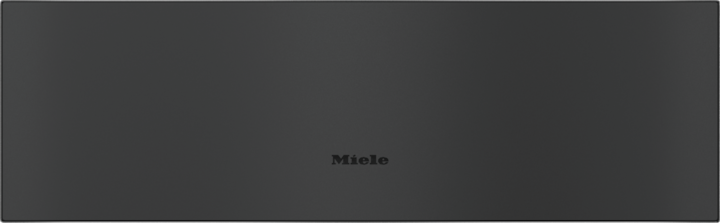

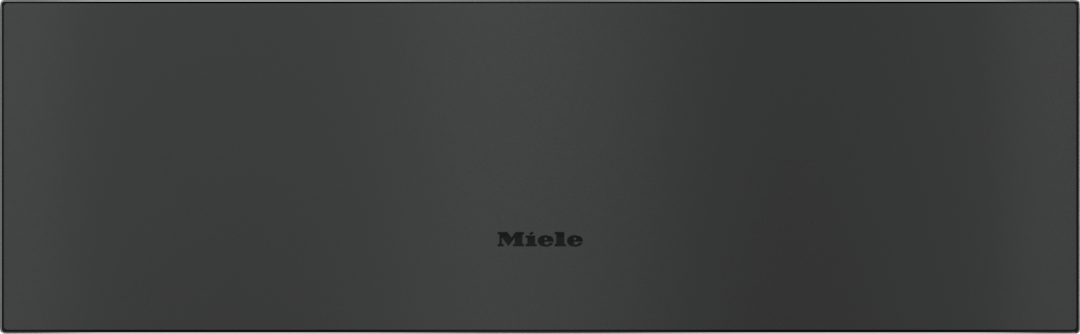

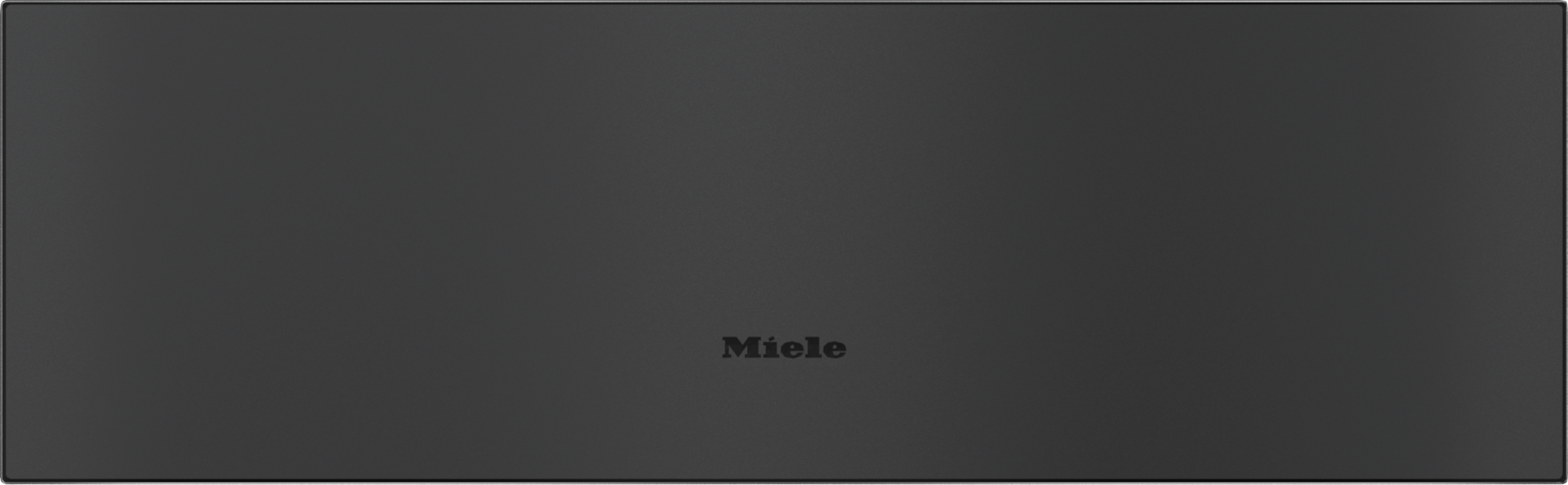

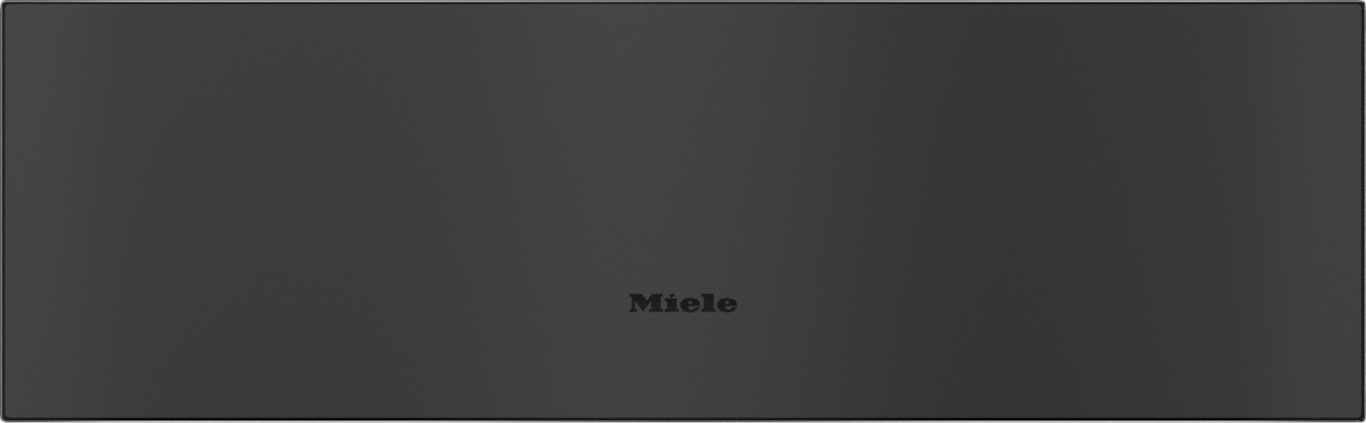

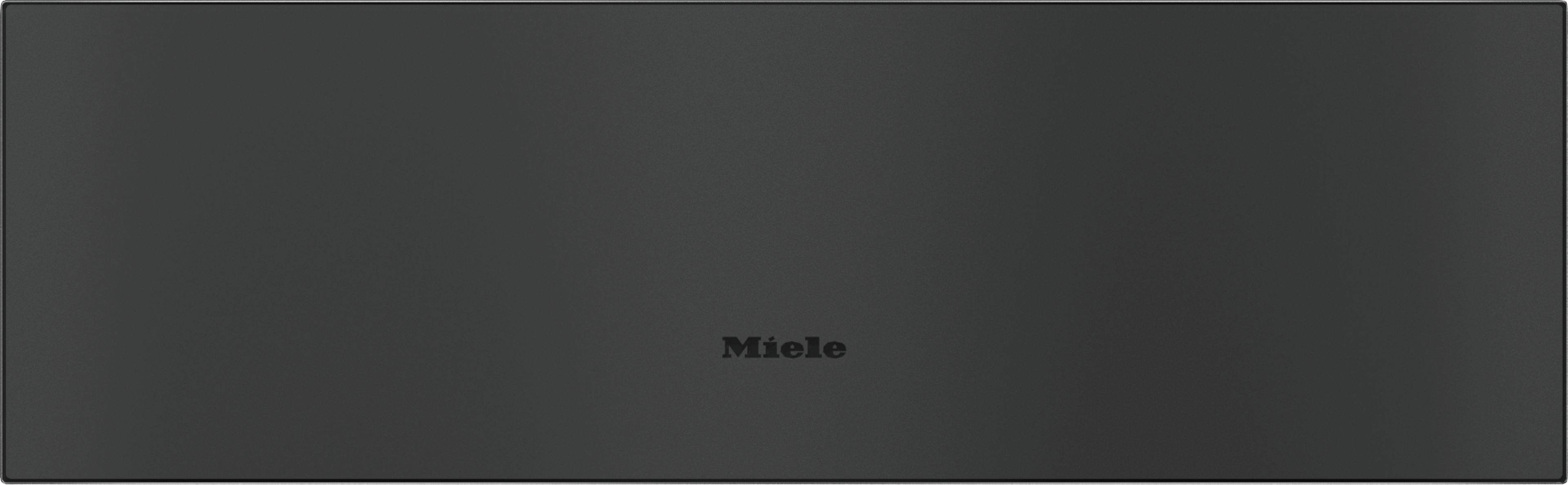

Handleless vacuum sealing drawer, 30" width and 9 3/16" height

EVS 7670 Obsidian Black matte

for professional vacuum sealing of food.

Color:Obsidian Black matte

sale price$4,499.00



Product details

  • Remaining fresh for longer – storage and portioning of food
  • Intense taste sensations – food marination
  • Preparation of food for sous-vide cooking
  • Easy handling –Touch controlandfully telescopic runners
  • Push2open– opening the drawer couldn’t be easier

Product data sheet

Built-in vacuum drawer
VitroLine
ArtLine
No Handles
ColorObsidian Black matte
Preparing for Sous Vide cooking
Longer food storage life
Marinating food
Vacuuming
Vacuum sealing food
Marinating food
Dividing food into portions
Vacuum sealing containers
Resealing original packaging
Sealing jars
Vacuum sealing liquids
Stainless-steel vacuum sealing chamber capacity in l8
Storage compartmentYes
Minimum bag size in inch (mm)9 7/8 (250)
Maximum bag size in mm13 7/8 (350)
Push2open mechanism
Fully telescopic runners for easy loading and unloading
Control panel with sensor control
Control panel with text
Timers
Stop programming
Timer function
LED vacuum setting indicator
LED vacuum strength indicator for external containers
Sealing duration settings1 - 3
LED sealing duration indicator
Stop function
Stainless-steel vacuum chamber
Pump capacity in m³/h2.35 (4)
Flush control panel
Note regarding moisture removal from the vacuum pump
Replaceable sealing bar
Safety cut-out
Appliance width in in. (mm)29 7/8 (757)
Appliance height in in. (mm)9 7/8 (248)
Appliance depth in in. (mm)22 1/2 (570)
Appliance dimensions (W x H x D) in inches (mm)29 7/8 (757) x 9 7/8 (248) x 22 1/2 (570)
Useable interior height in in. (mm)3 1/4 (80)
Total connected load in kW0.520
Voltage in V120
Frequency in Hz60
Fuse rating in A10
Number of phases1
Connection wire with plugYes
Wire length in ft. (m)5 (1.8)
Adapter for vacuum-sealing container1
Vacuum sealing bag support1
EAN4002516764274

What's included

Adapter for vacuum-sealing container (1)
Vacuum sealing bag support (1)

Special features

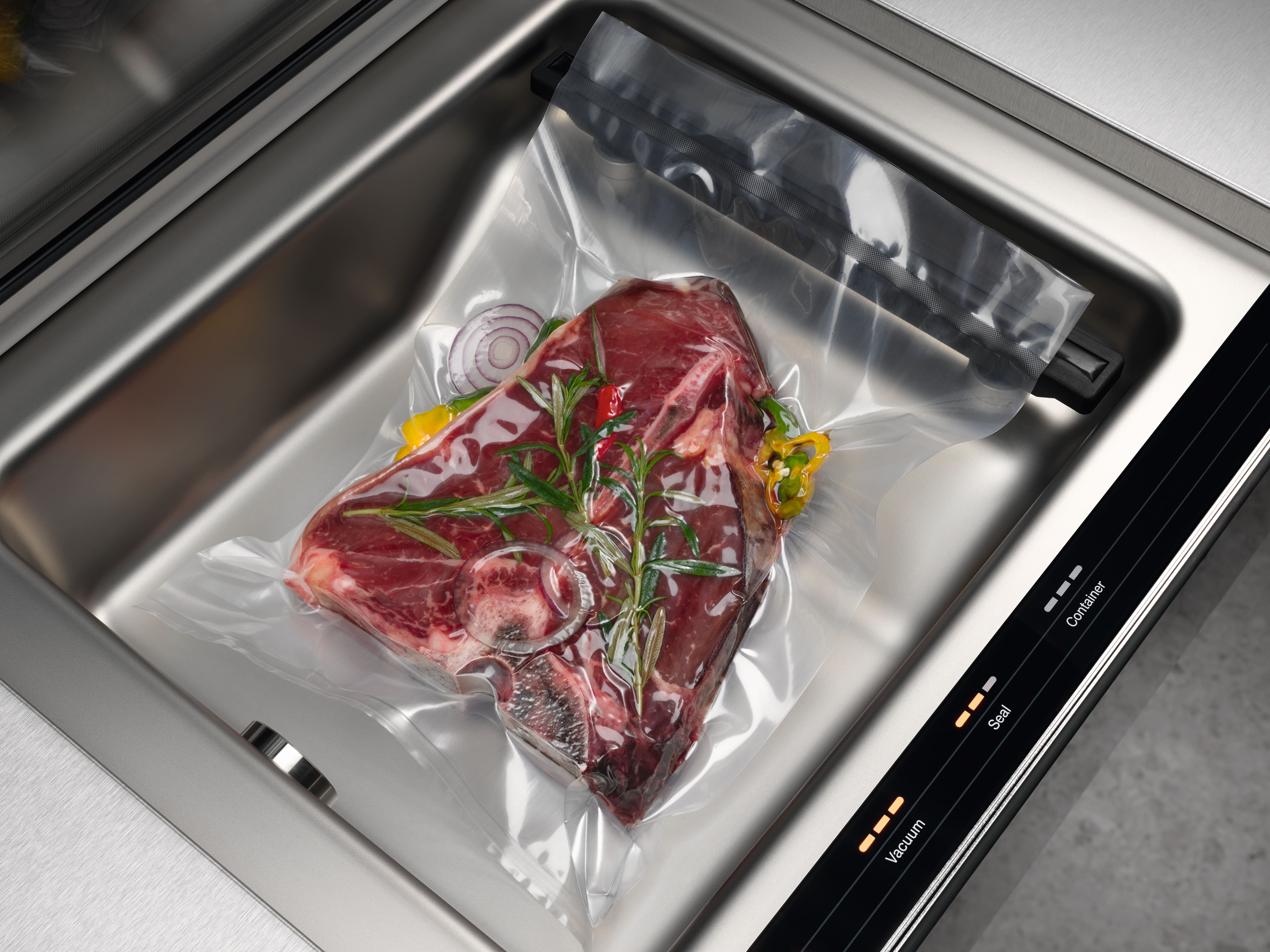

Food that lasts longer and is perfectly prepared
Vacuum-sealing

Ideal conditions: Vacuum-seal food for storage, portioning, marinating, and resealing.

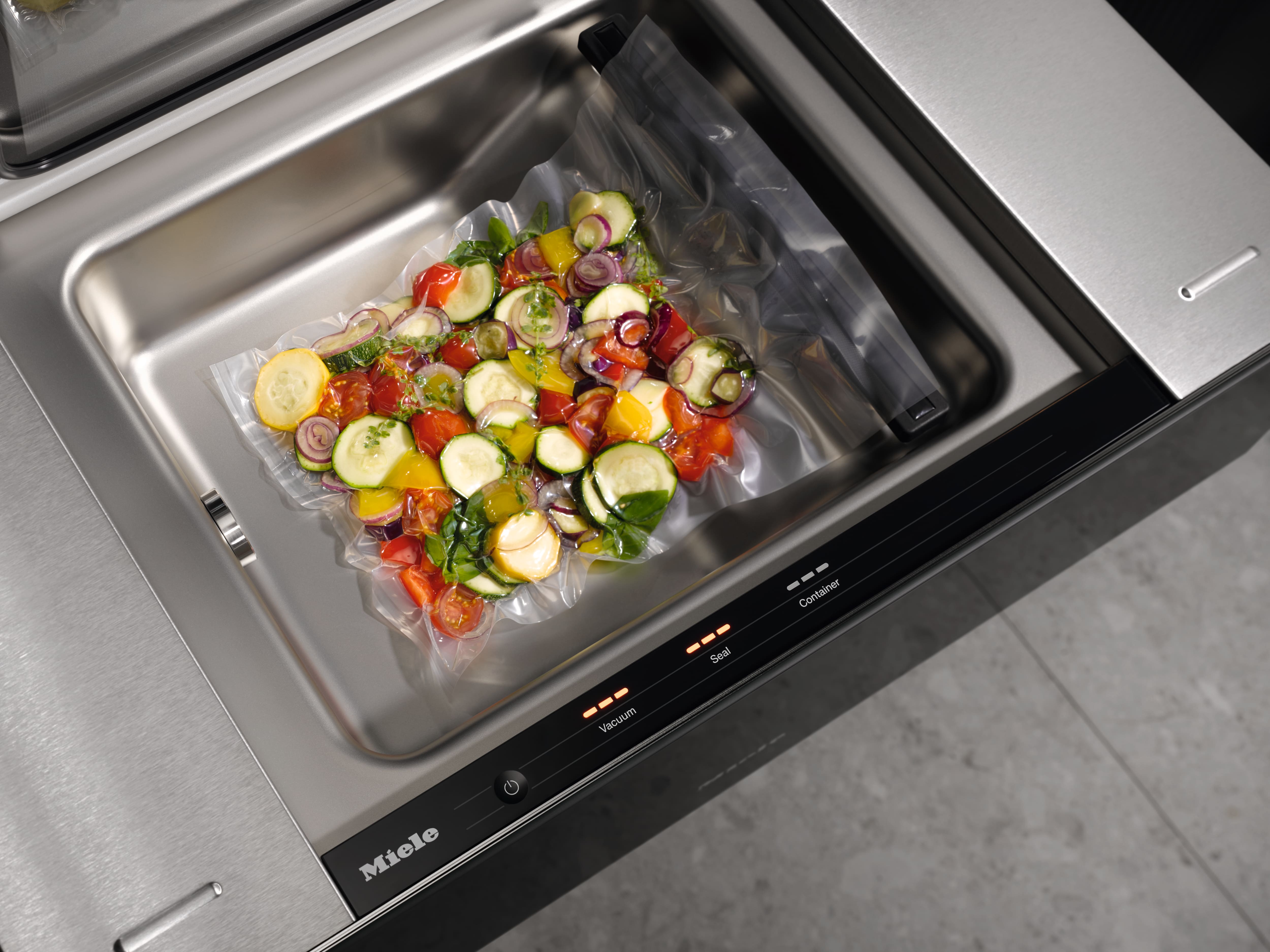

Suitable for every application
Three vacuum settings

Customize: You can choose from 3 settings when vacuum-sealing – there is one that suits any food you may cook.


User convenience

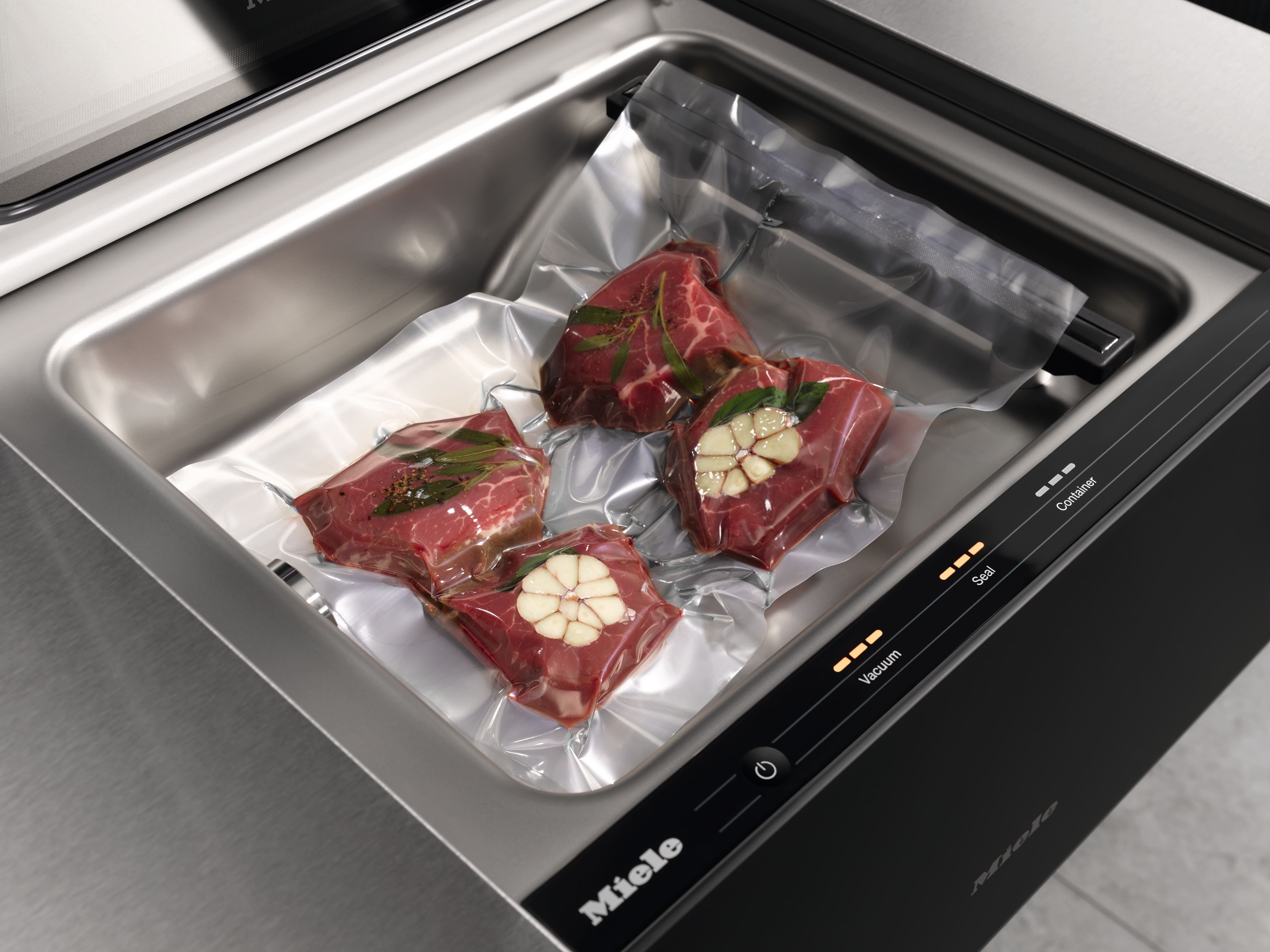

Enough space for every size
Large useable space

Whether large or small volumes: The useable space is suitable for bags up to a size of 10 x 14" (250 x 350 mm.

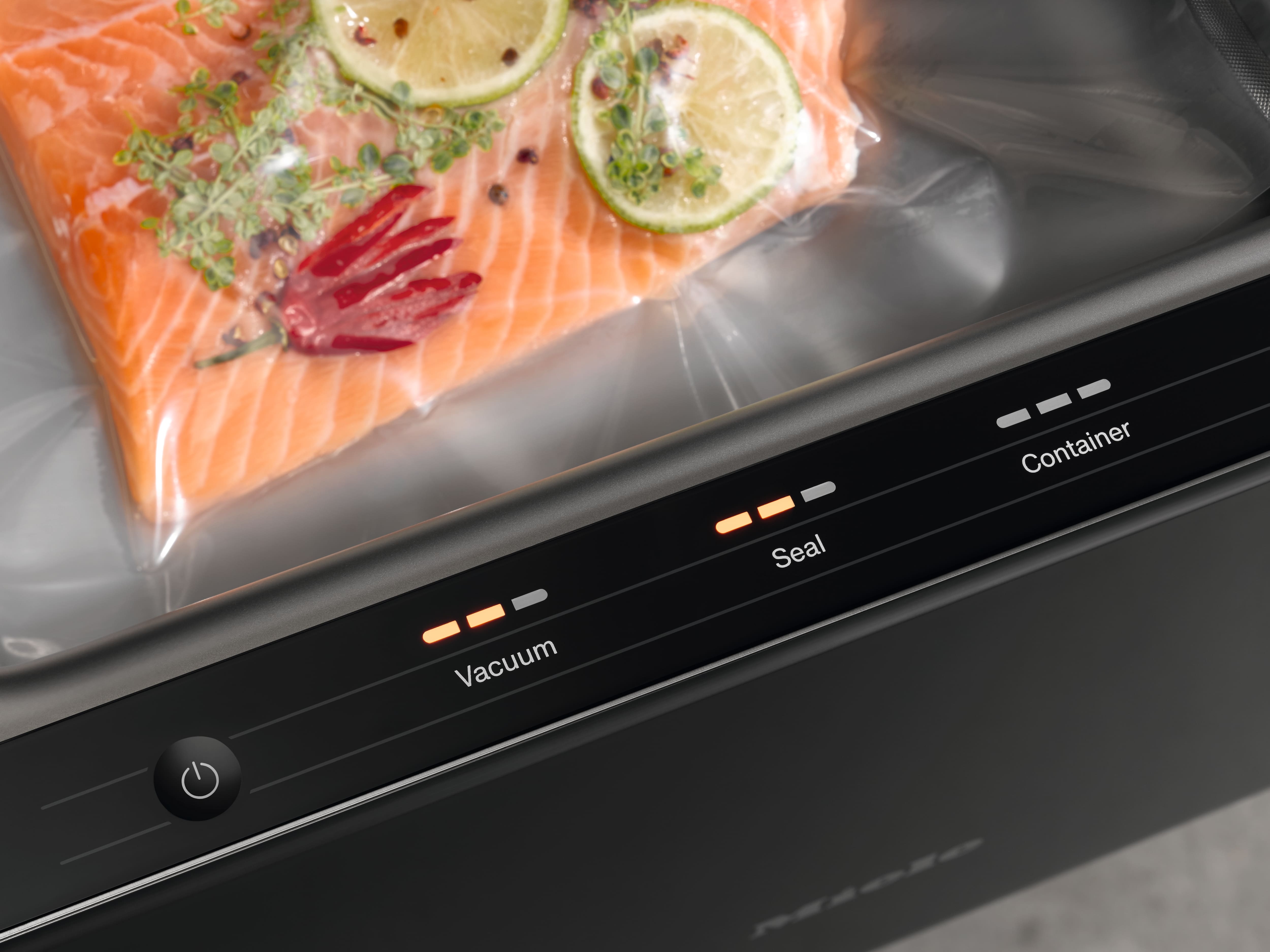

Customizable vacuum-sealing duration
Variable vacuum-sealing duration

Perfect for every bag thickness: You can choose from 3 sealing settings, depending on the material of the bag.

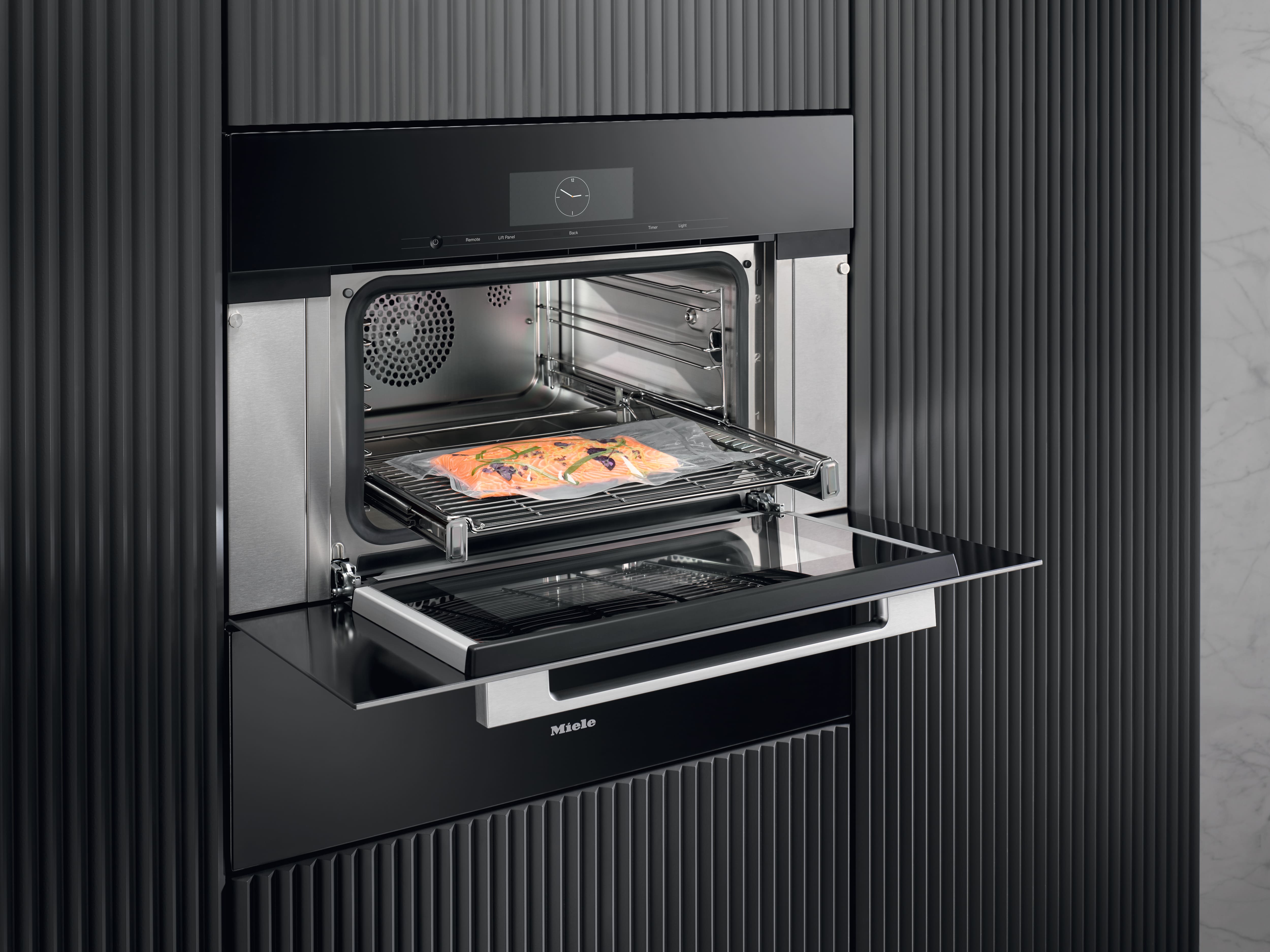

Perfectly prepared
Preparation for sous-vide cooking

Perfect for sous-vide cooking: Vacuum-sealed foods retain their flavor and nutrients.

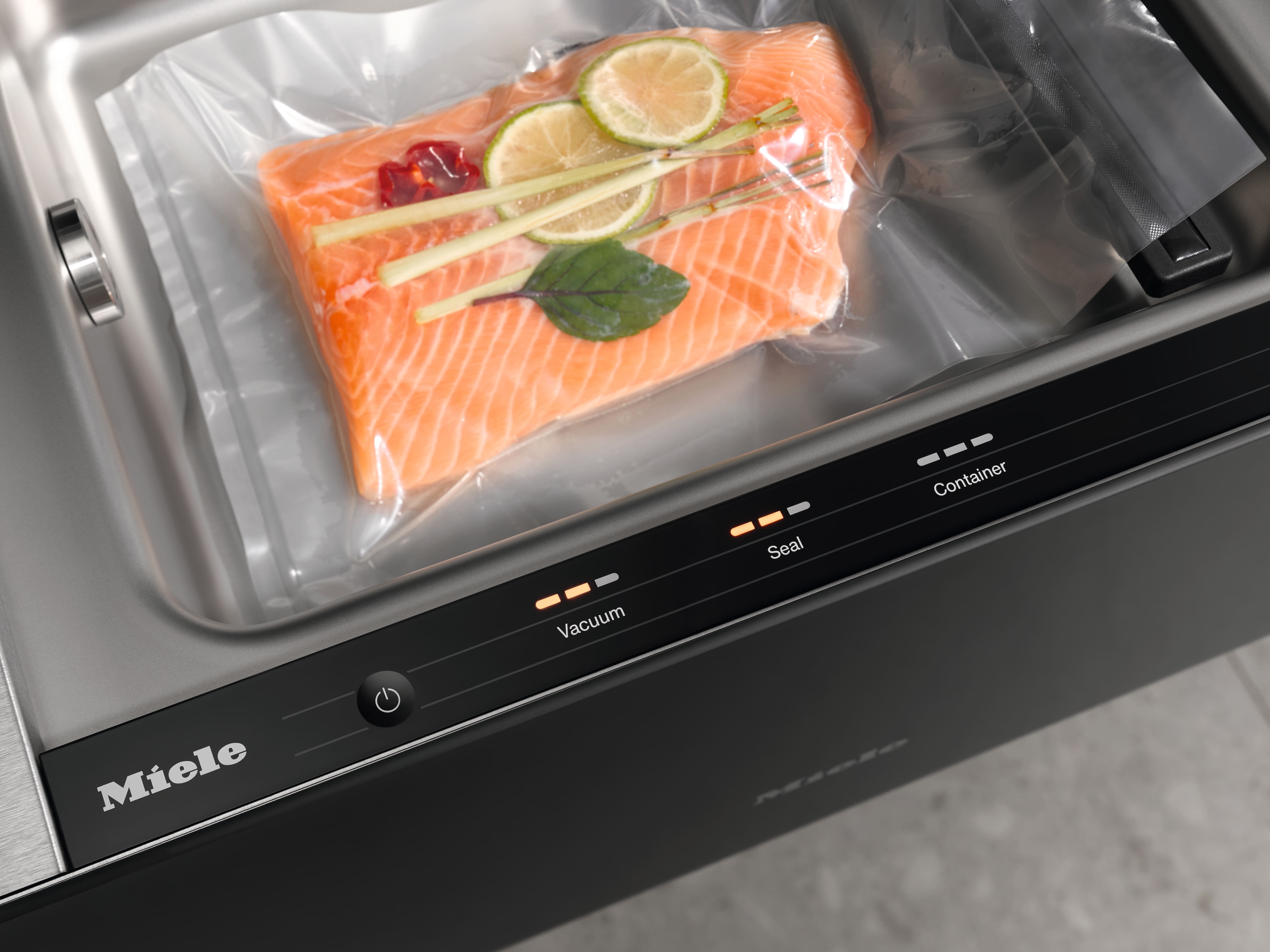

Intuitive and minimalist
SensorTouch controls

Elegant and easy to clean: A state-of-the-art, flush-mounted touch panel makes the appliance convenient to use.

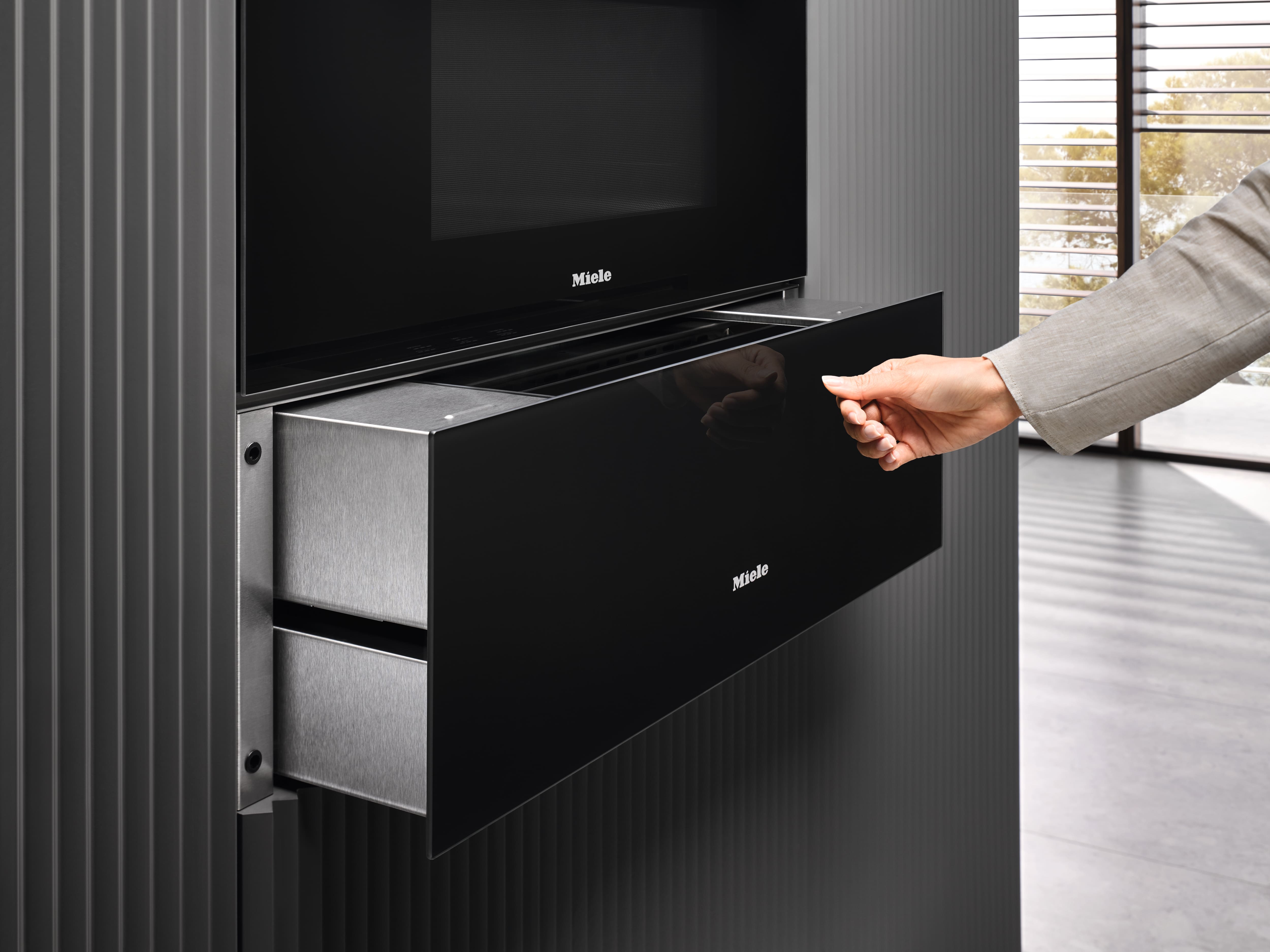

One touch is all it takes
Push2open

Open in no time: Light pressure on the drawer is all it takes.


Wide range of options
Wide range of applications

With our vacuum-sealing drawer, you can divide food into portions, prepare it for storage, and much more.


Practical and ergonomic
Fully telescopic runners

So convenient: you can open the drawer fully so it is easy to load or unload.

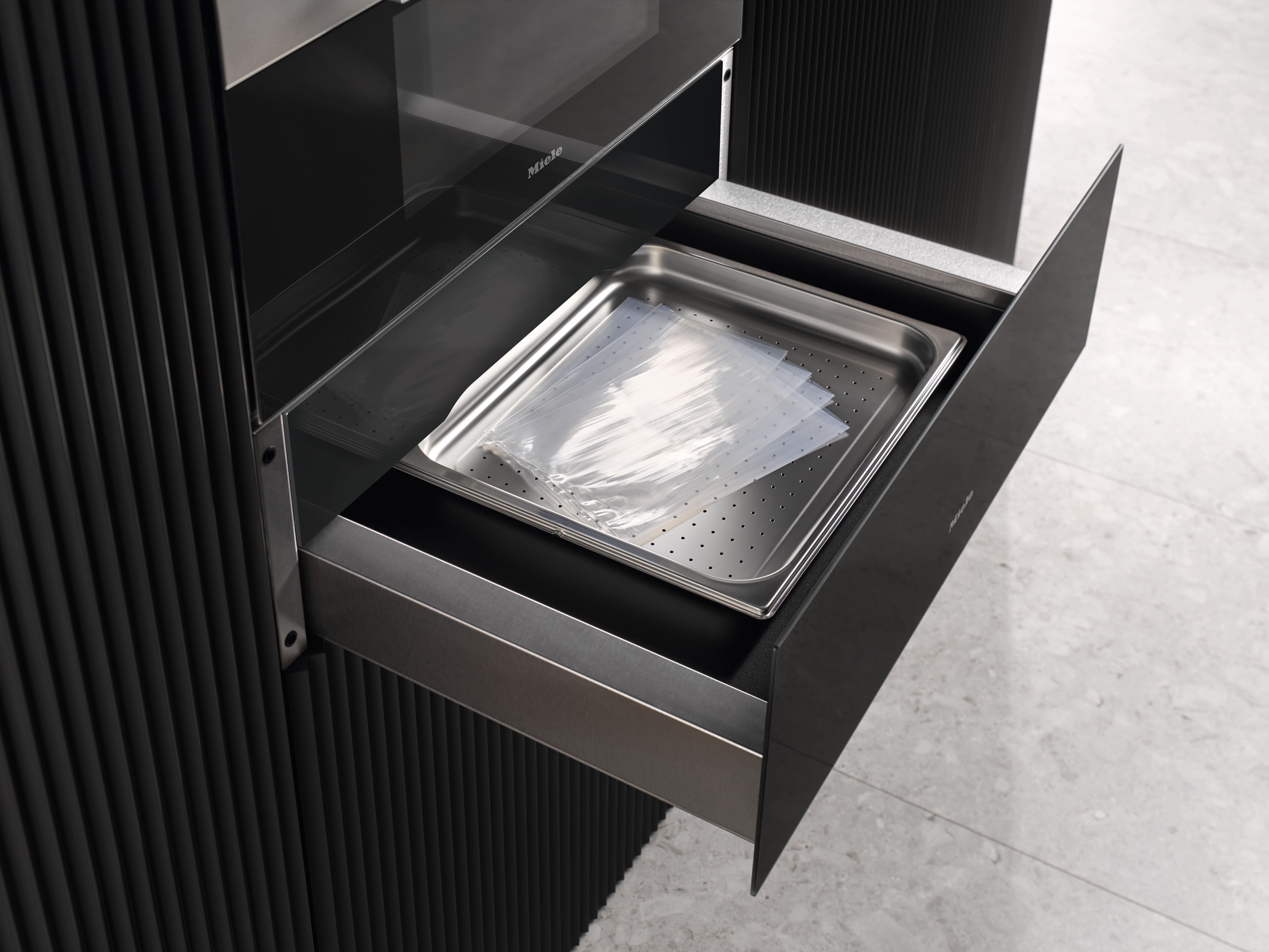

Storage compartment
Storage compartment

Practical storage space: use the storage compartment to store vacuum sealing bags or steam oven pans.


Gourmet versatility

Longer storage life
Longer storage life

Store food in ideal conditions: Vacuum seal your food to keep it fresher for longer.


The right amount
Portioning

Whether you’re cooking a feast or dinner for one – make individual portions for storing or sous-vide cooking.


Maximum taste
Marinating

Create amazing taste sensations by vacuum sealing food with herbs and marinades.


Always in perfect condition
Vacuum sealing in containers

Preserving food in containers: Delicate foodstuffs such as fruit or herbs are left intact.


Food stays fresh – even once opened
Re-sealing

Keep food tasting fresh: Reseal opened packaging gently and securely.


Tightly sealed
Sealing jars

Store food securely to keep it fresh: Pesto, baby food, and much more can be vacuum sealed in jars.


Securely stored
Vacuum sealing liquids

Save space and store food securely: Even liquids can be easily vacuum sealed in a plastic bag.


Downloads

Warranty conditions
PDF
Downloads
Product sheet
PDF
Downloads
Operating and Installation instructions
PDF
Downloads
rvt
ZIP
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000017/200001725/20000172560.png
Descriptions
DGC 6x00-1, + EBA 6808, ESW 6x85, DGC 7xxx, EBA 7848, ESW 7x70, EVS 7670 Combi, Installation drawing, Flush inset, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001725/20000172568.png
Descriptions
H 6x00 BM + EBA 6808, ESW 6x85, H 7xxx, ESW7x70, EBA7848 EVS 7670 Combi, Installation drawing, Flush inset, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001726/20000172609.png
Descriptions
H 6x00 BM + EBA 6808, ESW 6x85, DGC 6x00-1 + EBA 6808, DGC7xxx, EBA7848, H7xxx, Exx7x70 Install drawing, Flush inset, NA
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001754/20000175470.png
Descriptions
DGC7x4x+EBA7848, ESW7x70, EVS7670, Installation, 30 Zoll, Flush inset, combi, XL
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001726/20000172691.png
Descriptions
H 6x00 BM + EBA 6808, ESW 6x85, H 7x40BM + EBA 7848 Installation Combi, Installation drawing, Flush inset, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001727/20000172791.png
Descriptions
DGC 6x00-1, + EBA 6808, ESW 6x85, DGC7x4x+EBA7848, ESW7x70, EVS7670, Combi, Installation drawing, Proud, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001728/20000172840.png
Descriptions
(H6x00BM, DGC6x00-1)+EBA6808, ESW6x85, (DGC7xxx,H7x40BM)+EBA7848, ESW7x70, EVS7670, Fitting Combi, Proud, NA
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001727/20000172799.png
Descriptions
H 6x00 BM + EBA 6808, ESW 6x85, H7x40BM, ESW7x70, EVS7670, Combi, Installation drawing, Proud, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001729/20000172922.png
Descriptions
H 6x00 BM + EBA 6808, ESW 6x85, H7x40BM+EBA7848, ESW7x70, EVS7670, Installation Combi, Installation drawing, Proud, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001755/20000175552.png
Descriptions
DGC7x4x+EBA7848, ESW7x70, EVS7670, Installation, 30 Zoll, Proud, combi, XL,
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
