Product Information
Fully-integrated, full-size dishwasher for optimum drying results thanks to AutoOpen drying.
Inside the Box
- 1 x UltraTabs box (20 tabs)
- Voucher for 1 x box of UltraTabs (20 tabs) or 3 boxes (60 tabs in each) at a reduced price
G 5266 SCVi SFP Active Plus
Fully-integrated, full-size dishwasher for optimum drying results thanks to AutoOpen drying.
- Subject to technical changes; no liability accepted for the accuracy of the information given.
Product Information
Fully-integrated, full-size dishwasher for optimum drying results thanks to AutoOpen drying.
Inside the Box
- 1 x UltraTabs box (20 tabs)
- Voucher for 1 x box of UltraTabs (20 tabs) or 3 boxes (60 tabs in each) at a reduced price
Your advantages
Exclusive to Miele
AutoOpen drying*
For dry dishware
All dry: The dishwasher door opens automatically at the end of a program cycle.
Exclusive to Miele
FlexLine Baskets
Intelligent basket design for all types of dishes
Flexibility creates convenience: Easy adjustment and flexible loading for the best cleaning results.
Exclusive to Miele

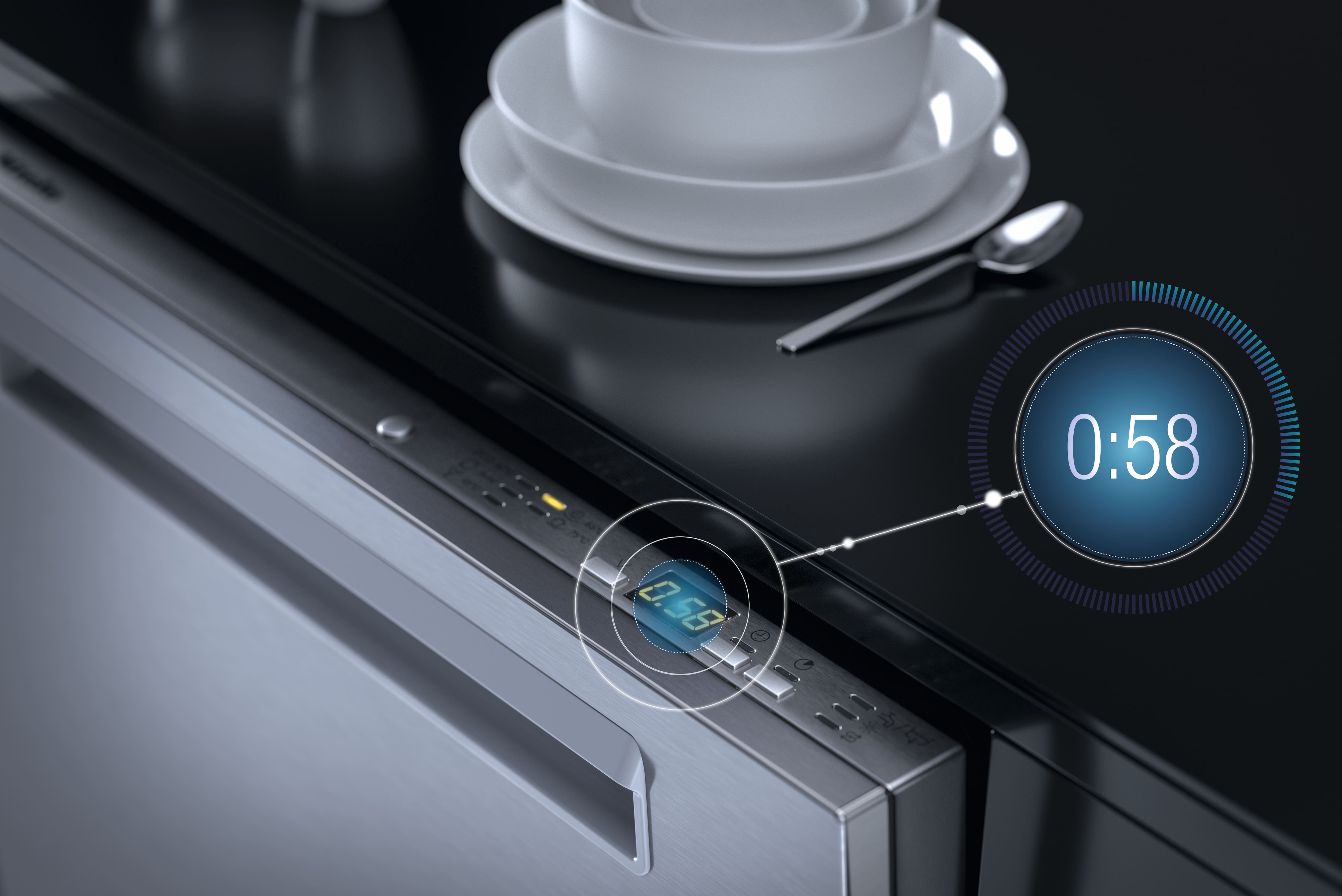

QuickIntenseWash
Best cleaning in less than an hour
Short program: Best cleaning results for normally soiled dishware in 58 minutes.
Superior energy efficiency
Miele - a class of its own
Best performance: "Highly economical, producing excellent cleaning and drying results."
Features depend on model – images are only examples and used for explanation purposes
User convenience (3)
Exclusive to Miele
AutoOpen drying*
For dry dishware
All dry: The dishwasher door opens automatically at the end of a program cycle.
ComfortClose
A door concept that does it all
Practical: The door is extremely easy to open and close, and stays open in any position.
FlexAssist markers
Color identification for user convenience
Optimum visual support: Color identification of the flexible elements for individual basket design.
Efficiency and sustainability (3)
EcoPower Technology
Innovative water feed for rinsing with less water
Saving water and energy: Cleverly designed water supply reduces consumption.
Superior energy efficiency
Miele - a class of its own
Best performance: "Highly economical, producing excellent cleaning and drying results."
Basket design (3)
Exclusive to Miele
3D MultiFlex Tray*
Maximum flexibility
Stress-free loading: ingenious adjustment options create space in the dishwasher even for small items.
Exclusive to Miele
FlexLine Baskets
Intelligent basket design for all types of dishes
Flexibility creates convenience: Easy adjustment and flexible loading for the best cleaning results.
Exclusive to Miele
Comfort
Flexible basket design depending on your daily load
Simply practical: The sophisticated basket design makes it easy to load dishware for perfect cleaning results.
Washing programs & Options (8)
Normal
The all-round program
The program is sensor-controlled for normally soiled dishware.
Pots & Pans
Expert for tough cases
Maximum cleaning performance: Pots, pans, etc. are cleaned residue-free.
SaniWash
For perfect cleaning
This is our high temperature program offering deep cleaning results.
Rinse & Hold
Rinse & Hold
To avoid the development of odors, dishware can be pre-rinsed without the need to run a complete program.
Exclusive to Miele
QuickIntenseWash
Best cleaning in less than an hour
Short program: Best cleaning results for normally soiled dishware in 58 minutes.
Express
Program time halved
Sometimes things have to be done at the double: Reduce the length of a program by up to 50%.
Extra Dry
Perfect results for glassware and plastic items
Exceptional drying: This option dries everything to perfection, even glassware and plastic items.
ExtraClean
Perfect results
Improves cleaning by increasing the cleaning temperature and adding a thorough Pre-Rinse.
Dish and glassware care (1)
Exclusive to Miele
SensorDry
Optimum drying with less energy
Intelligent adaptation of the dishwasher program saves energy and time when drying.
Product data sheet
Type
| Fully integrated dishwashers | • |
| 24 inch dishwasher | • |
Design
| Fascia color | Stainless Steel. |
| Fascia panel version | Fully integrated fascia |
| Control type | Programme selector button |
| Control panel | 3-digit 7-segment display |
| Display color | Yellow |
Convenience
| Operating noise dB(A) re 1 pW | 42 |
| Countdown indicator | • |
| Delay start up to 24 hours | • |
| In-operation indication | acoustic |
Efficiency and sustainability
| EcoPower Technology | • |
| Proven hygiene | • |
| Hot water connection | • |
| Energy Star | • |
Quality of results
| Fresh water dishwasher | • |
| AutoOpen drying | • |
| SensorDry | • |
| Active condensation drying | • |
| Perfect GlassCare | • |
Wash programs
| QuickIntenseWash | • |
| Normal | • |
| Pots & Pans | • |
| SaniWash | • |
| Rinse & Hold | • |
Dishwashing options
| Short | • |
| Extra Clean | • |
| Extra dry | • |
Baskets
| Cutlery loading | 3D MultiFlex Tray |
| FlexCare cup rack | 1 |
| Basket design | Comfort |
Safety
| Waterproof system | • |
Technical data
| Niche width min in in.(mm) | 23 5/8 (600) |
| Niche width max in in.(mm) | 23 5/8 (600) |
| Niche height min in in.(mm) | 33 3/4 (855) |
| Niche height max in in.(mm) | 36 1/4 (920) |
| Niche depth in in.(mm) | 22 1/2 (570) |
| Appliance width in in.(mm) | 23 5/8 (598) |
| Appliance height in in.(mm) | 33 3/4 (855) |
| Appliance depth in in.(mm) | 21 3/4 (550) |
| Appliance depth with door open in in.(cm) | 47 1/2 (120.5) |
| Net weight in lbs. (kg) | 111 (50.0) |
| Total connected load in kW | 1.40 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Number of phases | 1 |
| Electrical frequency standard | 60 |
| Length of water inlet hose in ft (m) | 5 (1.50) |
| Length of water drain hose in ft (m) | 5 (1.50) |
| Length of electrical wire in ft (m) | 4 (1.20) |
| Min. front panel weight in kg | 4 |
| Max. front panel weight in kg | 11 |
| [can be retrofitted by Service to min.] | 7 |
| [can be retrofitted by Service to max.] | 14 |
Standard accessories
| 1 x UltraTabs box (20 tabs) | • |
| Voucher for 1 x box of UltraTabs (20 tabs) or 3 boxes (60 tabs in each) at a reduced price | • |
Optional products and accessories
Downloads, CAD, & apps
- Operating instructions/Installation instructionsPDF
- Warranty conditionsPDF
- Product sheetPDF
- Drilling templatePDF
- Mounting planPDF
- Mounting planPDF
Follow the link and you will find all the resources you need for planning and installing any of our products
- rfaZIP
- fbxZIP
- rvtZIP
- ifcZIP
- dwgZIP
Follow the link and you will find all the resources you need for planning and installing any of our products
- Energy labelPDF
- PNG
- Energy labelJPEG
Follow the link and you will find all the resources you need for planning and installing any of our products
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorized experts.
Descriptions
G7000/5000 SF, fully integrated dishwasher, 60cm (installation drawing)
- 1.In average of program mix compared to cold water connection
- 2.Patent: DE102008062761B3, EP2433549B1
- 3.According to certification by the Institute for Integrative Hygiene and Virology with respect to the removal of enveloped and non-enveloped viruses (e.g., coronaviruses, influenza viruses, or noroviruses) in the tested SaniWash and Intensive programs, in all cases using PowerDisk/UltraTabs. Details on the test criteria can be found at www.miele.com/g7000-c.
- 4.DE102007008950B4, EP2120671B1
- Subject to technical changes; no liability accepted for the accuracy of the information given.
