Product Information
Insert ventilation hood with energy-efficient LED lighting and backlit controls for easy use.
Inside the Box
- Non-return flap
- Communication module for Con@ctivity XKM 2000 DA
DA 2518
Insert ventilation hood with energy-efficient LED lighting and backlit controls for easy use.
- Subject to technical changes; no liability accepted for the accuracy of the information given.
Product Information
Insert ventilation hood with energy-efficient LED lighting and backlit controls for easy use.
Inside the Box
- Non-return flap
- Communication module for Con@ctivity XKM 2000 DA
Your advantages
Stainless-steel grease filters (10-layer)
Easy to use and effective against grease
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Miele CleanCover
Convenience and safety in detail
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Exclusive to Miele
Con@ctivity
Automatic operation for intelligent blower control
Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
Features depend on model – images are only examples and used for explanation purposes
User convenience (3)
Delayed shutdown
Automatic blower run-on
Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
filter saturation indicator
Countdown time conveniently in view
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Exclusive to Miele
Con@ctivity
Automatic operation for intelligent blower control
Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
Safety (1)
Safety turn off
Always on the safe side
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Features (2)
Stainless-steel grease filters (10-layer)
Easy to use and effective against grease
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Miele CleanCover
Convenience and safety in detail
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Product data sheet
Design
| Insert ventilation extractor | • |
Operating modes
| Recirculated mode | Can be retrofitted |
| Recirculation conversion kit (order separately) | DUU 151 |
| OdorFree charcoal filter (order separately) | DKF 15-P |
Design
| Color | Stainless steel |
User convenience
| Miele@home | • |
| Automatic function Con@ctivity | • |
| Electronic controls | • |
| Operation | Light-touch switches with LEDs |
| Power levels (number excl. Intensive) | 3 |
| Booster levels | 1 |
| Programmable Intensive switch-off | • |
| Delayed shutdown for 5 or 15 minutes | • |
| Grease filter saturation indicator | • |
| Grease filter saturation indicator | • |
| Active charcoal filter saturation indicator | • |
| CleanCover | • |
Cleaning convenience
| Easy-to-clean CleanCover hood liner | • |
Filter system
| Number of dishwasher-safe stainless-steel grease filters | 3 |
Lighting
| LED ClearView lighting | • |
| Number x W | 4 x 3 W |
| Light intensity in Lx | 520 lx |
| Color temperature in K | 3000 Kelvin |
Blower
| Dual-action blower | • |
| AC motor | • |
Exhaust air
| Maximum air throughput in cfm according to HVI | 415 |
| Air throughput | Values upon request |
| Air throughput in booster level 1 (cfm) (m³/h) | 500.29 (850) |
| Air throughput in Booster level 1 (m³/min) | 850 |
Safety
| Safety shut-off | • |
Technical data
| Canopy width in in. (mm) | 43 1/2 (1102) |
| Canopy height in in. (mm) | 2 (50) |
| Depth of hood canopy in in. (mm) | 15 7/8 (402) |
| Minimum distance above electric cooktops in in. (mm) | 24 1/8 (610) |
| Minimum height above gas cooktop (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm | 26 (660) |
| Net weight in lbs. (kg) | 32 (14.3) |
| Length of electrical wire in ft. (m) | 2 (0.8) |
| Standard plug fitted | • |
| Total connected load in kW | 0.362 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Number of phases | 1 |
Installation note
| Vent connection at top | • |
| Vent connection at top and rear | • |
| Diameter of vent connection in in. (mm) | 6 (150) |
Standard accessories
| Non-return flap | • |
| Communication module for Con@ctivity XKM 2000 DA | XKS 3000 Z |

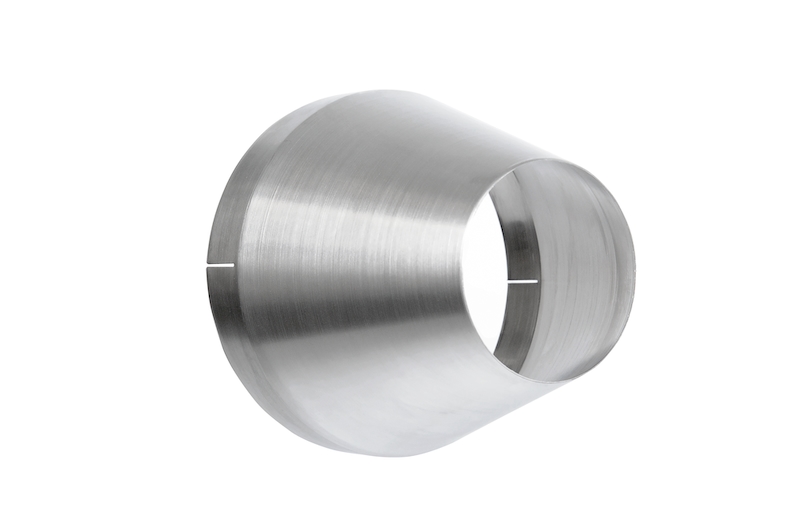

Optional products and accessories
Downloads, CAD, & apps
- Mounting planPDF
- Fitting InstructionsPDF
- Warranty conditionsPDF
- Product sheetPDF
- Operating and Installation instructionsPDF
