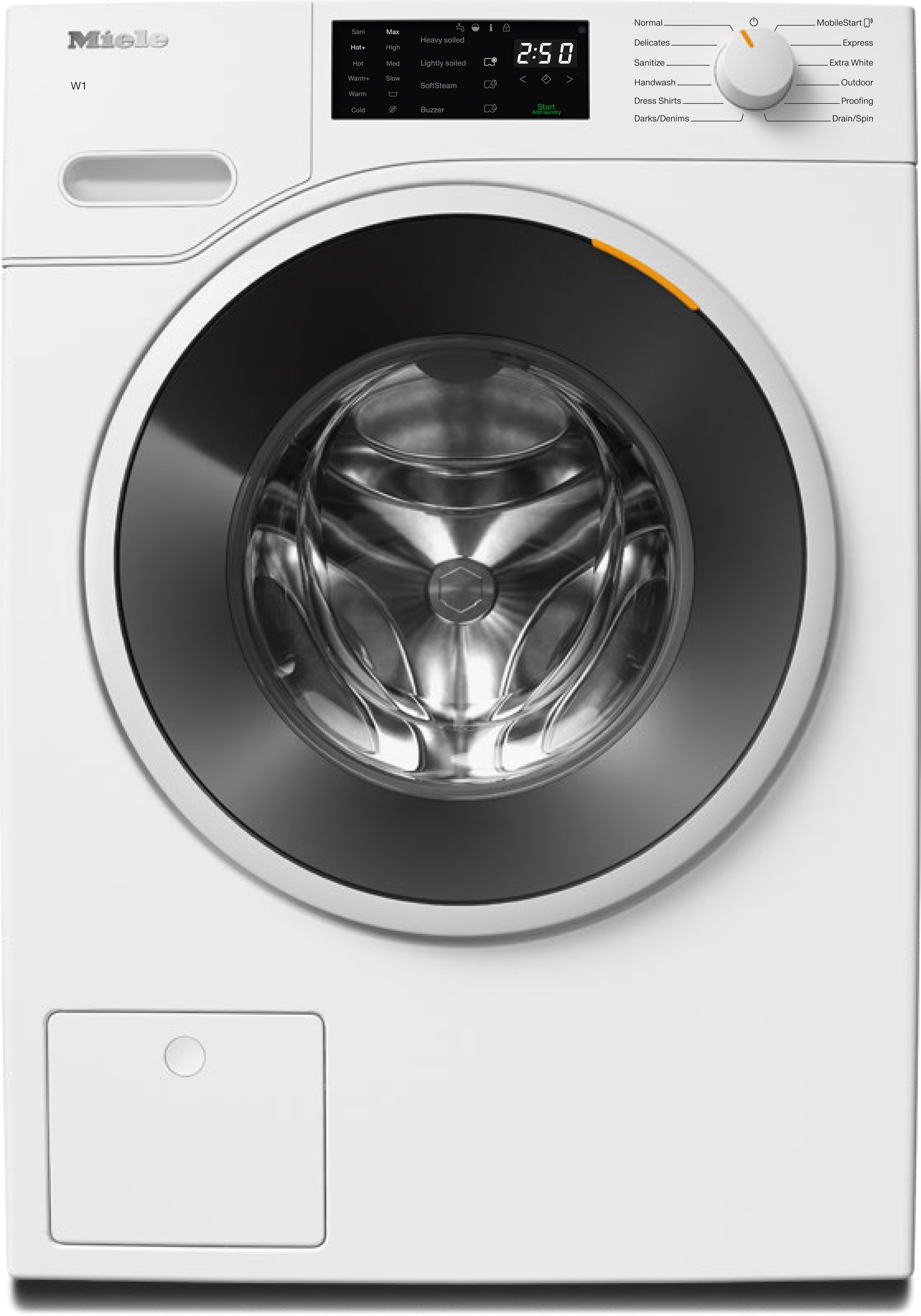

W1 front-loading washing machine: 8 kg | 1600 rpm | Pre-Ironing | Miele@home | CapDosing | Honeycomb Drum
WWD160 WCS
W1 front-loading washing machine: 8 kg | 1600 rpm | Pre-Ironing | Miele@home | CapDosing | Honeycomb Drum
- Subject to technical changes; no liability accepted for the accuracy of the information given.
Product Information
W1 front-loading washing machine: 8 kg | 1600 rpm | Pre-Ironing | Miele@home | CapDosing | Honeycomb Drum
Your advantages
Exclusive to Miele
Exclusive to Miele
CapDosing portioned dispensing*
Always the right detergent for every application
Our portioned caps are available with a range of specialised detergents tailored to match your wash programs.
Appliance networking with Miele@home*
Smart networking
Connect your washing machine to your home network and control it conveniently and intuitively via the app.
Features depend on model – images are only examples and used for explanation purposes
User convenience (2)
AddLoad function
Add or remove single items
Enjoy the flexibility to add or remove individual items during a washing cycle, without cancelling the program.
Appliance networking with Miele@home*
Smart networking
Connect your washing machine to your home network and control it conveniently and intuitively via the app.
Washing programs (3)
Delicates
Optimum care of synthetic fibers
Gentle & soft: with the special program synthetic textiles remain beautiful and keep their shape.
Outerwear
Special program for high-tech materials
Best care without the loss of function: High-quality outdoor textiles retain their functionality in any weather.
Proofing
Equip textiles with functions
Best possible reactivation effect: Thermal activation ensures optimum water-repellent properties.
Efficiency and sustainability (3)
Automatic load recognition
Tailored to your load
Use precisely the water and energy needed for your laundry with automatic load recognition.
Hot water connection
Save up to 65% energy costs*
Features a secondary water connection to put rain, well or solar heated water to good use.
ProfiEco motor*
Economical, powerful and maintenance-free
Our efficient motors with inverter drive feature technology that ensures minimal wear, noise, and energy usage.
Gentle laundry care (2)
Exclusive to Miele
Honeycomb drum
Keep your clothing safe while tumbling
Our protective drum allows fabrics to safely glide along without snagging and damaging them.
SoftSteam with steam*
Up to 50 % less ironing
A specialised steaming feature that reduces wrinkles, saving you substantial effort and time ironing your clothes.
Safety (2)
Water protection system
Safety thanks to an additional sensor
Everything dry: water protection system monitors the water intake, detects leakages and water in the drip tray.
Cleaning performance (1)
Exclusive to Miele
CapDosing portioned dispensing*
Always the right detergent for every application
Our portioned caps are available with a range of specialised detergents tailored to match your wash programs.
Product data sheet
Design
| Stackable | • |
| Side-by-side | • |
| Slot-in | • |
| Door hinging | left |
Type
| Product brand | W1 White Edition |
| Front loaders | • |
Spinning
| Max. spin speed | 1600 |
| Rinse hold | • |
| Without spin" function | • |
Design
| Appliance color | Lotus white |
| Control panel color | Lotus white |
| Door design | Obsidian Black with white ring |
| Rotary selector color | Lotus White |
| Fascia panel version | 5° inclined |
| Control type | Selector dial |
| Control panel | DirectSensor yellow, 7 segment |
Cleaning performance
| CapDosing portioned dispensing | • |
Gentle laundry care
| Honeycomb drum | • |
| Load in lbs. (kg) | 18 (8.0) |
User convenience
| Networking with Miele@home | • |
| Delay start up to 24 hours | • |
| Countdown indicator | • |
| AutoClean dispenser drawer | • |
| AddLoad | • |
Efficiency and sustainability
| Hot water connection | • |
| Low-temperature washing "Cold" and "68°F" | • |
| Automatic load control | • |
| Flow meter | • |
| Foam control | • |
| ProfiEco motor | • |
Wash programs
| Delicates | • |
| Express | • |
| Outdoor | • |
| Proofing | • |
| Normal | • |
| Sanitize | • |
| Handwash | • |
| Dress shirts | • |
| Extra White | • |
| Darks/Denims | • |
| Drain/Spin | • |
Washing extras
| SoftSteam with steam | • |
Safety
| Water protection system | Watercontrol-System |
| Child lock | • |
| Lock code | • |
| Optical interface | • |
Technical data
| Dimensions (width) in in. (mm) | 23 1/2 (596) |
| Dimensions (H x W x D) in inches (mm) | 33 1/2 (850) x 23 1/2 (596) x 25 3/8 (643) |
| Dimensions (height) in in. (mm) | 33 1/2 (850) |
| Dimensions (depth) in in. (mm) | 25 3/8 (643) |
| Depth with door open in in. (mm) | 42 1/2 (1077) |
| Weight in lbs. (kg) | 203 (92) |
| Total connected load in kW | 1.300 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Water intake hose length in ft. (m) | 5 (1.60) |
| Water drain hose length in ft. (m) | 4 (1.50) |
| Length of supply lead in ft. (m) | 6 (2) |
Optional products and accessories
Downloads, CAD, & apps
- Product sheetPDF
- Operating instructions/Installation instructionsPDF
- Warranty conditionsPDF
- Short user manualPDF
Follow the link and you will find all the resources you need for planning and installing any of our products
- fbxZIP
- dwgZIP
- rfaZIP
- rvtZIP
- ifcZIP
Follow the link and you will find all the resources you need for planning and installing any of our products
- PNG
- Energy labelPDF
- Energy labelJPEG
Follow the link and you will find all the resources you need for planning and installing any of our products
Monitor your Miele appliances while you are on the go.
With the Miele app for your smartphone or tablet you can now connect all your Miele appliances and benefit from its smart home features.
- 1.Patent EP 2 840 679
- 2.For details please refer to our warranty terms and conditions for water protection.
- 3.Patent EP 2 365 120
- 4.During the development of the W1 Washing Machine series, Miele tested models and core components with 5,000 wash cycles (= 5 wash cycles for 50 weeks per year) in various programs. More: miele.com/20years
- 5.Patent EP 2 088 231
- 6.Additional digital offer from Miele & Cie. KG. All smart applications are made possible with the Miele@home system. The range of functions can vary depending on the model and the country.
- 7.Compared with the sole use of cold water in a 9 kg test wash in the Cottons program, hot water temperature 131°F (55°C), room temperature 73°F (23°C), no cold water in hot water line.
- 8.Liability under the product liability law remains unaffected.
