Product Information

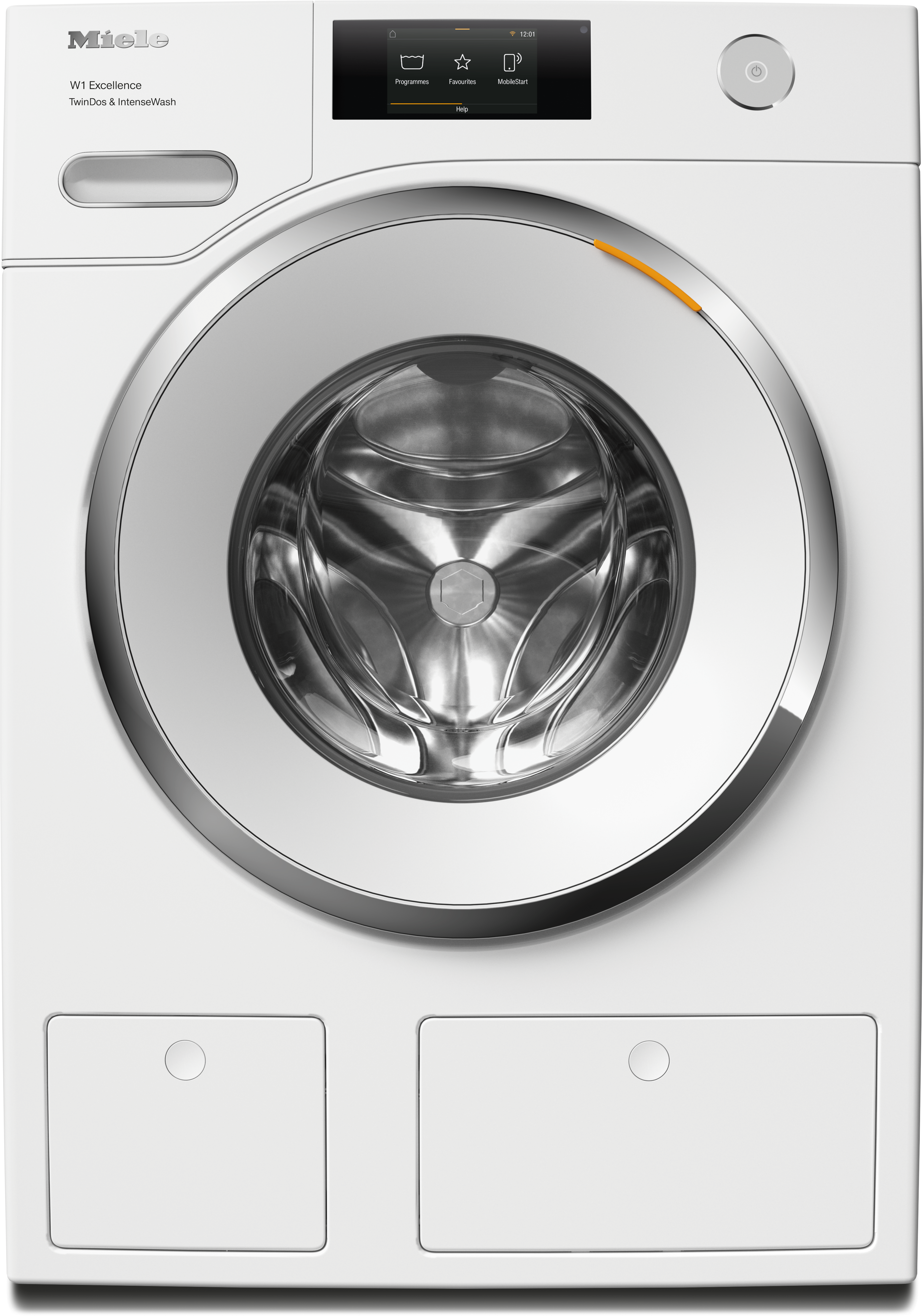

W1 front-loading washing machine: 8 kg | 1600 rpm | Auto Dosing | IntenseWash | Pre-Ironing | SingleWash
Inside the Box
- 3 capsules
- UltraPhase 1+2
- Voucher for 5 x UltraPhases
WXR860 WCS TDos & IntenseWash
W1 front-loading washing machine: 8 kg | 1600 rpm | Auto Dosing | IntenseWash | Pre-Ironing | SingleWash
- Subject to technical changes; no liability accepted for the accuracy of the information given.
Product Information
W1 front-loading washing machine: 8 kg | 1600 rpm | Auto Dosing | IntenseWash | Pre-Ironing | SingleWash
Inside the Box
- 3 capsules
- UltraPhase 1+2
- Voucher for 5 x UltraPhases
Your advantages
Exclusive to Miele
Exclusive to Miele
Exclusive to Miele
CapDosing portioned dispensing*
Always the right detergent for every application
Our portioned caps are available with a range of specialised detergents tailored to match your wash programs.
Exclusive to Miele
Innovative IntenseWash technology
Revolutionary economy with every load
Excellent wash performance and speed combined with maximum energy efficiency for large and small loads of laundry.
Gold standard for virus hygiene
Effective against viruses – scientifically proven
Thanks to intensive cleaning, 99.9%* of potential viruses are removed from your laundry.
Appliance networking with Miele@home*
Smart networking
Connect your washing machine to your home network and control it conveniently and intuitively via the app.
Features depend on model – images are only examples and used for explanation purposes
User convenience (4)
MultiLingua
Your Miele appliance "speaks" multiple languages
Multi-talented: set various languages on the display so that you fully understand every piece of information.
AddLoad function
Add or remove single items
Enjoy the flexibility to add or remove individual items during a washing cycle, without cancelling the program.
Drum lighting
Convenience you can see
Enlightening: you cannot overlook any item of laundry in the perfectly illuminated honeycomb drum when unloading.
Appliance networking with Miele@home*
Smart networking
Connect your washing machine to your home network and control it conveniently and intuitively via the app.
Washing programs (4)
Delicates
Optimum care of synthetic fibers
Gentle & soft: with the special program synthetic textiles remain beautiful and keep their shape.
Outerwear
Special program for high-tech materials
Best care without the loss of function: High-quality outdoor textiles retain their functionality in any weather.
Proofing
Equip textiles with functions
Best possible reactivation effect: Thermal activation ensures optimum water-repellent properties.
Trainers
For champions: with this gentle special purpose programme, washable trainers are cleaned gently and effectively.
Efficiency and sustainability (4)
Automatic load recognition
Tailored to your load
Use precisely the water and energy needed for your laundry with automatic load recognition.
Hot water connection
Save up to 65% energy costs*
Features a secondary water connection to put rain, well or solar heated water to good use.
ProfiEco motor*
Economical, powerful and maintenance-free
Our efficient motors with inverter drive feature technology that ensures minimal wear, noise, and energy usage.
EcoFeedback
Monitor your consumption
Get precise estimates and reports of water & energy consumption for each program.
Gentle laundry care (2)
Exclusive to Miele
Honeycomb drum
Keep your clothing safe while tumbling
Our protective drum allows fabrics to safely glide along without snagging and damaging them.
SoftSteam with steam*
Up to 50 % less ironing
A specialised steaming feature that reduces wrinkles, saving you substantial effort and time ironing your clothes.
Safety (2)
Water protection system
Safety thanks to an additional sensor
Everything dry: water protection system monitors the water intake, detects leakages and water in the drip tray.
Cleaning performance (8)
Exclusive to Miele
Exclusive to Miele
CapDosing portioned dispensing*
Always the right detergent for every application
Our portioned caps are available with a range of specialised detergents tailored to match your wash programs.
Exclusive to Miele
Innovative IntenseWash technology
Revolutionary economy with every load
Excellent wash performance and speed combined with maximum energy efficiency for large and small loads of laundry.
Exclusive to Miele
SingleWash
Economically wash single items
SingleWash washes small loads efficiently, saving 62% energy, 81% water and 67% time.*
Proven hygiene
Don’t give bacteria a chance
Proven by the Rhine-Waal University of Applied Sciences: With AllergyWash, up to 99.99%* of bacteria are removed.
Efficient combination of TwinDos® and SingleWash
Working in perfect harmony for more sustainability
Very efficient: TwinDos® and SingleWash save up to 40% detergent* and up to 60% in terms of energy and time***.
Gold standard for virus hygiene
Effective against viruses – scientifically proven
Thanks to intensive cleaning, 99.9%* of potential viruses are removed from your laundry.
Exclusive to Miele
QuickIntenseWash
Economy without compromising on performance
Excellent cleaning performance in just 49 minutes.*
Product data sheet
Design
| Stackable | • |
| Side-by-side | • |
| Slot-in | • |
| Door hinging | left |
Type
| Product brand | W1 White Edition |
| Front loaders | • |
Spinning
| Max. spin speed | 1600 |
| Rinse hold | • |
| Without spin" function | • |
Design
| Appliance color | Lotus white |
| Control panel color | Lotus white |
| Door design | Lotus white with chrome ring |
| Fascia panel version | 5° inclined |
| Control type | Touch control |
| Control panel | MTouch |
Cleaning performance
| Innovative IntenseWash technology | • |
| TwinDos automatic dispensing of detergent | • |
| CapDosing portioned dispensing | • |
| Proven virus hygiene | • |
Gentle laundry care
| Honeycomb drum | • |
| Load in lbs. (kg) | 18 (8.0) |
User convenience
| Networking with Miele@home | • |
| Delay start up to 24 hours | • |
| Countdown indicator | • |
| Time display | • |
| Programme sequence indicator | • |
| Information text | • |
| Favorite programs | • |
| Drum lighting | LED |
| MultiLingua | • |
| AutoClean dispenser drawer | • |
| AddLoad | • |
Efficiency and sustainability
| Hot water connection | • |
| EcoFeedback | • |
| Low-temperature washing "Cold" and "68°F" | • |
| Automatic load control | • |
| Flow meter | • |
| Foam control | • |
| ProfiEco motor | • |
Wash programs
| Delicates | • |
| Express | • |
| Dark garments | • |
| Denim | • |
| Outdoor | • |
| Proofing | • |
| Trainers | • |
| Clean machine | • |
| Starch | • |
| Normal | • |
| Wrinkle-free | • |
| Sanitize | • |
| Dress shirts | • |
| Extra White | • |
| QuickIntenseWash | • |
| Table Linens/Drapes | • |
| Sportswear | • |
| Woolens | • |
| Silks | • |
| Drain/Spin | • |
| QuickRinse | • |
| Baby Clothes | • |
| Towels | • |
| Downs | • |
| Pillows | • |
Washing extras
| SingleWash | • |
| Soak | • |
| Pre-rinse | • |
| SoftSteam with steam | • |
| Choosing the degree of soiling | • |
| Acoustic signal | • |
| AllergoWash | • |
Safety
| Water protection system | Watercontrol-System |
| Child lock | • |
| Lock code | • |
| Optical interface | • |
Technical data
| Dimensions (width) in in. (mm) | 23 1/2 (596) |
| Dimensions (H x W x D) in inches (mm) | 33 1/2 (850) x 23 1/2 (596) x 25 3/8 (643) |
| Dimensions (height) in in. (mm) | 33 1/2 (850) |
| Dimensions (depth) in in. (mm) | 25 3/8 (643) |
| Depth with door open in in. (mm) | 42 1/2 (1077) |
| Weight in lbs. (kg) | 212 (96) |
| Total connected load in kW | 1.300 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Length of supply lead in ft. (m) | 6 (2) |
Standard accessories
| 3 capsules | • |
| UltraPhase 1+2 | • |
| Voucher for 5 x UltraPhases | • |
Optional products and accessories
Downloads, CAD, & apps
- Operating instructions/Installation instructionsPDF
- Short user manualPDF
- Warranty conditionsPDF
- Product sheetPDF
Follow the link and you will find all the resources you need for planning and installing any of our products
- fbxZIP
- rfaZIP
- rvtZIP
- dwgZIP
- ifcZIP
Follow the link and you will find all the resources you need for planning and installing any of our products
- Energy labelPDF
- PNG
- Energy labelJPEG
Follow the link and you will find all the resources you need for planning and installing any of our products
Monitor your Miele appliances while you are on the go.
With the Miele app for your smartphone or tablet you can now connect all your Miele appliances and benefit from its smart home features.
- 1.Patent EP 2 840 679
- 2.For details please refer to our warranty terms and conditions for water protection.
- 3.During the development of the W1 Washing Machine series, Miele tested models and core components with 5,000 wash cycles (= 5 wash cycles for 50 weeks per year) in various programs. More: miele.com/20years
- 4.Patent EP 2 365 120
- 5.Patent EP 2 784 205
- 6.Liability under the product liability law remains unaffected.
- 7.Tested and confirmed by the Rhine-Waal University of Applied Sciences. Applies to all models in the Minimum Iron program with the AllergyWash extra and – if available for the model – in the Cottons hygiene program. A description of the relevant methodology can be found at the following link: http://www.miele.com/media/ex/com/Testkriterien_Hygiene-Siegel.pdf
- 8.This applies to all Miele washing machines that enable the process and machine-related parameters presented in the summary of the WL 1110/18 test report to be implemented.
- 9.According to Öko-Institut e.V. report dated 09/06/2013: “Potential savings with automatic TwinDos® dispensing on washing machines”.
- 10. *compared with AutoDos without SingleWash **in the Wrinkle-free 40°C program compared with appliances without IntenseWash and Single Wash
- 11.Patent EP 2 088 231
- 12.Additional digital offer from Miele & Cie. KG. All smart applications are made possible with the Miele@home system. The range of functions can vary depending on the model and the country.
- 13.Compared with the sole use of cold water in a 9 kg test wash in the Cottons program, hot water temperature 131°F (55°C), room temperature 73°F (23°C), no cold water in hot water line.
- 14.Tested by Albstadt-Sigmaringen University and awarded the gold label by the Institute for Integrative Hygiene and Virology (InFluenc_H). Applies to all models with TwinDos® and IntenseWash in the Sanitize 60°C program with the AllergyWash option. A description of the relevant methodology can be found at the following link: https://www.miele.com/wa-c
- 15.In the Minimum iron 40°C program with SingleWash compared with the same program without selecting SingleWash and without automatic load control.
- Subject to technical changes; no liability accepted for the accuracy of the information given.
