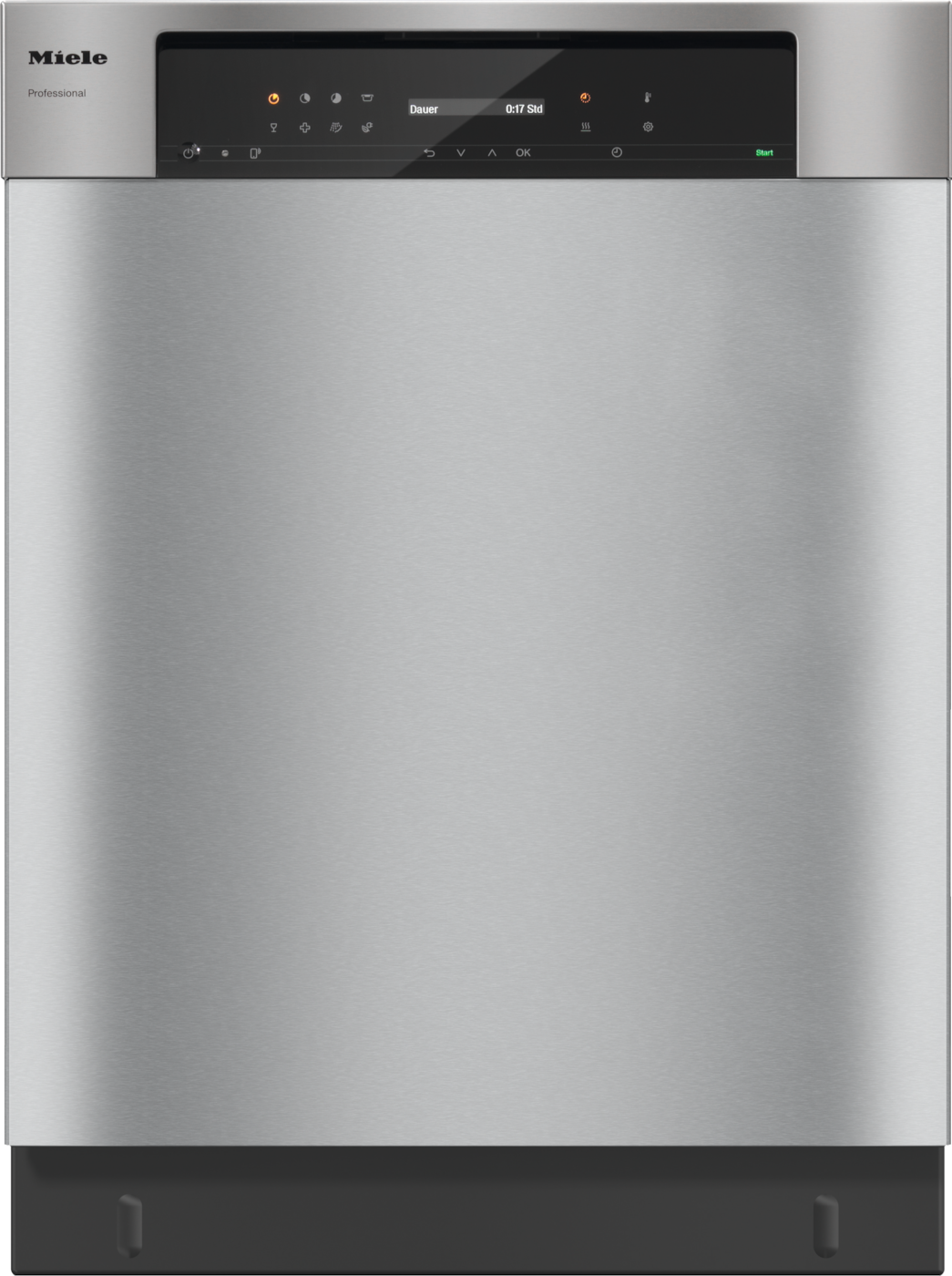

PFD 101 U
Built-under dishwasher, ADA compliant, for large loads of dishware in households, offices and utility areas.
- Wash performance: 13 place settings in just 52 min*Depending on site conditions (temperature of incoming water / power connection) values given may vary.
- 13% less energy consumption
- Everything completely dry – AutoOpen assisted dryingAutoOpen assisted drying
Completely dry: The dishwasher door opens automatically at the end of the program. - Intuitive to operate thanks to clear fascia panel design

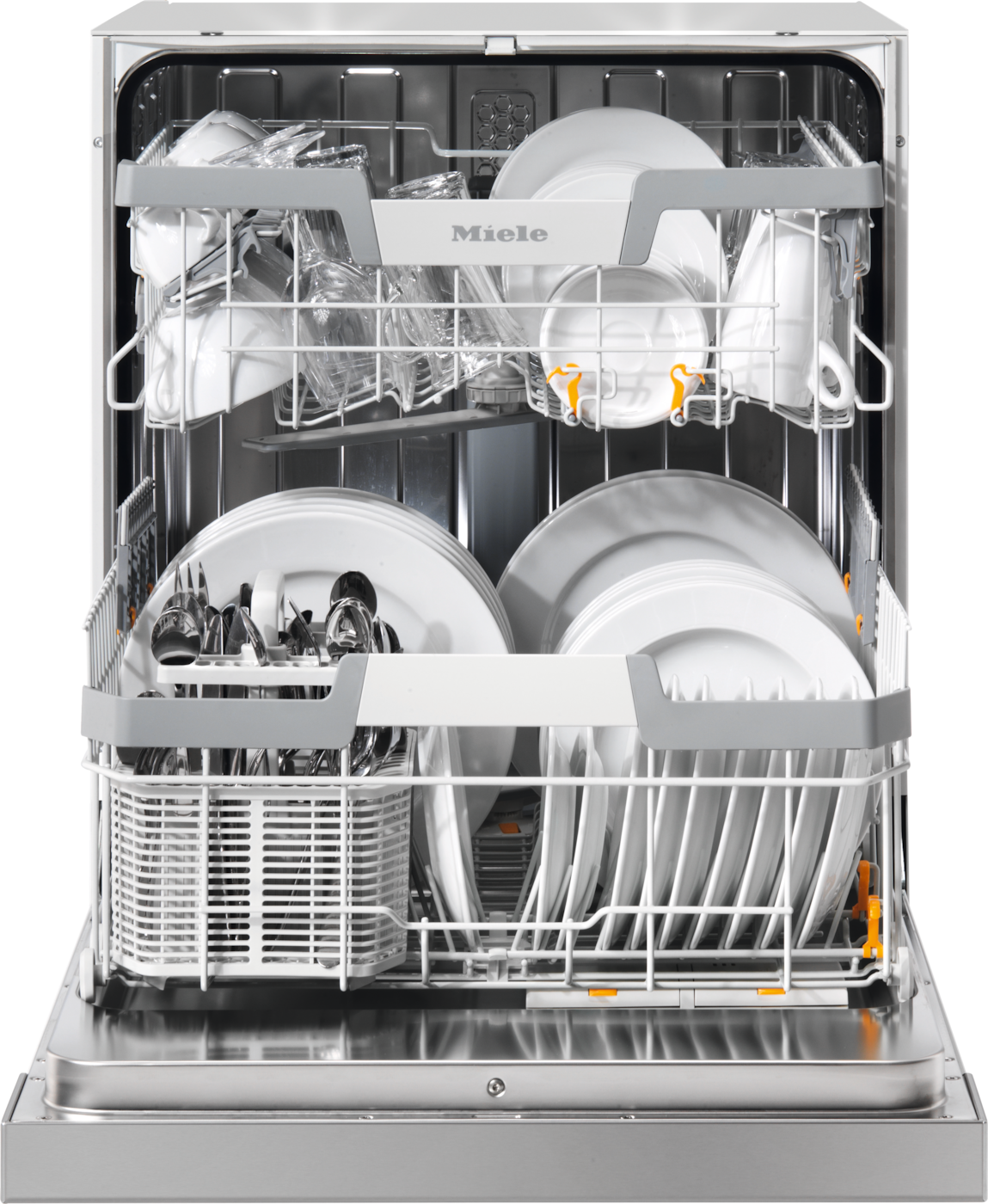

- Flexible loading of wash items for the best cleaning resultsFlexLine Baskets
Flexibility creates convenience: easy adjustment and flexible loading for the best cleaning results.
Product benefits
Proven hygiene
Effective against viruses – scientifically proven
Our dishwashers in the PFD 10x series remove more than 99.9%* of all viruses (including coronaviruses).A description of the relevant methodology can be found at the following link: https://www.miele.com/media/ex/com/Professional/Pruefberichte_Virussiegel/PFD10x_Viruswirksamkeit_Testkriterien_Virus_effectiveness_test_criteria_2021-11-25.pdf
Quality you can rely on
Long service life
Durability: Miele Professional dishwashers are tested for a long service life.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Cutlery basket
Highly versatile
Very flexible: The cutlery basket fits in any position over the front spikes in the lower basket.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
FlexiTimer with EcoStart
Protects your wallet and the environment
Clever: with EcoStart, the dishwasher automatically selects the cheapest electricity price every time.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Proven hygiene
Effective against viruses – scientifically proven
Our dishwashers in the PFD 10x series remove more than 99.9%* of all viruses (including coronaviruses).A description of the relevant methodology can be found at the following link: https://www.miele.com/media/ex/com/Professional/Pruefberichte_Virussiegel/PFD10x_Viruswirksamkeit_Testkriterien_Virus_effectiveness_test_criteria_2021-11-25.pdf
Proven hygiene
Effective against bacteria – scientifically proven
Our dishwashers in the PFD 10x series remove 99.999%* of most bacteria.The hygiene certificate can be found at the following link: https://www.miele.com/media/ex/com/Professional/Pruefberichte_Virussiegel/Zertifikat_gepruefte_Hygiene-kombiniert.pdf
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Quality you can rely on
Long service life
Durability: Miele Professional dishwashers are tested for a long service life.
Commercial throughflow heater
Full-size power
A stainless steel through-flow water heater with 2 x 3 kW capacity ensures high heating performance.
Water protection guarantee*For details please refer to our warranty terms and conditions for water protection.
Water protection guarantee
Maximum safety: Miele will bear the cost for prop. dam. resulting fr. a defect in the water prot. s. for 20 years.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Product details
PFD 101 U
EAN 4002516366850 / Article number 61010102USA / Material number 11605420
EAN 4002516366850 / Article number 61010102USA / Material number 11605420
Model | Built-under dishwasher Built-under dishwasher For a perfect appearance, the dishwasher can be easily installed under the worktop. The appliance can be adjusted as needed to suit the height of the worktop. The required niche width is 24". |
---|---|
Range | ProfiLine |
Wash system | Fresh water front loader Fresh water system Constantly high cleaning performance and filtration thanks to repeated water changes. |
Number of levels | 2 |
Front | Stainless steel |
Side walls | Galvanised |
Control panel color | Clean Touch Steel |
Suitable for retirement and care homes | |
---|---|
Suitable for hospitals | |
Suitable for Bed & Breakfast | |
Suitable for child care facilities | |
Suitable for universities and schools | |
Suitable for offices | |
Suitable for domestic use | |
Suitable for small businesses | |
Suitable for sports clubs |
Tested virucidal efficacy | Effective against viruses – scientifically proven According to the InFluenc_H – Institute for Integrative Hygiene and Virology, cleaning with dishwashers from the PFD 10x series using Miele’s ProCare Shine 11 OB and 12 GC cleaning agents removes enveloped and non-enveloped viruses (e.g., coronavirus, influenza, or noroviruses) in the Intensive and Hygiene programs, as well as enveloped viruses (but not the hepatitis B virus) in the Short and Universal programs, even if wash items are difficult to reprocess. |
---|---|
Certified hygiene | Effective against bacteria – scientifically proven In the “SHORT” and “Economy” program, the Miele ProfiLine fresh water dishwashers meet the hygiene requirements for type testing based on DIN 10512, which corresponds to a bacteria reduction of at least 5 log10. This decontamination performance means that the machines fulfil the criteria according to which InFluenc_H – Institute for Integrative Hygiene and Virology awards its “TESTED HYGIENE QUALITY” seal. |
Circulation pump, Qmax in gal/min (l/min) | 19.8 (75) |
Shortest program duration in min. Performance data The values quoted may vary depending on the on-site conditions (power connection/water intake temperature). | 52 |
Maximum final rinse temperature in °F (°C) | 180 (82) |
Cleaning performance, place settings/cycle Performance data The values quoted may vary depending on the on-site conditions (power connection/water intake temperature). | 13 |
Service life in wash cycles Note Our machines undergo intensive testing under laboratory conditions. The actual number of wash cycles may vary depending on actual usage behavior, maintenance, and care of the machine. | 12500 |
Control system | Electronic controls |
---|---|
Program selection | Program selectors |
Max. delay start in h | 24 |
Countdown indicator | |
Dishwashing programs [number] | 8 |
Program sequence indicator | |
Choice of display language | |
Check filter indicator |
Electrical connection | AC 120V 60HZ |
---|---|
Heater rating in kW | 1.3 |
Total connected load in kW | 1.4 |
Fuse rating in A | 15 |
Length of power cord in ft (m) Note The length refers to the supply lead on the outside of the appliance. | 5 (1.7) |
NEMA plug: 5-15 |
Electrical connection | 2N AC 120/208-240V, 60HZ |
---|---|
Heater rating in kW | 3.5-3.8 |
Total connected load in kW | 3.7-4 |
Fuse rating in A | 30 |
Cold or hot water [number] | 1 |
---|---|
Required flow pressure in bar | 1-10 |
Drain hose [DN] | 22 |
Maximum delivery head for drain pump in inches (cm) | 39 3/8 (100) |
Integrated water softener | |
Maximum water hardness in gpg (mmol/l) Note For a water hardness above 53 mg/l (3.1 grains/gal), the installation of a pre-connected water softener is recommended if an integrated water softener is not available.. | 38.025 (6.5) |
Water protection system | Waterproof system Water protection guarantee* Maximum safety: Miele will bear the cost for prop. dam. resulting fr. a defect in the water prot. s. for 20 years.For details please refer to our warranty terms and conditions for water protection. |
Length of water inlet hose in inches (cm) | 59 1/8 (150) |
Length of water drain hose in inches (cm) | 59 1/8 (150) |
External dimensions, net height in inches Note The dimension refers to the machine height without the feet extended. The height-adjustable feet allow the height of the dishwasher to be adjusted with ease. | 31 3/4 (805) |
---|---|
External dimensions, net width in inches | 23 9/16 (598) |
External dimensions, net depth in inches | 22 1/2 (570) |
External dimensions, gross height in inches Note Including packaging | 37 13/16 (960) |
External dimensions, gross width in inches Note Including packaging | 26 7/16 (670) |
External dimensions, gross depth in inches Note Including packaging | 27 9/16 (700) |
Usable space in wash cabinet, width in inches (mm) | 21 5/16 (540) |
Usable space in wash cabinet, height in inches (mm) | 20 1/8 (510) |
Usable space in wash cabinet, depth of upper basket in inches (mm) | 17 3/4 (450) |
Usable space in wash cabinet, depth of lower basket in inches (mm) | 17 3/4 (450) |
In-feed height above floor in inches (mm) | 8 5/16 (210) |
Required niche width in mm | 23 5/8 (600) |
Net weight [kg] | 98 (44) |
Gross weight in lbs. Note Including packaging | 113 (51) |
Maximum floor load in N/m² Maximum floor bearing capacity Maximum floor bearing capacity states the maximum weight (N) that can be placed on the supporting surface on which the appliance is installed. This maximum load bearing capacity is the result of adding up the weight of the machine, the load and the water in it, as well as the dynamic forces that occur during operation. | 1000 |
Emission sound pressure level in workplace (LpA) Emissions - sound pressure at workplace The emission sound pressure level provides a value for the noise emission created by the machine. Miele Professional machines have an extremely low sound pressure level. | 33 dB(A) re 20 µPa |
---|---|
Sound power (LwA) in dB(A) re 1 pW Sound power level The sound power level depends on the program. | 48 |
Universal | |
---|---|
Short | |
SaniWash | |
Cold/Pre-wash | |
Glasses | |
Plastic | |
EnergySave/Economy | |
Intensive |
ExtraComfort P baskets | |
---|---|
Flexible FlexLine basket design | |
FlexCare glass holder [number] | 2 |
FlexCare cup rack [number] | 1 |
Cutlery basket | |
Height-adjustable upper basket | |
Combinable with APFD 210 bottle basket |
Commercial-grade electrical connection | |
---|---|
Drying | Active condensation drying Active condensation drying Condensation drying with the help of cool room air. Additional drying Additional drying For particularly quick program cycles: Additional drying only if needed. AutoOpen assisted drying AutoOpen assisted drying Completely dry: The dishwasher door opens automatically at the end of the program. |
1 Combi dispenser/door for powder and liquid media | |
Wash cabinet made from high-quality stainless steel | |
EcoFeedback | |
Brilliant GlassCare | |
Child lock | |
Adjustable final rinse temperature | |
Optical interface | |
SmartStart | |
FlexiTimer with EcoStart | |
Wi-Fi |
CE | |
---|---|
Complies with Machinery Directive 2006/42/EC | |
VDE | |
EMC radio suppressed | |
DIN EN 17735 | |
EN 1717 | |
UL |
