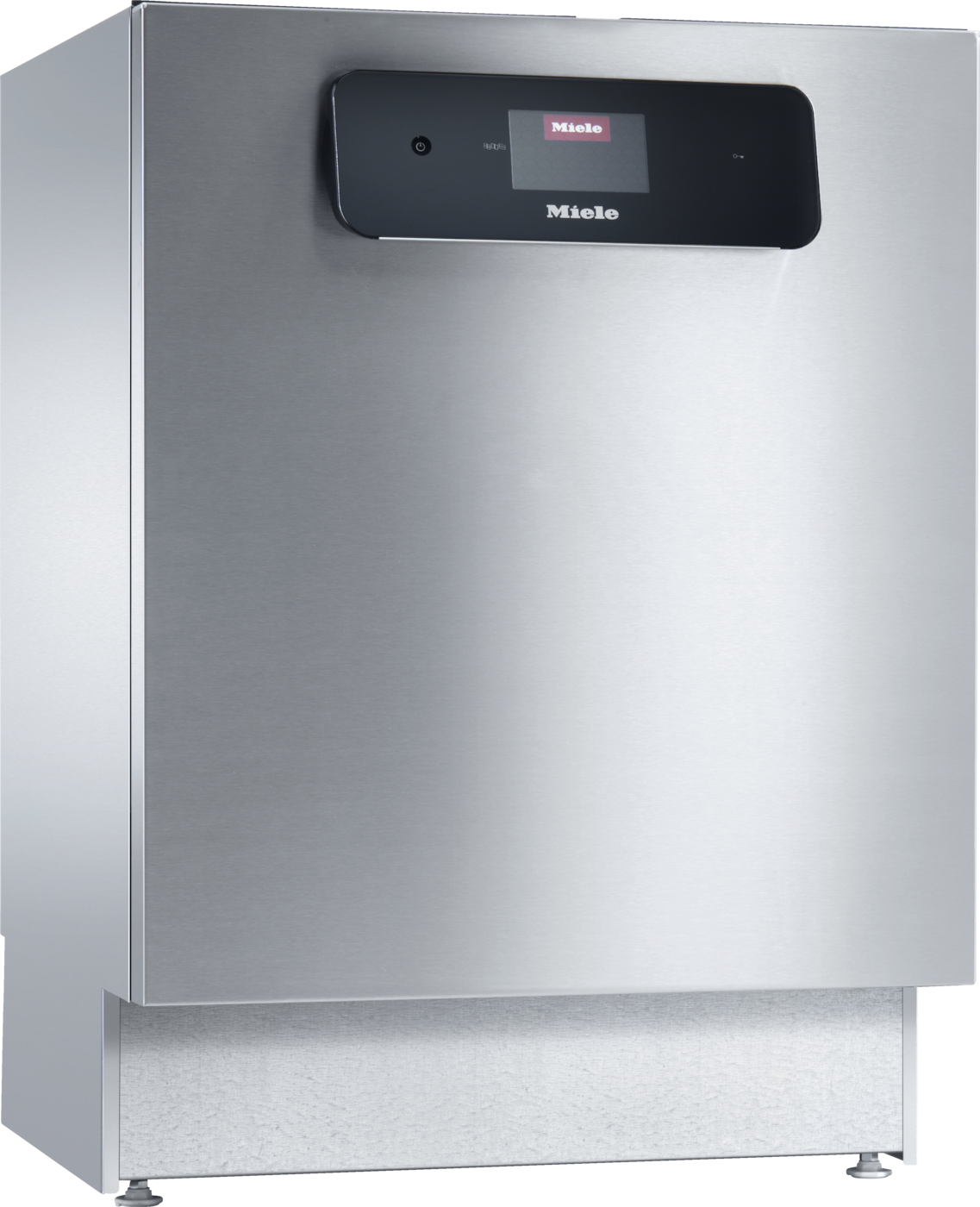

PFD 408 U [240V]
Built-under fresh water dishwasher ADA compliant, NSF/ANSI 3 certified for sanitization. Industrial use only.
- Max. cleaning performance*: 152 plates/hDepending on site conditions (temperature of incoming water / power connection) values given may vary.Brilliant results in a short time*
Thanks to the professional wash system, washed items can be used again quickly.Depending on site conditions (temperature of incoming water / power connection) values given may vary. - First-class results thanks to fresh water systemFresh water system
Constantly high cleaning performance and filtration thanks to repeated water changes. - Extremely hygienic results – final rinse temperature of 185 (85) °F (°C)High rinse temperature
Even the most demanding hygiene requirements are met by using high final rinse temperatures. - Safe and easy operation - automatic door openingAutoOpen function
- offers two important benefits. The electronic door lock while the program is running ensures a high level of operating safety. Automatic door opening at the end of the program ensures better drying results. - Flexible processing of two wire or plastic baskets per cyclePlastic baskets on two levels
It is possible to use the plastic baskets on two levels as an option.
Material machine front
Product benefits
Powerful cleaning performance on two levels
Large wash cabinet
High capacity: The most diverse items can be arranged safely on two wash levels.
Quality you can rely on
Long service life
Durability: Miele Professional dishwashers are tested for a long service life.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Powerful cleaning performance on two levels
Large wash cabinet
High capacity: The most diverse items can be arranged safely on two wash levels.
Efficient hot water connection
Economical
Connection to a hot water supply shortens the program run times, reducing energy consumption.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Proven hygiene
Effective against bacteria – scientifically proven
Our dishwashers in the PFD 40x series remove 99.999%* of most bacteria.The hygiene certificate can be found at the following link: https://www.miele.com/media/ex/com/Professional/Pruefberichte_Virussiegel/Hygienezertifikat_MasterLine_2023-zusammengefuegt.pdf
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Quality you can rely on
Long service life
Durability: Miele Professional dishwashers are tested for a long service life.
Water protection guarantee*For details please refer to our warranty terms and conditions for water protection.
Water protection guarantee
Maximum safety: Miele will bear the cost for prop. dam. resulting fr. a defect in the water prot. s. for 20 years.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Extensive range of accessories
Optimum features
Always perfect ergonomics and efficiency - with practical accessories, from special baskets to dispenser pumps.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Product details
PFD 408 U [240V]
EAN 4002516577386 / Article number 61040835NAM / Material number 12066610
EAN 4002516577386 / Article number 61040835NAM / Material number 12066610
| Model | Built-under dishwasher Built-under dishwasher For a perfect appearance, the dishwasher can be easily installed under the worktop. The appliance can be adjusted as needed to suit the height of the worktop. The required niche width is 24". |
|---|---|
| Range | MasterLine |
| Model | HygienePro |
| Wash system | Fresh water front loader Fresh water system Constantly high cleaning performance and filtration thanks to repeated water changes. |
| Number of levels | 2 |
| Front | Stainless steel |
| Lid | Without lid |
| Side walls | Galvanised |
| Suitable for retirement and care homes | |
|---|---|
| Suitable for small restaurants/bars | |
| Suitable for hospitality industry | |
| Suitable for Bed & Breakfast | |
| Suitable for canteens | |
| Suitable for child care facilities | |
| Suitable for fast food restaurants |
| Certified hygiene | Effective against bacteria – scientifically proven In the “Super short” program, the Miele MasterLine dishwashers meet the hygiene requirements for type testing based on DIN 10512, which corresponds to a bacteria reduction of at least 5 log10. This fulfils the criteria according to which InFluenc_H – Institute for Integrative Hygiene and Virology awards its “TESTED HYGIENE QUALITY” seal. |
|---|---|
| Circulation pump, Qmax in gal/min (l/min) | 103 (390) |
| Shortest program duration in min. Performance data The values quoted may vary depending on the on-site conditions (power connection/water intake temperature). | 15 |
| Maximum final rinse temperature in °F (°C) | 185 (85) |
| Cleaning performance, plates/h Performance data The values quoted may vary depending on the on-site conditions (power connection/water intake temperature). | 152 |
| Cleaning performance, baskets/h Performance data The values quoted may vary depending on the on-site conditions (power connection/water intake temperature). | 8 |
| Possible to wash plastic baskets on two levels | |
| Service life in wash cycles Note Our machines undergo intensive testing under laboratory conditions. The actual number of wash cycles may vary depending on actual usage behavior, maintenance, and care of the machine. | 28000 |
| Control system | M Touch Flex M Touch Flex controls Use all dishwashing programs and machine functions conveniently with a tap on the clear text touch display. M Touch Basic controls Use all dishwashing programs and machine functions conveniently with a tap on the clear text touch display. |
|---|---|
| Max. delay start in h | 24 |
| Countdown indicator | |
| Dishwashing programs [number] | 4 |
| Program sequence indicator | |
| Choice of display language | |
| Language-neutral operation |
| Electrical connection | 3 AC 240V 60HZ |
|---|---|
| Heater rating in kW | 5.4 |
| Total connected load in kW | 5.8 |
| Fuse rating in A | 20 |
| Length of power cord in ft (m) Note The length refers to the supply lead on the outside of the appliance. | 6 (1.9) |
| NEMA plug: Twist Lock L15-20 |
| Electrical connection | 2 AC 240V 60HZ |
|---|---|
| Heater rating in kW | 5.4 |
| Total connected load in kW | 5.8 |
| Fuse rating in A | 30 |
| Cold water [number] | 1 |
|---|---|
| Hot water [number] | 1 Efficient hot water connection Connection to a hot water supply shortens the program run times, reducing energy consumption. |
| Required flow pressure in bar | 0.4-10 |
| Drain hose [DN] | 22 |
| Maximum delivery head for drain pump in inches (cm) | 39 3/8 (100) |
| Integrated water softener | |
| Maximum water hardness in gpg (mmol/l) Note For a water hardness above 53 mg/l (3.1 grains/gal), the installation of a pre-connected water softener is recommended if an integrated water softener is not available.. | 62.595 (10.7) |
| Water protection system | Waterproof system Water protection guarantee* Maximum safety: Miele will bear the cost for prop. dam. resulting fr. a defect in the water prot. s. for 20 years.For details please refer to our warranty terms and conditions for water protection. |
| Water consumption per wash cycle in gal (l) | 4.6 (17.5) gll (l) |
| Length of water inlet hose in inches (cm) | 67 (170) |
| Length of water drain hose in inches (cm) | 59 1/8 (150) |
| External dimensions, net height in inches Note The dimension refers to the machine height without the feet extended. The height-adjustable feet allow the height of the dishwasher to be adjusted with ease. | 32 5/16 (820) |
|---|---|
| Maximum height adjustment in inches (mm) | 60 |
| External dimensions, net width in inches | 23 9/16 (598) |
| External dimensions, net depth in inches | 23 7/16 (595) |
| External dimensions, gross height in inches Note Including packaging | 36 1/4 (920) |
| External dimensions, gross width in inches Note Including packaging | 26 7/16 (670) |
| External dimensions, gross depth in inches Note Including packaging | 29 3/16 (740) |
| Usable space in wash cabinet, width in inches (mm) | 22 1/16 (559) |
| Usable space in wash cabinet, height in inches (mm) | 21 1/8 (536) |
| Usable space in wash cabinet, depth of upper basket in inches (mm) | 18 11/16 (474) |
| Usable space in wash cabinet, depth of lower basket in inches (mm) | 20 3/8 (516) |
| In-feed height above floor in inches (mm) | 8 9/16 (216) |
| Required niche width in mm | 23 5/8 (600) |
| Net weight [kg] | 166 (75) |
| Gross weight in lbs. Note Including packaging | 188 (85) |
| Maximum floor load in N/m² Maximum floor bearing capacity Maximum floor bearing capacity states the maximum weight (N) that can be placed on the supporting surface on which the appliance is installed. This maximum load bearing capacity is the result of adding up the weight of the machine, the load and the water in it, as well as the dynamic forces that occur during operation. | 1200 |
| Emission sound pressure level in workplace (LpA) Emissions - sound pressure at workplace The emission sound pressure level provides a value for the noise emission created by the machine. Miele Professional machines have an extremely low sound pressure level. | 45 dB(A) re 20 µPa |
|---|---|
| Sound power (LwA) in dB(A) re 1 pW Sound power level The sound power level depends on the program. | 57 |
| Heat output to the room in Mj/h Heat output into the room Dishwashers emit heat into the room when in operation. The released amount of heat/time depends on the set temperatures and the intensity of use. The stated maximum value can be used to control the temperature of the area or to calculate an increase in room temperature. | 1.44 |
| Universal | |
|---|---|
| Short | |
| Cold/Pre-wash | |
| Intensive | |
| Reactivation | |
| Drainage by pump |
| 2 x E 816 inserts for plates | |
|---|---|
| 1 x APFD 215 upper basket | |
| 1 x APFD 220 lower basket for inserts | |
| 2 x APFD 420 insert for cutlery | |
| Height-adjustable upper basket | |
| Combinable with APFD 210 bottle basket |
| Drying | AutoOpen assisted drying AutoOpen assisted drying Completely dry: The dishwasher door opens automatically at the end of the program. |
|---|---|
| 1 Combi dispenser/door for powder and liquid media | |
| Wash cabinet made from high-quality stainless steel | |
| In-door salt container | |
| AutoClose | |
| Aerosol steam condenser | |
| Door lock, protected by code | |
| Adjustable temperature holding time | |
| Adjustable final rinse temperature | |
| Optical interface | |
| Highly effective filter system with filter monitoring | |
| Wi-Fi | |
| A wide range of accessories (optional) |
| Complies with Machinery Directive 2006/42/EC | |
|---|---|
| Splash protection IPX1 | |
| EMC radio suppressed | |
| DIN 10512 | |
| DIN EN 17735 | |
| ETL | |
| NSF | |
| ADA compliant |
