Insert ventilation hood

DA 2390 Stainless steel

with energy-efficient LED lighting and backlit controls for easy use.
Color:Stainless steel
sale price$1,599.00



Product details

  • Customized kitchen design - fully integrated in 34 7/8 (884) in (mm) width
  • Space saving – suitable for narrow wall units from 11.8" deep
  • Powerful – 488.52 (830) ft³/min (m3/h) in Booster level
  • Efficient filtration-10-ply stainless steel grease filters
  • Safe and easy to clean -Miele CleanCover

Product data sheet

Insert ventilation extractor
Recirculated modeCan be retrofitted
Recirculation conversion kit (order separately)DUU 151
OdorFree charcoal filter (order separately)DKF 19-P
ColorStainless steel
Electronic controls
OperationLight-touch switches with LEDs
Power levels (number excl. Intensive)3
Booster levels1
CleanCover
Easy-to-clean CleanCover hood liner
Number of dishwasher-safe stainless-steel grease filters2
LED ClearView lighting
Number x W4 x 3 W
Light intensity in Lx500 lx
Color temperature in K3000 Kelvin
Dual-action blower
AC motor
Maximum air throughput in cfm according to HVI395
Air throughputValues upon request
Air throughput in booster level 1 (cfm) (m³/h)488.52 (830)
Safety shut-off
Canopy width in in. (mm)34 7/8 (884)
Canopy height in in. (mm)2 1/2 (63)
Depth of hood canopy in in. (mm)11 3/4 (297)
Minimum distance above electric cooktops in in. (mm)24 1/8 (610)
Minimum height above gas cooktop (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm26 (660)
Net weight in lbs. (kg)29 (13.0)
Length of electrical wire in ft. (m)4 (1.5)
Standard plug fitted
Total connected load in kW0.362
Voltage in V120
Fuse rating in A15
Frequency in Hz60
Number of phases1
Vent connection at top
Vent connection at top and rear
Diameter of vent connection in in. (mm)6 (150)
Non-return flap
EAN4002515939932

What's included

Non-return flap
Easy to use and effective against grease
Stainless-steel grease filters (10-layer)

Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.

Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.

Safety

Always on the safe side
Safety turn off

Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.

Features

Easy to use and effective against grease
Stainless-steel grease filters (10-layer)

Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.

Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.

Matching products and accessories

Recirculation conversion kit for DA 3xxx/2xxx and DAS 2xxx, 4xxx, and 8xxx

Recirculation conversion kit for DA 3xxx/2xxx and DAS 2xxx, 4xxx, and 8xxx

To convert slimline/integrated ventilation hoods from vented to recirculation.

$115.00
OdorFree Charcoal Filter
DKF 19-900

OdorFree Charcoal Filter

for Miele DA 23x0/269x/36xx Ventilation Hoods.

$125.00
Recirculation conversion kit for DA 3xxx/2xxx and DAS 2xxx, 4xxx, and 8xxx
DUU 150

Recirculation conversion kit for DA 3xxx/2xxx and DAS 2xxx, 4xxx, and 8xxx

To convert slimline/integrated ventilation hoods from vented to recirculation.

$115.00

Reducing collar

For reducing the exhaust air vent cross-section.

$125.00
Adapter

Adapter

for visual adaptation of the DA 23xx/DA 26xx to add 6" to the width.

$89.00

Downloads

Warranty conditions
PDF
Downloads
Mounting plan
PDF
Downloads
Product sheet
PDF
Downloads
Operating and Installation instructions
PDF
Downloads
rvt
ZIP
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000014/200001444/20000144474.png
Descriptions

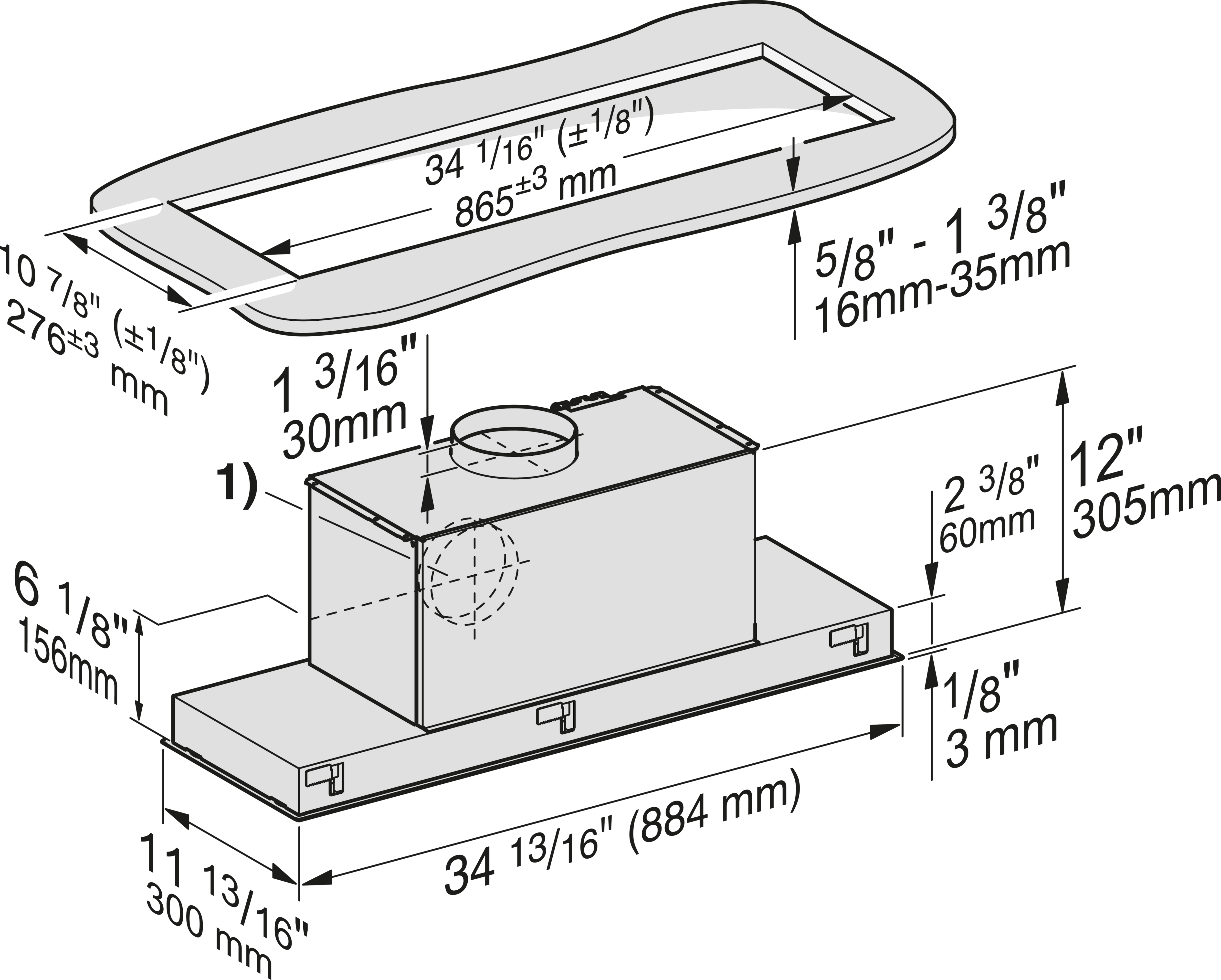

DA2390 (Installation drawing) - US
1) Vent connection alternatively to rear
