Insert ventilation hood

DA 2518 Stainless steel

with energy-efficient LED lighting and backlit controls for easy use.
Color:Stainless steel
sale price$1,999.00



Product details

  • Customized kitchen design - fully integrated in 43 1/2 (1102) in (mm) width
  • Unique user convenience –Con@ctivity
  • Powerful – 500.29 (850) ft³/min (m3/h) in Booster level
  • Efficient filtration-10-ply stainless steel grease filters
  • Safe and easy to clean -Miele CleanCover

Product data sheet

Insert ventilation extractor
Recirculated modeCan be retrofitted
Recirculation conversion kit (order separately)DUU 151
OdorFree charcoal filter (order separately)DKF 15-P
ColorStainless steel
Miele@home
Automatic function Con@ctivity
Electronic controls
OperationLight-touch switches with LEDs
Power levels (number excl. Intensive)3
Booster levels1
Programmable Intensive switch-off
Delayed shutdown for 5 or 15 minutes
Grease filter saturation indicator
Grease filter saturation indicator
Active charcoal filter saturation indicator
CleanCover
Easy-to-clean CleanCover hood liner
Number of dishwasher-safe stainless-steel grease filters3
LED ClearView lighting
Number x W4 x 3 W
Light intensity in Lx520 lx
Color temperature in K3000 Kelvin
Dual-action blower
AC motor
Maximum air throughput in cfm according to HVI415
Air throughputValues upon request
Air throughput in booster level 1 (cfm) (m³/h)500.29 (850)
Air throughput in Booster level 1 (m³/min)850
Safety shut-off
Canopy width in in. (mm)43 1/2 (1102)
Canopy height in in. (mm)2 (50)
Depth of hood canopy in in. (mm)15 7/8 (402)
Minimum distance above electric cooktops in in. (mm)24 1/8 (610)
Minimum height above gas cooktop (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm26 (660)
Net weight in lbs. (kg)32 (14.3)
Length of electrical wire in ft. (m)2 (0.8)
Standard plug fitted
Total connected load in kW0.362
Voltage in V120
Fuse rating in A15
Frequency in Hz60
Number of phases1
Vent connection at top
Vent connection at top and rear
Diameter of vent connection in in. (mm)6 (150)
Non-return flap
Communication module for Con@ctivity XKM 2000 DAXKS 3000 Z
EAN4002516024699

What's included

Non-return flap
Communication module for Con@ctivity XKM 2000 DA
Easy to use and effective against grease
Stainless-steel grease filters (10-layer)

Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.

Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.

Automatic operation for intelligent blower control
Con@ctivity

Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.

User convenience

Automatic blower run-on
Delayed shutdown

Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."

Countdown time conveniently in view
filter saturation indicator

Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.

Automatic operation for intelligent blower control
Con@ctivity

Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.

Safety

Always on the safe side
Safety turn off

Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.

Features

Easy to use and effective against grease
Stainless-steel grease filters (10-layer)

Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.

Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.

Matching products and accessories

MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

$15.99
 MicroCloth HyClean, 1 cloth
GP MI H 0011 W

 MicroCloth HyClean, 1 cloth

 Antibacterial multi-purpose cloth for improved hygiene.

$11.99
Recirculation conversion kit for DA 3xxx/2xxx and DAS 2xxx, 4xxx, and 8xxx

Recirculation conversion kit for DA 3xxx/2xxx and DAS 2xxx, 4xxx, and 8xxx

To convert slimline/integrated ventilation hoods from vented to recirculation.

$115.00
Recirculation conversion kit for DA 3xxx/2xxx and DAS 2xxx, 4xxx, and 8xxx
DUU 150

Recirculation conversion kit for DA 3xxx/2xxx and DAS 2xxx, 4xxx, and 8xxx

To convert slimline/integrated ventilation hoods from vented to recirculation.

$115.00

Reducing collar

For reducing the exhaust air vent cross-section.

$125.00

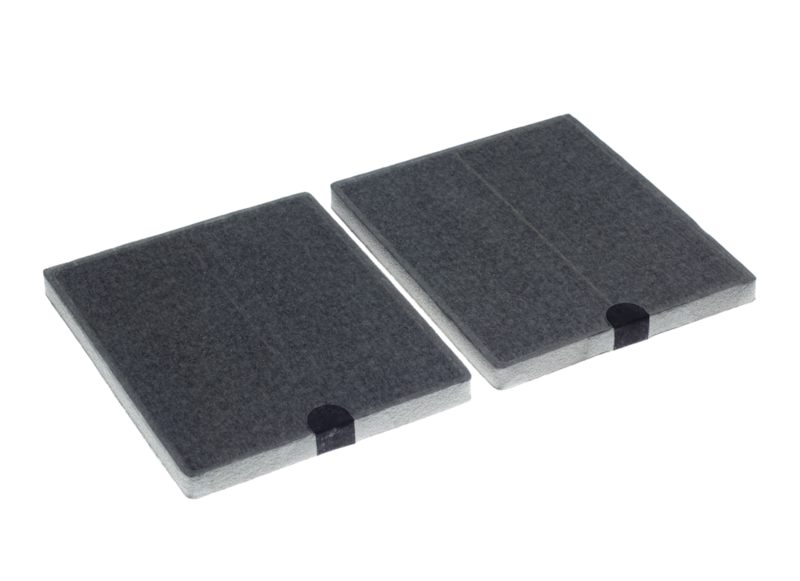

OdorFree Charcoal Filter
