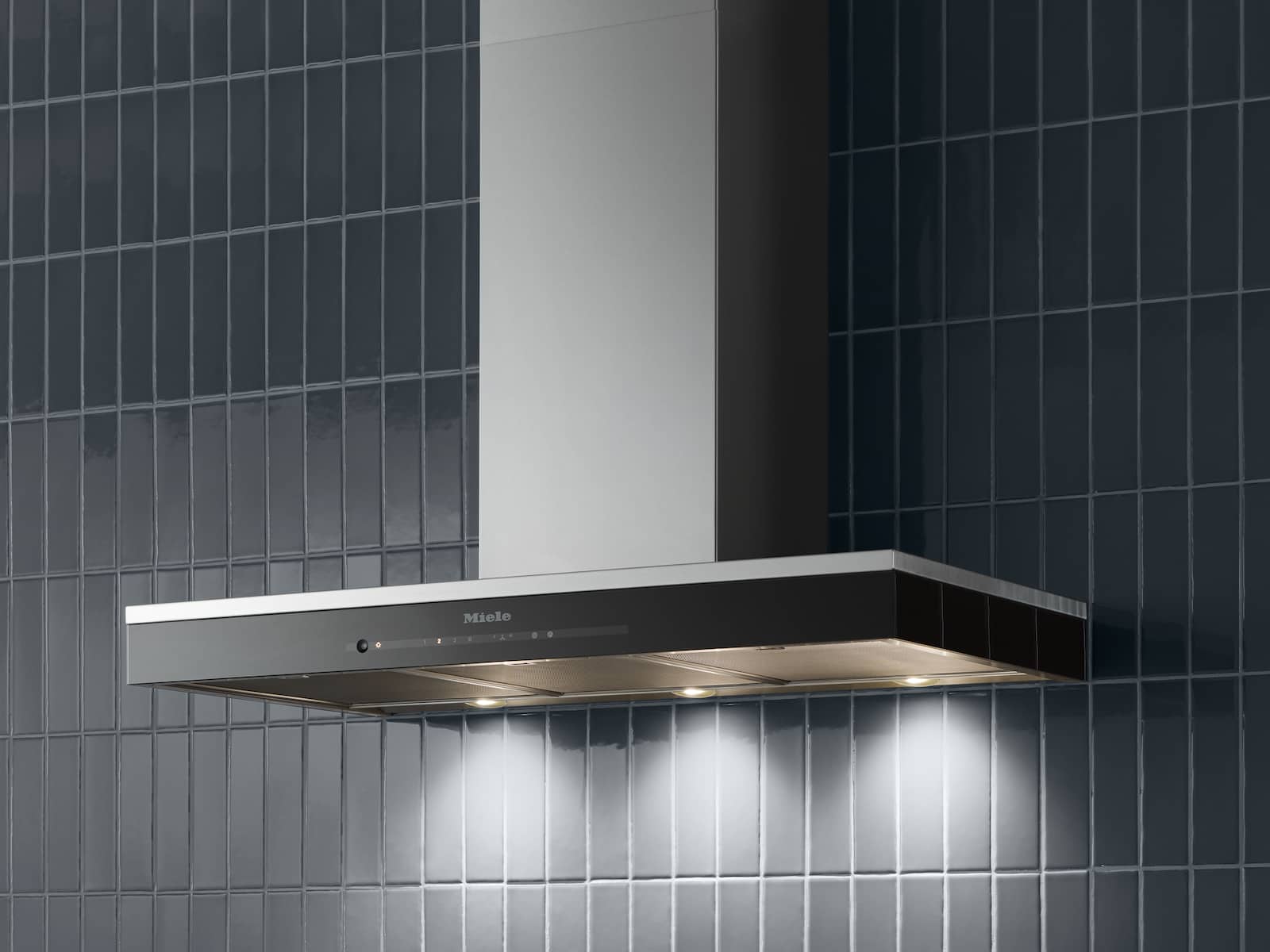

Wall ventilation hood

DA 6698 W Puristic Edition 6000 Stainless steel

with energy-efficient LED lighting and touch controls for simple operation.

Color:Stainless steel

sale price$3,399.00



Product details

  • Family design – based on Miele built-in appliances
  • Unique user convenience –Con@ctivity
  • Powerful – in Booster level
  • Energy-efficient and quiet
  • Energy-efficient and quiet

Product data sheet

Wall ventilation hood
Recirculated modeCan be retrofitted
Recirculation conversion kit (order separately)DUW 20
OdorFree charcoal filter (order separately)DKF 12-P
ColorStainless steel
Miele@home
Automatic function Con@ctivity
Electronic controls
Touch controls
OperationTouch-on-glass controls
Power levels (number excl. Intensive)3
Booster levels1
Programmable Intensive switch-off
Delayed shutdown for 5 or 15 minutes
Grease filter saturation indicator
Grease filter saturation indicator
Active charcoal filter saturation indicator
Acoustic package
CleanCover
Easy-to-clean CleanCover hood liner
Number of dishwasher-safe stainless-steel grease filters3
LED ClearView lighting
Number x W3 x 3 W
Light intensity in Lx670 lx
Color temperature in K3500 Kelvin
Light dimmer function
Dual-action blower
AC motor
Maximum air throughput in cfm according to HVI418
Air throughputValues upon request
Safety shut-off
Single-ply safety glass (ESG)
Overall min. height for vented and external in in. (mm)28 (710)
Overall max. height for vented and external in in. (mm)40 5/8 (1030)
Overall min. height for recirculation in in. (mm)33 1/8 (840)
Overall max. height for recirculation in in. (mm)45 3/4 (1160)
Canopy width in in. (mm)35 3/8 (898)
Canopy height in in. (mm)3 3/8 (85)
Depth of hood canopy in in. (mm)19 3/4 (500)
Minimum distance above electric cooktops in in. (mm)24 1/8 (610)
Minimum height above gas cooktop (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm26 (660)
Net weight in lbs. (kg)58 (26.0)
Length of electrical wire in ft. (m)2 (0.8)
Standard plug fitted
Total connected load in kW0.359
Voltage in V120
Fuse rating in A15
Frequency in Hz60
Number of phases1
Vent connection at top
Vent connection at top and rear
Diameter of vent connection in in. (mm)6 (150)
Telescopic chimney
Non-return flap
Communication module for Con@ctivity XKM 2000 DAXKS 3000 Z
EAN4002516024620

What's included

Non-return flap
Communication module for Con@ctivity XKM 2000 DA

User convenience

Automatic blower run-on
Delayed shutdown

Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."


Countdown time conveniently in view
filter saturation indicator

Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.


Automatic operation for intelligent blower control

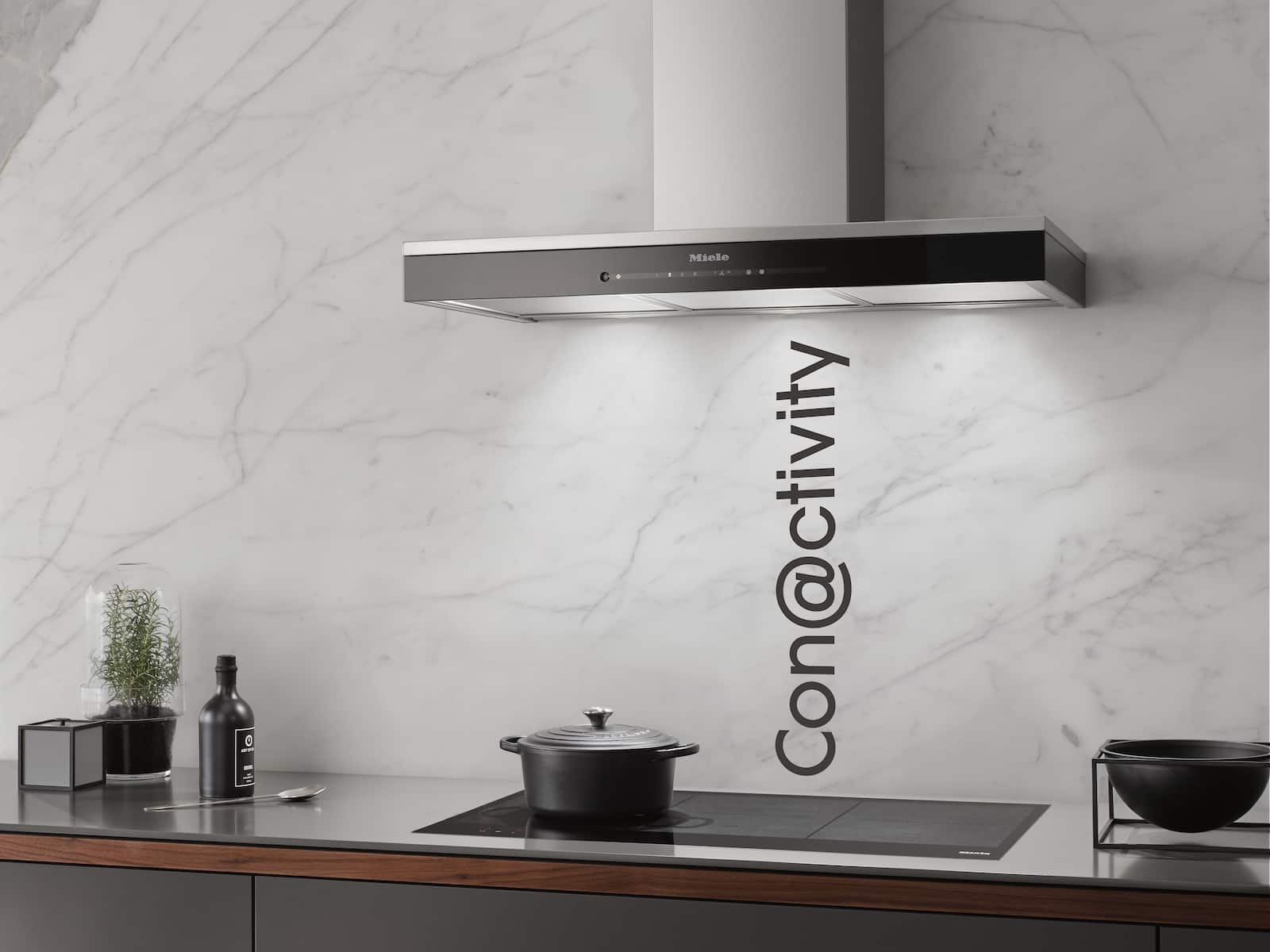

Con@ctivity

Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.


Safety

Always on the safe side
Safety turn off

Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.


Features

Easy to use and effective against grease
Stainless-steel grease filters (10-layer)

Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.


Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.


Performance and convenience as standard
Silence

Efficient and quiet: The fan is effectively insulated with special soundproofing mats.


Downloads

Warranty conditions
PDF
Downloads
Mounting plan
PDF
Downloads
Product sheet
PDF
Downloads
Operating and Installation instructions
PDF
Downloads
Fitting Instructions
PDF
Downloads
rvt
ZIP
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000011/200001151/20000115198.png
Descriptions

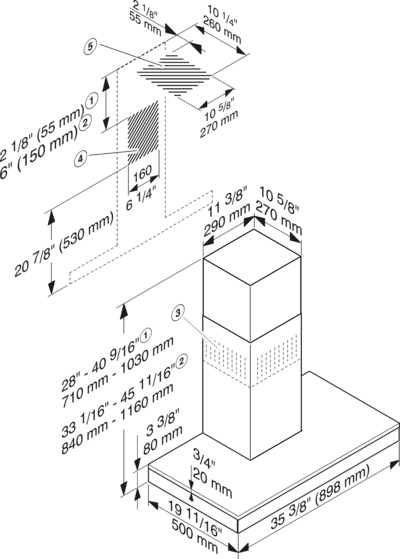

DA 6698 W, CLST (Installation drawing) - USA
1. Extraction, 2. Recirculation, 3 Ventilation grilles at the top for recirculation, 4. + 5. Vent cut-out positions (Area 5 not required for recirculation)
