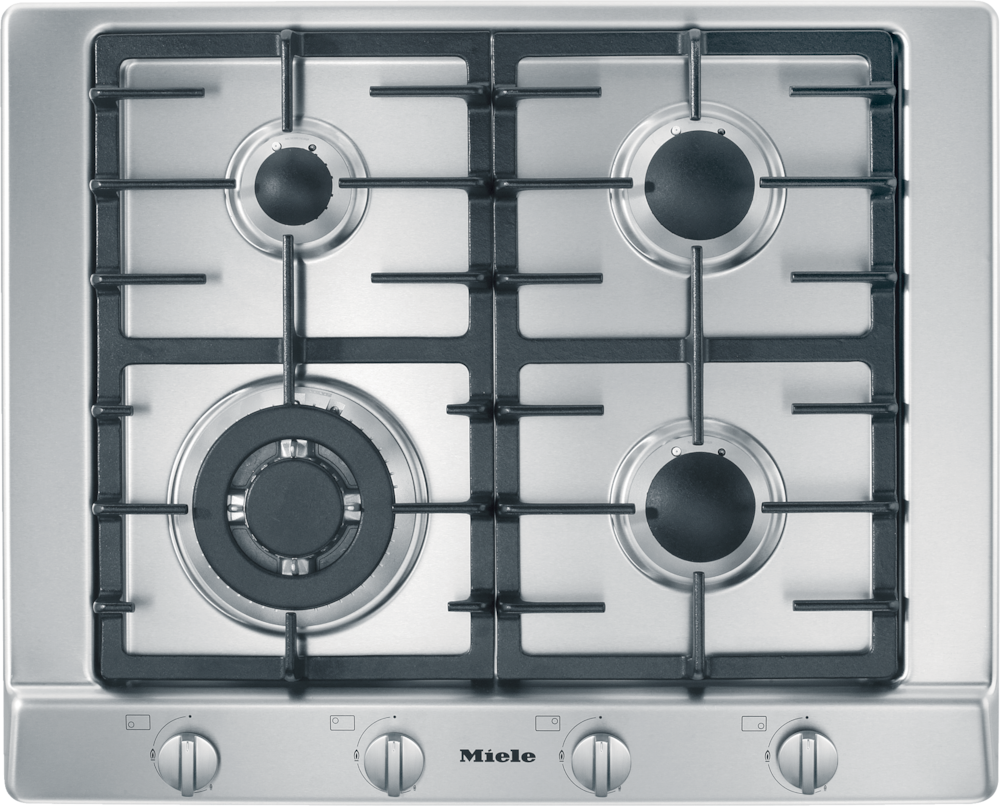

Gas cooktop

KM 2012 G Stainless steel

with a mono wok burner for special applications.

Color:Stainless steel

sale price$1,499.00



Product details

  • Simple controls -single-handed operation via rotary dial control
  • Professional design - 25 5/8 (650) in (mm) wide stainless steel trough
  • Particularly versatile - 4 burners incl. 1 mono wok
  • Extremely safe -GasStop function
  • Easy cleaning - ComfortClean dishwasher-safe grates

Product data sheet

Fuel typeGas
Independent of oven
Stainless steel trough
Cast iron pot rest (matte black enameled)
No. of rings4
Small burner in kW1.11
Small burner in BTU/h3800
Normal burner in kW1.61
Normal burner in BTU/h5500
Mono wok burner in kW3.31
Mono wok burner in BTU/h11300
Positionfront left
TypeSingle wok burner
Positionrear left
TypeEconomy burner
Positionrear right
TypeStandard burner
Positionfront right
TypeStandard burner
Operation via knobs
Electronic ignition with one-handed operation
Dishwasher-save trivets
PerfectClean burner
GasStop
Dimensions (W x D) in inches (mm)25 5/8 (650) x 3 5/8 (90) x 20 1/2 (520)
Width in in. (mm)25 5/8 (650)
Height in in. (mm)3 5/8 (90)
Cut-out dimensions (W x D) with surface-mounted installation in inches (mm)560 x 480
Depth in in. (mm)20 1/2 (520)
Cutout dimensions width in in. (mm) with proud-mounted installation560
Cutout dimensions depth in in. (mm) with proud-mounted installation480
Weight in lbs. (kg)30 (14)
Total connected load in kW7.600
Position of gas connectionHinten links
Voltage in V120
Frequency in Hz60
Power cord length in ft. (m)3 (1.2)
EAN4002516354093

Maintenance

Best quality features for a long service life
Enamelled grates and grates and burner cap

Nothing lasts longer and is easier to clean: enamelled cast-iron grates and burners with PerfectClean.


Efficiently protects and makes cleaning easier
ComfortClean Dishwasher-Safe Grates

Fast cleaning: Remove the pot rests and wash in the dishwasher. Fast clean-up with dishwasher-safe grates.


Design

A gas cooktop for every kitchen style
Individual design

Attractive design to suit all tastes: a minimalist stainless-steel look or elegant ceramic glass.


User convenience

Comfortably reignite the flame
Single-handed electronic ignition

No need for matches or lighters: automatic ignition of burners thanks to intelligent technology.


Everything under control
Comfort handle with integrated controls with knobs

Easy controls to regulate: Convenient power level control via plastic or metal knobs.


Efficiency and sustainability

Efficient and environmentally friendly
Gas - efficient and environmentally friendly

With environmental and economic benefits: Cooking with gas


Safety

Flame failure monitor for maximum safety
GasStop

Reassuring: If the flame is extinguished, for example by a draught, the continued supply of gas is prevented.


Features

Large variety of burner sizes for every application
Versatile burner configuration

From economical to powerful: There is a suitable burner with the optimum output for every application.


Downloads

Warranty conditions
PDF
Downloads
Operating and Installation instructions
PDF
Downloads
Product sheet
PDF
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000004/200000467/20000046752.png
Descriptions
KM2010G (Installation drawing)
1. Front, 2 Building-in depth, 3. Gas connection R 1/2 - ISO 7-1 (DIN EN 10226), 4. Mains connection box with mains connection cable, L = 2000 mm
Downloads

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
