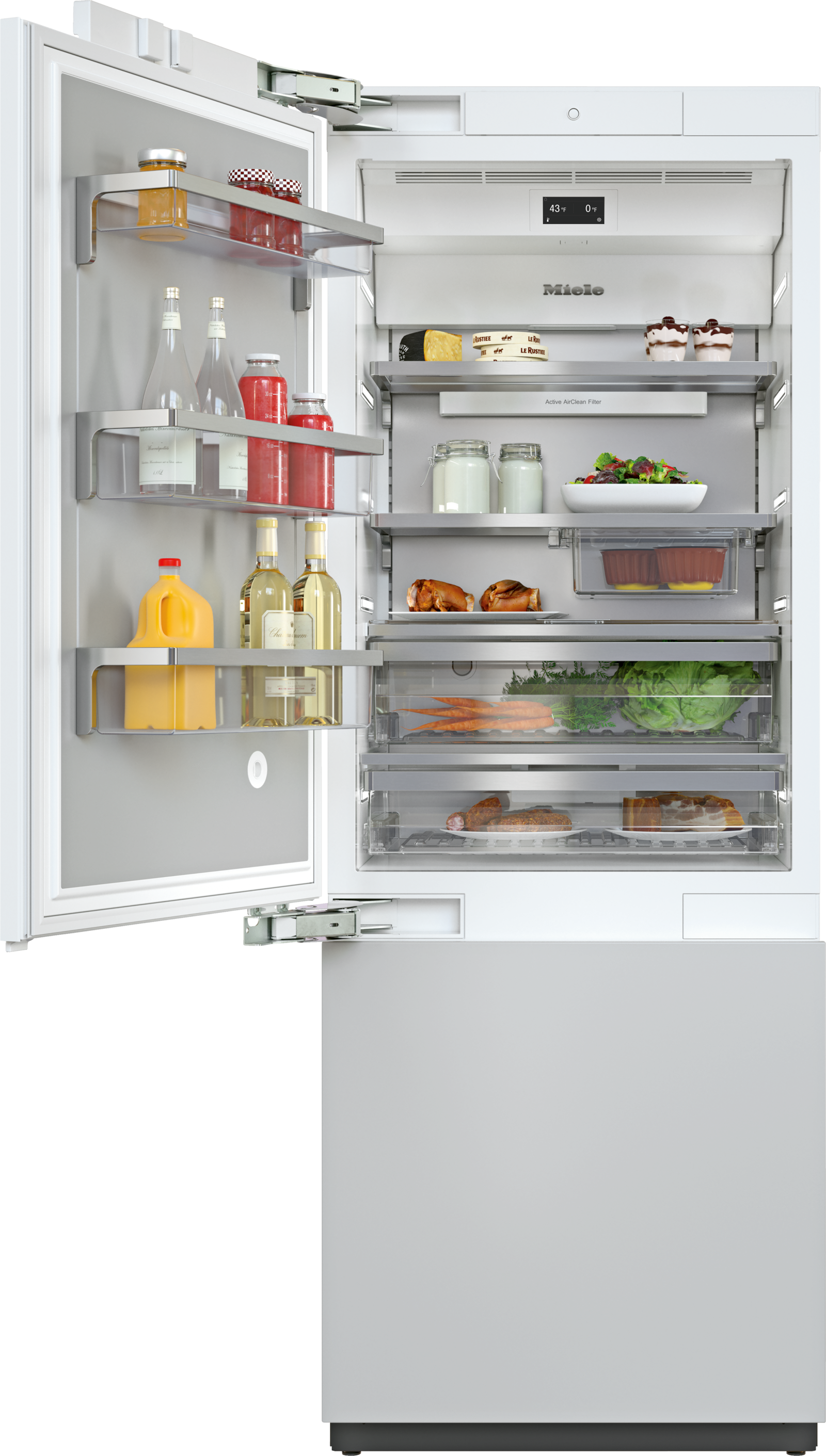

MasterCool™ fridge-freezer

KF 2812 Vi

For high-end design and technology on a large scale.
sale price$8,999.00



Product details

  • Push2openfor convenient door-opening assistance
  • Food stays fresh for up to 3 x longer thanks toSmartFresh
  • Light floods the interior thanks to LED elements –BrilliantLight
  • Convenient control thanks to color touch displayMasterSensor

Product data sheet

Fridge-freezer
Built-in
Built-in integrated
Door hinge sideLeft
Convertible hinging
Can be installed side-by-side
LightingBrilliantLight
Networking with Miele@home
Freshness systemMasterFresh
DynaCool
NoFrost
NoFrost
DuplexCool Pro
SoftClose door closing damper
SelfClose
Push2open
FullAccess
EasyClean
MaxLoad hinge
Electronic temperature display and controlMasterSensor
Independent temperature control of fridge and freezer compartments
Super Cooling
SuperFrost
No. of temperature zones3
Sabbath mode
Holiday mode
Eco mode
Height-adjustable, full-width tempered glass shelves2
No. of PerfectFresh drawers2
SlidingShelf
Door rack for tins1
Inner door racks for bottles2
Number of freezer baskets2
Energy Star Qualified
Lock function
Overflow protection
Acoustic door alarm
Acoustic temperature alarm, freezer section
Optical door alarm
Optical temperature alarm
Niche width in inches (mm), min.30 (762)
Niche width in inches (mm), max.30 (762)
Niche height in inches (mm), min.84 1/8 (2134)
Niche height in inches (mm), max.84 1/8 (2134)
Niche depth in in.(mm)24 7/8 (629)
Appliance width in in.(mm)29 7/8 (756)
Appliance height in in.(mm)83 3/4 (2125)
Appliance depth in in.(mm)24 (608)
Weight in lbs.(kg)384 (173.9)
Type of mountingFixed door
Maximum fridge compartment door front weight in lbs. (kg)100 (45)
Maximum freezer compartment door front weight in lbs. (kg)40 (18)
Total usable capacity in cu. ft. (l)15.96 (452)
Current consumption in milliampere (mA)4000
Voltage in V110-120
Fuse rating in A10
Number of phases1
Frequency in Hz60
Wire length in ft (m)9 (3.0)
Replacing bulbsCustomer Service
Active AirClean filter
Available display languages via MultiLingua
  • eesti
  • français
  • ελληνιкά
  • čeština
  • 繁體中文
  • slovenčina
  • latviesu
  • slovenščina
  • 中文
  • polski
  • lietuviu
  • français (FR)
  • magyar
  • nederlands
  • hrvatski
  • yкраїнська
  • bahasa malaysia
  • deutsch
  • english (GB)
  • italiano
  • türkçe
  • suomi
  • 日本語
  • dansk
  • română
  • english (AU)
  • english (CA)
  • español
  • srpski
  • english
  • العربية
  • svenska
  • français (CA)
  • norsk
  • pусский
  • português
  • english (US)
  • 한국어
EAN4002516321934

What's included

Active AirClean filter
Defrosting is a thing of the past
MasterCool – NoFrost

Convenient: A sophisticated NoFrost system saves you the hassle of defrosting and cleaning the appliance.

Perfectly lit
MasterCool – BrilliantLight

Soft and attractive: High-quality LED strips offer perfect illumination and a beautiful lighting.

Protective storage for long-lasting freshness
MasterCool – MasterFresh

Ideal climate: Food stays fresh for up to 3 times longer due to perfect temperature and humidity.

The perfect solution for a handleless design
MasterCool – Push2open

This appliance integrates perfectly into handleless kitchens, as the door opens by pressing the front.

Cleverly networked
Miele@home1,

Make your life smart: Thanks to Miele@home1, , you can cleverly network your domestic appliances – for more options.

Maintenance

Provides effective protection against odors
MasterCool – Active AirClean filter

Inimitable aroma retained: The combination of active charcoal and natural chitosan effectively prevents odors.

Special features

Protective storage for long-lasting freshness
MasterCool – MasterFresh

Ideal climate: Food stays fresh for up to 3 times longer due to perfect temperature and humidity.

User convenience

Perfect food storage
MasterCool – DuplexCool Pro

Better storage: Separate cooling circuits for the refrigerator and freezer prevent drying out and odor transfer.

Defrosting is a thing of the past
MasterCool – NoFrost

Convenient: A sophisticated NoFrost system saves you the hassle of defrosting and cleaning the appliance.

Perfect food storage
MasterCool – DynaCool

Storage freedom: A fan ensures a uniform temperature throughout the entire unit.

Convenient operation with a tap of a finger
MasterCool – MasterSensor

Incredibly convenient: A whole range of settings can be made easily with a tap of a finger.

Perfectly lit
MasterCool – BrilliantLight

Soft and attractive: High-quality LED strips offer perfect illumination and a beautiful lighting.

The perfect solution for a handleless design
MasterCool – Push2open

This appliance integrates perfectly into handleless kitchens, as the door opens by pressing the front.

Cleverly networked
Miele@home1,

Make your life smart: Thanks to Miele@home1, , you can cleverly network your domestic appliances – for more options.

Innovation

Safe handling guaranteed
MasterCool – MaxLoad hinge

Strong and robust: The door hinges are able to withstand high loads and make it easy to open large doors.

Matching products and accessories

MasterCool™ refrigerator
K 2802 Vi

MasterCool™ refrigerator

For high-end design and technology on a large scale.

$8,649.00
MasterCool™ refrigerator
K 2902 Vi

MasterCool™ refrigerator

For high-end design and technology on a large scale.

$8,949.00
MasterCool FrenchDoor
KF 2982 Vi

MasterCool FrenchDoor

For high-end design and technology on a large scale.

$9,999.00
MasterCool™ fridge-freezer
KF 2902 Vi

MasterCool™ fridge-freezer

For high-end design and technology on a large scale.

$9,499.00
MasterCool™ freezer
F 2412 Vi

MasterCool™ freezer

For high-end design and technology on a large scale.

$7,899.00
MasterCool™ refrigerator
K 2602 Vi

MasterCool™ refrigerator

For high-end design and technology on a large scale.

$8,199.00
MasterCool™ fridge-freezer
KF 2802 Vi

MasterCool™ fridge-freezer

For high-end design and technology on a large scale.

$8,999.00
MasterCool™ fridge-freezer
KF 2912 Vi

MasterCool™ fridge-freezer

For high-end design and technology on a large scale.

$9,499.00
MasterCool™ freezer
F 2812 Vi

MasterCool™ freezer

For high-end design and technology on a large scale.

$9,449.00
Side-by-side kit

Side-by-side kit

For the high-quality side-by-side installation of MasterCool models.

$839.00
IntensiveClear 2.0
KWF 2000

IntensiveClear 2.0

Water filter with active charcoal for MasterCool F 2xx2 and KF 2xx2.

$83.00
odor-absorbing Active AirClean filter
KKF-RF

odor-absorbing Active AirClean filter

prevents unpleasant odors in the refrigerator.

$68.00
Side-by-side kit

Side-by-side kit

For the high-quality side-by-side installation of MasterCool models.

$839.00
MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

$15.99
 MicroCloth HyClean, 1 cloth
GP MI H 0011 W

 MicroCloth HyClean, 1 cloth

 Antibacterial multi-purpose cloth for improved hygiene.

$11.99
Stainless-steel toe-kick panel

Stainless-steel toe-kick panel

for high-end panelwork of MasterCool toe-kicks.

$179.00
Stainless steel front

Stainless steel front

For the integration of MasterCool refrigerators and freezers in your kitchen.

$899.00
Stainless steel front

Stainless steel front

For the integration of MasterCool refrigerators and freezers in your kitchen.

$579.00

Downloads

Warranty conditions
PDF
Downloads
Product sheet
PDF
Downloads
Operating and Installation instructions
PDF
Downloads
dwg
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads
fbx
ZIP
Downloads
PNG
Downloads
Energy label
PDF
Downloads
Energy label
JPEG
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000015/200001517/20000151714.png
Descriptions
KF2802Vi, KF2812Vi, KF2801Vi, KF2811Vi, Installation, MasterCool II, installation drawings
Installation drawings
Downloads
https://media.miele.com/images/2000006/200000642/20000064269.png
Descriptions
Opening angle 90°/115°, right side stop, MasterCool (Sketch) with footnote
A) Appliance door , K 2611 Vi, KWT 2611 Vi, KWT 2611 SF, KWT 2671 ViS: 677 mm (26 2/3 inch); , K 2612 Vi, KWT 2612 Vi, KWT 2612 SF, KWT 2672 ViS: 677 mm (26 2/3 inch);, K 2811 Vi, K 2811 SF, KF 2811 Vi, KF 2811 SF: 829 mm (32 2/3 inch);, K 2812 Vi, K 2812 SF, KF 2812 Vi, KF 2812 SF: 829 mm (32 2/3 inch);, K 2911 Vi, K 2911 SF, KF 2911 Vi, KF 2911 SF: 982 mm (38 2/3 inch);, K 2912 Vi, K 2912 SF, KF 2912 Vi, KF 2912 SF: 982 mm (38 2/3 inch);, B) Furniture front (max. 38 mm) (1 1/2 inch), C) Door handle, D) Distance from the door to the wall (without furniture front and door handle): , K 2611 Vi, KWT 2611 Vi, KWT 2611 SF, KWT 2671 ViS: 296 mm (11 2/3 inch);, K 2612 Vi, KWT 2612 Vi, KWT 2612 SF, KWT 2672 ViS: 296 mm (11 2/3 inch);, K 2811 Vi, K 2811 SF, KF 2811 Vi, KF 2811 SF: 363 mm (14 1/3 inch);, K 2812 Vi, K 2812 SF, KF 2812 Vi, KF 2812 SF: 363 mm (14 1/3 inch);, K 2911 Vi, K 2911 SF, KF 2911 Vi, KF 2911 SF: 428 mm (16 7/8 inch);, K 2912 Vi, K 2912 SF, KF 2912 Vi, KF 2912 SF: 428 mm (16 7/8 inch);, E) ONLY valid for SF versions: A + 25 mm (1 inch)
Downloads
https://media.miele.com/images/2000006/200000657/20000065730.png
Descriptions
Side-by-side, MasterCool, without partition wall, with heating mat (Sketch) (with footnote)
1) Heating mat KSK 2001 (EU, AUS, CN) or KSK 2002 (US, CA, MX, BR)
Downloads
https://media.miele.com/images/2000016/200001632/20000163253.png
Descriptions
KF2801Vi, KF2811SF, KF2811Vi, KF2811SF, KF2802Vi, KF2812SF, KF2812Vi, KF2812SF, MasterCool, installation drawings
1. View from the front, 2. Mains Connection cable, L = 3000 mm, 3. Water inlet positon, L = 2000mm, 4. No water/ELT conections permitted in this area
Downloads
https://media.miele.com/images/2000016/200001617/20000161753.png
Descriptions
KF2901Vi/SF, KF2911Vi/SF, KF2801VI/SF, KF2811Vi/SF, KF2981Vi/SF, sideview, MasterCool, installation drawings
Installation drawings
Downloads
https://media.miele.com/images/2000016/200001626/20000162600.png
Descriptions
Side-by-Side, MasterCool, footnote, installation drawings
1. KSK 2001/2002, 2. Device A, 3. Device B, A = niche device A, B = niche device B
Downloads
https://media.miele.com/images/2000016/200001632/20000163238.png
Descriptions
KFP3015ed/cs, KFP3025ed/cs, KFP3014ed/cs, KFP3024ed/cs, Front panel, Front dimensions, MasterCool, sketch
Installation drawings
Downloads
Open Source Licence
PDF
Downloads
  • 1.Additional digital offer from Miele & Cie. KG. All smart applications are made possible with the Miele@home system. The range of functions can vary depending on the model and the country.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
