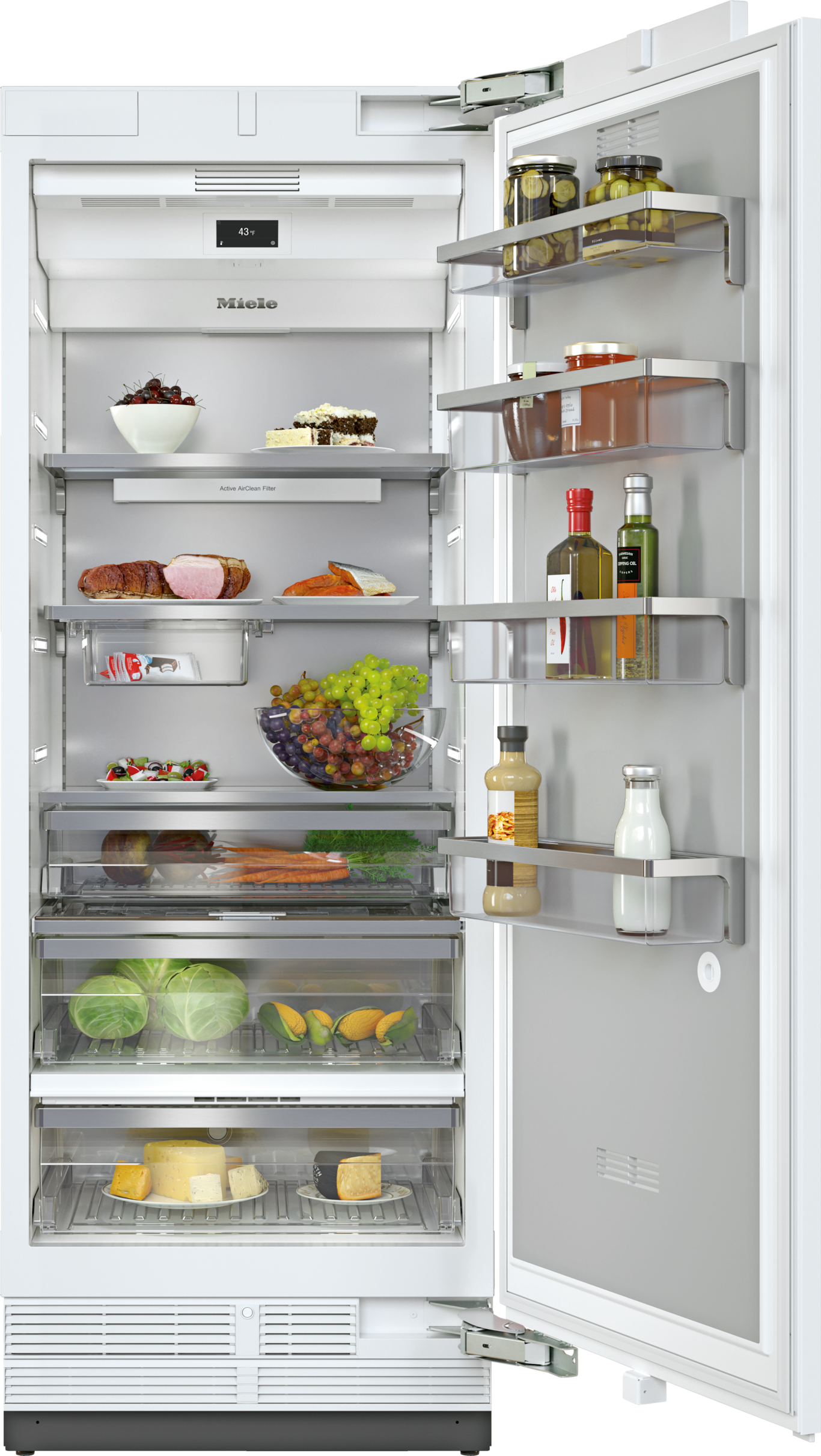

MasterCool™ refrigerator

K 2802 Vi

For high-end design and technology on a large scale.
sale price$8,649.00



Product details

  • Push2openfor convenient door-opening assistance
  • Food stays fresh for up to 3 x longer thanks toSmartFresh
  • Light floods the interior thanks to LED elements –BrilliantLight
  • Convenient control thanks to color touch displayMasterSensor

Product data sheet

Fridge
Built-in
Built-in integrated
Door hinge sideright
Convertible hinging
Can be installed side-by-side
LightingBrilliantLight
Networking with Miele@home
Freshness systemMasterFresh
DynaCool
SoftClose door closing damper
SelfClose
Push2open
FullAccess
EasyClean
MaxLoad hinge
Electronic temperature display and controlMasterSensor
Super Cooling
No. of temperature zones2
Sabbath mode
Eco mode
Height-adjustable, full-width tempered glass shelves2
No. of removable fruit and vegetable drawers1
No. of PerfectFresh drawers2
SlidingShelf
Door rack for tins1
Inner door racks for bottles3
Energy Star Qualified
Lock function
Overflow protection
Acoustic door alarm
Acoustic temperature alarm, freezer section
Optical door alarm
Optical temperature alarm
Niche width in inches (mm), min.30 (762)
Niche width in inches (mm), max.30 (762)
Niche height in inches (mm), min.84 1/8 (2134)
Niche height in inches (mm), max.84 1/8 (2134)
Niche depth in in.(mm)24 7/8 (629)
Appliance width in in.(mm)29 7/8 (756)
Appliance height in in.(mm)83 3/4 (2125)
Appliance depth in in.(mm)24 (608)
Weight in lbs.(kg)342 (155.1)
Type of mountingFixed door
Total usable capacity in cu. ft. (l)16.77 (475)
Current consumption in milliampere (mA)4000
Voltage in V110-120
Fuse rating in A10
Number of phases1
Frequency in Hz60
Wire length in ft (m)9 (3.0)
Replacing bulbsCustomer Service
Active AirClean filter
Available display languages via MultiLingua
  • eesti
  • français
  • ελληνιкά
  • čeština
  • 繁體中文
  • slovenčina
  • latviesu
  • slovenščina
  • 中文
  • polski
  • lietuviu
  • français (FR)
  • magyar
  • nederlands
  • hrvatski
  • yкраїнська
  • bahasa malaysia
  • deutsch
  • italiano
  • english (GB)
  • türkçe
  • suomi
  • dansk
  • 日本語
  • română
  • english (AU)
  • english (CA)
  • español
  • english
  • srpski
  • العربية
  • svenska
  • norsk
  • français (CA)
  • pусский
  • português
  • english (US)
  • 한국어
EAN4002516321583

What's included

Active AirClean filter
Perfectly lit
MasterCool – BrilliantLight

Soft and attractive: High-quality LED strips offer perfect illumination and a beautiful lighting.

Protective storage for long-lasting freshness
MasterCool – MasterFresh

Ideal climate: Food stays fresh for up to 3 times longer due to perfect temperature and humidity.

The perfect solution for a handleless design
MasterCool – Push2open

This appliance integrates perfectly into handleless kitchens, as the door opens by pressing the front.

Cleverly networked
Miele@home1,

Make your life smart: Thanks to Miele@home1, , you can cleverly network your domestic appliances – for more options.

Maintenance

Provides effective protection against odors
MasterCool – Active AirClean filter

Inimitable aroma retained: The combination of active charcoal and natural chitosan effectively prevents odors.

Special features

Protective storage for long-lasting freshness
MasterCool – MasterFresh

Ideal climate: Food stays fresh for up to 3 times longer due to perfect temperature and humidity.

User convenience

Perfect food storage
MasterCool – DynaCool

Storage freedom: A fan ensures a uniform temperature throughout the entire unit.

Convenient operation with a tap of a finger
MasterCool – MasterSensor

Incredibly convenient: A whole range of settings can be made easily with a tap of a finger.

Perfectly lit
MasterCool – BrilliantLight

Soft and attractive: High-quality LED strips offer perfect illumination and a beautiful lighting.

The perfect solution for a handleless design
MasterCool – Push2open

This appliance integrates perfectly into handleless kitchens, as the door opens by pressing the front.

Cleverly networked
Miele@home1,

Make your life smart: Thanks to Miele@home1, , you can cleverly network your domestic appliances – for more options.

Innovation

Safe handling guaranteed
MasterCool – MaxLoad hinge

Strong and robust: The door hinges are able to withstand high loads and make it easy to open large doors.

Matching products and accessories

MasterCool™ refrigerator
K 2802 Vi

MasterCool™ refrigerator

For high-end design and technology on a large scale.

$8,649.00
MasterCool™ refrigerator
K 2902 Vi

MasterCool™ refrigerator

For high-end design and technology on a large scale.

$8,949.00
MasterCool FrenchDoor
KF 2982 Vi

MasterCool FrenchDoor

For high-end design and technology on a large scale.

$9,999.00
MasterCool™ fridge-freezer
KF 2902 Vi

MasterCool™ fridge-freezer

For high-end design and technology on a large scale.

$9,499.00
MasterCool™ freezer
F 2412 Vi

MasterCool™ freezer

For high-end design and technology on a large scale.

$7,899.00
MasterCool™ refrigerator
K 2602 Vi

MasterCool™ refrigerator

For high-end design and technology on a large scale.

$8,199.00
MasterCool™ fridge-freezer
KF 2802 Vi

MasterCool™ fridge-freezer

For high-end design and technology on a large scale.

$8,999.00
MasterCool™ fridge-freezer
KF 2912 Vi

MasterCool™ fridge-freezer

For high-end design and technology on a large scale.

$9,499.00
MasterCool™ freezer
F 2812 Vi

MasterCool™ freezer

For high-end design and technology on a large scale.

$9,449.00
Side-by-side kit

Side-by-side kit

For the high-quality side-by-side installation of MasterCool models.

$839.00
odor-absorbing Active AirClean filter
KKF-RF

odor-absorbing Active AirClean filter

prevents unpleasant odors in the refrigerator.

$68.00
Side-by-side kit

Side-by-side kit

For the high-quality side-by-side installation of MasterCool models.

$839.00
MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

$15.99
 MicroCloth HyClean, 1 cloth
GP MI H 0011 W

 MicroCloth HyClean, 1 cloth

 Antibacterial multi-purpose cloth for improved hygiene.

$11.99
Stainless steel front

Stainless steel front

For the integration of MasterCool refrigerators and freezers in your kitchen.

$1,049.00
Stainless-steel toe-kick panel

Stainless-steel toe-kick panel

for high-end panelwork of MasterCool toe-kicks.

$179.00

Downloads

Warranty conditions
PDF
Downloads
Product sheet
PDF
Downloads
Operating and Installation instructions
PDF
Downloads
dwg
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads
fbx
ZIP
Downloads
PNG
Downloads

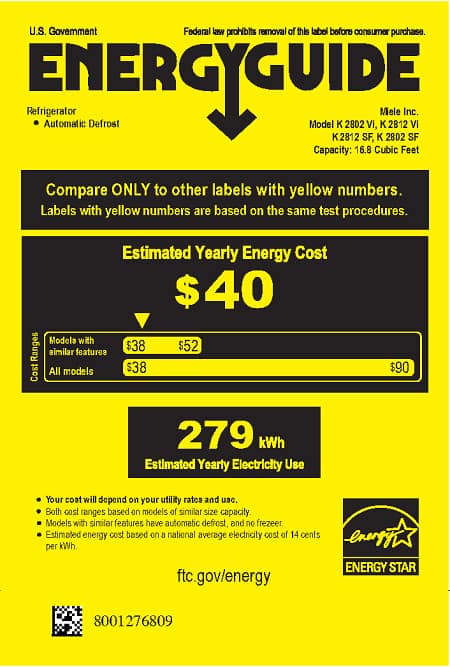

Energy label
