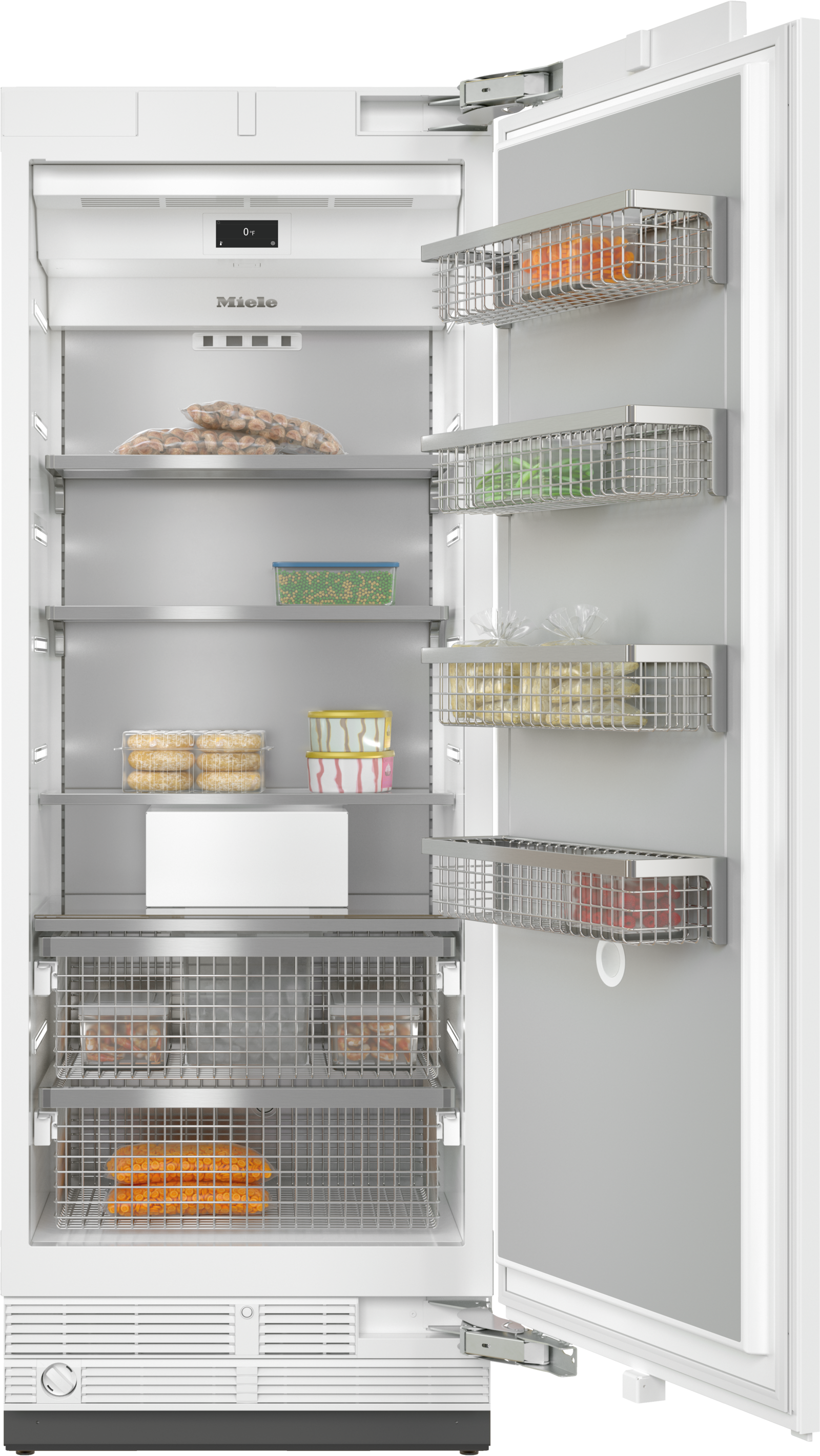

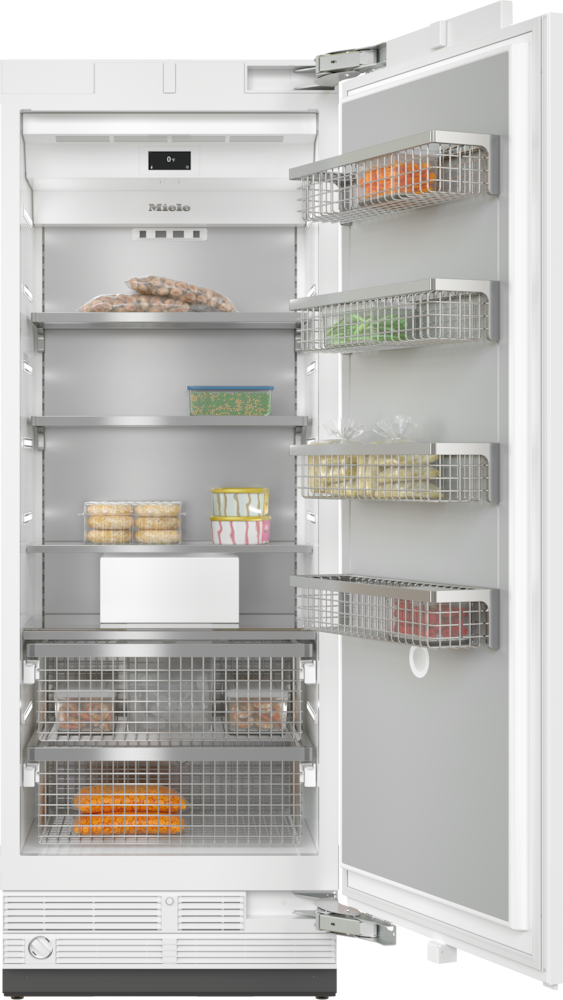

MasterCool™ freezer

F 2802 Vi

For high-end design and technology on a large scale.
sale price$9,449.00



Product details

  • Push2openfor convenient door-opening assistance
  • Light floods the interior thanks to LED elements –BrilliantLight
  • Fresh ice cubes from theIceMakerwith plumbed water connection
  • Convenient control thanks to color touch displayMasterSensor

Product data sheet

Freezer
Built-in
Built-in integrated
Door hinge sideright
Convertible hinging
Can be installed side-by-side
LightingBrilliantLight
Networking with Miele@home
NoFrost
NoFrost
SoftClose door closing damper
IceMaker with mains water connection
Push2open
FullAccess
EasyClean
MaxLoad hinge
Electronic temperature display and controlMasterSensor
SuperFrost
No. of temperature zones1
Sabbath mode
Eco mode
Door baskets – small1
Door baskets – large3
Number of shelves2
Number of freezer baskets2
Energy Star Qualified
Lock function
Acoustic door alarm
Acoustic temperature alarm, freezer section
Optical door alarm
Optical temperature alarm
Niche width in inches (mm), min.30 (762)
Niche width in inches (mm), max.30 (762)
Niche height in inches (mm), min.84 1/8 (2134)
Niche height in inches (mm), max.84 1/8 (2134)
Niche depth in in.(mm)24 7/8 (629)
Appliance width in in.(mm)29 7/8 (756)
Appliance height in in.(mm)83 3/4 (2125)
Appliance depth in in.(mm)24 (608)
Weight in lbs.(kg)341 (154.4)
Type of mountingFixed door
Maximum fridge compartment door front weight in lbs. (kg)62 (28)
Current consumption in milliampere (mA)4000
Voltage in V110-120
Fuse rating in A10
Number of phases1
Frequency in Hz60
Wire length in ft (m)9 (3.0)
Replacing bulbsCustomer Service
Available display languages via MultiLingua
  • eesti
  • français
  • ελληνιкά
  • čeština
  • 繁體中文
  • slovenčina
  • latviesu
  • slovenščina
  • 中文
  • polski
  • français (FR)
  • lietuviu
  • magyar
  • nederlands
  • hrvatski
  • yкраїнська
  • bahasa malaysia
  • english (GB)
  • italiano
  • deutsch
  • türkçe
  • dansk
  • 日本語
  • suomi
  • română
  • english (AU)
  • english (CA)
  • español
  • english
  • srpski
  • العربية
  • svenska
  • norsk
  • français (CA)
  • pусский
  • english (US)
  • português
  • 한국어
EAN4002516321880
Ice cubes for cold drinks
MasterCool™ - IceMaker

Produced quickly and stored: The IceMaker, which can be controlled separately, produces up to 150 ice cubes per day.

Defrosting is a thing of the past
MasterCool – NoFrost

Convenient: A sophisticated NoFrost system saves you the hassle of defrosting and cleaning the appliance.

Perfectly lit
MasterCool – BrilliantLight

Soft and attractive: High-quality LED strips offer perfect illumination and a beautiful lighting.

The perfect solution for a handleless design
MasterCool – Push2open

This appliance integrates perfectly into handleless kitchens, as the door opens by pressing the front.

Cleverly networked
Miele@home1,

Make your life smart: Thanks to Miele@home1, , you can cleverly network your domestic appliances – for more options.

User convenience

Defrosting is a thing of the past
MasterCool – NoFrost

Convenient: A sophisticated NoFrost system saves you the hassle of defrosting and cleaning the appliance.

Convenient operation with a tap of a finger
MasterCool – MasterSensor

Incredibly convenient: A whole range of settings can be made easily with a tap of a finger.

Perfectly lit
MasterCool – BrilliantLight

Soft and attractive: High-quality LED strips offer perfect illumination and a beautiful lighting.

The perfect solution for a handleless design
MasterCool – Push2open

This appliance integrates perfectly into handleless kitchens, as the door opens by pressing the front.

Cleverly networked
Miele@home1,

Make your life smart: Thanks to Miele@home1, , you can cleverly network your domestic appliances – for more options.

Special features

Ice cubes for cold drinks
MasterCool™ - IceMaker

Produced quickly and stored: The IceMaker, which can be controlled separately, produces up to 150 ice cubes per day.

Innovation

Safe handling guaranteed
MasterCool – MaxLoad hinge

Strong and robust: The door hinges are able to withstand high loads and make it easy to open large doors.

Matching products and accessories

MasterCool™ refrigerator
K 2802 Vi

MasterCool™ refrigerator

For high-end design and technology on a large scale.

$8,649.00
MasterCool™ refrigerator
K 2902 Vi

MasterCool™ refrigerator

For high-end design and technology on a large scale.

$8,949.00
MasterCool FrenchDoor
KF 2982 Vi

MasterCool FrenchDoor

For high-end design and technology on a large scale.

$9,999.00
MasterCool™ fridge-freezer
KF 2902 Vi

MasterCool™ fridge-freezer

For high-end design and technology on a large scale.

$9,499.00
MasterCool™ freezer
F 2412 Vi

MasterCool™ freezer

For high-end design and technology on a large scale.

$7,899.00
MasterCool™ refrigerator
K 2602 Vi

MasterCool™ refrigerator

For high-end design and technology on a large scale.

$8,199.00
MasterCool™ fridge-freezer
KF 2802 Vi

MasterCool™ fridge-freezer

For high-end design and technology on a large scale.

$8,999.00
MasterCool™ fridge-freezer
KF 2912 Vi

MasterCool™ fridge-freezer

For high-end design and technology on a large scale.

$9,499.00
MasterCool™ freezer
F 2812 Vi

MasterCool™ freezer

For high-end design and technology on a large scale.

$9,449.00
Side-by-side kit

Side-by-side kit

For the high-quality side-by-side installation of MasterCool models.

$839.00
IntensiveClear 2.0
KWF 2000

IntensiveClear 2.0

Water filter with active charcoal for MasterCool F 2xx2 and KF 2xx2.

$83.00
Side-by-side kit

Side-by-side kit

For the high-quality side-by-side installation of MasterCool models.

$839.00
MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

$15.99
 MicroCloth HyClean, 1 cloth
GP MI H 0011 W

 MicroCloth HyClean, 1 cloth

 Antibacterial multi-purpose cloth for improved hygiene.

$11.99
Stainless steel front

Stainless steel front

For the integration of MasterCool refrigerators and freezers in your kitchen.

$1,049.00
Stainless-steel toe-kick panel

Stainless-steel toe-kick panel

for high-end panelwork of MasterCool toe-kicks.

$179.00

Downloads

Warranty conditions
PDF
Downloads
Product sheet
PDF
Downloads
Operating and Installation instructions
PDF
Downloads
dwg
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads
fbx
ZIP
Downloads
PNG
Downloads
Energy label
PDF
Downloads
Energy label
JPEG
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000015/200001516/20000151621.png
Descriptions
F2812Vi, F2813Vi, F2802Vi, F2811Vi, F2801Vi, MasterCool, inner space, installation drawings
Installation drawings
Downloads
https://media.miele.com/images/2000006/200000657/20000065730.png
Descriptions
Side-by-side, MasterCool, without partition wall, with heating mat (Sketch) (with footnote)
1) Heating mat KSK 2001 (EU, AUS, CN) or KSK 2002 (US, CA, MX, BR)
Downloads
https://media.miele.com/images/2000016/200001632/20000163256.png
Descriptions
F2802Vi, F2812Vi, F2813Vi, F2812SF, F2801Vi, F2811Vi, F2811SF, installation, MasterCool, installation drawings
1. View from the front, 2. Mains Connection cable, L = 3000 mm (118 inch), 3. Water inlet positon, L = 2000 mm (not for KON USA), 4. No water/ELT conections permitted in this area
Downloads
https://media.miele.com/images/2000016/200001617/20000161754.png
Descriptions
Sideview, MasterCool, Sketch
Installation drawings
Downloads
https://media.miele.com/images/2000016/200001626/20000162600.png
Descriptions
Side-by-Side, MasterCool, footnote, installation drawings
1. KSK 2001/2002, 2. Device A, 3. Device B, A = niche device A, B = niche device B
Downloads
https://media.miele.com/images/2000015/200001537/20000153766.png
Descriptions
KFP3005ed/cs, KFP3004ed/cs, Front panel, Front dimensions, MasterCool II, installation drawings
Installation drawings
Downloads
https://media.miele.com/images/2000018/200001842/20000184291.png
Descriptions

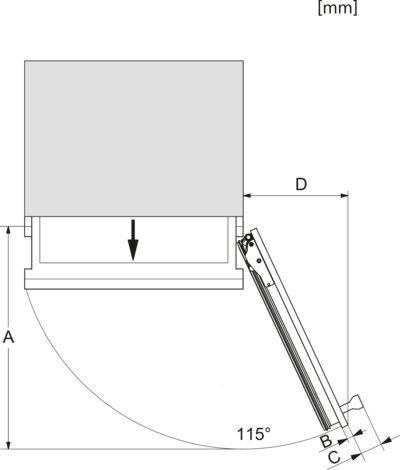

Opening angel 90°/115°, right side stop, MasterCool (Sketch) *footnote
A) Appliance door width, F 2462 Vi: 525 mm (20 2/3 inch);, F 2662 Vi: 677 mm (26 2/3 inch);, F 2802 Vi: 829 mm (32 2/3 inch);, F 2902 Vi: 982 mm (38 2/3 inch);, B) Furniture front (max. 38 mm) (1 1/2 inch), C) Door handle, D) Distance door to wall (without furniture front and door handle): , F 2462 Vi: 237 mm (9 1/3 inch);, F 2662 Vi: 296 mm (11 2/3 inch);, F 2802 Vi: 363 mm (14 1/3 inch), F 2902 Vi: 428 mm (16 7/8 inch), E) ONLY valid for SF versions: A + 25 mm (1 inch)
Downloads
Open Source Licence
PDF
Downloads
  • 1.Additional digital offer from Miele & Cie. KG. All smart applications are made possible with the Miele@home system. The range of functions can vary depending on the model and the country.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
