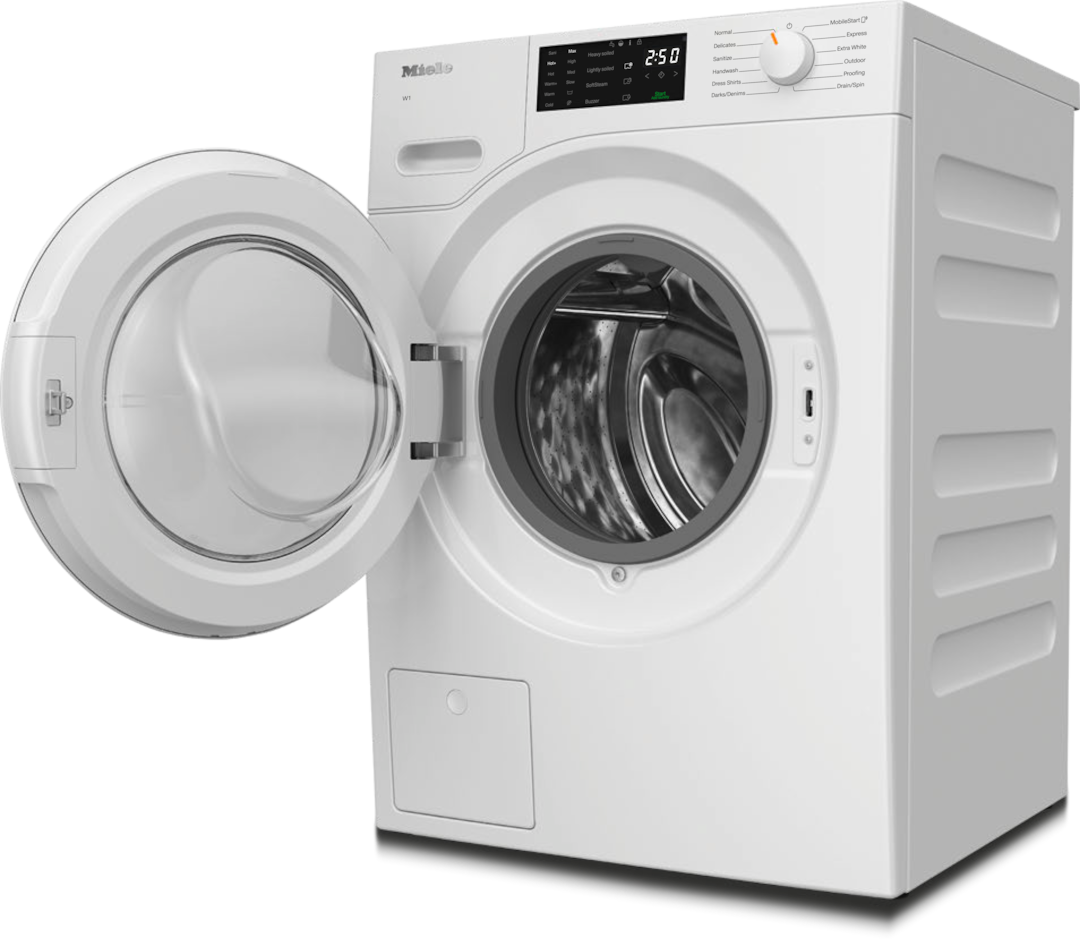

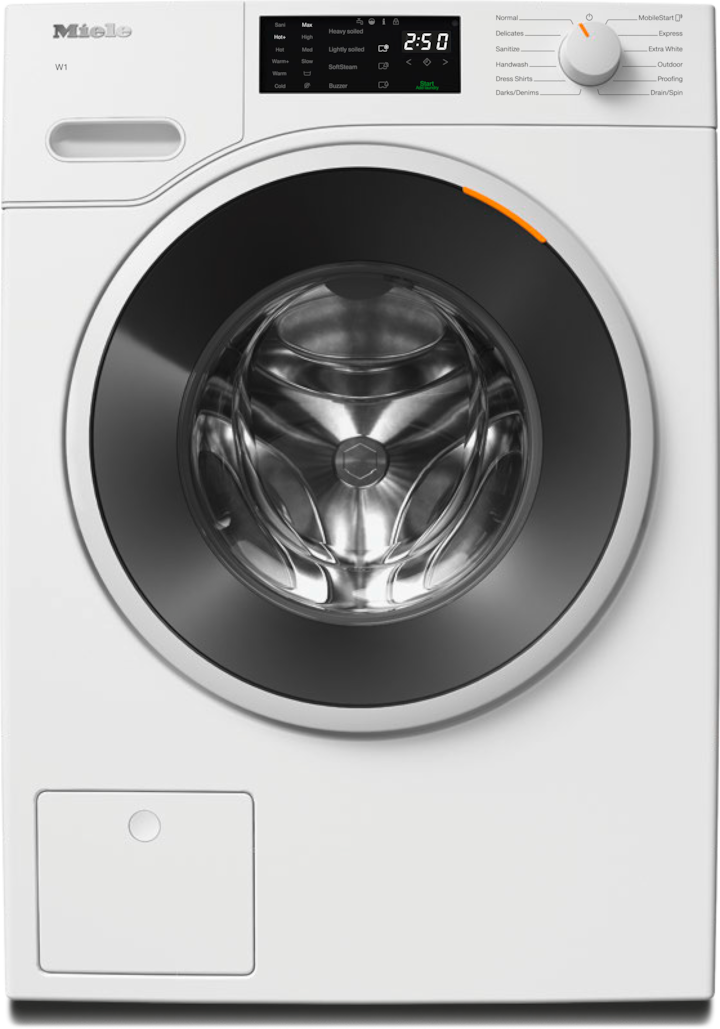

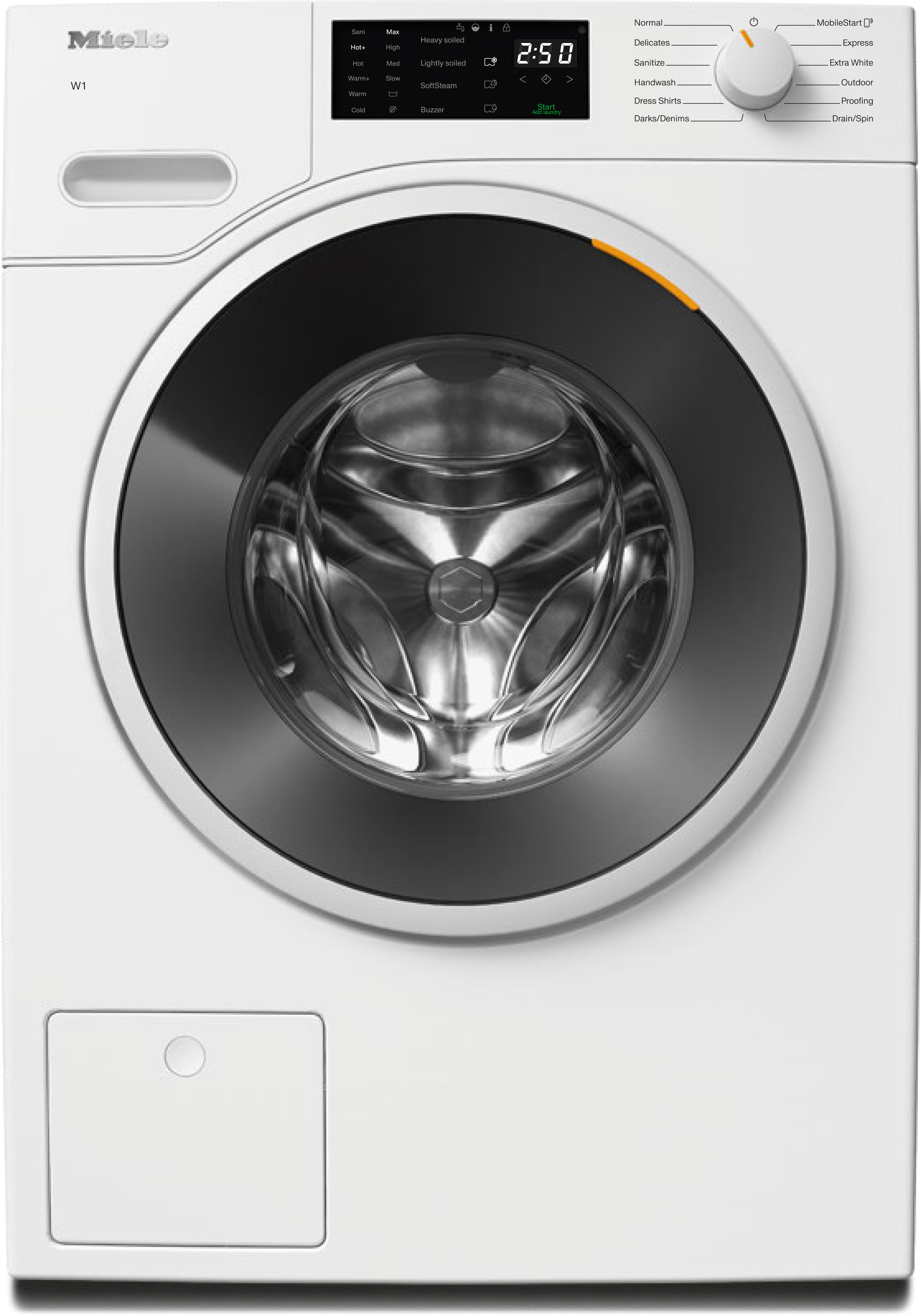

W1 front-loading washing machine:

WWD160 WCS Lotus white

8 kg | 1600 rpm | Pre-Ironing | Miele@home | CapDosing | Honeycomb Drum


Color:Lotus white

sale price$1,499.00



Product details

  • ExclusiveCapDosingrange for different fabrics and stains6,
  • ThePre-ironingextra reduces creasing and saves up to 50% time and effort5,
  • Wash small & large loads efficiently – automatic load recognition
  • 12 programs including Express
  • ENERGY STAR® qualified

Product data sheet

Stackable
Side-by-side
Slot-in
Door hingingleft
Product brandW1 White Edition
Front loaders
Max. spin speed1600
Rinse hold
Without spin" function
Appliance colorLotus white
Control panel colorLotus white
Door designObsidian Black with white ring
Rotary selector colorLotus White
Fascia panel version5° inclined
Control typeSelector dial

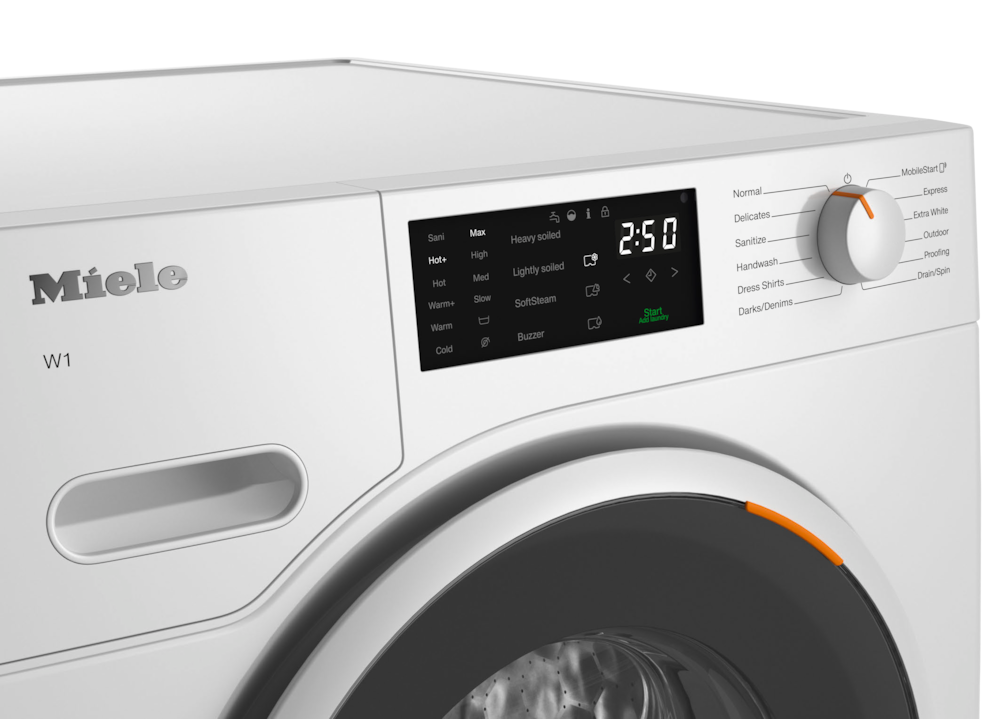

Control panelDirectSensor yellow, 7 segment
CapDosing portioned dispensing
Honeycomb drum
Load in lbs. (kg)18 (8.0)
Networking with Miele@home
Delay start up to 24 hours
Countdown indicator
AutoClean dispenser drawer
AddLoad
Hot water connection
Low-temperature washing "Cold" and "68°F"
Automatic load control
Flow meter
Foam control
ProfiEco motor
Delicates
Express
Outdoor
Proofing
Normal
Sanitize
Handwash
Dress shirts
Extra White
Darks/Denims
Drain/Spin
SoftSteam with steam
Water protection systemWatercontrol-System
Child lock
Lock code
Optical interface
Dimensions (width) in in. (mm)23 1/2 (596)
Dimensions (H x W x D) in inches (mm)33 1/2 (850) x 23 1/2 (596) x 25 3/8 (643)
Dimensions (height) in in. (mm)33 1/2 (850)
Dimensions (depth) in in. (mm)25 3/8 (643)
Depth with door open in in. (mm)42 1/2 (1077)
Weight in lbs. (kg)203 (92)
Total connected load in kW1.300
Voltage in V120
Fuse rating in A15
Frequency in Hz60
Water intake hose length in ft. (m)5 (1.60)
Water drain hose length in ft. (m)4 (1.50)
Length of supply lead in ft. (m)6 (2)
EAN4002516376903

User convenience

Add or remove single items
AddLoad

Enjoy the flexibility to add or remove individual items during a washing cycle, without cancelling the program.


Smart networking
Miele@home1,

Connect your washing machine to your home network and control it conveniently and intuitively via the app.


Washing programs

Optimum care of synthetic fibers
Delicates

Gentle & soft: with the special program synthetic textiles remain beautiful and keep their shape.


Equip textiles with functions
Proofing

Best possible reactivation effect: Thermal activation ensures optimum water-repellent properties.


Special program for high-tech materials
Outerwear

Best care without the loss of function: High-quality outdoor textiles retain their functionality in any weather.


Efficiency and sustainability

Tailored to your load
Automatic load recognition

Use precisely the water and energy needed for your laundry with automatic load recognition.


Save up to 65% energy costs2,
Hot water connection

Features a secondary water connection to put rain, well or solar heated water to good use.


Economical, powerful and maintenance-free
ProfiEco motor3,

Our efficient motors with inverter drive feature technology that ensures minimal wear, noise, and energy usage.


Quality

Tested for 20 years of perfect laundry care4,
Tested for up to 20 years’ average usage.4,

Some car engines are tested over 3,000 hours – but we test constant performance over as much as 10,000 hours.4,


Gentle laundry care

Keep your clothing safe while tumbling
Honeycomb drum

Our protective drum allows fabrics to safely glide along without snagging and damaging them.


Up to 50 % less ironing
SoftSteam with steam5,

A specialised steaming feature that reduces wrinkles, saving you substantial effort and time ironing your clothes.


Safety

Safety thanks to an additional sensor
Water protection system

Everything dry: water protection system monitors the water intake, detects leakages and water in the drip tray.


Cleaning performance

Always the right detergent for every application
CapDosing6,

Our portioned caps are available with a range of specialised detergents tailored to match your wash programs.


Downloads

Short user manual
PDF
Downloads
Warranty conditions
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
Product sheet
PDF
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
Energy label
PDF
Downloads
Energy label
JPEG
Downloads
  • 1.Miele@home is a separate digital offer from Miele & Cie. KG. All smart applications are made possible with the Miele@home system. The range of functions can vary depending on the model and the country.
  • 2.Compared with the sole use of cold water in a 9 kg test wash in the Cottons program, hot water temperature 131°F (55°C), room temperature 73°F (23°C), no cold water in hot water line.
  • 3.Patent EP 2 840 679
  • 4.During the development of the W1 Washing Machine series, Miele tested models and core components with 5,000 wash cycles (= 5 wash cycles for 50 weeks per year) in various programs. More: miele.com/20years
  • 5.Patent EP 2 088 231
  • 6.Patent EP 2 365 120

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
