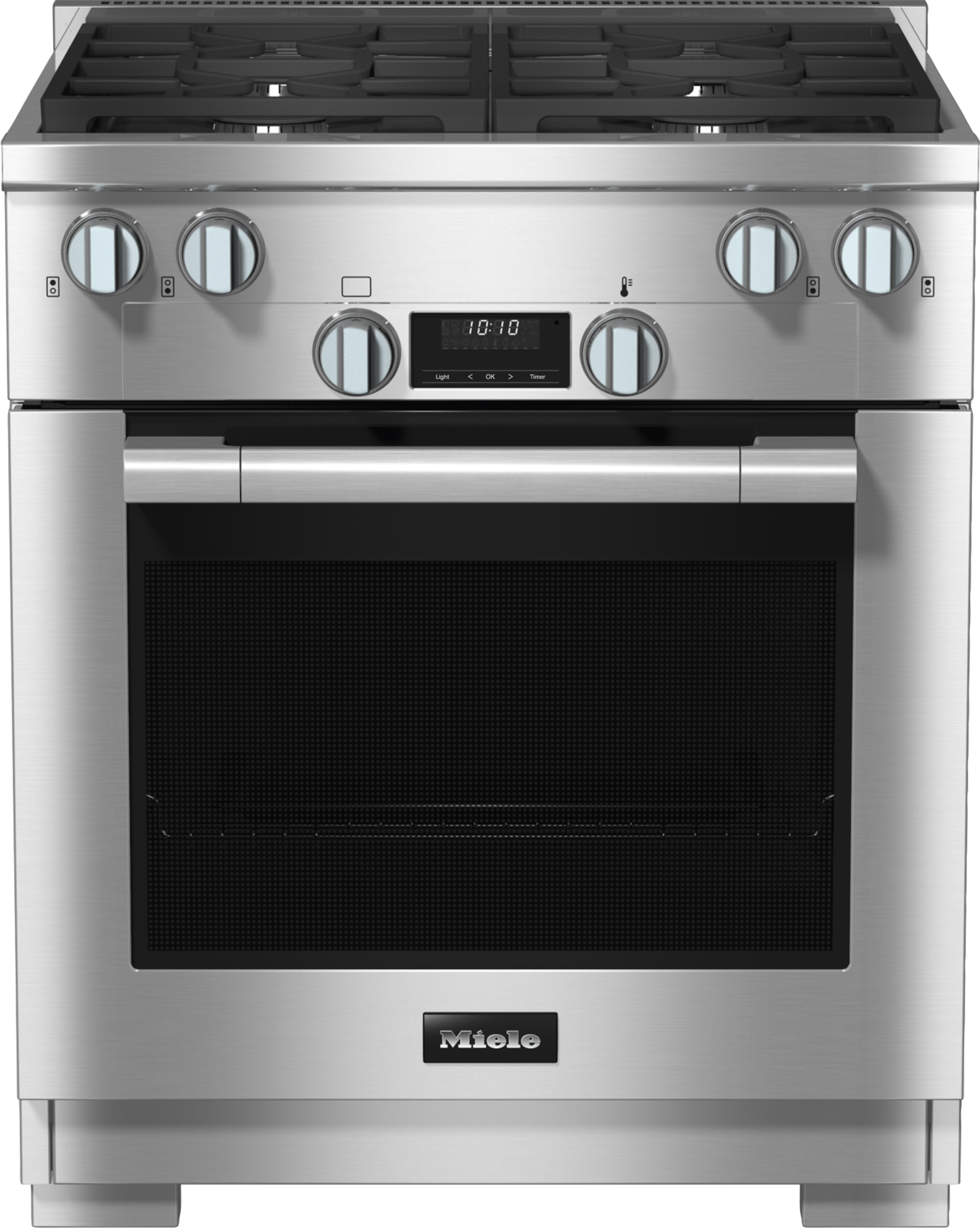

30" Range

HR 1124-3 G AG Clean Touch Steel

All Gas with DirectSelect, Twin convection fans and M Pro dual stacked burners

Color:Clean Touch Steel

sale price$6,799.00



Product details

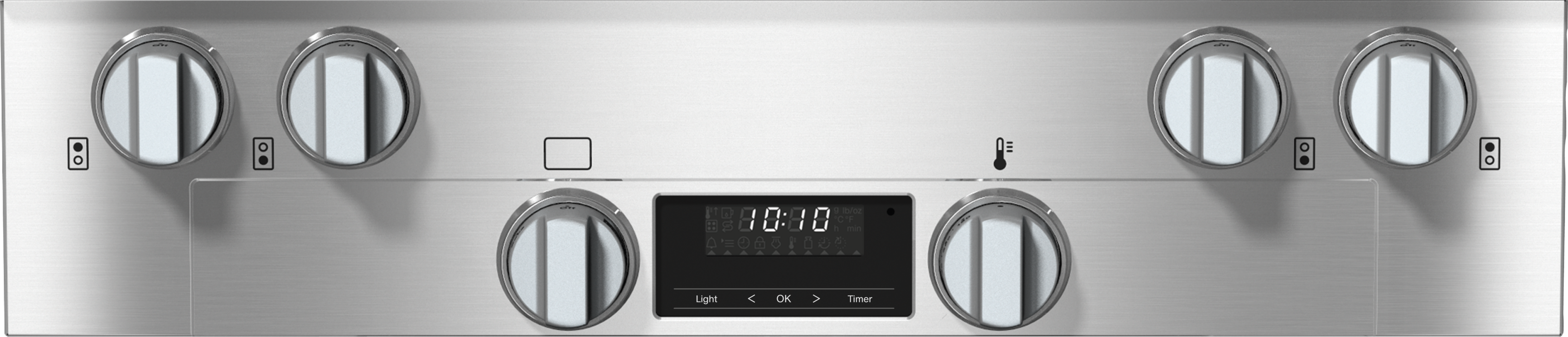

  • Turn dial operation with display -DirectSelect
  • Plenty of space for cooking - four powerful burners
  • Fast heating time and even heat distribution –TwinPower
  • Easy clean-up -Self-cleaningand dishwasher-safe grates
  • Easy opening & closing - noise and vibration absorbers

Product data sheet

All gas
Gas typeNatural gas
Range
Appliance width in inches30
Broil
Convection Bake
Convection Roast
Bake
Convection Roast
Appliance colorClean Touch Steel
Oven displayEasyControl
Number of gas burners4
Number of power burners x power in BTU1 x 12.500
Number of high burners x power in BTU3 x 19.500
GasStop
Precision knobs
Time of day display
Minute minder
Automatic switch-off
Programmable cooking time
FavoritesNo
Individual settings
CleanGlass door
Door contact switch
SoftClose oven door/ SoftOpen
Oven cavity volume in cu. ft. (l)4.59 (130) ft³ (l)
Number of oven shelf levels6
No. of halogen lampsdouble
TwinPower hot air fans
Stainless-steel front with partial Clean Touch Steel finish
ComfortClean dishwasher-safe grates
Cooktop surfaceBlack enamel
Appliance cooling system with cool touch front
Safety cut-out
System lock
Door contact switch
Door lock during self cleaning
Appliance height min in in.(mm)37 1/8 (942)
Appliance height max in in.(mm)38 5/8 (980)
Appliance depth in in. (depth) with bullnose27 3/4 (702)
Power Rating in V120
Fuse rating in A15
Number of phases1
Self Clean ready baking and roasting rack1
Self clean ready baking and roasting racks with rail system1
Side racks self clean ready1
EAN4002516486527

What's included

Self Clean ready baking and roasting rack (1)
Self clean ready baking and roasting racks with rail system (1)
Side racks self clean ready (1)

Maintenance

Efficiently protects and makes cleaning easier
ComfortClean Dishwasher-Safe Grates

Fast cleaning: Remove the pot rests and wash in the dishwasher. Fast clean-up with dishwasher-safe grates.


Treat yourself to minimum effort
Self Clean Oven and Self Clean Ready Accessories

Less cleaning effort: The grease residue is broken down, helping to keep the oven and cooking accessories clean.


Protection for immaculate stainless steel surfaces
Clean Touch Steel™Front

No fingerprints on stainless steel: surface has special finish which keeps clean without special cleaning agents.


User convenience

Appliance configuration according to your wishes
Individual settings

You decide: Language, buzzer tones, display brightness and much more can be individually adjusted.


Leave time management to your oven
Timer Function

Always on time: The start time, finish time and duration of the cooking process are easy to select.


Everything is well thought through
Soft Open and Soft Close

The Range oven door effortlessly opens and closes, preventing the door from shutting or slamming.


Oven cabinets

Reaches the desired temperature very quickly
TwinPower Convection Blowers and Power Convection Blower

Quickly ready for use: 2 hot air blowers heat the oven very rapidly with optimum hot air distribution.


Safety

Pleasantly cool surfaces
Cooling System and Cool-Touch Fronts

Maximum protection: All surfaces on and around the appliance remain cool and can be touched safely.


Automatic switch-off for maximum safety
Safety functions

Your guardian angel: If you forget to switch off the appliance, the safety switch-off steps in for you.


Operating modes

Convection Bake

Perfectly soft and light: ideal for gentle baking on up to two levels.


Convection Roast

Perfectly soft and light: ideal for gentle roasting on up to two levels.


Convection Roast

Crispy on the outside, succulent inside: Ideal for chicken, duck, joints, rolled meat and many other meat dishes.


Bake

Individual requirements: For dishes which need to be cooked in a bain marie or browned from below.


Broil

Designed for small quantities: Ideal for small amounts of food such as steak and sausages. Perfect every time.


Downloads

Warranty conditions
PDF
Downloads
Product sheet
PDF
Downloads
Operating and Installation instructions
PDF
Downloads
Operating and Installation instructions
PDF
Downloads
rvt
ZIP
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000013/200001359/20000135981.png
Descriptions
HR1421, HR1241-3 (Installation drawing)
E = Electric connection, G = Gasanschluss
Downloads
https://media.miele.com/images/2000013/200001359/20000135997.png
Descriptions
HR11xx, HR1724 (Installation drawing)
Installation drawings
Downloads
https://media.miele.com/images/2000018/200001801/20000180175.png
Descriptions
HR11xx, HR19xx, HR 17xx - Installation drawing
1 Anti-tip device , 2 Screws, 3 Locking nut
Downloads
https://media.miele.com/images/2000018/200001801/20000180176.png
Descriptions
HR11xx, HR19xx - Installation drawing
1 Anti-tip device , 2 Screws, 3 Locking nut
Downloads
https://media.miele.com/images/2000018/200001801/20000180177.png
Descriptions
HR11xx, HR19xx, HR17xx - Installation drawing
1 Anti-tip device , 2 Screws, 3 Locking nut
Downloads
https://media.miele.com/images/2000018/200001801/20000180179.png
Descriptions
HR11xx, HR19xx, HR17xx - Installation drawing
X 3 13/16" (97 mm): HR1124, HR1134, HR1135, HR1136, HR1724, HR1924, HR1934, HR1935, HR1936, HR1954, HR1955, HR1956, , X 3 1/4" (82 mm): HR1134-2, HR1134-3, HR1135-2, HR1135-3, HR1136-2, HR1136-3, HR1924-2, HR1924-3, HR1934-2, HR1934-3, HR1935-2, HR1935-3, HR1936-2, HR1936-3, HR1954-2, HR1954-3, HR1955-2, HR1955-3, HR1956-2, HR1956-3
Downloads
https://media.miele.com/images/2000018/200001801/20000180180.png
Descriptions
HR11xx, HR19xx, HR17xx - Installation drawing
1 Toe kick cover , 2 Locking clamp
Downloads
https://media.miele.com/images/2000018/200001801/20000180189.png
Descriptions
HR11xx, HR19xx, HR17xx - Installation drawing
A = Distance between the rear of the range to the supporting wall
Downloads
https://media.miele.com/images/2000018/200001801/20000180183.png
Descriptions
HR1124, HR1134, HR1135, HR1136HR1124-1, HR1134-1, HR1135-1, HR1136-1, HR1124-3, HR1134-3, HR1135-3, HR1136-3 - Installation drawing
① Maximum depth of top cabinet, ② Minimum distance to bottom edge of top cabinet , ③ Distance from the floor to cooktop surface, ④ Minimum distance to combustible surfaces, , E = Electric connection, G = Gas connection, , (A) Width of cabinet opening, (B) Minimum distance between the top of the cooking area and the bottom of an unprotected combustible surface., Minimum distance to a protected combustible surface or when a Miele Ventilation Hood is installed. For all other, Hoods please consult the manufacturer's specifications for required distances., (C) Maximum connection width right and left , (D) Maximum connection height , (E) Maximum connection depth
Downloads
https://media.miele.com/images/2000018/200001801/20000180181.png
Descriptions
HR11xx, HR19xx, HR17xx - Installation drawing
1 Opening in the range housing , 2 Bolt of the anti-tip device , 3 Locking clamp with slot
Downloads
https://media.miele.com/images/2000019/200001971/20000197111.png
Descriptions
HR1124-3, HR1134-3, HR1135-3, HR1136-3, HR1724-3, Side view, (*Fußnote) installation drawing
(x) = Toe-kick height adjustment 5” - 6 1/2” (127 mm - 165.1 mm)
Downloads
https://media.miele.com/images/2000019/200001996/20000199656.png
Descriptions
HR11xx-3, HR14xx-3, HR16xx-3i, HR17xx-3, HR19xx-3 installation drawings
30", ① 20 ¾” / 527,6 mm, ② 16 5/8” / 422,6 mm, ③ 2 ½” / 64 mm, ④ 1 11/16” / 43 mm, ⑤ 1 11/16” / 42,5 mm, , 36", ① 28 9/16” / 725 mm, ② 22 5/8” / 575 mm, ③ 2 ½” / 64 mm, ④ 1 11/16” / 43 mm, ⑤ 1 11/16” / 42,5 mm
Downloads
https://media.miele.com/images/2000019/200001996/20000199666.png
Descriptions
HR1124-3 (installation drawing)
(x) = Toe-kick height adjustment 5" - 6 1/2" (127 mm - 165.1 mm)
Downloads
https://media.miele.com/images/2000019/200001996/20000199689.png
Descriptions
HR1124-3, HR1134-3, HR1135-3, HR1136-3, HR1724-3 (installation drawing)
Installation drawings
Downloads

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
