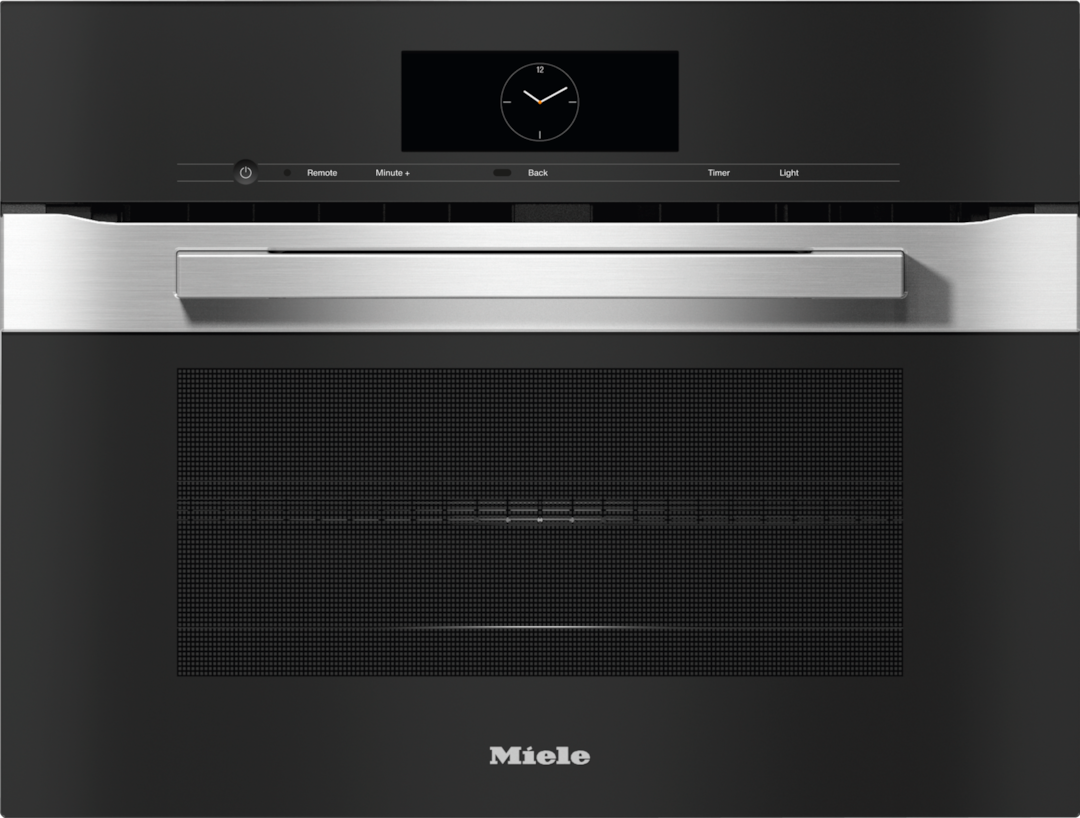

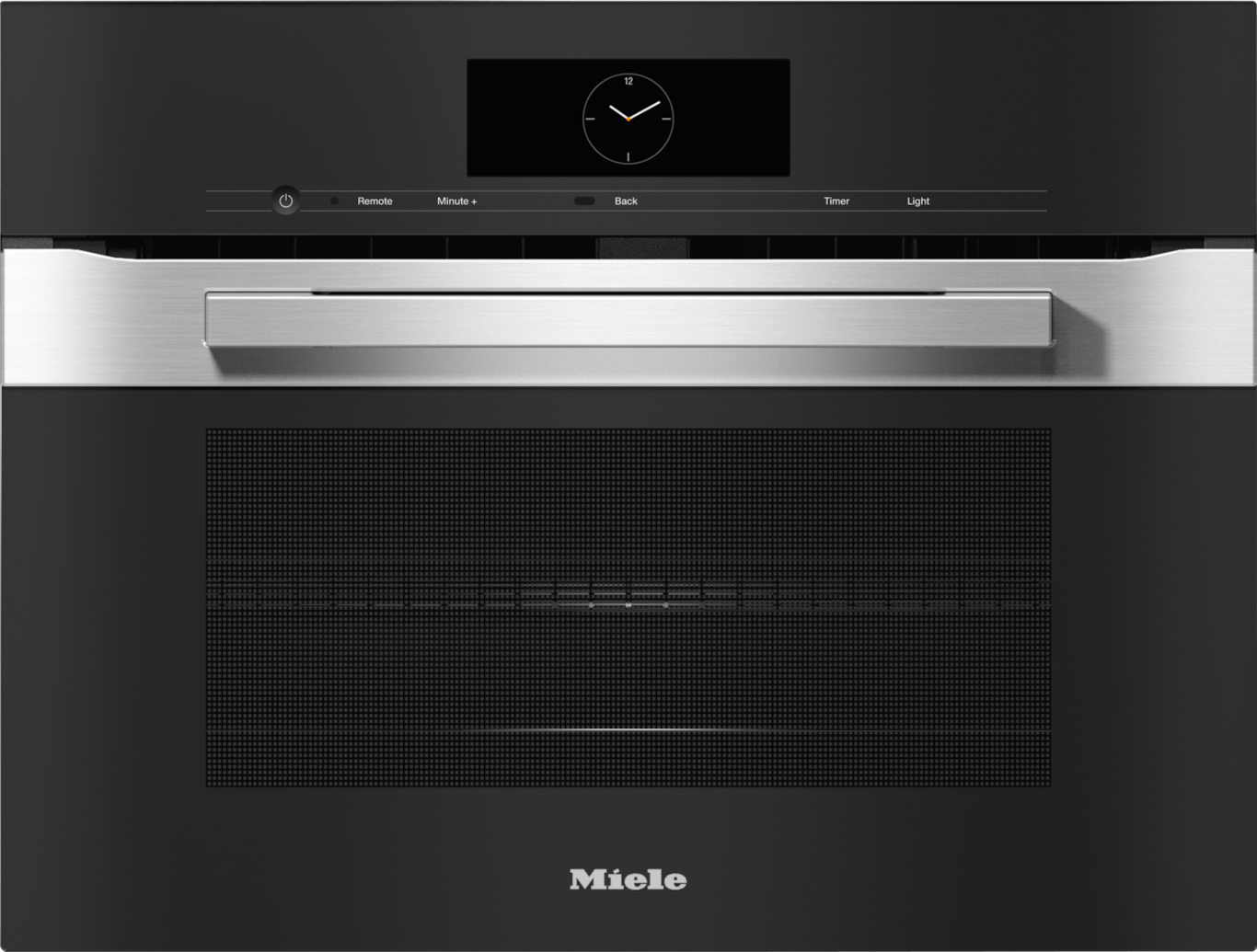

24" compact speed oven

H 7840 BM AM Clean Touch Steel

in a perfectly combinable design with automatic programs and roast probe.

Color:Clean Touch Steel

sale price$4,599.00



Product details

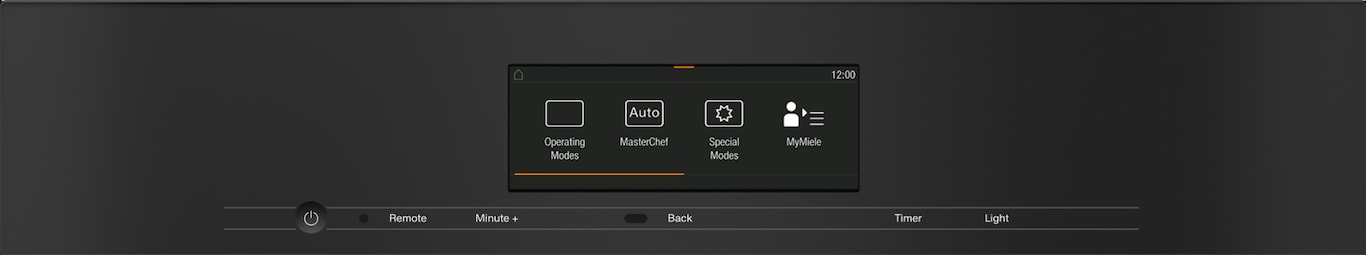

  • Large touch display with proximity sensor –M Touch+MotionReact
  • Easy cleaning –cavity with linen-weave pattern & PerfectClean
  • Faster and more consistent results –Quick & Gentle
  • Network-enabled WiFi appliance –Miele@home
  • Popcorn in a flash with the popcorn function

Product data sheet

Built-in wall speed oven
PureLine
Appliance colorClean Touch Steel
Quick & Gentle
Rapid PreHeat
Roast probewired
Keep-warm function
Crisp Function
Convection Bake
Convection Roast
Surround
Microwave
Combi Bake
Micro Broil
Combi Broil
Combi Auto Roast
Intensive Bake
Auto roast
Convection Roast
Maxi Broil
Broiling operating modes
Bake
Slow roast
Defrost
MasterChef automatic programs
Special modes
Networking with Miele@home
Control panelM Touch
MotionReact proximity sensor
SoftOpen
SoftClose
3 in 1
  • Microwave
  • Oven
  • Speed oven
MultiLingua
MyMiele
Show me how
Popcorn function
Polyphonic acoustic signals
Timers
Time of day display
Time synchronization
Date display
Minute minder
Programming start of cooking duration
Programming end of cooking duration
Programmable cooking time
Actual temperature display
Audible signal when desired temperature is reached
Default temperature
Recommended microwave power
Minute Plus button
Favorites
Sabbath program
Individual settings
Automatic residual heat utilization
Clean Touch Steel surface
Stainless-steel cavity with linen surface structure
Foldable broil heater element
CleanGlass door
Appliance cooling system and cool touch front
Safety cut-out
System lock
Sensor lock
Cavity volume in cu.ft (l)1.52 (43)
No. of rack levels3
Oven interior lighting1 LED spot
Temperatures in °F (°C)85-475 (30-250)
Electronically controlled microwave power
Microwave power levels1 - 7
Niche dimensions (W x H x D) in inches (mm)22 1/8 (560)-22 3/8 (568) x 17 3/4 (450)-17 7/8 (452) x 21 3/4 (550)
Niche width min. in inches (mm)22 1/8 (560)
Niche width max. in inches (mm)22 3/8 (568)
Niche height min. in inches (mm)17 3/4 (450)
Niche height max. in inches (mm)17 7/8 (452)
Niche depth in in. (mm)21 3/4 (550)
Appliance dimensions (W x H x D) in inches (mm)23 1/2 (595) x 18 (456) x 22 5/8 (572)
Appliance dimensions (W x H x D) in inches (mm)23 1/2 (595) x 18 (456) x 22 5/8 (572)
Weight in lbs. (kg)96 (43.5)
Total connected load in kW4
Power Rating in V120
Voltage in V240/208
Frequency in Hz60
Fuse rating in A30
Number of phases1
Connection wire with plug
Length of power cord in in. (m)1.80
Wire rack with PerfectClean1
Wired food probe1
Glass tray2
Available display languages via MultiLingua
  • français
  • ελληνιкά
  • čeština
  • 繁體中文
  • slovenčina
  • slovenščina
  • 中文
  • polski
  • magyar
  • nederlands
  • hrvatski
  • yкраїнська
  • bahasa malaysia
  • italiano
  • deutsch
  • türkçe
  • suomi
  • 日本語
  • dansk
  • română
  • español
  • srpski
  • english
  • العربية
  • svenska
  • norsk
  • pусский
  • português
  • 한국어
EAN4002516484578

What's included

Wire rack with PerfectClean (1)
Glass tray (2)
Wired food probe (1)

Maintenance

A finish for flawless stainless steel surfaces
Clean Touch Steel

No fingerprints on stainless steel: The surface is protected and no special cleaning agents are required.


Special features

Stress-free cooking
MasterChef

Delicious dishes in no time at all: Whether bread, cakes, or meat – food is prepared fully automatically.

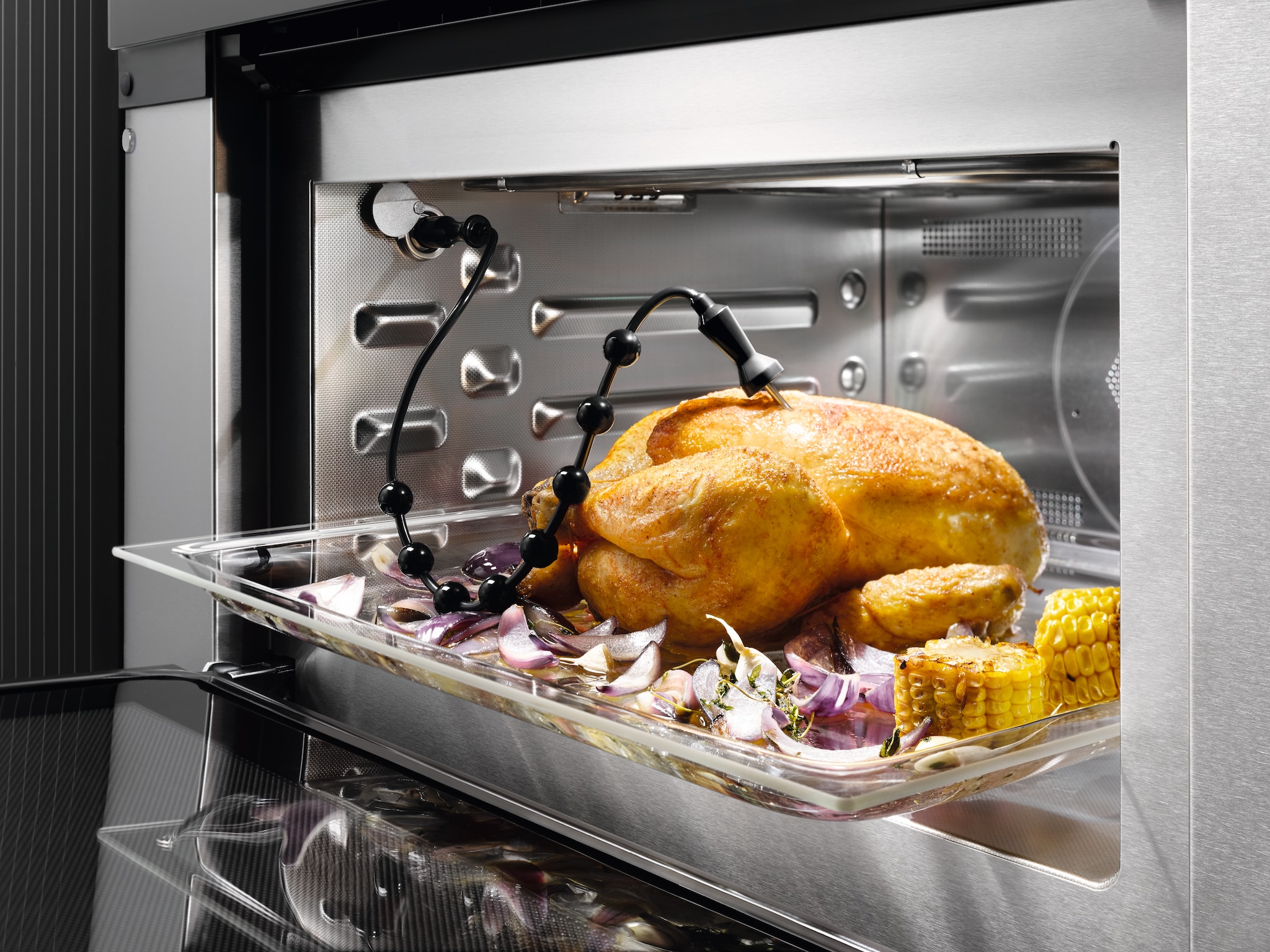

Meat and fish cooked to perfection
Roast probe

Cook fish and meat to perfection: The countdown indicator lets you know when your food is ready.


Simple solutions for special cases
Special modes

The extraordinary made simple: Special programs such as Drying give outstanding results.

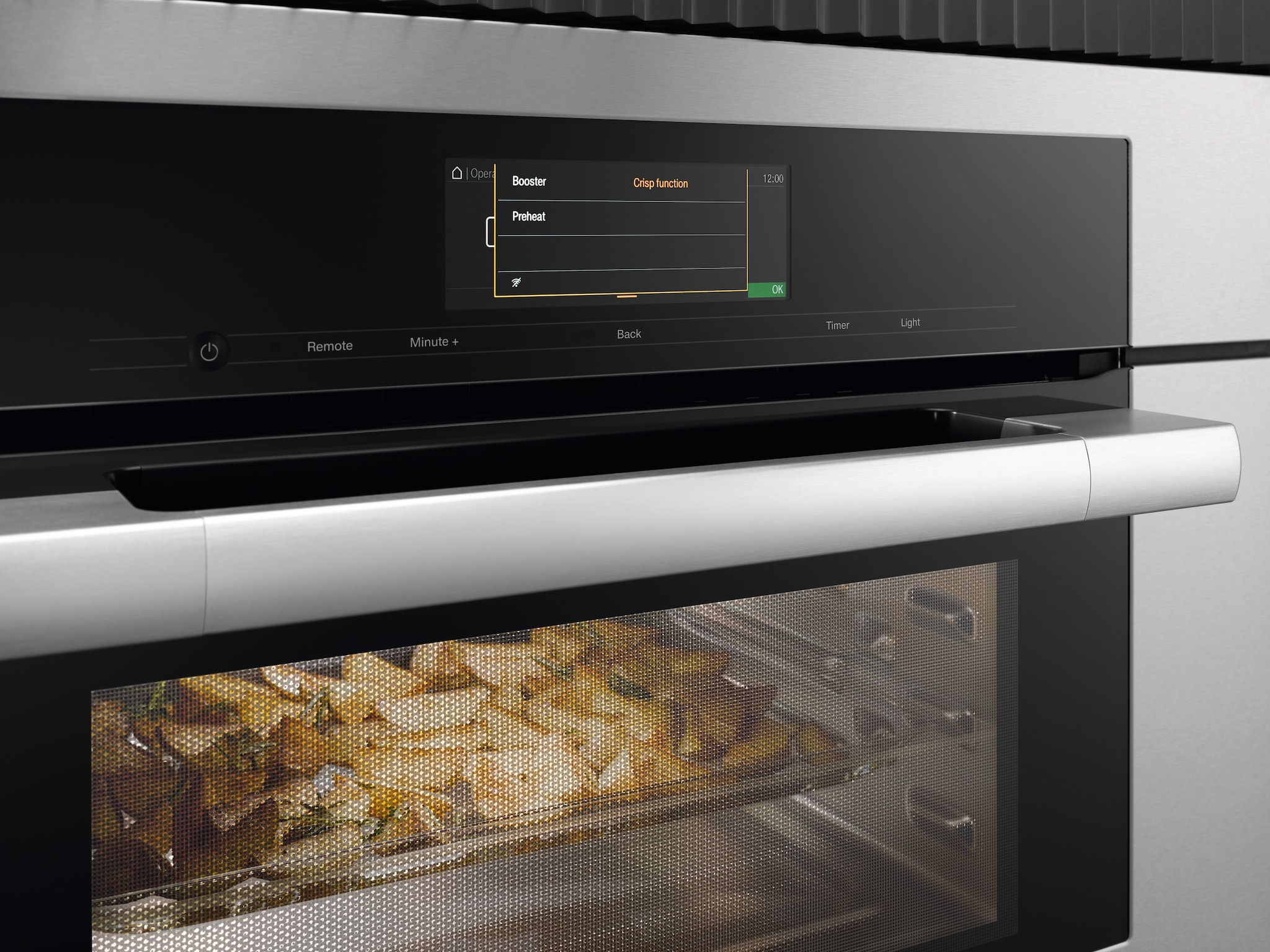

Makes food crunchy and crisp
Crisp Function

Perfect for pizza or fries: Reducing the moisture achieves a crispy, golden finish.


User convenience

One appliance, many options
A space-saving, 3-in-1 combination

Microwave, oven, or combi mode for cooking food perfectly in just one single appliance.


Infinite adjustment of power settings
Quick & Gentle

Perfect results in no time: The microwave power is adjusted infinitely, thanks to inverter technology.


Cleverly networked
Appliance networking with Miele@home1,

Make your life smart: thanks to Miele@home you can cleverly network your domestic appliances – for more options.


Choose peak performance just like that
Minute Plus button

Full power at your fingertips: Select the microwave function quickly via a separate sensor control.


Fresh popcorn at the touch of a button
Popcorn button

That cinema feeling in your own home: With our Popcorn button you can make perfect popcorn quickly and easily.


Gentle door movement
SoftOpen and SoftClose

Sophisticated and elegant: The door opens and closes with a gentle movement – right to the very end.


Let your oven take care of time management
Timers

Always on time: Set the start time, end time, and duration of the cooking process, or the kitchen timer.


Incredibly easy to understand
MultiLingua

For users who speak different languages: The controls can be set to numerous languages.


Oven cabinets

Special nonstick finish
Stainless steel interior, patented linen structure

Easy to clean: the special surface with a linen structure is scratch-proof and has a PerfectClean finish.


Shown in its best light
LED spotlight

Spot on: The LED spotlight illuminates the oven compartment perfectly, while also being highly energy-efficient.


Safety

Only the food gets hot
Touch-cool front

Protection against burns: The appliance stays relatively cool – including on the outside of the door.


Maximum safety, no matter the situation
Safety functions

Always safe: Safety lock and safety shut-off provide reliable protection.


Operating modes

Microwave

Reheat water for a cup of tea or warm up a meal: efficient convenience – fast.


Microwave + Auto Roast

Succulent inside, crispy outside: Meat is seared at a high temperature, then cooking continues with the microwave.


Microwave + Maxi Broil

Cooking and broiling: the perfect broiled flavor for meat, fish, grilled vegetables, and so much more.


Microwave + Convection Bake

Whether cakes or a Sunday roast: ideal for quick and gentle baking and roasting on up to 2 levels.


Microwave + Convection Broil

Versatile function for indoors: for broiling steaks, sausages, kebabs, rolled meat, flash fried meat, etc.


Defrost

Gentle on frozen food: Frozen food is gently defrosted under ideal conditions using cool air.


Intensive

Crispy bases, delicious toppings: pizza, quiche, or fresh fruit flans – crispy base, moist on top.


Slow Roasting

Tender and succulent: Meat is cooked evenly at a low temperature – without drying the outside.


Surround

Multi-purpose, classic function: perfect results for all types of traditional baked and roasted dishes.


Maxi Broil

Versatile function for indoors: so you can broil large quantities of steaks, sausages, kebabs, and more.


Convection Broil

Crisp outside, succulent inside: ideal for chicken, duck, pork, rolled meat, and many other meat dishes.


Bake

Individual requirements: for cooking food in a bain-marie or for browning from underneath.


Auto Roast

Meat remains tender and succulent: Meat is seared at a high temperature, then roasted at a selected temperature.


Booster

For those who lead a busy life: If there's not much time for cooking, you will really appreciate this program.


Sabbath Program

Preprogram dishes up to 72 hours in advance: The unique Sabbath Program lets you make long-term plans.


Downloads

Warranty conditions
PDF
Downloads
Product sheet
PDF
Downloads
Operating and Installation instructions
PDF
Downloads
rvt
ZIP
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000017/200001724/20000172400.png
Descriptions
side view 30 inch Flush inset 450S, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001724/20000172410.png
Descriptions
side view 30 inch Flush inset built-under 450S, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001724/20000172442.png
Descriptions
installation 30 inch Flush inset 450S, installation drawing, NA
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001724/20000172452.png
Descriptions
installation 30 inch Flush inset built-under 450S, installation drawing, NA
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection,
Downloads
https://media.miele.com/images/2000017/200001724/20000172460.png
Descriptions
installation 30 inch Flush inset wide front 450S, installation drawing, NA
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001724/20000172470.png
Descriptions
installation 30 inch Flush inset built-under wide front 450S, installation drawing, NA
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection,
Downloads
https://media.miele.com/images/2000017/200001724/20000172481.png
Descriptions
side view 30 inch Proud 450S, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001724/20000172491.png
Descriptions
side view 30 inch Proud built-under 450S, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001725/20000172523.png
Descriptions
installation 30 inch Proud 450S, installation drawing, NA
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001754/20000175411.png
Descriptions
installation Flush inset built-under 450S, installation drawing, NA
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001725/20000172533.png
Descriptions
installation 30 inch Proud built-under 450S, installation drawing, NA
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection,
Downloads
https://media.miele.com/images/2000017/200001754/20000175416.png
Descriptions
installation Flush inset build-under wide front 450S, Skizze, NA
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001725/20000172541.png
Descriptions
installation 30 inch Proud wide front 450S, installation drawing, NA
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001725/20000172551.png
Descriptions
installation 30 inch Proud built-under wide front 450S, installation drawing, NA
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection,
Downloads
https://media.miele.com/images/2000017/200001754/20000175414.png
Descriptions
installation Flush inset wide front 450S, installation drawing, NA
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001753/20000175355.png
Descriptions
installation Proud 450S, installation drawing, NA
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001753/20000175357.png
Descriptions
installation Proud built-under 450S, installation drawing, NA
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001753/20000175360.png
Descriptions
installation Proud wide front 450S, installation drawing, NA
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001753/20000175362.png
Descriptions
installation Proud build-under wide front 450S, installation drawing, NA
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001725/20000172556.png
Descriptions
DGC 6x00-1 + EBA 6808, H 6x00 BM + EBA 6808, DGC7xxx, H7xxx, EBA7848 Combi, Installation drawing, Flush inset, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001725/20000172562.png
Descriptions
DGC 6x6x (AM)+EBA 6808, H 6x00+EBA 6808, DGC 786x, EBA78x8, H7xxx Combi, Install. drawing, Flush inset, Flush inset, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001725/20000172567.png
Descriptions
H 6x00 BM + EBA 6808, H7xxx, EBA7848 Combi, Installation drawing, Flush inset, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001725/20000172574.png
Descriptions
H 6560 B + EBA 6808, H 6x60 BP + EBA 6808, H 6x00 BM + EBA 6808, H7xxx, EBA 78x8 Combi, Install drawing, Flush inset, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001727/20000172787.png
Descriptions
DGC 6x00-1 + EBA6808, H 6x00 BM+EBA 6808, DGC7x4x(+EBA7848), H7x40BM(+EBA7848),Combi, Installation drawing, Proud, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001727/20000172793.png
Descriptions
DGC6x6x(AM) + EBA6808, H6x00+EBA6808, DGC786x+EBA7868, H7x40BM+EBA7848, Combi, Installation drawing,Proud,Flush inset,NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001727/20000172798.png
Descriptions
H 6x00 BM + EBA 6808, H7x40BM(+EBA7848), Combi, Installation drawing, Proud, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001728/20000172805.png
Descriptions
H 6560 B + EBA 6808, H 6x60 BP + EBA 6808, H 6x00 BM + EBA 6808, H7xxx+EBA7x7x, Combi, Installation drawing, Proud, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001724/20000172437.png
Descriptions
installation 30 inch Flush inset built-under wide front, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001755/20000175521.png
Descriptions
H7x40BM+EBA7848, ESW7x10, EVS7010, side view, 30 Zoll, Proud, combi, 450S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001726/20000172690.png
Descriptions
H 6x00 BM + EBA 6808, H 7x40BM, EBA 7848 Installation Combi, Installation drawing, Flush inset, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001726/20000172697.png
Descriptions
H 6560 B + EBA 6808, H 6x60 BP + EBA 6808, H 6x00 BM, H 7xxx, EBA 78x8, Installation drawing, Flush inset, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001727/20000172751.png
Descriptions
H 6560 B + EBA 6808, H 6x60 BP, H 6x00 BM, H 7xxx BM/BP, EBA 78x8, Installation drawing, Flush inset, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001729/20000172921.png
Descriptions
H 6x00 BM + EBA 6808, H7x40BM(+EBA7848), NA7000 Installation Combi, Installation drawing, Proud, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001729/20000172928.png
Descriptions
H 6560 B + EBA 6808, H 6x60 BP + EBA6808, H6x00BM + EBA6808, NA7000 Installation Combi, Installation drawing, Proud, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001729/20000172975.png
Descriptions
H 6x00 BM + EBA 6808, H7x40BM (+EBA7848), Installation Combi wide front, Installation drawing, Proud, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001729/20000172982.png
Descriptions
(H6560B, H6x60BP, H6x00BM) + EBA6808, NA7000Installation Combi wide front, Installation drawing, Proud, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001754/20000175448.png
Descriptions
DGC7x4x, H7x40BM, Einbau, 30 Zoll, Flush inset, combi 450S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175449.png
Descriptions
DGC7x40, DGC7485, H7x40BM, ESW7x10, EVS7010, Einbau 30 Zoll, Flush inset, combi, 450S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175450.png
Descriptions
DGC7x4x, H7x40BM, H7x6xBP, Einbau, 30 Zoll Flush inset, combi, 650S, 450S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175459.png
Descriptions
DGC7x4x, DGC7485, H7x40BM, Einbau, 30 Zoll, Flush inset, combi, wide front, 450S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175460.png
Descriptions
DGC7xxx, H7x40BM, ESW7x10, EVS7010, Einbau, 30 Zoll, Flush inset, combi, wide front, 450S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175461.png
Descriptions
DGC7xxx, H7x40BM, H7x6xBP, Einbau, 30 Zoll, Flush inset, combi, wide front, 650S, 450S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175466.png
Descriptions
DGC7xxx+EBA7848, H7x40BM (+EBA7848), Installation, 30 Zoll, Flushinset, combi, XL, 450S
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001754/20000175472.png
Descriptions
DGC786x(+EBA7848), H7x40BM(+EBA7848), Installation, 30 Zoll, Flush inset, combi, XXL, 450S
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001754/20000175489.png
Descriptions
DGC7x40(+EBA7848), H7x40BM(+EBA7848), H7840+EBA6808, Installation, 30 Zoll, flush inset, combi, wide front, XL, 450S
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001754/20000175495.png
Descriptions
DGC786x+EBA7868, H7x40BM(+EBA7848), Installation, 30 Zoll, Flush inset, combi, wide front, XXL, 450S
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001755/20000175500.png
Descriptions
H7x40BM (+EBA7848), Installation, 30 Zoll, Flush inset, combi, wide front, 450S
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001755/20000175530.png
Descriptions
DDGC7xxx, H7x40BM, Einbau, 30 Zoll, Proud, combi, 450S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001755/20000175531.png
Descriptions
DGC7xxx, H7x40BM, ESW7x10, EVS, Einbau, 30 Zoll, Proud, combi, 450S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001755/20000175532.png
Descriptions
DGC7xxx, H7x4xBM, H7x6xBP, Einbau, 30 Zoll, Proud, combi, 650S, 450S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001755/20000175541.png
Descriptions
DGC7x4x, H7x40BM, Einbau, 30 Zoll, Proud, combi, wide front, 450S
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001755/20000175542.png
Descriptions
DGC7x4x, H7x40BM, ESW7x10, EVS7010, Einbau, 30 Zoll, Proud, combi, wide front, 450S
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001755/20000175543.png
Descriptions
DGC7x4x, H7x40Bm, H7x6xBP, Einbau, 30 Zoll, Proud, combi, wide front, 650S, 450S
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001755/20000175548.png
Descriptions
DGC7x4x(+EBA7848), H7x40BM(+EBA7848), Installation, 30 Zoll, Proud, combi, XL, 450S
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001755/20000175553.png
Descriptions
DGC786x(+EBA7848), H7x40BM(+EBA7848), Installation, 30 Zoll, Proud, combi, XXL, 450S
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001755/20000175570.png
Descriptions
DGC7x4x(+EBA7848), H7x40BM(+EBA7848), Installation, 30 Zoll, Proud, combi, wide front XL, 450S
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001755/20000175576.png
Descriptions
DGC786x(+EBA7848), H7x40BM(+EBA7848), Installation, 30 Zoll, Proud, combi, wide front, XXL, 450S
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000018/200001802/20000180245.png
Descriptions
Handle H72xx, H76xx, H78xx, PureLine - NA7000 - Installation drawing
H2880BP, H7270BM, H7670BM, H7870BM, H7280BP, H7680BP, H7880BP, H7880BP2:, ① 19 11/16" / 500 mm, ② 17 1/2" / 444 mm, ③ 1 7/8 " / 47 mm, ④ 15/16" / 24 mm, ⑤ 1 1/4 " / 32,5 mm, ⑥ 2 9/16“ / 65 mm, , H7240BM, H7640BM, H7840BM, H7263BP, H7660BP:, ① 15 3/4“ / 400 mm, ② 14 3/16“ / 360 mm, ③ 1 7/8“ / 47 mm, ④ 15/16“ / 24 mm, ⑤ 1 1/4“ / 32,5 mm, ⑥ 2 9/16“ / 65 mm
Downloads
https://media.miele.com/images/2000018/200001895/20000189530.png
Descriptions
installation Flush inset 450S, installation drawing, NA
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel, DGC: Minimum installation height 36” - 914 mm from floor to the device installation surface
Downloads
  • 1.Additional digital offer from Miele & Cie. KG. All smart applications are made possible with the Miele@home system. The range of functions can vary depending on the model and the country.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
