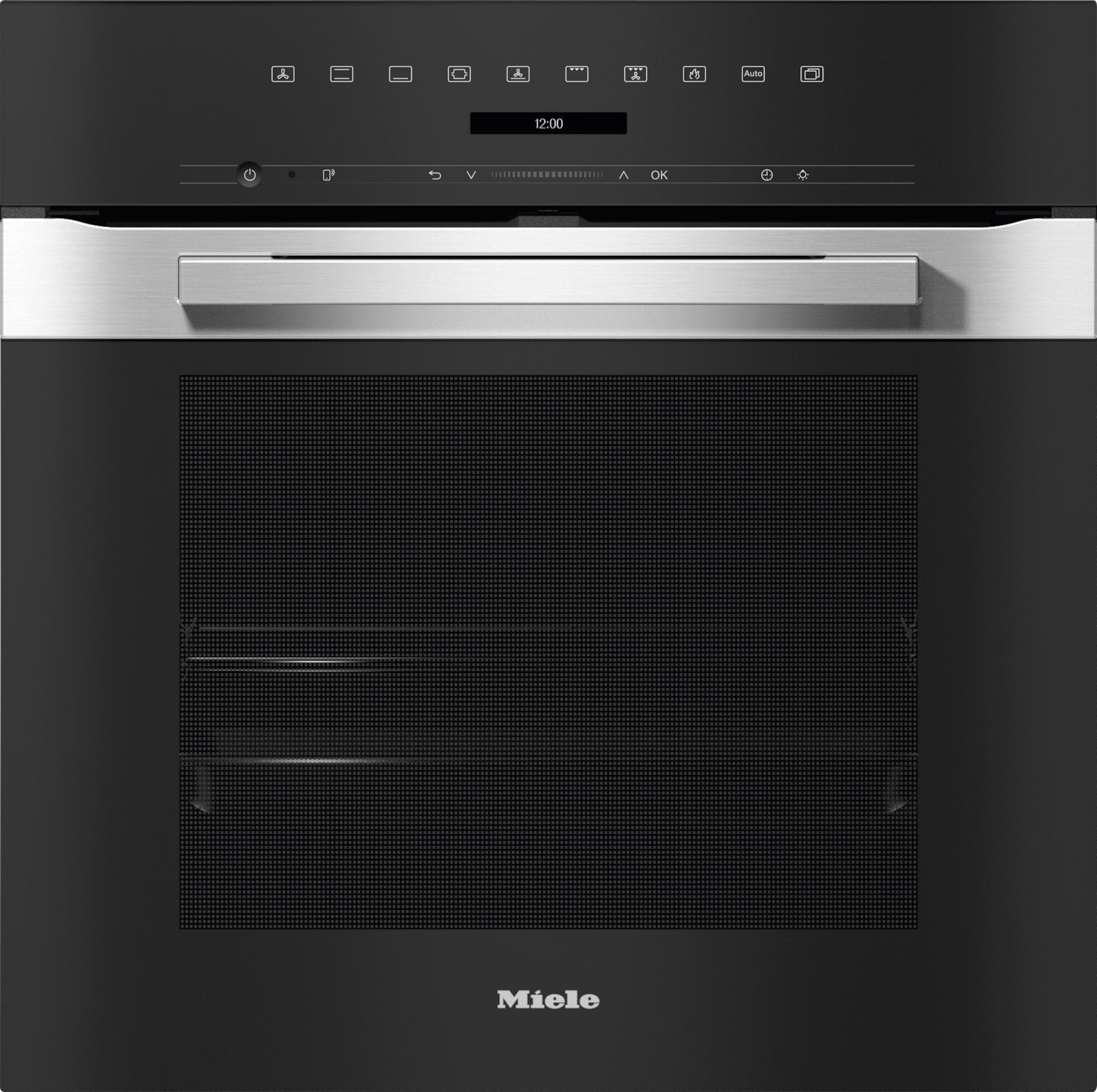

24" oven

H 7263 BP Clean Touch Steel

with clear text display, connectivity, and Self Clean.

Color:Clean Touch Steel

sale price$2,999.00



Product details

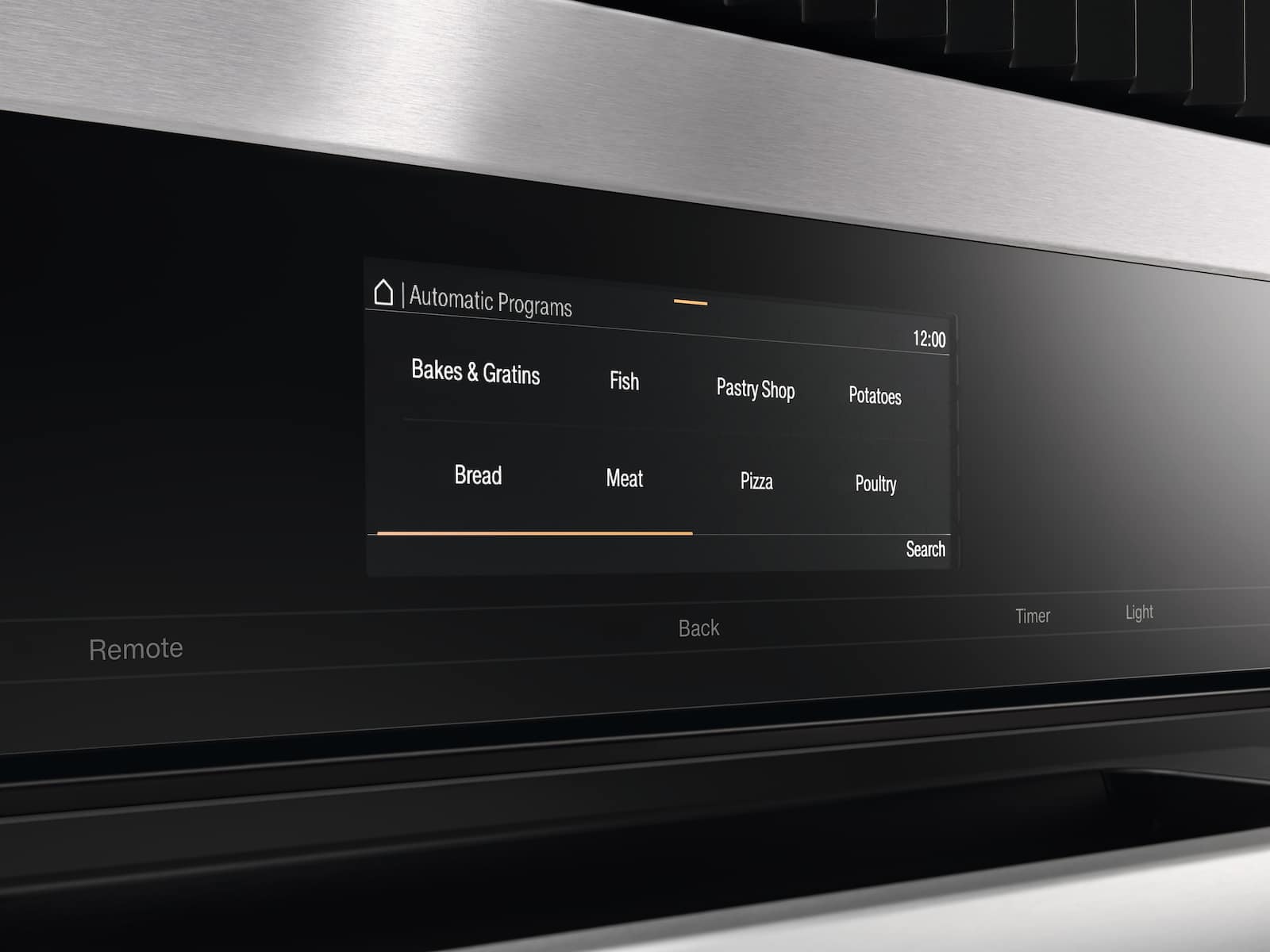

  • Clear-text display with sensor controls –DirectSensor S
  • Minimal cleaning effort -Self-cleaning
  • Achieve perfect results with ease –Automatic programs
  • Unlimited possibilities – volume of 2.97 cu. ft. on 5 levels
  • Network-enabled WiFi appliance –Miele@home

Product data sheet

Built-in wall oven
PureLine
Appliance colorClean Touch Steel
Rapid PreHeat
Convection Bake
Convection Roast
Surround
Intensive Bake
Auto roast
Convection Roast
Maxi Broil
Broiling operating modes
Bake
Defrost
MasterChef automatic programs
Networking with Miele@home

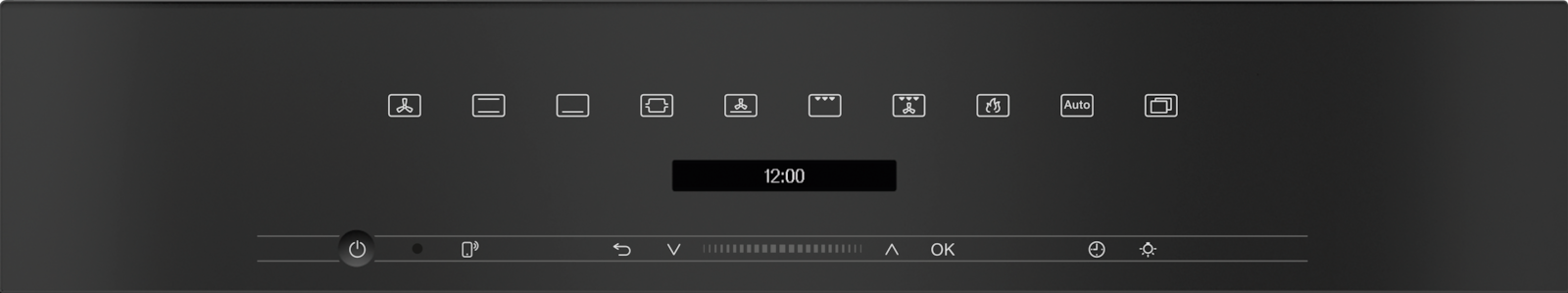

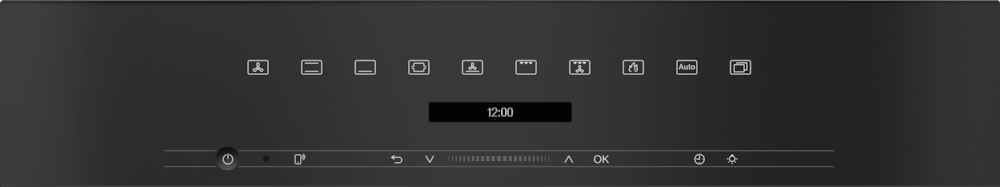

Control panelDirectSensor S
SoftOpen
SoftClose
MultiLingua
Time synchronization
Minute minder
Programming start of cooking duration
Programming end of cooking duration
Programmable cooking time
Actual temperature display
Audible signal when desired temperature is reached
Default temperature
Individual settings
Clean Touch Steel surface
Self-cleaning
Foldable broil heater element
CleanGlass door
Appliance cooling system and cool touch front
Safety cut-out
System lock
Door lock during self cleaning
Cavity volume in cu.ft (l)2.97 (84)
No. of rack levels5
Oven interior lighting1 halogen spot
Temperatures in °F (°C)85-575 (30-300)
Niche dimensions (W x H x D) in inches (mm)22 1/8 (560)-22 3/8 (568) x 23 1/4 (590)-23 1/2 (595) x 21 3/4 (550)
Niche width min. in inches (mm)22 1/8 (560)
Niche width max. in inches (mm)22 3/8 (568)
Niche height min. in inches (mm)23 1/4 (590)
Niche height max. in inches (mm)23 1/2 (595)
Niche depth in in. (mm)21 3/4 (550)
Appliance dimensions (W x H x D) in inches (mm)23 1/2 (595) x 23 1/2 (596) x 22 1/2 (569)
Appliance dimensions (W x H x D) in inches (mm)23 1/2 (595) x 23 1/2 (596) x 22 1/2 (569)
Weight in lbs. (kg)99 (44.5)
Total connected load in kW5.400
Power Rating in V120
Voltage in V240/208
Frequency in Hz60
Fuse rating in A30
Number of phases1
Connection wire with plug
Length of power cord in in. (m)1.80
Universal tray with PerfectClean HUBB 711
Self Clean ready baking and roasting rack1
Removable Self Clean-ready side racks (pair)1
Available display languages via MultiLingua
  • français
  • ελληνιкά
  • čeština
  • 繁體中文
  • slovenčina
  • slovenščina
  • 中文
  • polski
  • magyar
  • nederlands
  • hrvatski
  • yкраїнська
  • bahasa malaysia
  • deutsch
  • italiano
  • türkçe
  • suomi
  • 日本語
  • dansk
  • română
  • español
  • srpski
  • english
  • العربية
  • svenska
  • norsk
  • pусский
  • português
  • 한국어
EAN4002516483717

What's included

Universal tray with PerfectClean HUBB 71 (1)
Self Clean ready baking and roasting rack (1)
Removable Self Clean-ready side racks (pair) (1)

Maintenance

A finish for flawless stainless steel surfaces
Clean Touch Steel

No fingerprints on stainless steel: The surface is protected and no special cleaning agents are required.


Cleaning with zero effort
Self Clean and Self Clean ready accessories

The oven compartment and (depending on the model) some accessories are automatically cleaned at high temperatures.


User convenience

Cleverly networked
Appliance networking with Miele@home1,

Make your life smart: thanks to Miele@home you can cleverly network your domestic appliances – for more options.


Gentle door movement
SoftOpen and SoftClose

Sophisticated and elegant: The door opens and closes with a gentle movement – right to the very end.


Incredibly easy to understand
MultiLingua

For users who speak different languages: The controls can be set to numerous languages.


Special features

Stress-free baking and roasting, success guaranteed
MasterChef

Cooking delicious dishes with ease: cakes, fish, or meat – fully automatic cooking.


Safety

Only the food gets hot
Touch-cool front

Protection against burns: The appliance stays relatively cool – including on the outside of the door.


Maximum safety, no matter the situation
Safety functions

Always safe: Safety lock and safety shut-off provide reliable protection.


Operating modes

Defrost

Gentle on frozen food: Frozen food is gently defrosted under ideal conditions using cool air.


Auto Roast

Meat remains tender and succulent: Meat is seared at a high temperature, then roasted at a selected temperature.


Maxi Broil

Versatile function for indoors: so you can broil large quantities of steaks, sausages, kebabs, and more.


Intensive

Crispy bases, delicious toppings: pizza, quiche, or fresh fruit flans – crispy base, moist on top.


Surround

Multi-purpose, classic function: perfect results for all types of traditional baked and roasted dishes.


Bake

Individual requirements: for cooking food in a bain-marie or for browning from underneath.


Convection Broil

Crisp outside, succulent inside: ideal for chicken, duck, pork, rolled meat, and many other meat dishes.


Booster

For those who lead a busy life: If there's not much time for cooking, you will really appreciate this program.


Downloads

Warranty conditions
PDF
Downloads
Product sheet
PDF
Downloads
Operating and Installation instructions
PDF
Downloads
rvt
ZIP
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000017/200001724/20000172444.png
Descriptions
installation 30 inch Flush inset 650S, installation drawing, NA
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001724/20000172454.png
Descriptions
installation 30 inch Flush inset built-under 650S, installation drawing, NA
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection,
Downloads
https://media.miele.com/images/2000017/200001724/20000172462.png
Descriptions
installation 30 inch Flush inset wide front 650S, installation drawing, NA
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001724/20000172472.png
Descriptions
installation 30 inch Flush inset built-under wide front 650S, installation drawing, NA
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection,
Downloads
https://media.miele.com/images/2000017/200001724/20000172483.png
Descriptions
side view 30 inch Proud 650S, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001724/20000172493.png
Descriptions
side view 30 inch Proud built-under 650S, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001725/20000172525.png
Descriptions
installation 30 inch Proud 650S, installation drawing, NA
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001725/20000172535.png
Descriptions
installation 30 inch Proud built-under 650S, installation drawing, NA
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection,
Downloads
https://media.miele.com/images/2000017/200001724/20000172402.png
Descriptions
side view, 30 inch Flush inset 650S, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001725/20000172543.png
Descriptions
installation 30 inch Proud wide front 650S, installation drawing, NA
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001724/20000172412.png
Descriptions
side view 30 inch Flush inset built-under 650S, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001725/20000172553.png
Descriptions
installation 30 inch Proud built-under wide front 650S, installation drawing, NA
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection,
Downloads
https://media.miele.com/images/2000017/200001753/20000175356.png
Descriptions
installation Proud 650S, installation drawing, NA
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001753/20000175358.png
Descriptions
installation Proud build-under 650S, installation drawing, NA
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001753/20000175361.png
Descriptions
installation Proud wide front 650S, installation drawing, NA
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001753/20000175363.png
Descriptions
installation Proud built-under wide front 650S, installation drawing, NA
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001754/20000175410.png
Descriptions
installation Flush inset 650S, installation drawing, NA
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175412.png
Descriptions
installation Flush inset built-under 650S, installation drawing, NA
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175415.png
Descriptions
installation Flush inset breite Front 650S, installation drawing, NA
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175417.png
Descriptions
installation Flush inset built-under wide front 650S, Skizze, NA
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001725/20000172558.png
Descriptions
DGC6x00-1+EBA 6808, H 6560B+EBA 6808, H 6x60 BP+EBA6808, DGC7xxx, H7xxx, EBA78x8 Combi, Install. drawi., Flush inset, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001725/20000172574.png
Descriptions
H 6560 B + EBA 6808, H 6x60 BP + EBA 6808, H 6x00 BM + EBA 6808, H7xxx, EBA 78x8 Combi, Install drawing, Flush inset, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001727/20000172789.png
Descriptions
DGCxxxx-1+EBAx8x8, H6560B+EBA6808, HxxxxBP+EBAx8x8, Combi, Installation Drawing, Proud, Flush inset, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001727/20000172795.png
Descriptions
DGC6x6x(AM)+EBA6808, H6560B+EBA6808, H6x60BP+EBA6808, (DGC786x, H7x6xBP)+EBA7868, Combi, Installation drawing, Proud, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001728/20000172805.png
Descriptions
H 6560 B + EBA 6808, H 6x60 BP + EBA 6808, H 6x00 BM + EBA 6808, H7xxx+EBA7x7x, Combi, Installation drawing, Proud, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001754/20000175430.png
Descriptions
DGC786x(+EBA7848), H7x6xBP(+EBA7848), side view, 30 Zoll, Flush inset, combi, XXL, 650S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175438.png
Descriptions
side view, Flush inset, combi, 650S, ESW
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001755/20000175522.png
Descriptions
side view, Proud, combi, 650S, ESW
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001755/20000175544.png
Descriptions
H7x6xBP+EBA7848, ESW7x10, EVS7010, Einbau, 30 Zoll, Proud, combi, wide front, 650S
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001726/20000172697.png
Descriptions
H 6560 B + EBA 6808, H 6x60 BP + EBA 6808, H 6x00 BM, H 7xxx, EBA 78x8, Installation drawing, Flush inset, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001727/20000172751.png
Descriptions
H 6560 B + EBA 6808, H 6x60 BP, H 6x00 BM, H 7xxx BM/BP, EBA 78x8, Installation drawing, Flush inset, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001729/20000172928.png
Descriptions
H 6560 B + EBA 6808, H 6x60 BP + EBA6808, H6x00BM + EBA6808, NA7000 Installation Combi, Installation drawing, Proud, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001729/20000172982.png
Descriptions
(H6560B, H6x60BP, H6x00BM) + EBA6808, NA7000Installation Combi wide front, Installation drawing, Proud, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001755/20000175550.png
Descriptions
DGC7x4x(+EBA7848), H7x6x(+EBA7848), Installation, 30 Zoll, Proud, combi, XL, 650S
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001755/20000175572.png
Descriptions
DGC7x4x(+EBA7848), H7x6xBP(+EBA7848), Installation, 30 Zoll, Proud, combi, wide front, 650S
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001754/20000175445.png
Descriptions
DGC786x, H7x6xBP, Einbau, 30 Zoll, Flush inset, combi, XXL 650S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175450.png
Descriptions
DGC7x4x, H7x40BM, H7x6xBP, Einbau, 30 Zoll Flush inset, combi, 650S, 450S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175451.png
Descriptions
H7x6xBP+EBA7848, ESW7x10, EVS7010, Einbau, 30 Zoll, Flush inset, combi, 650S, ESW
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175457.png
Descriptions
DGC786x, H7x6xBP, Einbau , 30 Zoll, Flush inset, combi, wide front, XXL, 650S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175461.png
Descriptions
DGC7xxx, H7x40BM, H7x6xBP, Einbau, 30 Zoll, Flush inset, combi, wide front, 650S, 450S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175462.png
Descriptions
H7x6x+EBA7868, ESW7x10, EVS7010, Einbau, 30 Zoll, Flush inset, wide front, 650S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175468.png
Descriptions
DGC7x4x(+EBA7848), H7x6xBP(+EBA7848), Installation, 30 Zol, Flush inset, combi, XL, 650S
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001754/20000175474.png
Descriptions
DGC786x+EBA7868, H7x6xBP(+EBA7848), Instllation, 30 Zoll, Flush inset, combi, XXL, 650S
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001754/20000175491.png
Descriptions
DGC7x4x(+EBA7848), H7x6x(+EBA7848), Installation, 30 Zoll, flush inset, combi, wide front, XL, 650S
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001754/20000175497.png
Descriptions
DGC786x(+EBA7848), H7x6xBP(+EBA7848), Installation, 30 Zoll, Flush inset, combi, wide front, 650S, XXL
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001755/20000175528.png
Descriptions
DGC786x, H7xxBP, Einbau, 30 Zoll, Proud, combi, XXL, 650S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001755/20000175532.png
Descriptions
DGC7xxx, H7x4xBM, H7x6xBP, Einbau, 30 Zoll, Proud, combi, 650S, 450S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001755/20000175533.png
Descriptions
H7x6xBP+EBA7848, ESW7x10, EVS7010, Einbau, 30 Zoll, Proud, combi, 650S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001755/20000175539.png
Descriptions
DGC786x, H7x6xBP, Einbau, 30 Zoll, Proud, combi, wide front, XXL
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001755/20000175543.png
Descriptions
DGC7x4x, H7x40Bm, H7x6xBP, Einbau, 30 Zoll, Proud, combi, wide front, 650S, 450S
Installation drawings
Downloads
https://media.miele.com/images/2000018/200001802/20000180245.png
Descriptions
Handle H72xx, H76xx, H78xx, PureLine - NA7000 - Installation drawing
H2880BP, H7270BM, H7670BM, H7870BM, H7280BP, H7680BP, H7880BP, H7880BP2:, ① 19 11/16" / 500 mm, ② 17 1/2" / 444 mm, ③ 1 7/8 " / 47 mm, ④ 15/16" / 24 mm, ⑤ 1 1/4 " / 32,5 mm, ⑥ 2 9/16“ / 65 mm, , H7240BM, H7640BM, H7840BM, H7263BP, H7660BP:, ① 15 3/4“ / 400 mm, ② 14 3/16“ / 360 mm, ③ 1 7/8“ / 47 mm, ④ 15/16“ / 24 mm, ⑤ 1 1/4“ / 32,5 mm, ⑥ 2 9/16“ / 65 mm
Downloads
  • 1.Additional digital offer from Miele & Cie. KG. All smart applications are made possible with the Miele@home system. The range of functions can vary depending on the model and the country.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
