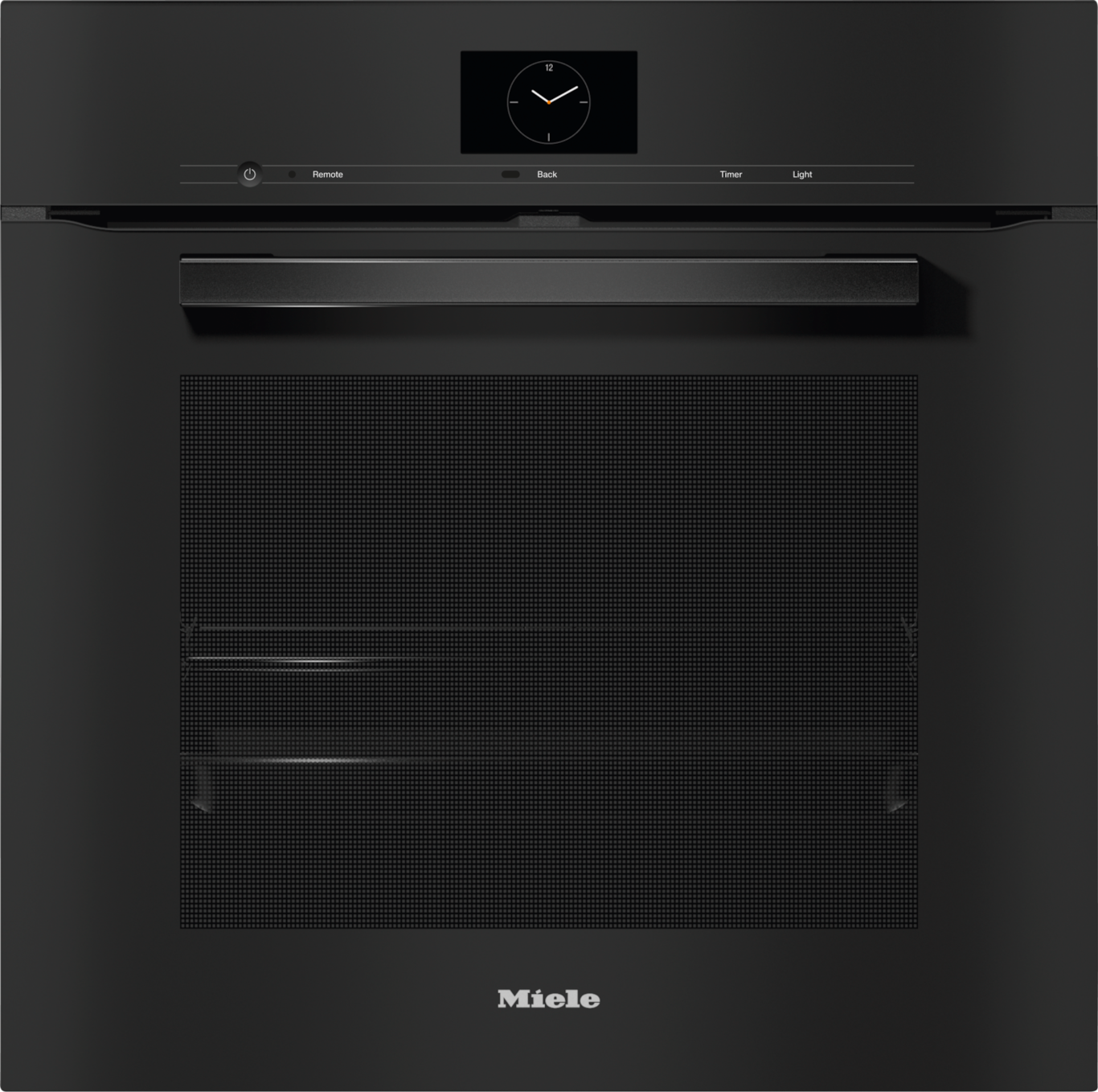

24" oven

H 7660 BP AM Obsidian black

in a perfectly combinable design with roast probe and BrilliantLight.

Color:Obsidian black

sale price$4,499.00



Product details

  • Touch display with proximity sensor –M Touch S+MotionReact
  • Minimal cleaning effort –Self Cleanand Self Clean ready
  • Beautifully light dough and browned crusts –Moisture Plus
  • Ensures your food won’t overcook –TasteControl
  • Network-enabled WiFi appliance –Miele@home

Product data sheet

Built-in wall oven
VitroLine
Appliance colorObsidian black
TasteControl
Rapid PreHeat
Roast probewired
Keep-warm function
Crisp Function
Convection Bake
Convection Roast
Surround
Moisture Plus
Moisture Plus with AutoRoast
Moisture Plus with Convection Bake
Moisture Plus with Intensive
Moisture Plus with Surround
Intensive Bake
Auto roast
Convection Roast
Maxi Broil
Broil
Broiling operating modes
Browning
Bake
Slow roast
Defrost
MasterChef automatic programs
Special modes
Networking with Miele@home

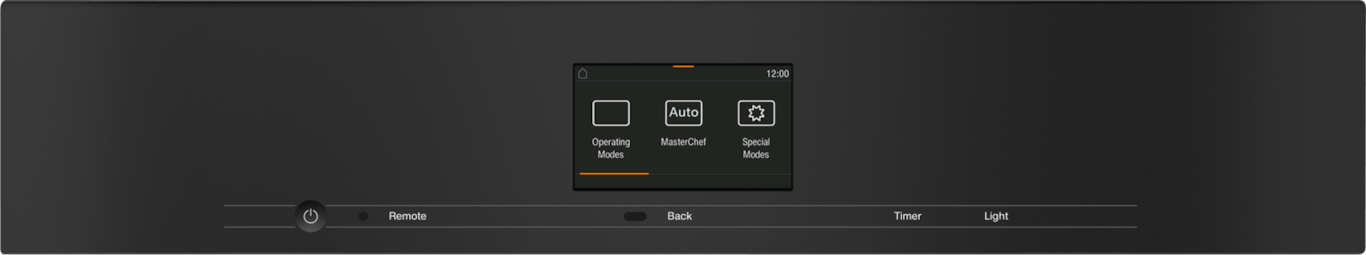

Control panelM Touch S Display
MotionReact proximity sensor
SoftOpen
SoftClose
MultiLingua
MyMiele
Show me how
Timed bursts of steam
Timers
Time of day display
Time synchronization
Date display
Minute minder
Programming start of cooking duration
Programming end of cooking duration
Programmable cooking time
Actual temperature display
Audible signal when desired temperature is reached
Default temperature
Favorites
Sabbath program
Individual settings
Intake pipe for collecting water
Automatic residual heat utilization
Self-cleaning
Foldable broil heater element
CleanGlass door
Steam generator power in kW1.100
Fresh water container volume in l0.3
Intake pipe for collecting water
Appliance cooling system and cool touch front
Safety cut-out
System lock
Door lock during self cleaning
Sensor lock
Cavity volume in cu.ft (l)2.97 (84)
No. of rack levels5
Labeling of rack levels
Oven interior lighting1 halogen spot
Temperatures in °F (°C)85-575 (30-300)
Niche dimensions (W x H x D) in inches (mm)22 1/8 (560)-22 3/8 (568) x 23 1/4 (590)-23 1/2 (595) x 21 3/4 (550)
Niche width min. in inches (mm)22 1/8 (560)
Niche width max. in inches (mm)22 3/8 (568)
Niche height min. in inches (mm)23 1/4 (590)
Niche height max. in inches (mm)23 1/2 (595)
Niche depth in in. (mm)21 3/4 (550)
Appliance dimensions (W x H x D) in inches (mm)23 1/2 (595) x 23 1/2 (596) x 22 3/8 (568)
Appliance dimensions (W x H x D) in inches (mm)23 1/2 (595) x 23 1/2 (596) x 22 3/8 (568)
Weight in lbs. (kg)103 (46.5)
Total connected load in kW5.400
Power Rating in V120
Voltage in V240/208
Frequency in Hz60
Fuse rating in A30
Number of phases1
Connection wire with plug
Length of power cord in in. (m)1.80
Universal tray with PerfectClean HUBB 711
Self Clean ready baking and roasting rack2
Self-Clean-ready FlexiClip telescopic runners (pair)1
Wired food probe1
Removable Self Clean-ready side racks (pair)1
Grilling and roasting insert with PerfectClean1
Descaling tablets2
Available display languages via MultiLingua
  • français
  • ελληνιкά
  • čeština
  • 繁體中文
  • slovenčina
  • slovenščina
  • 中文
  • polski
  • magyar
  • nederlands
  • hrvatski
  • yкраїнська
  • bahasa malaysia
  • deutsch
  • italiano
  • türkçe
  • dansk
  • suomi
  • 日本語
  • română
  • español
  • srpski
  • english
  • العربية
  • svenska
  • norsk
  • pусский
  • português
  • 한국어
EAN4002516483847

What's included

Universal tray with PerfectClean HUBB 71 (1)
Self Clean ready baking and roasting rack (2)
Self-Clean-ready FlexiClip telescopic runners (pair) (1)
Removable Self Clean-ready side racks (pair) (1)
Grilling and roasting insert with PerfectClean (1)
Descaling tablets (2)
Wired food probe (1)

Maintenance

Cleaning with zero effort
Self Clean and Self Clean ready accessories

The oven compartment and (depending on the model) some accessories are automatically cleaned at high temperatures.


User convenience

Cleverly networked
Appliance networking with Miele@home1,

Make your life smart: thanks to Miele@home you can cleverly network your domestic appliances – for more options.


Gentle door movement
SoftOpen and SoftClose

Sophisticated and elegant: The door opens and closes with a gentle movement – right to the very end.


Let your oven take care of time management
Timers

Always on time: Set the start time, end time, and duration of the cooking process, or the kitchen timer.


Incredibly easy to understand
MultiLingua

For users who speak different languages: The controls can be set to numerous languages.


Your food: easy access
FlexiClip telescopic runners2,

Ergonomic and convenient: With fully telescopic runners, you can reach the food inside the oven easily and safely.


Responds as you approach
MotionReact

Responds on approach: oven lighting or display comes on, buzzers switch off, and cabinet fronts are detected.


Special features

Perfect results with Moisture Plus
Moisture Plus

Use moisture for better roasting and baking results: Enjoy an incredibly light dough and nicely browned crusts.


Stress-free baking and roasting, success guaranteed
MasterChef

Cooking delicious dishes with ease: cakes, fish, or meat – fully automatic cooking.


Continue cooking? Only if you want to.
TasteControl

The automatic rapid cool-down prevents food from continuing to cook or can be used for keeping warm if desired.


Makes food crunchy and crisp
Crisp function

Perfect for pizza or fries: Reducing the moisture achieves a crispy, golden finish.


Safety

Only the food gets hot
Touch-cool front

Protection against burns: The appliance stays relatively cool – including on the outside of the door.


Maximum safety, no matter the situation
Safety functions

Always safe: Safety lock and safety shut-off provide reliable protection.


Operating modes

Defrost

Gentle on frozen food: Frozen food is gently defrosted under ideal conditions using cool air.


Auto Roast

Meat remains tender and succulent: Meat is seared at a high temperature, then roasted at a selected temperature.


Maxi Broil

Versatile function for indoors: so you can broil large quantities of steaks, sausages, kebabs, and more.


Broil

Designed for small quantities: ideal for small amounts of food such as steaks and sausages. Perfect every time.


Intensive

Crispy bases, delicious toppings: pizza, quiche, or fresh fruit flans – crispy base, moist on top.


Slow Roasting

Tender and succulent: Meat is cooked evenly at a low temperature – without drying the outside.


Surround

Multi-purpose, classic function: perfect results for all types of traditional baked and roasted dishes.


Browning

Finishing touch for the eye and palate: Perfect results when cooking gratins, baking toppings, and browning foods.


Bake

Individual requirements: for cooking food in a bain-marie or for browning from underneath.


Convection Broil

Crisp outside, succulent inside: ideal for chicken, duck, pork, rolled meat, and many other meat dishes.


Moisture Plus

As if fresh from the bakery: Moisture ensures an incredibly light dough and a nicely browned crust.


Moisture Plus with AutoRoast

Perfect roasts: Meat is seared at high temperature, then roasted at a customized temperature with added moisture.


Moisture Plus with Convection Bake

Perfectly soft and light: ideal for baking and roasting with added moisture on up to 3 levels.


Moisture Plus with Intensive

Pizza, quiche, or fresh fruit flans: Added moisture makes bases crispy, while toppings stay moist.


Moisture Plus with Surround

Classic function: Added moisture provides perfect results for all types of traditional baked and roasted dishes.


Booster

For those who lead a busy life: If there's not much time for cooking, you will really appreciate this program.


Sabbath Program

The oven stays on for 72 hours: the intelligent Sabbath program helps with periods of religious observance.


Downloads

Warranty conditions
PDF
Downloads
Product sheet
PDF
Downloads
Operating and Installation instructions
PDF
Downloads
rvt
ZIP
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000017/200001724/20000172402.png
Descriptions
side view, 30 inch Flush inset 650S, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001724/20000172412.png
Descriptions
side view 30 inch Flush inset built-under 650S, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001724/20000172444.png
Descriptions
installation 30 inch Flush inset 650S, installation drawing, NA
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001724/20000172454.png
Descriptions
installation 30 inch Flush inset built-under 650S, installation drawing, NA
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection,
Downloads
https://media.miele.com/images/2000017/200001724/20000172462.png
Descriptions
installation 30 inch Flush inset wide front 650S, installation drawing, NA
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001724/20000172472.png
Descriptions
installation 30 inch Flush inset built-under wide front 650S, installation drawing, NA
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection,
Downloads
https://media.miele.com/images/2000017/200001724/20000172483.png
Descriptions
side view 30 inch Proud 650S, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001724/20000172493.png
Descriptions
side view 30 inch Proud built-under 650S, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001725/20000172525.png
Descriptions
installation 30 inch Proud 650S, installation drawing, NA
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001754/20000175415.png
Descriptions
installation Flush inset breite Front 650S, installation drawing, NA
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001725/20000172535.png
Descriptions
installation 30 inch Proud built-under 650S, installation drawing, NA
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection,
Downloads
https://media.miele.com/images/2000017/200001754/20000175417.png
Descriptions
installation Flush inset built-under wide front 650S, Skizze, NA
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001725/20000172543.png
Descriptions
installation 30 inch Proud wide front 650S, installation drawing, NA
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001725/20000172553.png
Descriptions
installation 30 inch Proud built-under wide front 650S, installation drawing, NA
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection,
Downloads
https://media.miele.com/images/2000017/200001753/20000175356.png
Descriptions
installation Proud 650S, installation drawing, NA
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001753/20000175358.png
Descriptions
installation Proud build-under 650S, installation drawing, NA
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001753/20000175361.png
Descriptions
installation Proud wide front 650S, installation drawing, NA
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001753/20000175363.png
Descriptions
installation Proud built-under wide front 650S, installation drawing, NA
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001754/20000175410.png
Descriptions
installation Flush inset 650S, installation drawing, NA
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175412.png
Descriptions
installation Flush inset built-under 650S, installation drawing, NA
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001725/20000172558.png
Descriptions
DGC6x00-1+EBA 6808, H 6560B+EBA 6808, H 6x60 BP+EBA6808, DGC7xxx, H7xxx, EBA78x8 Combi, Install. drawi., Flush inset, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001725/20000172574.png
Descriptions
H 6560 B + EBA 6808, H 6x60 BP + EBA 6808, H 6x00 BM + EBA 6808, H7xxx, EBA 78x8 Combi, Install drawing, Flush inset, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001727/20000172789.png
Descriptions
DGCxxxx-1+EBAx8x8, H6560B+EBA6808, HxxxxBP+EBAx8x8, Combi, Installation Drawing, Proud, Flush inset, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001727/20000172795.png
Descriptions
DGC6x6x(AM)+EBA6808, H6560B+EBA6808, H6x60BP+EBA6808, (DGC786x, H7x6xBP)+EBA7868, Combi, Installation drawing, Proud, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001728/20000172805.png
Descriptions
H 6560 B + EBA 6808, H 6x60 BP + EBA 6808, H 6x00 BM + EBA 6808, H7xxx+EBA7x7x, Combi, Installation drawing, Proud, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001754/20000175430.png
Descriptions
DGC786x(+EBA7848), H7x6xBP(+EBA7848), side view, 30 Zoll, Flush inset, combi, XXL, 650S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175438.png
Descriptions
side view, Flush inset, combi, 650S, ESW
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001755/20000175522.png
Descriptions
side view, Proud, combi, 650S, ESW
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001726/20000172697.png
Descriptions
H 6560 B + EBA 6808, H 6x60 BP + EBA 6808, H 6x00 BM, H 7xxx, EBA 78x8, Installation drawing, Flush inset, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001727/20000172751.png
Descriptions
H 6560 B + EBA 6808, H 6x60 BP, H 6x00 BM, H 7xxx BM/BP, EBA 78x8, Installation drawing, Flush inset, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001729/20000172928.png
Descriptions
H 6560 B + EBA 6808, H 6x60 BP + EBA6808, H6x00BM + EBA6808, NA7000 Installation Combi, Installation drawing, Proud, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001729/20000172982.png
Descriptions
(H6560B, H6x60BP, H6x00BM) + EBA6808, NA7000Installation Combi wide front, Installation drawing, Proud, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001755/20000175550.png
Descriptions
DGC7x4x(+EBA7848), H7x6x(+EBA7848), Installation, 30 Zoll, Proud, combi, XL, 650S
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001755/20000175572.png
Descriptions
DGC7x4x(+EBA7848), H7x6xBP(+EBA7848), Installation, 30 Zoll, Proud, combi, wide front, 650S
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001754/20000175445.png
Descriptions
DGC786x, H7x6xBP, Einbau, 30 Zoll, Flush inset, combi, XXL 650S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175450.png
Descriptions
DGC7x4x, H7x40BM, H7x6xBP, Einbau, 30 Zoll Flush inset, combi, 650S, 450S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175451.png
Descriptions
H7x6xBP+EBA7848, ESW7x10, EVS7010, Einbau, 30 Zoll, Flush inset, combi, 650S, ESW
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175457.png
Descriptions
DGC786x, H7x6xBP, Einbau , 30 Zoll, Flush inset, combi, wide front, XXL, 650S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175461.png
Descriptions
DGC7xxx, H7x40BM, H7x6xBP, Einbau, 30 Zoll, Flush inset, combi, wide front, 650S, 450S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175462.png
Descriptions
H7x6x+EBA7868, ESW7x10, EVS7010, Einbau, 30 Zoll, Flush inset, wide front, 650S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001754/20000175468.png
Descriptions
DGC7x4x(+EBA7848), H7x6xBP(+EBA7848), Installation, 30 Zol, Flush inset, combi, XL, 650S
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001754/20000175474.png
Descriptions
DGC786x+EBA7868, H7x6xBP(+EBA7848), Instllation, 30 Zoll, Flush inset, combi, XXL, 650S
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001754/20000175491.png
Descriptions
DGC7x4x(+EBA7848), H7x6x(+EBA7848), Installation, 30 Zoll, flush inset, combi, wide front, XL, 650S
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001754/20000175497.png
Descriptions
DGC786x(+EBA7848), H7x6xBP(+EBA7848), Installation, 30 Zoll, Flush inset, combi, wide front, 650S, XXL
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001755/20000175528.png
Descriptions
DGC786x, H7xxBP, Einbau, 30 Zoll, Proud, combi, XXL, 650S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001755/20000175532.png
Descriptions
DGC7xxx, H7x4xBM, H7x6xBP, Einbau, 30 Zoll, Proud, combi, 650S, 450S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001755/20000175533.png
Descriptions
H7x6xBP+EBA7848, ESW7x10, EVS7010, Einbau, 30 Zoll, Proud, combi, 650S
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
Downloads
https://media.miele.com/images/2000017/200001755/20000175539.png
Descriptions
DGC786x, H7x6xBP, Einbau, 30 Zoll, Proud, combi, wide front, XXL
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001755/20000175543.png
Descriptions
DGC7x4x, H7x40Bm, H7x6xBP, Einbau, 30 Zoll, Proud, combi, wide front, 650S, 450S
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001755/20000175544.png
Descriptions
H7x6xBP+EBA7848, ESW7x10, EVS7010, Einbau, 30 Zoll, Proud, combi, wide front, 650S
Installation drawings
Downloads
https://media.miele.com/images/2000018/200001802/20000180245.png
Descriptions
Handle H72xx, H76xx, H78xx, PureLine - NA7000 - Installation drawing
H2880BP, H7270BM, H7670BM, H7870BM, H7280BP, H7680BP, H7880BP, H7880BP2:, ① 19 11/16" / 500 mm, ② 17 1/2" / 444 mm, ③ 1 7/8 " / 47 mm, ④ 15/16" / 24 mm, ⑤ 1 1/4 " / 32,5 mm, ⑥ 2 9/16“ / 65 mm, , H7240BM, H7640BM, H7840BM, H7263BP, H7660BP:, ① 15 3/4“ / 400 mm, ② 14 3/16“ / 360 mm, ③ 1 7/8“ / 47 mm, ④ 15/16“ / 24 mm, ⑤ 1 1/4“ / 32,5 mm, ⑥ 2 9/16“ / 65 mm
Downloads
  • 1.Additional digital offer from Miele & Cie. KG. All smart applications are made possible with the Miele@home system. The range of functions can vary depending on the model and the country.
  • 2.Patent: EP 1840473

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
