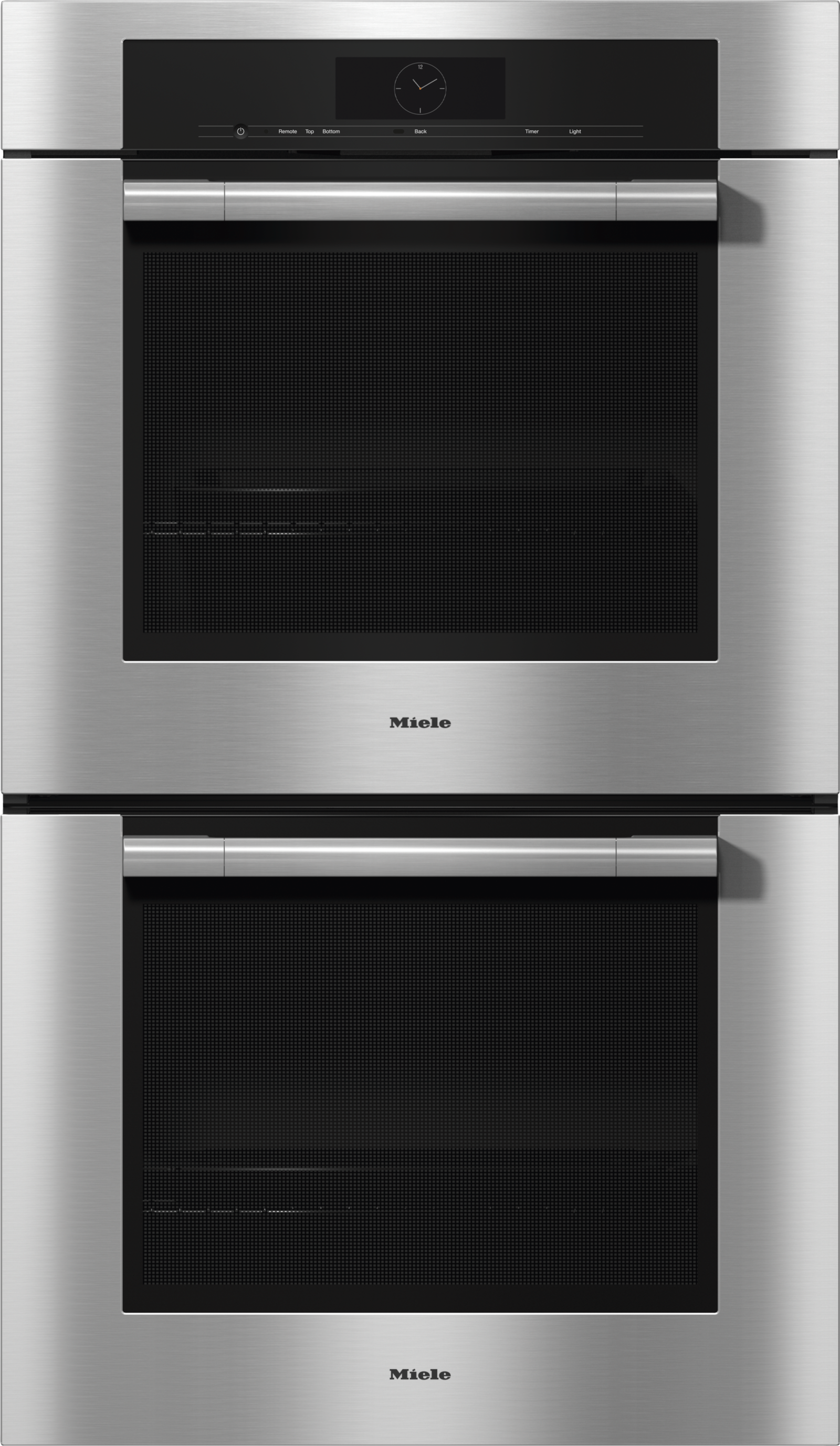

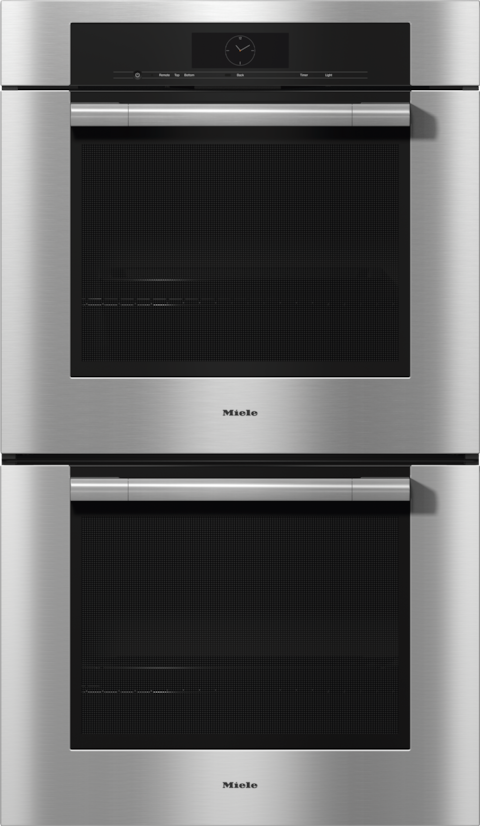

30" double oven

H 7780 BP2 Clean Touch Steel

in a combinable design with wireless precision probe.

Color:Clean Touch Steel

sale price$10,299.00



Product details

  • Large touch display with proximity sensor –M Touch+MotionReact
  • Achieve perfect results with ease –Automatic programs
  • Minimal cleaning effort –Self Cleanand Self Clean ready
  • Beautifully light dough and browned crusts –Moisture Plus
  • Network-enabled WiFi appliance –Miele@home

Product data sheet

Built-in wall oven
ContourLine
Appliance colorClean Touch Steel
Rapid PreHeat
Roast probeWireless precision food probe
Keep-warm function
Crisp Function
Convection Bake
Convection Roast
Surround
Moisture Plus
Moisture Plus with AutoRoast
Moisture Plus with Convection Bake
Moisture Plus with Intensive
Moisture Plus with Surround
Intensive Bake
Auto roast
Convection Roast
Maxi Broil
Broil
Broiling operating modes
Browning
Bake
Slow roast
Defrost
MasterChef automatic programs
Special modes
Networking with Miele@home

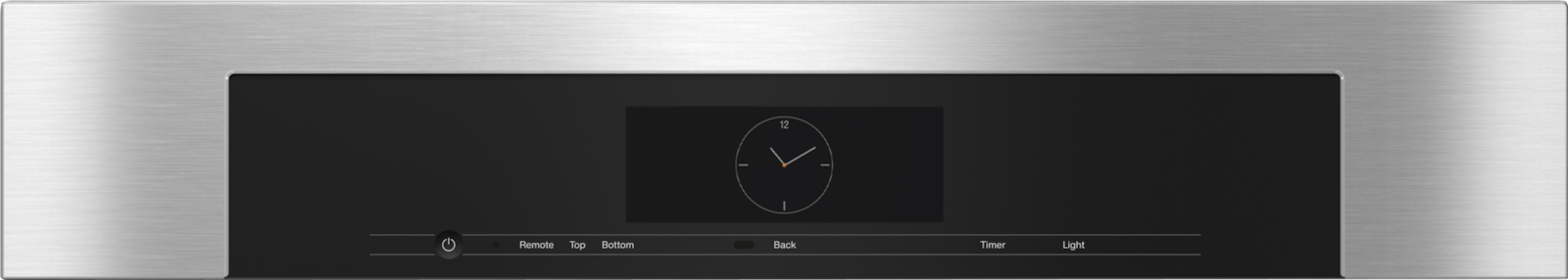

Control panelM Touch
MotionReact proximity sensor
SoftOpen
SoftClose
ComfortSwivel handle
MultiLingua
MyMiele
Show me how
Timed bursts of steam
Polyphonic acoustic signals
Timers
Time of day display
Time synchronization
Date display
Minute minder
Programming start of cooking duration
Programming end of cooking duration
Programmable cooking time
Actual temperature display
Audible signal when desired temperature is reached
Default temperature
Favorites
Sabbath program
Individual settings
DirectWater plus
Automatic residual heat utilization
Clean Touch Steel surface
Self-cleaning
Catalyzer
CleanGlass door
Appliance cooling system and cool touch front
Safety cut-out
System lock
Door lock during self cleaning
Sensor lock
Cavity volume in cu.ft (l)4.59 (130)
No. of rack levels6
Labeling of rack levels
Oven interior lighting2 halogen spots
TwinPower hot air fans
Temperatures in °F (°C)85-575 (30-300)
Niche dimensions (W x H x D) in inches (mm)28 5/8 (724)-28 5/8 (724) x 51 1/8 (1298)-51 1/8 (1298) x 24 1/8 (610)
Niche width min. in inches (mm)28 5/8 (724)
Niche width max. in inches (mm)28 5/8 (724)
Niche height min. in inches (mm)51 1/8 (1298)
Niche height max. in inches (mm)51 1/8 (1298)
Niche depth in in. (mm)24 1/8 (610)
Appliance dimensions (W x H x D) in inches (mm)28 3/8 (720) x 50 7/8 (1290) x 23 5/8 (597)
Weight in lbs. (kg)343.92 (156.0)
Total connected load in kW10.500
Power Rating in V120
Voltage in V240/208
Frequency in Hz60
Fuse rating in A50
Number of phases1
Connection wire with plug
Length of power cord in in. (m)1.80
Length of water inlet hose in ft. (m)1.5
Gourmet baking and AirFry tray, perforated, with PerfectClean HBBL 711
Universal tray with PerfectClean2
Self Clean ready baking and roasting rack4
Self Clean ready wire rack with rail system2
Wireless food probe1
Removable Self Clean-ready side racks (pair)1
Grilling and roasting insert with PerfectClean1
Available display languages via MultiLingua
  • eesti
  • français
  • ελληνιкά
  • čeština
  • 繁體中文
  • slovenčina
  • latviesu
  • slovenščina
  • 中文
  • polski
  • lietuviu
  • français (FR)
  • magyar
  • nederlands
  • hrvatski
  • yкраїнська
  • bahasa malaysia
  • italiano
  • english (GB)
  • deutsch
  • türkçe
  • suomi
  • dansk
  • 日本語
  • română
  • english (AU)
  • english (CA)
  • español
  • srpski
  • english
  • العربية
  • svenska
  • français (CA)
  • norsk
  • pусский
  • português
  • english (US)
  • 한국어
EAN4002516487432

What's included

Gourmet baking and AirFry tray, perforated, with PerfectClean HBBL 71 (1)
Self Clean ready baking and roasting rack (4)
Removable Self Clean-ready side racks (pair) (1)
Grilling and roasting insert with PerfectClean (1)
Self Clean ready wire rack with rail system (2)
Wireless food probe (1)
Universal tray with PerfectClean (2)

Maintenance

Fewer cooking odors
AirClean catalyzer

Better air quality during Self Clean: odors are removed from the cooking vapors.


A finish for flawless stainless steel surfaces
Clean Touch Steel

No fingerprints on stainless steel: The surface is protected and no special cleaning agents are required.


Cleaning with zero effort
Self Clean and Self Clean ready accessories

The oven compartment and (depending on the model) some accessories are automatically cleaned at high temperatures.


User convenience

Cleverly networked
Appliance networking with Miele@home1,

Make your life smart: thanks to Miele@home you can cleverly network your domestic appliances – for more options.


Let your oven take care of time management
Timers

Always on time: Set the start time, end time, and duration of the cooking process, or the kitchen timer.


Incredibly easy to understand
MultiLingua

For users who speak different languages: The controls can be set to numerous languages.


Gentle door movement
SoftOpen and SoftClose

Sophisticated and elegant: The door opens and closes with a gentle movement – right to the very end.


Responds as you approach
MotionReact

Responds on approach: oven lighting or display comes on, buzzers switch off, and cabinet fronts are detected.


Special features

Perfect results with Moisture Plus
Moisture Plus

Use moisture for better roasting and baking results: Enjoy an incredibly light dough and nicely browned crusts.


Makes food crunchy and crisp
Crisp function

Perfect for pizza or fries: Reducing the moisture achieves a crispy, golden finish.


Stress-free baking and roasting, success guaranteed
MasterChef

Cooking delicious dishes with ease: cakes, fish, or meat – fully automatic cooking.


Oven cabinets

From cold to hot
TwinPower convection fan

Exclusively for wide ovens: With two convection fans, the oven reaches operating temperature in no time.


Safety

Only the food gets hot
Touch-cool front

Protection against burns: The appliance stays relatively cool – including on the outside of the door.


Maximum safety, no matter the situation
Safety functions

Always safe: Safety lock and safety shut-off provide reliable protection.


Operating modes

Defrost

Gentle on frozen food: Frozen food is gently defrosted under ideal conditions using cool air.


Auto Roast

Meat remains tender and succulent: Meat is seared at a high temperature, then roasted at a selected temperature.


Maxi Broil

Versatile function for indoors: so you can broil large quantities of steaks, sausages, kebabs, and more.


Broil

Designed for small quantities: ideal for small amounts of food such as steaks and sausages. Perfect every time.


Intensive

Crispy bases, delicious toppings: pizza, quiche, or fresh fruit flans – crispy base, moist on top.


Slow Roasting

Tender and succulent: Meat is cooked evenly at a low temperature – without drying the outside.


Surround

Multi-purpose, classic function: perfect results for all types of traditional baked and roasted dishes.


Browning

Finishing touch for the eye and palate: Perfect results when cooking gratins, baking toppings, and browning foods.


Bake

Individual requirements: for cooking food in a bain-marie or for browning from underneath.


Convection Broil

Crisp outside, succulent inside: ideal for chicken, duck, pork, rolled meat, and many other meat dishes.


Moisture Plus

As if fresh from the bakery: Moisture ensures an incredibly light dough and a nicely browned crust.


Booster

For those who lead a busy life: If there's not much time for cooking, you will really appreciate this program.


Moisture Plus with AutoRoast

Perfect roasts: Meat is seared at high temperature, then roasted at a customized temperature with added moisture.


Moisture Plus with Convection Bake

Perfectly soft and light: ideal for baking and roasting with added moisture on up to 3 levels.


Moisture Plus with Intensive

Pizza, quiche, or fresh fruit flans: Added moisture makes bases crispy, while toppings stay moist.


Moisture Plus with Surround

Classic function: Added moisture provides perfect results for all types of traditional baked and roasted dishes.


Sabbath Program

The oven stays on for 72 hours: the intelligent Sabbath program helps with periods of religious observance.


Downloads

Warranty conditions
PDF
Downloads
Product sheet
PDF
Downloads
Operating and Installation instructions
PDF
Downloads
rvt
ZIP
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000017/200001724/20000172484.png
Descriptions
side view 30 inch Proud, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001725/20000172527.png
Descriptions
installation 30 inch Proud double, installation drawing, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection, W = Water connection
Downloads
https://media.miele.com/images/2000017/200001724/20000172404.png
Descriptions
side view, 30 inch Flush inset double, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001724/20000172419.png
Descriptions
installation 30 inch Flush inset double, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001725/20000172545.png
Descriptions
installation 30 inch Proud wide front double, installation drawing, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection, W = Water connection
Downloads
https://media.miele.com/images/2000017/200001724/20000172431.png
Descriptions
installation 30 inch Flush inset wide front double, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000018/200001802/20000180246.png
Descriptions
Handle 30" DGC73xx, DGC75xx, DGC77xx, H71xx, H75xx, H77xx, ContourLine - NA7000 - Installation drawing
① 21 1/8" / 536 mm, ② 17 1/2" / 444 mm, ③ 2 1/2 " / 64 mm, ④ 1 3/8" / 35 mm, ⑤ 1 7/16 " / 37 mm
Downloads
https://media.miele.com/images/2000017/200001724/20000172446.png
Descriptions
installation 30 inch flush inset double, installation drawing, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection, W = Water connection
Downloads
https://media.miele.com/images/2000017/200001724/20000172464.png
Descriptions
installation 30 inch Flush inset wide front double, installation drawing, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection, W = Water connection
Downloads
https://media.miele.com/images/2000017/200001725/20000172500.png
Descriptions
installation 30 inch Proud double, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001725/20000172512.png
Descriptions
installation 30 inch Proud wide front double, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
