Cooker hoods - DAS 2920 Stainless steel - 1
Cooker hoods - DAS 2920 Stainless steel - 2
Cooker hoods - DAS 2920 Stainless steel - 3
Cooker hoods - DAS 2920 Stainless steel - 4
Cooker hoods - DAS 2920 Stainless steel - 1
Cooker hoods - DAS 2920 Stainless steel - 2
Cooker hoods - DAS 2920 Stainless steel - 3
Cooker hoods - DAS 2920 Stainless steel - 4
Built-in ventilation hood

DAS 2920 Stainless steel

with EasySwitch controls for convenient operation
Color:Stainless steel
sale price$1,299.00



Product details

  • Classic design – stainless-steel panel, 90 cm wide
  • LED strip for uniform lighting
  • Efficient filtration-10-ply stainless steel grease filters
  • Safe and easy to clean -Miele CleanCover

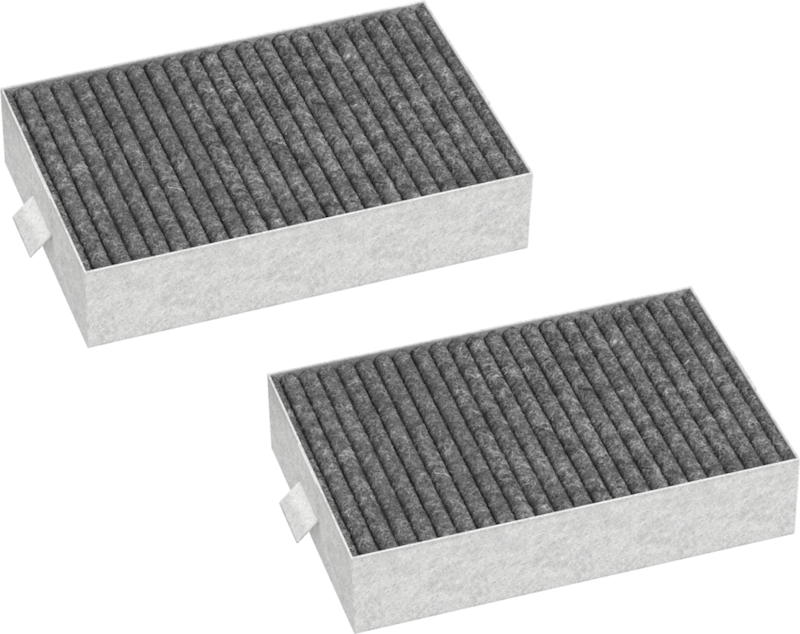

  • Recirculation mode –Active AirClean or Longlife AirClean filter

Product data sheet

Built-in ventilation hood
Recirculated modeCan be retrofitted
Recirculation conversion kit (order separately)DUU 151,DUU 150
OdorFree charcoal filter (order separately)
  • DKFS 31-R
  • DKFS 31-P
Electronic controls
EasySwitch
OperationEasySwitch
Booster levels1
CleanCover
Easy-to-clean canopy interior – CleanCover
Number of dishwasher-safe stainless steel grease filters (10-ply)1
LED ClearView lighting
Number x W1 x 3,0 W
Light intensity in Lx300 lx
Color temperature in K3500 Kelvin
Dual-action blower
AC motor
Maximum air throughput in cfm according to HVI427
Safety shut-off
Canopy width in in. (mm)35 3/8 (896)
Canopy height in in. (mm)1 1/2 (36)
Depth of hood canopy in in. (mm)10 3/4 (273)
Minimum height above electric cooktops in mm24 1/8 (610)
Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm26 (660)
Net weight in lbs. (kg)36 (16.0)
Length of electrical wire in ft. (m)2 (0.8)
Standard plug fitted
Total connected load in kW0.353
Voltage in V120
Fuse rating in A15
Frequency in Hz60
Number of phases1
Vent connection at top
Non-return flap
EAN4002516495857

What's included

Non-return flap
Easy to use and effective against grease
Stainless-steel grease filters (10-layer)

Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.

Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.

Safety

Always on the safe side
Safety turn off

Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.

Features

Easy to use and effective against grease
Stainless-steel grease filters (10-layer)

Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.

Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.

Matching products and accessories

Recirculation conversion kit for DA 3xxx/2xxx and DAS 2xxx, 4xxx, and 8xxx

Recirculation conversion kit for DA 3xxx/2xxx and DAS 2xxx, 4xxx, and 8xxx

To convert slimline/integrated ventilation hoods from vented to recirculation.

$115.00
Recirculation conversion kit for DA 3xxx/2xxx and DAS 2xxx, 4xxx, and 8xxx
DUU 150

Recirculation conversion kit for DA 3xxx/2xxx and DAS 2xxx, 4xxx, and 8xxx

To convert slimline/integrated ventilation hoods from vented to recirculation.

$115.00

Reducing collar

For reducing the exhaust air vent cross-section.

$125.00
Reactivatable Longlife AirClean charcoal filter

Reactivatable Longlife AirClean charcoal filter

for Miele DAS 2x20, DAS 4x20, and DAS 4x30 Recirculation Hoods.

$299.00
Panel installation kit

Panel installation kit

For attaching a light shield strip to match cabinetry.

$49.00
MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

$15.99
 MicroCloth HyClean, 1 cloth
GP MI H 0011 W

 MicroCloth HyClean, 1 cloth

 Antibacterial multi-purpose cloth for improved hygiene.

$11.99

Downloads

Operating and Installation instructions
PDF
Downloads
Mounting plan
PDF
Downloads
Product sheet
PDF
Downloads
Warranty conditions
PDF
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000018/200001849/20000184917.png
Descriptions

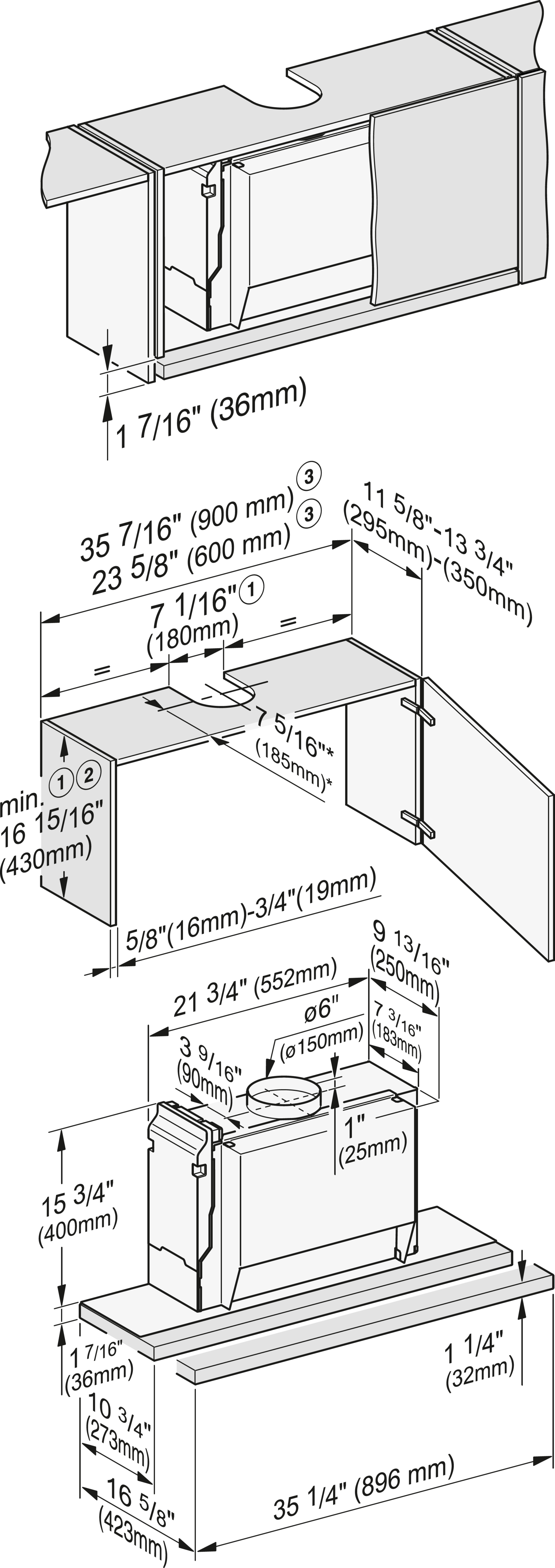

DAS2920, DAS4920, drawing - US
1) Exhaust air, mounted accessories must be taken into account for dimensions of cabinet height and cutouts., 2) Exhaust air, recirculation with DUU 150 conversion kit., 3) Installation is also possible in a 600 mm wide cabinet., , *In this installation situation, the screen is flush with the front edge of the cabinet. If the cooker hood is positioned further to the front or rear (e.g. when using a front panel), the dimensions must be adjusted accordingly.
Downloads

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
