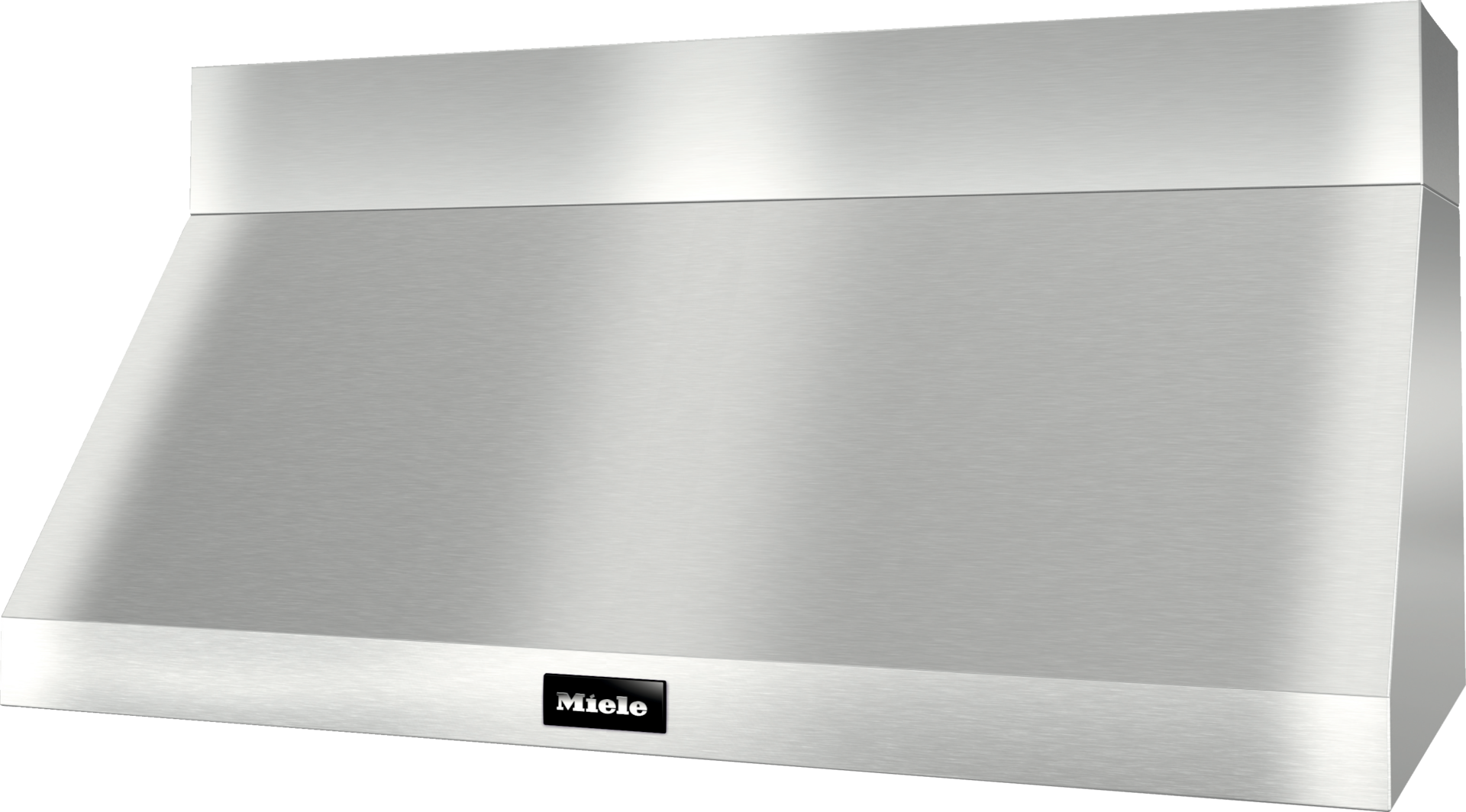

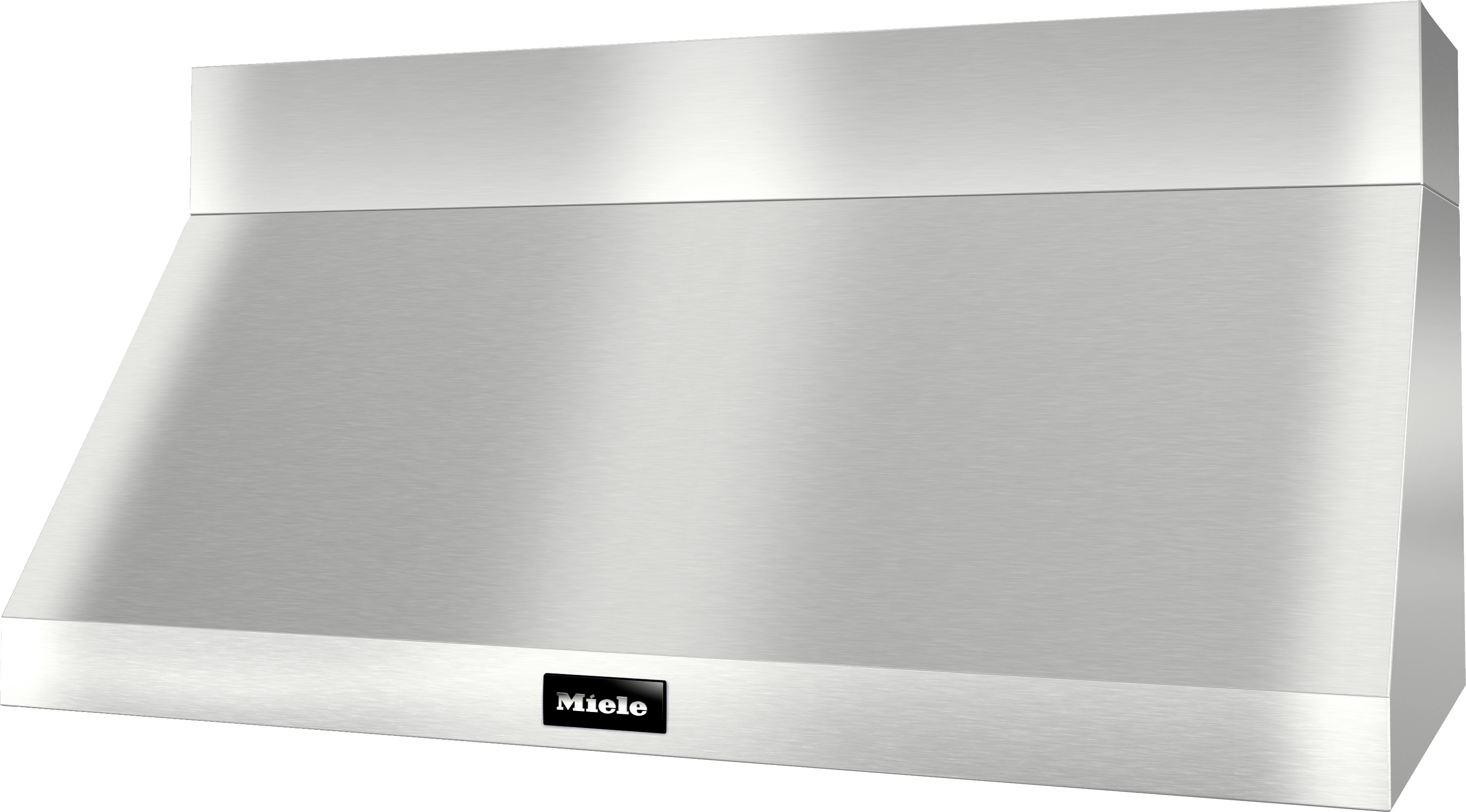

48-inch wall-mounted ventilation hood

DAR 1250-3 Stainless steel

for perfect combination with Ranges and Rangetops.

Color:Stainless steel

sale price$2,599.00



Product details

  • Professional design - stainless steel hood, 48 (1218) in (mm) wide
  • Perfect illumination -LED ClearView lighting
  • Dishwasher-safe - 4 high-qualitystainless steel grease filters
  • Safe and easy to clean -Miele CleanCover
  • Auto-vent safety sensor – protects against overheating

Product data sheet

Wall ventilation hood
Blower
Duct cover
Recirculated modeExhaust air
External operation possible
Rotary knob
Power levels (number excl. Intensive)3
Temperature sensor
Easy to clean canopy interior CleanCover
Dishwasher-safe grease collection channel
Number of dishwasher-safe stainless steel baffle filters4
LED
Number x W4 x 3 W
DRIB XXL internal blower in CFM (m³/h)1869
DREB XXL external blower in CFM (m³/h)1869
Canopy width in in.(mm)48 (1218)
Canopy width in inches47 15/16
Canopy height in in.(mm)18 (457)
Canopy depth in in.(mm)24 1/8 (611)
Net weight in lbs. (kg)106 (48.0)
Length of electrical wire in ft (m)2 (0.8)
Standard plug fitted
Total connected load in kW0.812
Voltage in V120
Fuse rating in A15
Number of phases1
Vent connection at top
Diameter of vent connection in in.(mm)9 7/8 (250)
Non-return flap
EAN4002516546955

What's included

Non-return flap

User convenience

Discreetly integrated
Knob controls

Beautiful and functional: Metal rotary controls complement the harmonious design of the range hoods.


Efficiency and sustainability

Powerful lighting with minimal energy consumption
LED ClearView lighting

Eco-friendly and very durable: With up to 4 x 2 W, they provide the cooktop with uniform, warm downlighting.


Permanent safety
Temperature sensor

Continuous monitoring: the temperature sensor ensures safety and prevents unnecessary energy consumption.


Features

Convenience and safety in detail
Miele CleanCover

Miele’s unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.


Downloads

Warranty conditions
PDF
Downloads
Product sheet
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
Fitting Instructions
PDF
Downloads
Fitting Instructions
PDF
Downloads
rvt
ZIP
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000011/200001183/20000118353.png
Descriptions

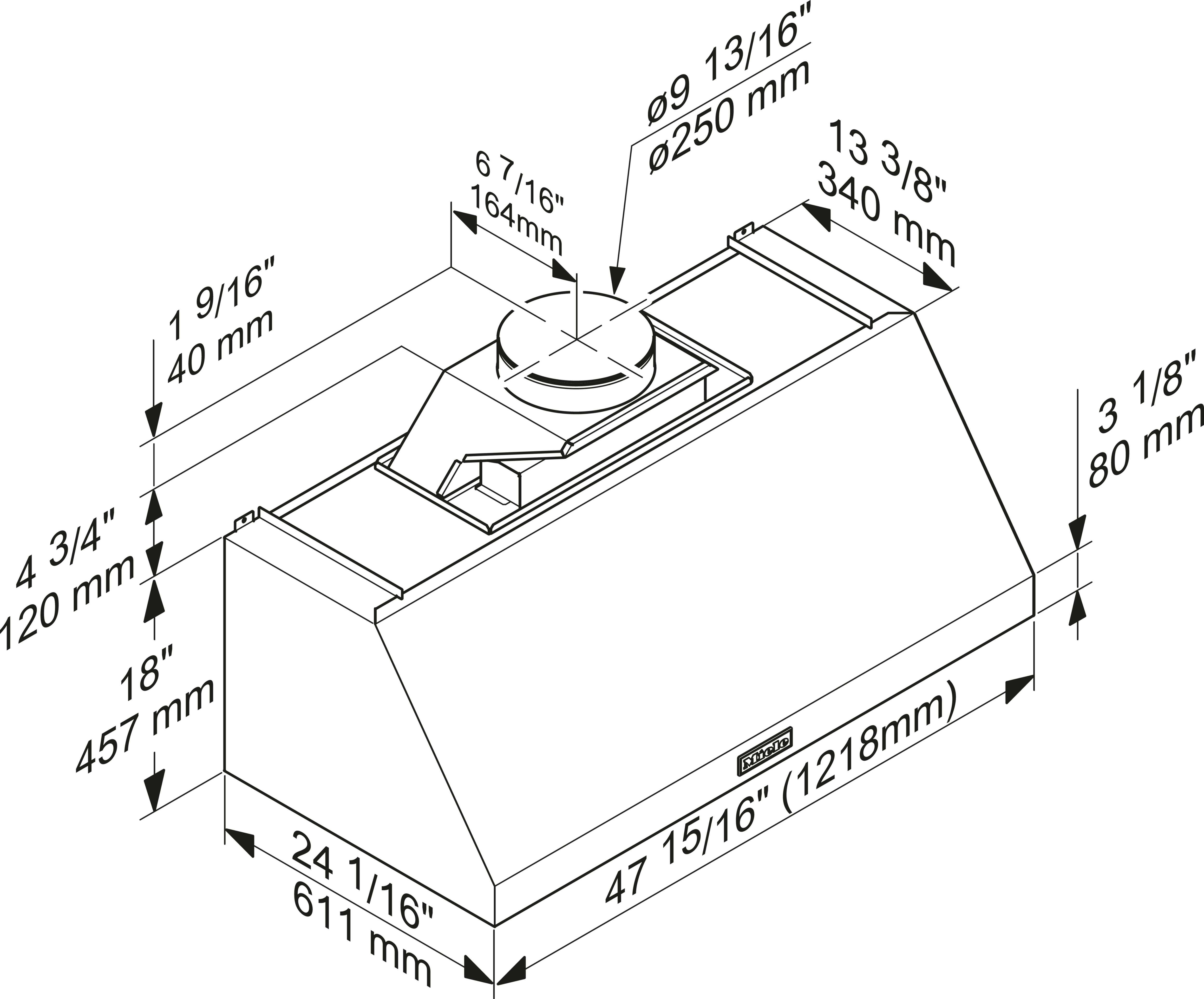

DAR1250 (Installations drawing)
1) Installation area
