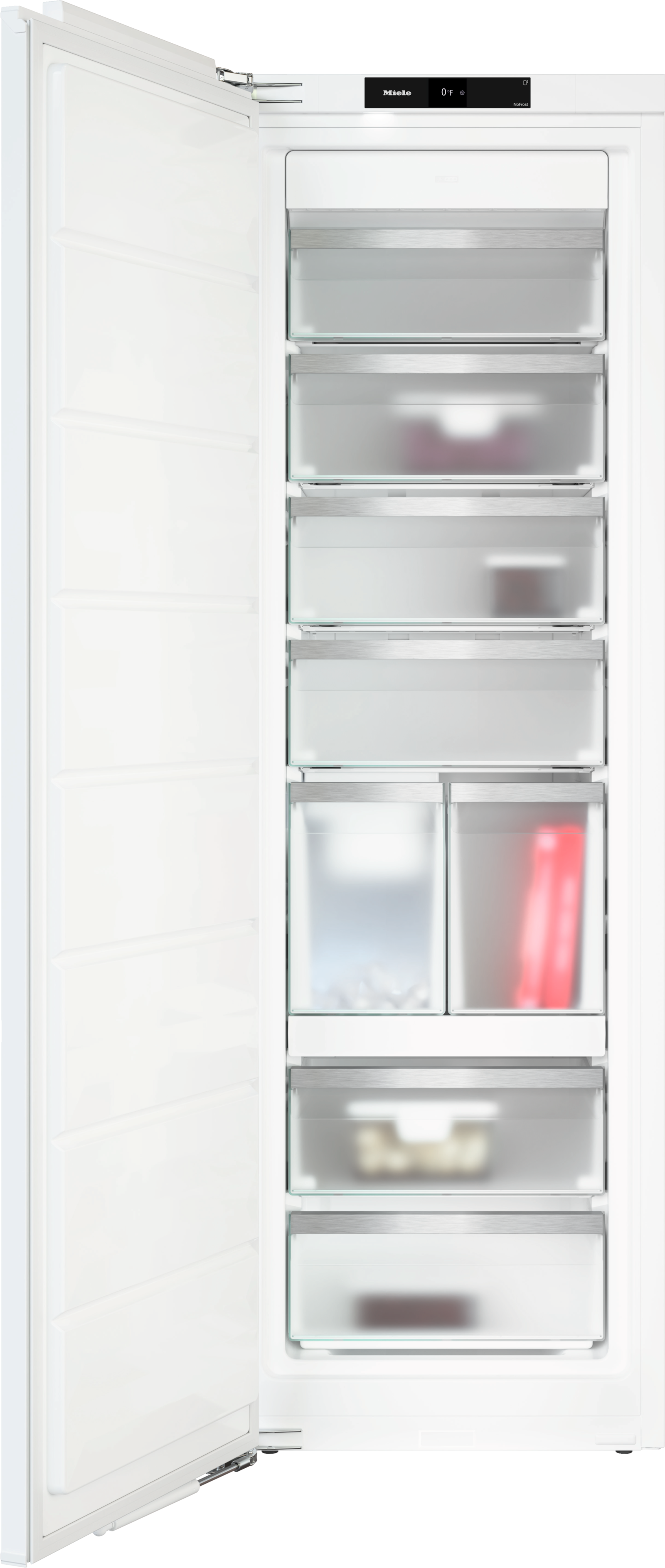

PerfectCool freezer

FNS 7794 E

with NoFrost and 8 freezer drawers on telescopic runners for max. convenience.
sale price$4,199.00



Product details

  • Ice cubes thanks to the plumbedIceMaker
  • Double the convenience with Miele’sIce&PizzaBox
  • No icing up of food and no need to defrost thanks toNoFrost
  • Optimum and maintenance-freeLEDlighting in compartment
  • Soft closing of the door withSoftClose

Product data sheet

Freezer
Built-in
Built-in integrated
Door hinge sideLeft
Convertible hinging
Can be installed side-by-side
Freezer compartment lightingLED
IceMaker lighting
Networking with Miele@home
NoFrost
VarioRoom
SoftClose door closing damper
IceMaker with plumbed water connection
Electronic temperature display and controlFreshTouch
SuperFrost
No. of temperature zones1
Sabbath mode
Party mode
Number of freezer drawers8
of which on runners6
of which Ice&PizzaBox2
Lock function
Acoustic door alarm
Acoustic temperature alarm, freezer section
Optical door alarm
Optical temperature alarm
Power cut indication for freezer compartment
Niche width in inches (mm), min.22 1/8 (560)
Niche width in inches (mm), max.22 1/2 (570)
Niche height in inches (mm), min.69 7/8 (1772)
Niche height in inches (mm), max.70 1/2 (1788)
Niche depth in in.(mm)21 3/4 (550)
Appliance width in in.(mm)22 1/8 (559)
Appliance height in in.(mm)69 3/4 (1770)
Appliance depth in in.(mm)21 1/2 (544)
Weight in lbs.(kg)157 (70.9)
Type of mountingFixed door
Maximum fridge compartment door front weight in lbs. (kg)58 (26)
Maximum freezer compartment door front weight in lbs. (kg)58 (26)
Climatic classificationSN-T
Storage time in case of fault in h9
Current consumption in milliampere (mA)2300
Voltage in V120
Fuse rating in A15
Number of phases1
Frequency in Hz50-60
Wire length in ft (m)7 (2.2)
Replacing bulbsCustomer Service
EAN4002516480938
Cleverly networked
Miele@home1,

Make your life smart: Thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

User convenience

Cleverly networked
Miele@home1,

Make your life smart: Thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

Defrosting is a thing of the past
NoFrost

No more defrosting: the circulation cooling system prevents ice from developing, saving the hassle of defrosting.

Appliance door closes softly
SoftClose

Quiet and reliable closing: the gently self-closing doors prevent items from falling out.

Matching products and accessories

MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

$15.99
 MicroCloth HyClean, 1 cloth
GP MI H 0011 W

 MicroCloth HyClean, 1 cloth

 Antibacterial multi-purpose cloth for improved hygiene.

$11.99

Downloads

Product sheet
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
Fitting Instructions
PDF
Downloads
fbx
ZIP
Downloads
rfa
ZIP
Downloads
ifc
ZIP
Downloads
rvt
ZIP
Downloads
dwg
ZIP
Downloads
Energy label
PDF
Downloads
PNG
Downloads
Energy label
JPEG
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000018/200001812/20000181214.png
Descriptions

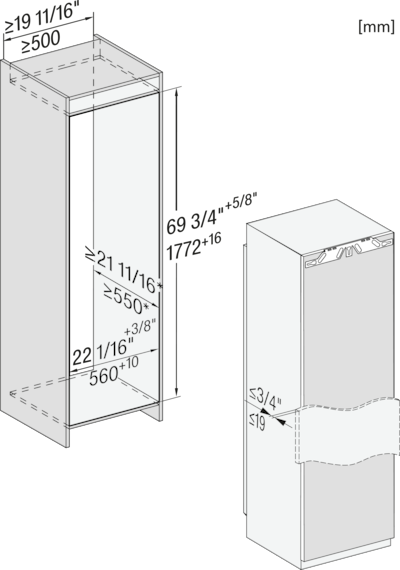

KS7793D, FNS7794E, built-in (installation (*footnote) (installation drawings) (US)
*The declared energy consumption was calculated in a 560 mm deep niche. The appliance is fully functional in a 550 mm niche but the energy consumption will be slightly higher.
Downloads
https://media.miele.com/images/2000018/200001812/20000181213.png
Descriptions

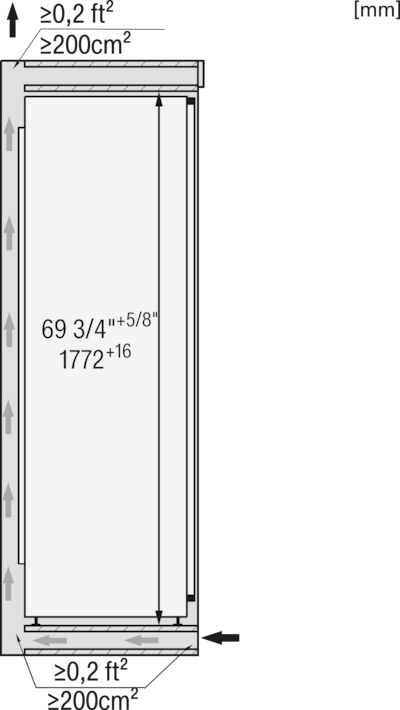

KS7793D, FNS7794E, side view (installation drawings) (US)
Installation drawings
Downloads
https://media.miele.com/images/2000018/200001812/20000181232.png
Descriptions
FNS7794E, installation (*footnote) (installation drawings) (US)
*1. View from the front, 2. Mains connection cable, L = 2100 mm, 3. Ventilation cut-out min. 200 cm², 4. Ventilation, 5. No connections permitted in this area, 6. Water connection L = 2000 mm
Downloads
  • 1.Miele@home is a separate digital offer from Miele & Cie. KG. All smart applications are made possible with the Miele@home system. The range of functions can vary depending on the model and the country.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
