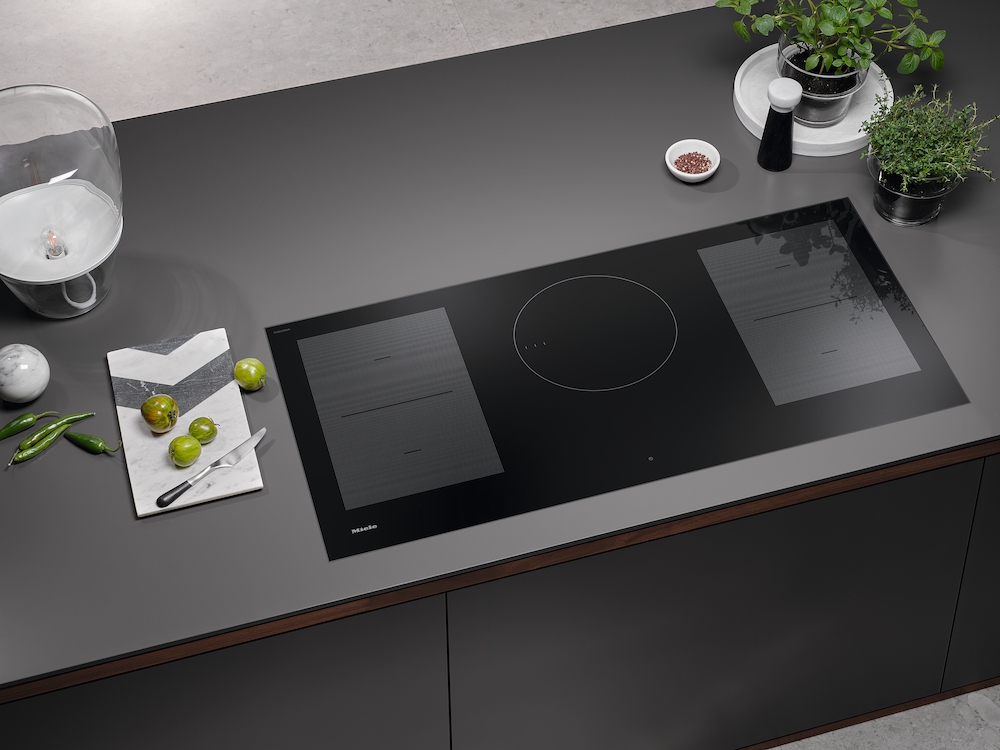

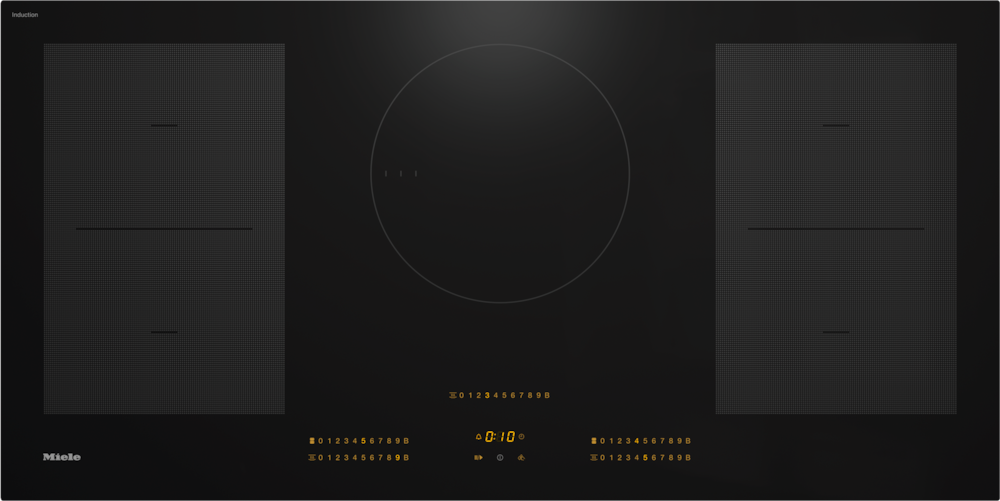

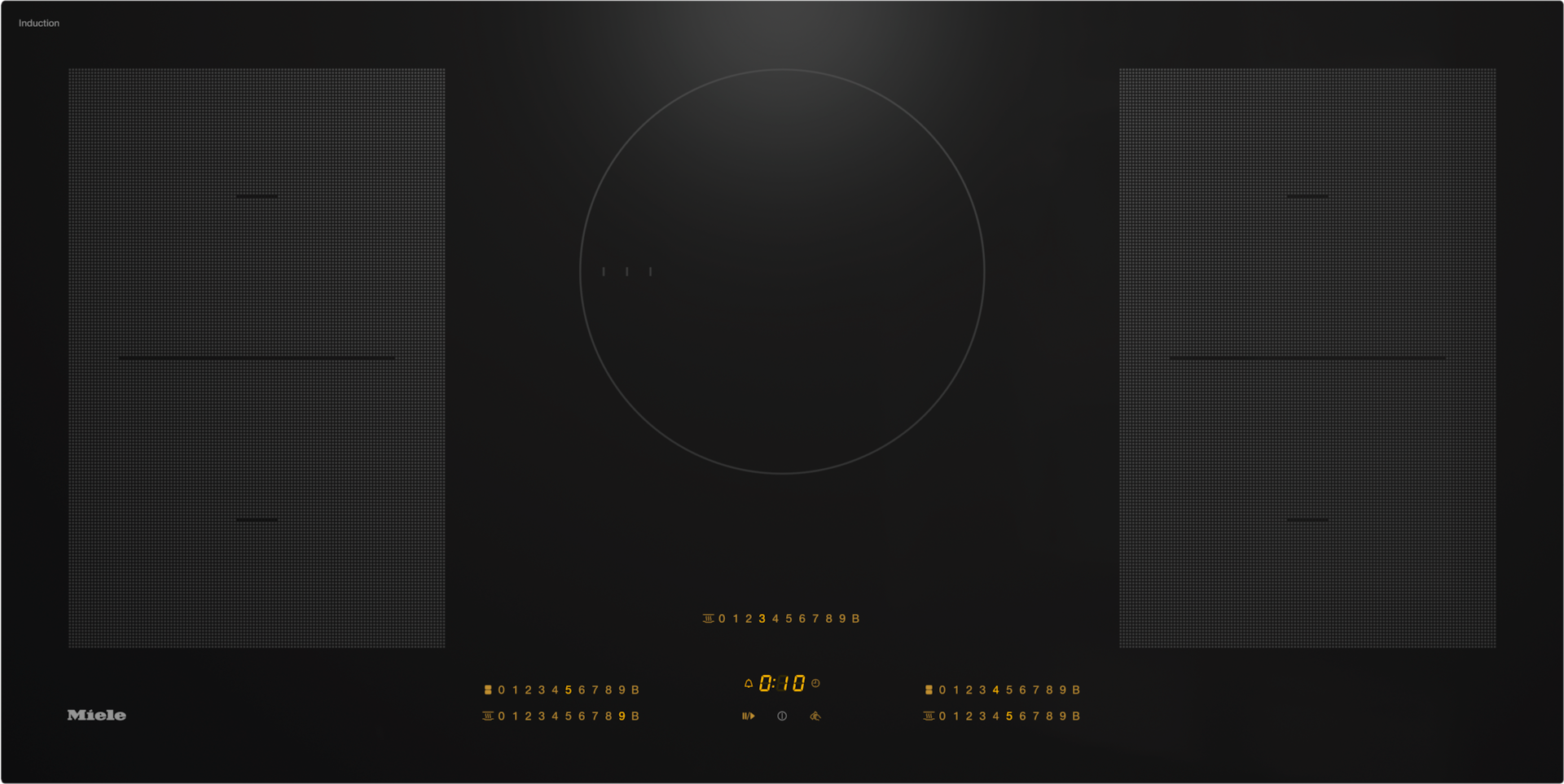

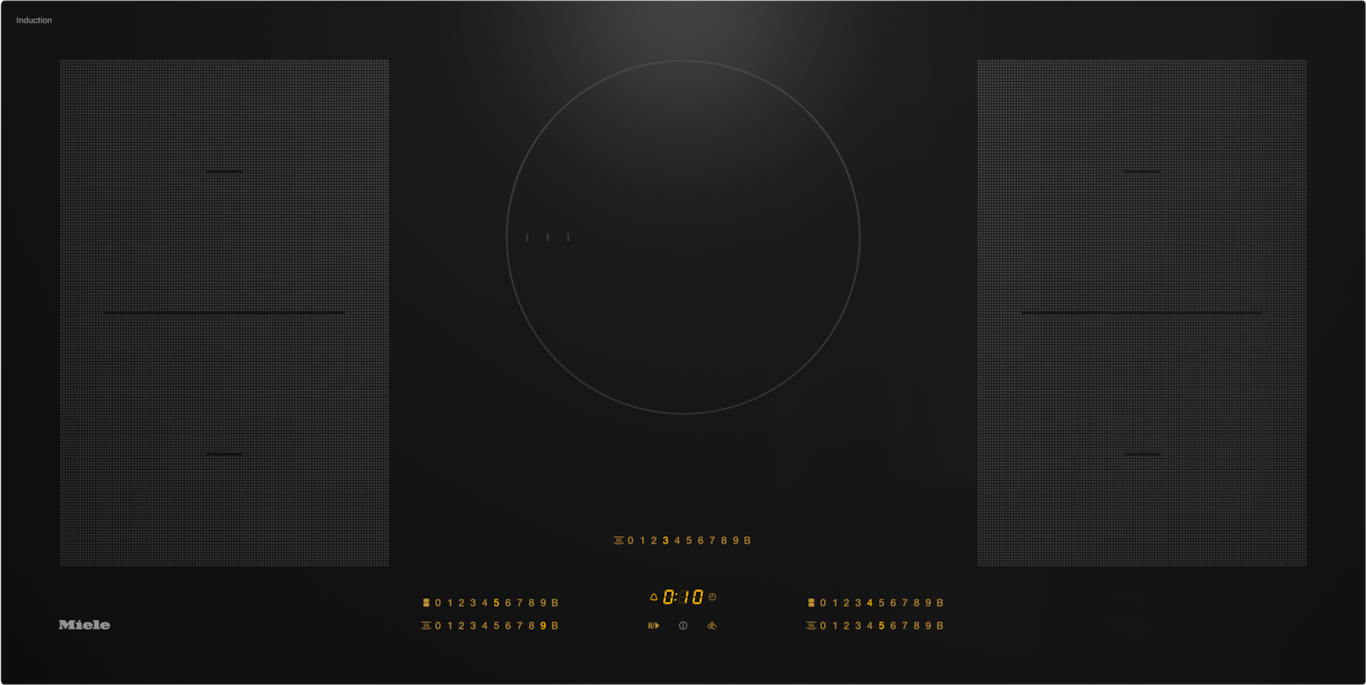

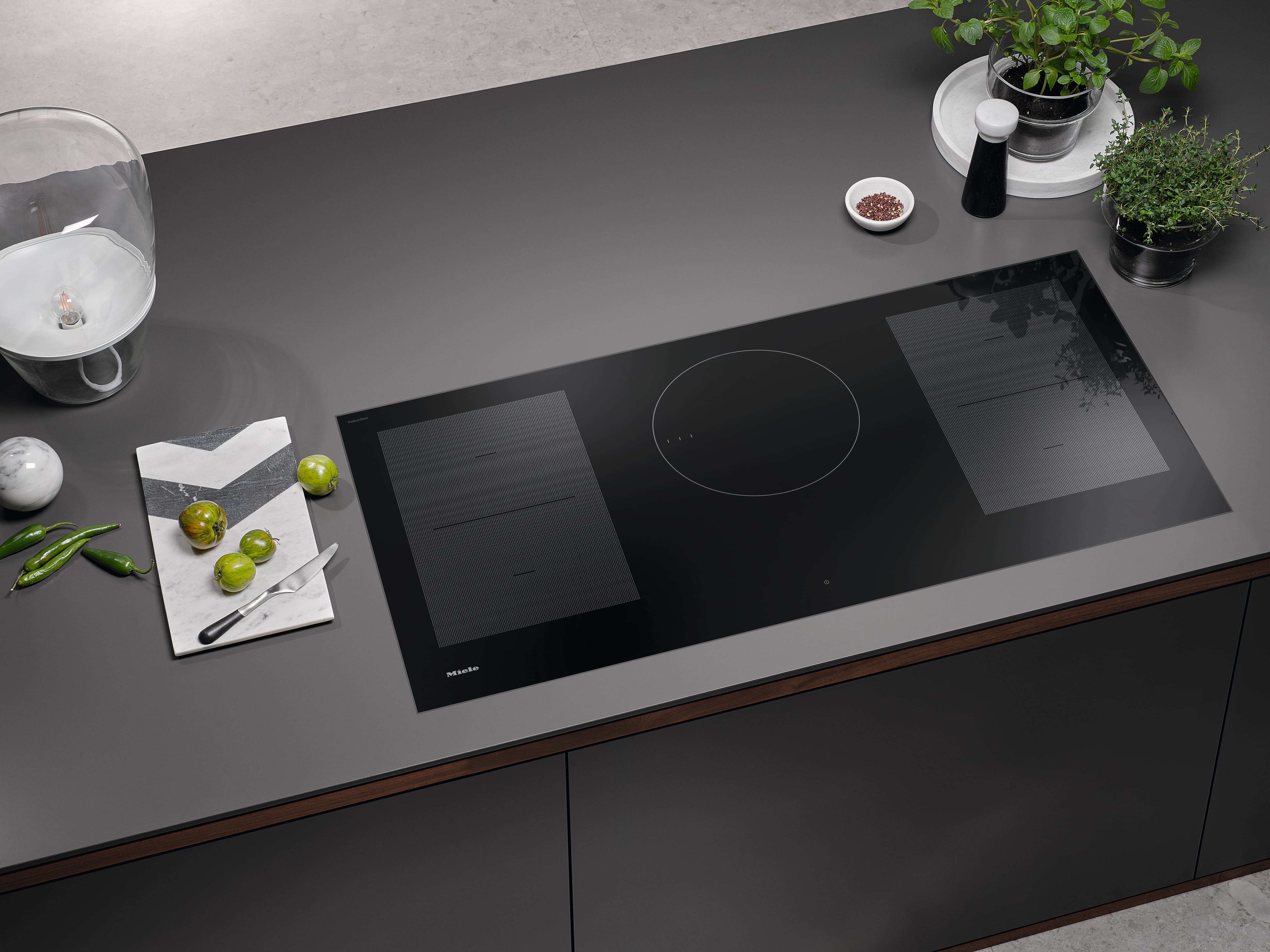

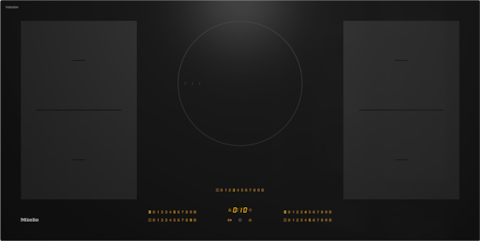

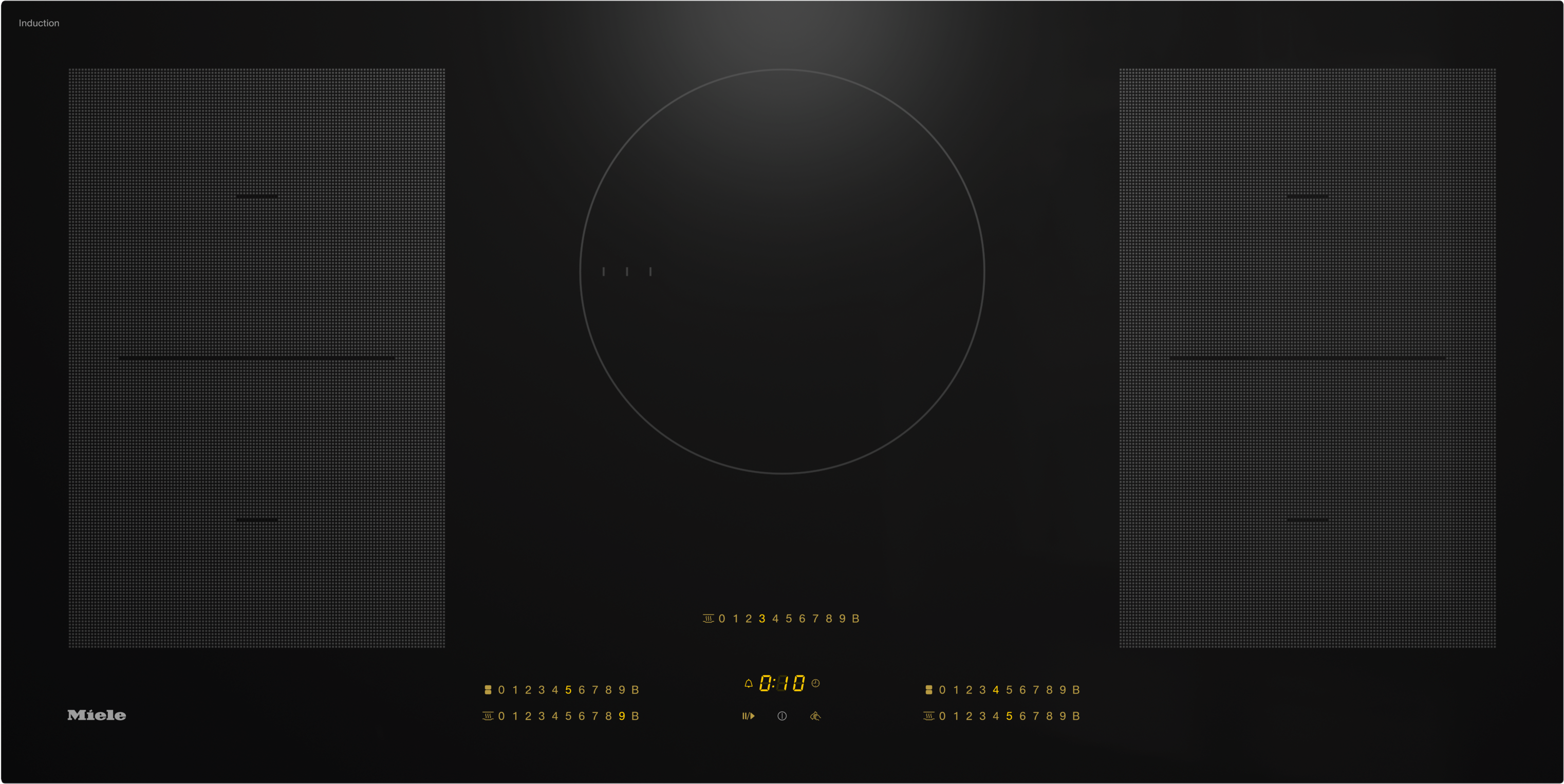

42-inch induction cooktop, operated with its own controls

KM 7755 FL

with 2 PowerFlex cooking areas for maximum performance
sale price$4,499.00



Product details

  • Intuitive quick selection via number sequences –Smart Select
  • 5  cooking zones incl. 2  high-powerPowerFlex cooking areas
  • With a width of 42 3/8 (1074) in (mm) for proud-mounted or flush-mounted installation
  • Shortest heating-up times - TwinBooster
  • Communication with the ventilation hood – automaticCon@ctivityfunction

Product data sheet

Fuel typeInduction
Independent of oven
Elegant glass ceramic surface
Ceramic surface colorBlack
Flush-mounted installation
Proud installation
No. of rings5
Number of cooking areas2
Maximum number of pans5
No.4
TypePowerFlex cooking zone
Size in mmØ 150 – 230
Max. rating in W2100
Max. booster rating in W3000
Max. TwinBooster rating in W3700
PositionLeft
TypePowerFlex bridge
Size in mm230x390
Max. rating in W3400
Max. booster rating in W4800
Max. TwinBooster rating in W7400
PositionCentered
TypeVariable cooking zone
Size in mmØ 180-280
Max. rating in W2600
Max. booster rating in W3000
Max. TwinBooster rating in W3700
Positionright
TypePowerFlex bridge
Size in mm230x390
Max. rating in W3400
Max. booster rating in W4800
Max. TwinBooster rating in W7400
Networking with Miele@home
Automatic functionCon@ctivity 3.0
Operation via touchpad sensorsSmart Select
Display colorYellow
Permanent pan recognition
Pan/Pan-size sensors
Stop & Go function
Wipe protection
Recall function
Minute minder
Automatic switch-off for all rings
AutoBoost
Keep-warm function
Individual setting options (e.g. acoustic signal tones)
Easy to clean ceramic glass
Safety cut-out
Lock function
System lock
Integrated cooling blower
Overheating protection
Residual heat indicator
Width in in. (mm)42 3/8 (1074)
Height in in. (mm)3 1/8 (77)
Built-in height with mains connection box in in. (mm)4 1/8 (103)
Depth in in. (mm)21 1/4 (538)
Internal cutout dimensions width in in. (mm) with flush installation1054
Internal cutout dimensions depth in in. (mm) with flush installation518
External cutout dimensions width in in. (mm) with flush installation1078
External cutout dimensions depth in in. (mm) with flush installation542
Weight in lbs. (kg)52 (24)
Total connected load in kW11.200
Voltage in V208-240
Frequency in Hz50-60
Power cord length in ft. (m)3 (1.2)
Connection wire
EAN4002516611554

What's included

Connection wire
Ideal for large pots
PowerFlex

Unbeatably fast and versatile: the booster output of up to 7.3 kW.

Smart controls
Con@ctivity 3.0

Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.

User convenience

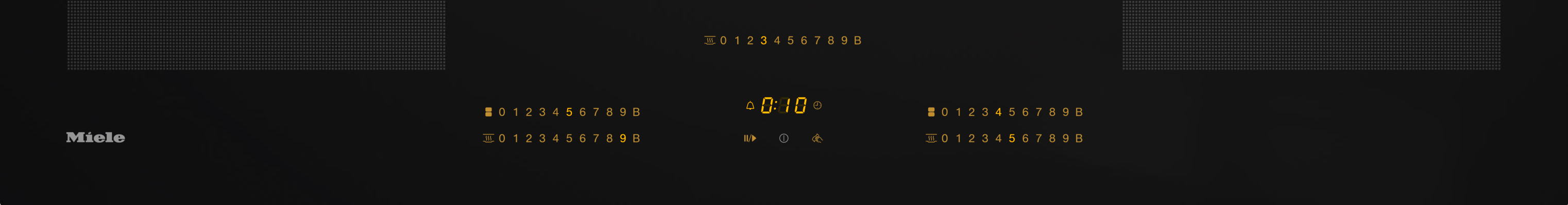

Simple operation with SmartSelect
SmartSelect

Quick and intuitive: power levels and times can be selected separately for each cooking zone.

Safety

For greater safety and security
Safety functions

The safety functions protect you from any nasty surprises – even if your mind is on other things.

Setup/function

Booster function for rapid heat
TwinBooster

Flexible power: Induction output can be individually distributed or used for one single zone.

Just position your pot and start to cook
Permanent pan recognition

Automatic activation of control elements: Pans already in position are recognized when the cooktop is switched on.

For greater convenience
Convenient additional functions

A variety of additional functions such as Stop & Go and timers make your work in the kitchen so much easier.

Ideal for large pots
PowerFlex

Unbeatably fast and versatile: the booster output of up to 7.3 kW.

Smart controls
Con@ctivity 3.0

Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.

Matching products and accessories

Cer. and stainless cleaner 8.5 fl oz.
GP CL KM 0252 L

Cer. and stainless cleaner 8.5 fl oz.

For best cleaning results and safe use.

$13.99
MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

$15.99
 MicroCloth HyClean, 1 cloth
GP MI H 0011 W

 MicroCloth HyClean, 1 cloth

 Antibacterial multi-purpose cloth for improved hygiene.

$11.99
Gourmet griddle plate
GGRP

Gourmet griddle plate

for a unique grill experience on Miele induction cooktops.

$249.00
Fiskars “All Steel” starter pan set (4 pieces)
KMTS 5704-2

Fiskars “All Steel” starter pan set (4 pieces)

stainless-steel cookware with a matte brushed finish exclusively for Miele.

$529.00
Gourmet Tepan Yaki

Gourmet Tepan Yaki

for a unique cooking experience on Miele induction cooktops.

$299.00
Induction gourmet casserole dish
HUB 62-22

Induction gourmet casserole dish

For frying, braising and gratinating.

$249.00
Gourmet casserole dish lid
HBD 60-22

Gourmet casserole dish lid

compatible with HUB 61-22, HUB 62-22, HUB 5000-M, and HUB 5001-M.

$120.00

Downloads

Warranty conditions
PDF
Downloads
Product sheet
PDF
Downloads
Operating and Installation instructions
PDF
Downloads
rvt
ZIP
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000021/200002145/20000214548.png
Descriptions

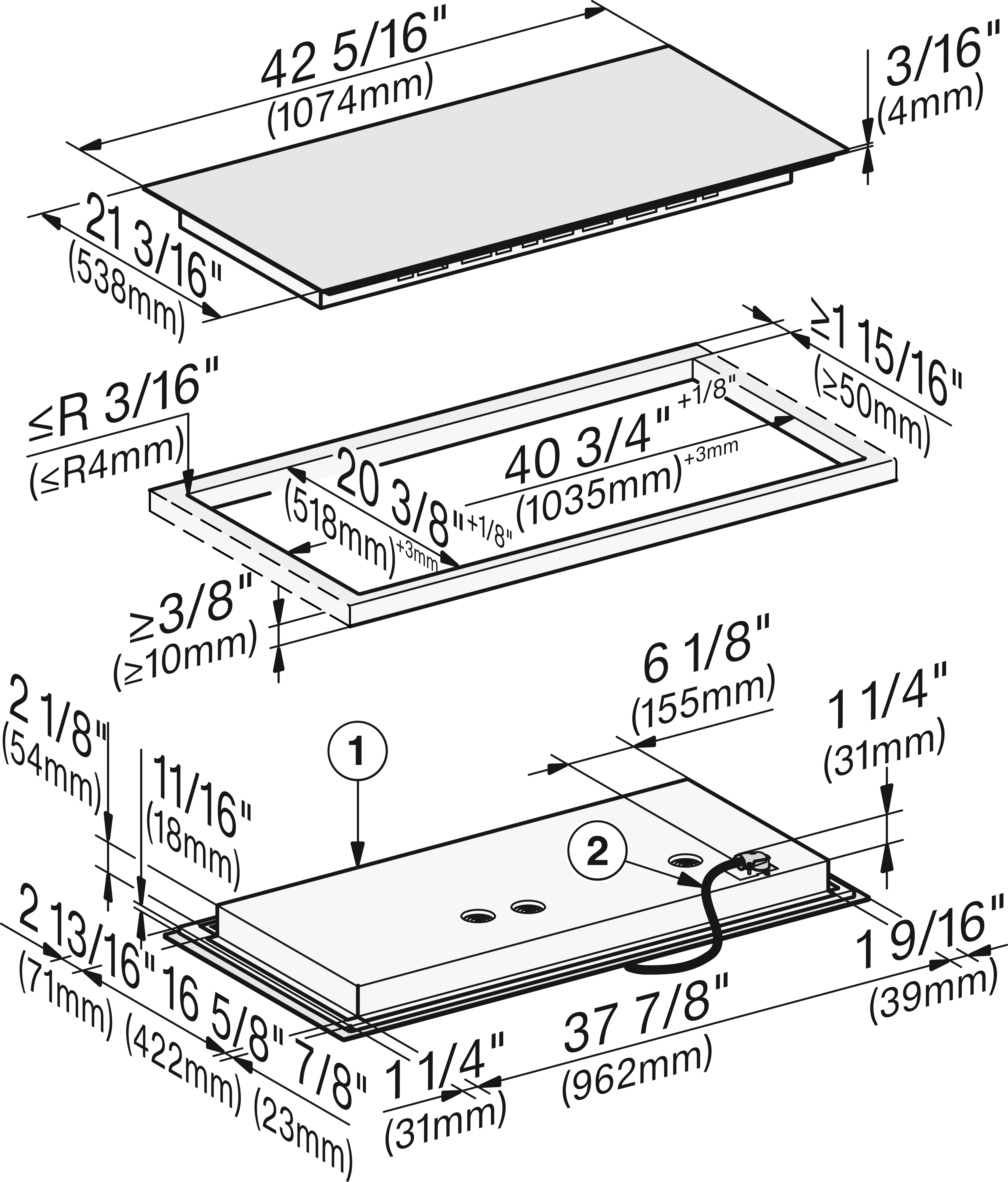

KM7755FL - frameless overlaying installation (*footnote) - drawing
① front, ② Flexible metal hose with power cords, L = 4' (1,200 mm)
Downloads
https://media.miele.com/images/2000021/200002145/20000214549.png
Descriptions

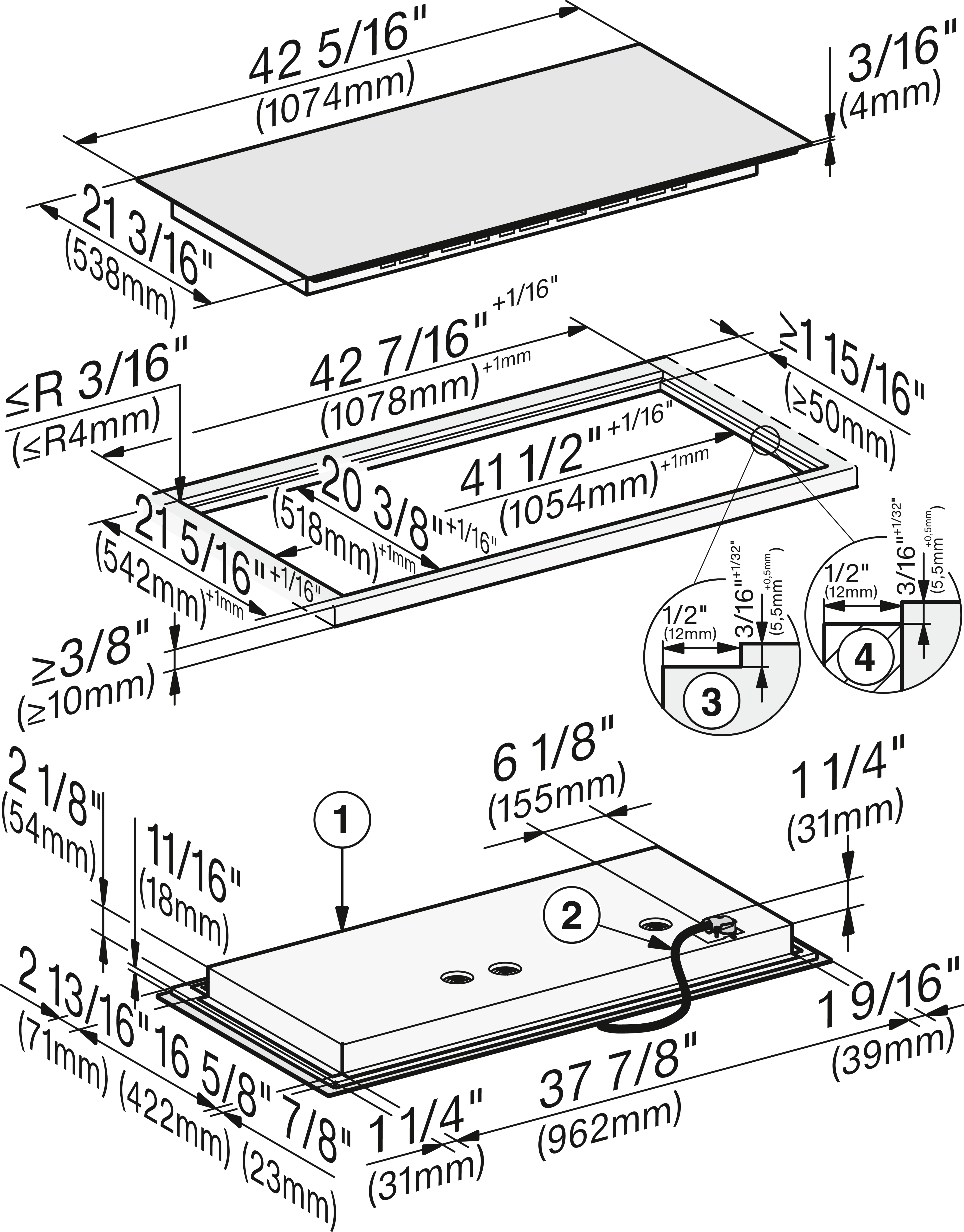

KM7755FL - flush installation (*footnote) - drawing
① Front, ② Flexible metal hose with power cords, L = 4', (1,200 mm), ③ Stepped cut-out, natural stone countertop, ④ Wooden strip 1/2" (12 mm) (not supplied)
