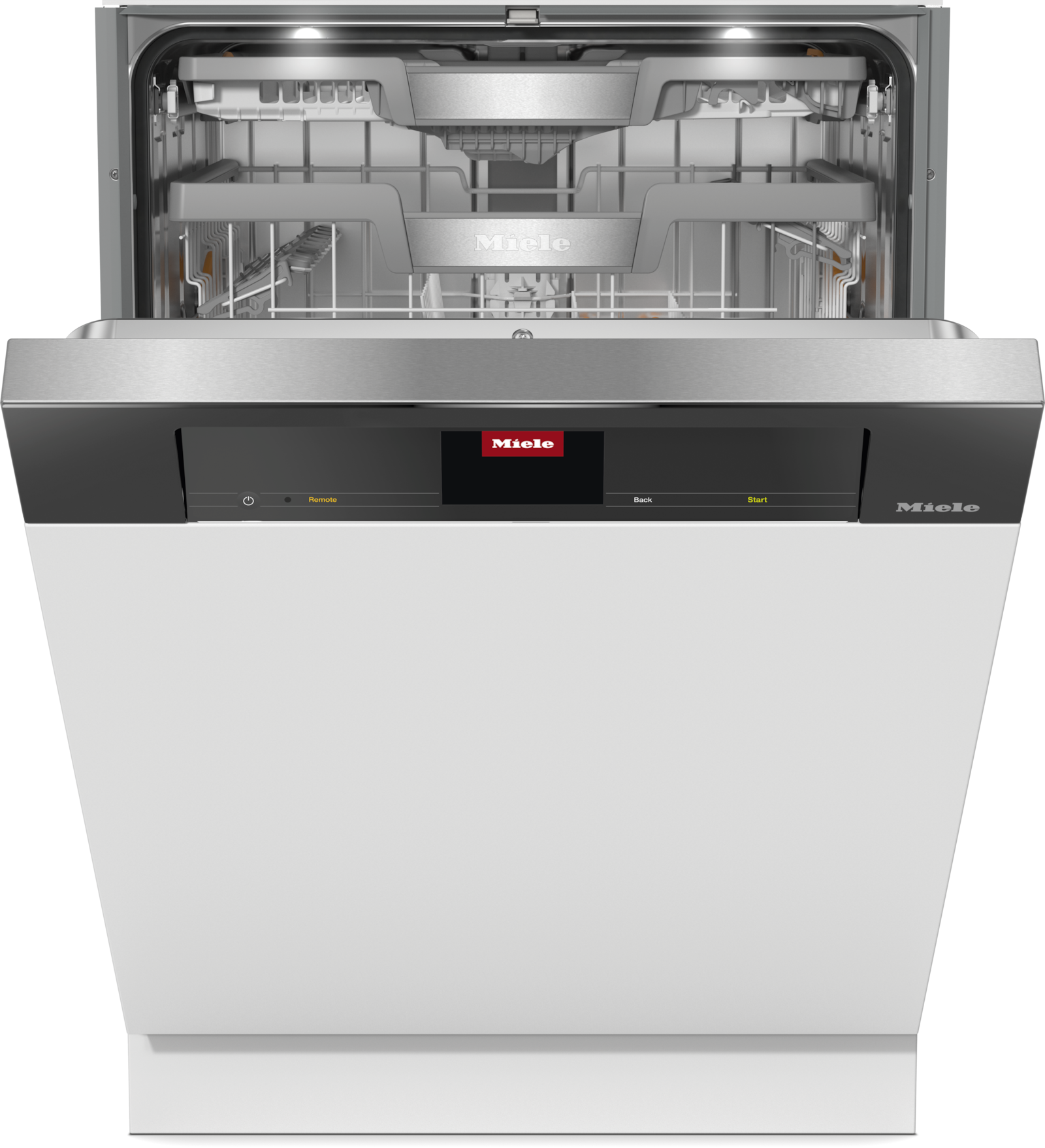

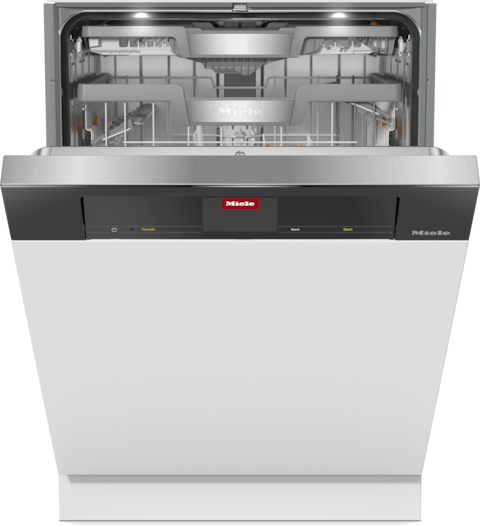

Semi-integrated dishwasher

G 7936 SCi AutoDos Obsidian Black

- the Miele all-rounder for highest demands.


Color:Obsidian Black

sale price$3,599.00



Product details

  • Convenient, efficient, sustainable – perfect results withautomatic dispensing
  • Wonderful use of space – the3D MultiFlex traywith more room for your cutlery
  • More information options and modern domestic appliance networking – Miele@home
  • A perfect view for convenient loading even in the dark –BrilliantLight
  • Intuitive, fast, and clear touch operation –M Touch display

Product data sheet

Semi-integrated dishwashers
24 inch dishwasher
Fascia colorObsidian Black
Fascia panel versionSlanted fascia
Control typeTouch control
Control panelM Touch S Display
Display colorWhite
MultiLingua
Networking with Miele@home
Automatic dispensing with PowerDisk
Door closing aidAutoClose
LED Lighting
Operating noise dB(A) re 1 pW39
Countdown indicator
Delay start up to 24 hours
In-operation indication
  • volume control
  • acoustic
  • Display
Display language selection
FlexiTimer
EcoPower Technology
Proven hygiene
Hot water connection
Half load
Fresh water dishwasher
AutoOpen drying
SensorDry
Active condensation drying
Perfect GlassCare
QuickIntenseWash
Economy
Normal
ComfortWash
Pots & Pans
Automatic
IntenseWash
SaniWash
Energy Saver
Extra Quiet 37 dB(A)
Tall items
Glasses - No Rinse Aid
Appliance care
Rinse out salt
Rinse & Hold
Filters
AutoDos
BottleClean
Quick
IntenseZone
Extra Clean
Extra dry
Cutlery loading3D MultiFlex Tray
FlexCare glass holder2
FlexCare cup rack1
Basket designMaxiComfort
MultiClip
FlexCare Glass & Bottle
XL-Assist
StrawClean
Waterproof system
Check filter saturation indicator
Child Safety lock
System lock
Niche width min in in.(mm)23 5/8 (600)
Niche width max in in.(mm)23 5/8 (600)
Niche height min in in.(mm)33 3/4 (855)
Niche height max in in.(mm)36 1/4 (920)
Niche depth in in.(mm)22 1/2 (570)
Appliance width in in.(mm)23 5/8 (598)
Appliance height in in.(mm)33 3/4 (855)
Appliance depth in in.(mm)22 1/2 (570)
Appliance depth with door open in in.(cm)47 1/2 (120.5)
Net weight in lbs. (kg)109 (49.2)
Total connected load in kW1.400
Voltage in V120
Fuse rating in A15
Number of phases1
Electrical frequency standard60
Length of water inlet hose in ft (m)5 (1.50)
Length of water drain hose in ft (m)5 (1.50)
Length of electrical wire in ft (m)4 (1.20)
Min. front panel weight in kg3
Max. front panel weight in kg10
[can be retrofitted by Service to min.]5
[can be retrofitted by Service to max.]14
Replacing bulbsCustomer Service
Available display languages via MultiLingua
  • ελληνιкά
  • čeština
  • 繁體中文
  • slovenčina
  • slovenščina
  • 中文
  • polski
  • français (FR)
  • magyar
  • nederlands
  • hrvatski
  • yкраїнська
  • bahasa malaysia
  • italiano
  • deutsch
  • english (GB)
  • türkçe
  • dansk
  • 日本語
  • suomi
  • română
  • english (AU)
  • español
  • srpski
  • العربية
  • svenska
  • norsk
  • pусский
  • english (US)
  • português
  • 한국어
1 x PowerDisk
Voucher for 6 x PowerDisk
EAN4002516770770

What's included

1 x PowerDisk
Voucher for 6 x PowerDisk

Design

Optimum lighting for easy loading
BrilliantLight1,

Four LEDs illuminate the whole interior with brilliant light – as soon as you open the door.


Convenient touch control

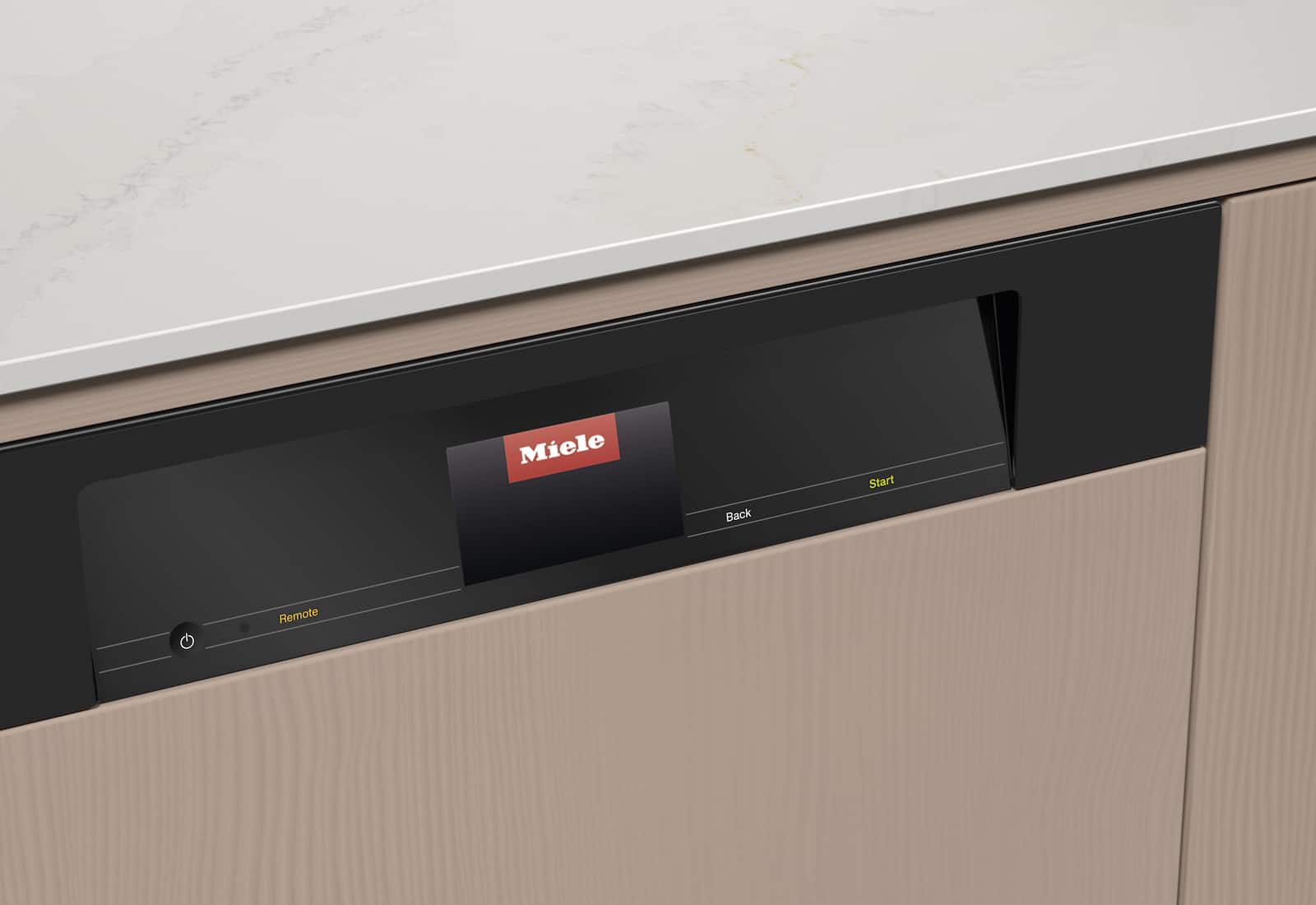

M Touch display

Large-format display and scrolling by swiping to the side for quick and easy operation.


User convenience

Cleverly networked
Appliance networking with Miele@home2,

Make your life smart: thanks to Miele@home you can cleverly network your domestic appliances – for more options.


Automatic dispensing for excellent results
Innovation: AutoDos with PowerDisk

Automatic dispensing with integrated PowerDisk. Superior cleaning system, unparalleled freedom!


For dry dishware
AutoOpen drying5,

All dry: The dishwasher door opens automatically at the end of a program cycle.


A door concept that does it all
ComfortClose

Practical: The door is extremely easy to open and close, and stays open in any position.


Automatically closing door
AutoClose

Very slight pressure against the door is sufficient to activate the motorized AutoClose door closing feature.


Color identification for user convenience
FlexAssist markers

Optimum visual support: Color identification of the flexible elements for individual basket design.


Basket design

Securely positioning bottles
FlexCare Glass & Bottle

Maximum flexibility: Bottles and glasses are held securely in the lower basket for optimal cleaning.


Large bulky items are easily secured
XL-Assist

Perfect for large items: You can use XL-Assist to position pots and pans in a space-saving way.


Perfect for cleaning reusable straws
StrawClean

Meticulously clean: Reusable straws are cleaned thoroughly and held securely.


Exceptional flexibility for all types of dishware

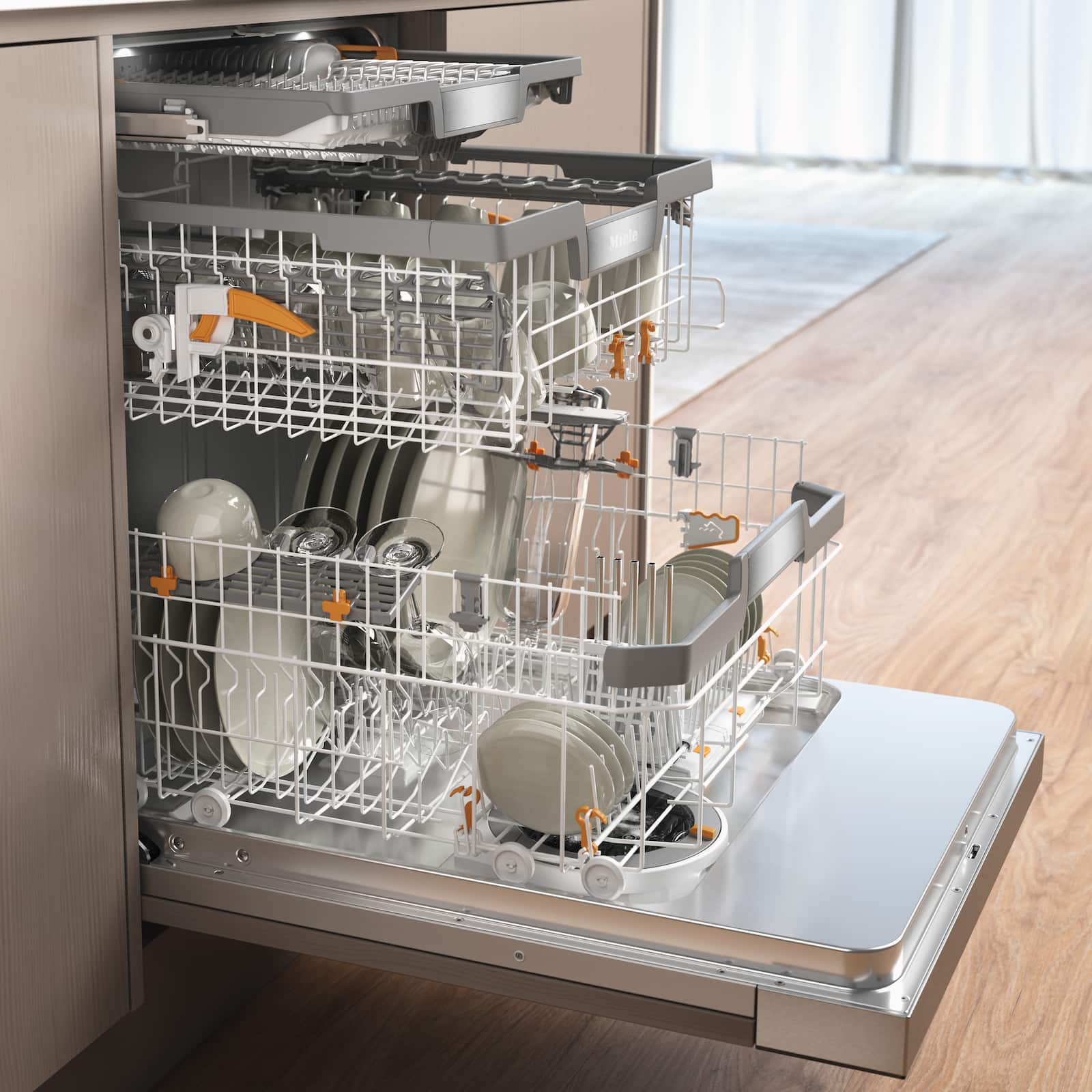

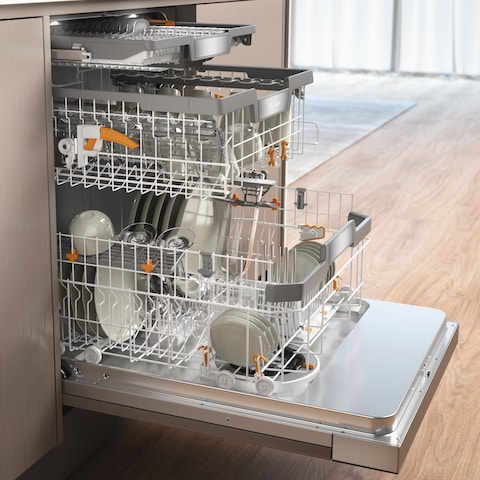

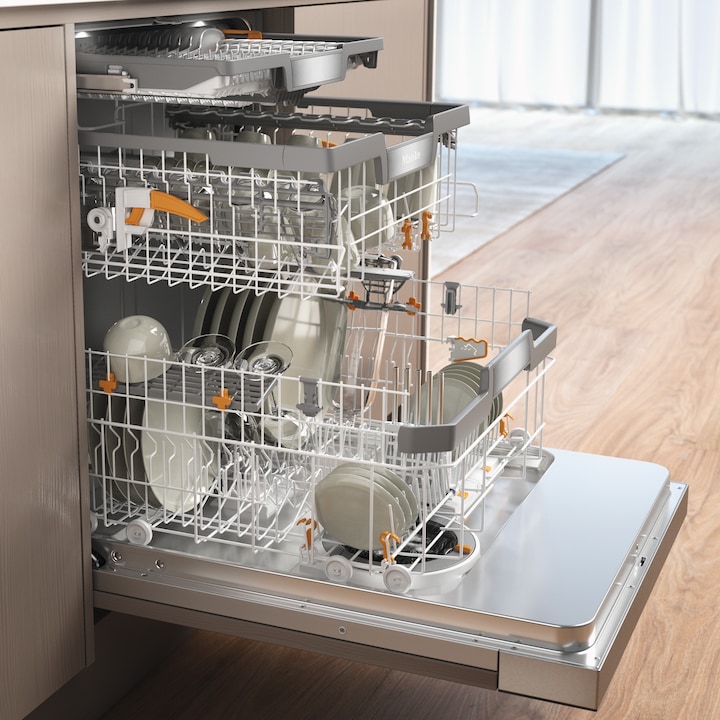

MaxiComfort

Flexibility and convenience combined: Dishware items of any size can be positioned flexibly for optimum cleaning.


Maximum flexibility
3D MultiFlex Tray6,

Stress-free loading: ingenious adjustment options create space in the dishwasher even for small items.


Efficiency and sustainability

Protects your wallet and the environment
Timer with EcoStart

Clever: The appliance automatically selects the cheapest electricity rate every time.


Save up to 35% electricity7,
Hot water connection

Up to 35% electricity savings7, : All Miele dishwashers can be connected to hot water at up to 140°F (60°C).


Adapted consumption
Half load

Less dishware, less consumption: Automatic load sensing adapts the water consumption.


Innovative water feed for rinsing with less water
EcoPower Technology

Saving water and energy: Cleverly designed water supply reduces consumption.


Quality

Additional safety
Waterproof system (WPS)

Double safety: In the event of a leak, a second solenoid valve stops the flow of water directly at the faucet.


Effective against viruses – scientifically proven8,
Proven hygiene

Hygienically clean: all Miele Dishwashers reliably remove over 99.9% of viruses8, .


Washing programs & Options

Expert for tough cases
Pots & Pans

Maximum cleaning performance: Pots, pans, etc. are cleaned residue-free.


A new dimension for sustainability
Energy Saver

Second to none: Minimum electricity consumption per cycle with solar heat system, heat pump or gas-oil heating.


Hygienic
Clean Machine

Whenever needed: This program cleans the dishwasher thoroughly - guaranteed.


Best cleaning in less than an hour
QuickIntenseWash

Short program: Best cleaning results for normally soiled dishware in 58 minutes.


Grease filters
Filters

The special program for cleaning dishwasher-safe grease filters.


Clean drinking bottles in next to no time
BottleClean

Custom-made for bottles and tall containers. Perfect cleaning when using FlexCare Glass & Bottle.


Ideal for everyday use
ComfortWash

For everyday use: gentle program for glasses with moderate use of resources.


Lots of room
Tall items

"For large, bulky items:" "Provides space for large, bulky items in the lower basket."


The all-round program
Normal

The program is sensor-controlled for normally soiled dishware.


Minimal consumption
Economy

Extremely economical: The water and energy saving program is perfect for mixed loads.


For perfect cleaning
SaniWash

This is our high temperature program offering deep cleaning results.


The perfect froth
Glasses - No Rinse Aid

Sparkling results: this program is ideal for cleaning beer glasses and guarantees perfect froth.


Rinse & Hold
Rinse & Hold

To avoid the development of odors, dishware can be pre-rinsed without the need to run a complete program.


Perfect results for glassware and plastic items
Extra Dry

Exceptional drying: This option dries everything to perfection, even glassware and plastic items.


Program time halved
Express

Sometimes things have to be done at the double: Reduce the length of a program by up to 50%.


For high-performance cleaning in the lower basket
IntenseZone

Strong yet gentle: This option for enhanced cleaning performance in the lower basket can be added to a program.


Perfect results
ExtraClean

Improves cleaning by increasing the cleaning temperature and adding a thorough Pre-Rinse.


Automatic dispensing
AutoDos

No more manual dispensing: The granulate from the PowerDisk is dispensed automatically in the dishwasher.


When you need clean dishware quickly
Quick program option

By selecting the Quick extra, the IntenseWash 60°C program becomes the QuickIntenseWash program.


The all-rounder for many occasions
IntenseWash

Quick and efficient: This program for everyday use thoroughly cleans dishware with normal soiling.


Dish and glassware care

Gentle cleaning of delicate glassware
Perfect GlassCare

Gentle and delicate: Perfect GlassCare cleans your glassware with care.


Optimum drying with less energy
SensorDry

Intelligent adaptation of the dishwasher program saves energy and time when drying.


Downloads

Drilling template
PDF
Downloads
Warranty conditions
PDF
Downloads
Mounting plan
PDF
Downloads
Mounting plan
PDF
Downloads
Product sheet
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
rvt
ZIP
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
Energy label
PDF
Downloads
Energy label
JPEG
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000014/200001480/20000148091.png
Descriptions
G7000, integrated dishwasher, XXL, 60cm (installation drawing)
1) Plinth height 35-155 mm, 2) Plinth height 100-220 mm, 3) Appliance height max. 970 mm with plinth height conversion kit (Mat.-Nr. 6.394.761), ,
Downloads
  • 1.EP2233061B1, US8297768B2
  • 2.Additional digital offer from Miele & Cie. KG. All smart applications are made possible with the Miele@home system. The range of functions can vary depending on the model and the country.
  • 3. Patent: EP2850990B1, US9962062B2
  • 4.In the Economy program
  • 5.DE102007008950B4, EP2120671B1
  • 6.Patent: DE102008062761B3, EP2433549B1
  • 7.In average of program mix compared to cold water connection
  • 8.According to certification by the Institute for Integrative Hygiene and Virology with respect to the removal of enveloped and non-enveloped viruses (e.g., coronaviruses, influenza viruses, or noroviruses) in the tested SaniWash and Intensive programs, in all cases using PowerDisk/UltraTabs. Details on the test criteria can be found at www.miele.com/g7000-c.
  • 9.model-dependent
