MasterCool Wine Conditioning Unit
KWT 2612 Vi
For high-end design and technology on a large scale.
sale price$8,499.00
Product details
- Push2openfor convenient door-opening assistance
- Various wines at the perfect temperature – 3 temperature zones
- Flexible storage of large wine bottles thanks toFlexiFrame
- Light floods the interior thanks to LED elements –BrilliantLight
- Communication with the machine could not be easier –WiFi Conn@ct
Wine storage unit
Built-in
Built-in integrated
Door hinge sideLeft
Convertible hinging
Can be installed side-by-side
LightingBrilliantLight
Networking with Miele@home
DynaCool
SoftClose door closing damper
Push2open
MaxLoad hinge
FlexiFrame
Number of FlexiFrame wooden racks13
Wire Rack materialBeechwood
NoteBoard
Electronic temperature display and controlMasterSensor
No. of temperature zones3
Min. temperature setting range in °F (°C)5
Max. temperature setting range in °F (°C)20
Sabbath mode
Lock function
Acoustic door alarm
Acoustic temperature alarm
Optical door alarm
Optical temperature alarm
Niche width in inches (mm), min.24 1/8 (610)
Niche width in inches (mm), max.24 1/8 (610)
Niche height in inches (mm), min.84 1/8 (2134)
Niche height in inches (mm), max.84 1/8 (2134)
Niche depth in in.(mm)24 7/8 (629)
Appliance width in in.(mm)23 3/4 (603)
Appliance height in in.(mm)83 3/4 (2125)
Appliance depth in in.(mm)24 (608)
Weight in lbs.(kg)322 (146.0)
Type of mountingFixed door
Maximum fridge compartment door front weight in lbs. (kg)161 (73)
Wine compartment in L13.38 (379)
Pantry compartment in l379
Total usable capacity in cu. ft. (l)13.38 (379)
Current consumption in milliampere (mA)4000
Voltage in V110-120
Fuse rating in A10
Number of phases1
Frequency in Hz60
Wire length in ft (m)11 (3.5)
Available display languages via MultiLingua
- eesti
- français
- ελληνιкά
- čeština
- 繁體中文
- slovenčina
- latviesu
- slovenščina
- 中文
- polski
- lietuviu
- français (FR)
- magyar
- nederlands
- hrvatski
- yкраїнська
- bahasa malaysia
- deutsch
- english (GB)
- italiano
- türkçe
- 日本語
- suomi
- dansk
- română
- english (AU)
- english (CA)
- español
- english
- srpski
- العربية
- svenska
- norsk
- français (CA)
- pусский
- português
- english (US)
- 한국어
EAN4002516322955
The perfect solution for a handleless design
MasterCool – Push2open
This appliance integrates perfectly into handleless kitchens, as the door opens by pressing the front.
Perfect food storage

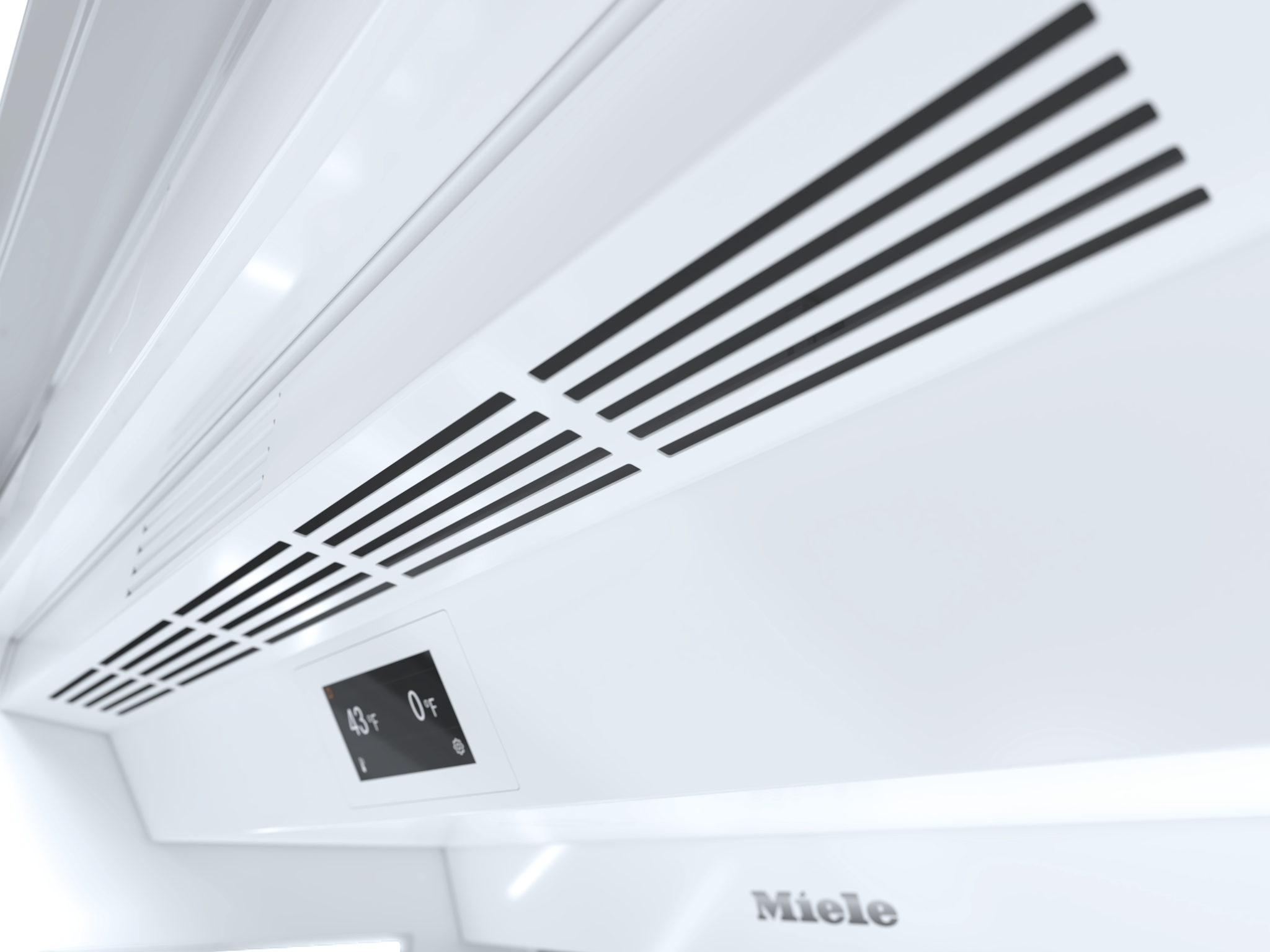

MasterCool – DynaCool
Storage freedom: A fan ensures a uniform temperature throughout the entire unit.
The perfect solution for a handleless design
MasterCool – Push2open
This appliance integrates perfectly into handleless kitchens, as the door opens by pressing the front.
Securely holds any bottle size
MasterCool – FlexiFrame wooden racks
Just one movement: move individual slats so that you can even store large wine bottles in a flexible manner.
Perfectly lit
MasterCool – BrilliantLight
Soft and attractive: High-quality LED strips offer perfect illumination and a beautiful lighting.
Safe handling guaranteed
MasterCool – MaxLoad hinge
Strong and robust: The door hinges are able to withstand high loads and make it easy to open large doors.
Matching products and accessories
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.
Descriptions
KWT2611Vi, KWT2671ViS, KWT2601Vi, KWT2661ViS, installation, MasterCool, installation drawings
Installation drawings
Descriptions
KWT2602Vi/SF, KWT2612Vi/SF, KWT2601Vi/SF, KWT2611Vi/SF, inner space, MasterCool, installation drawings
Installation drawings
Descriptions
Side-by-side, MasterCool, without partition wall, with heating mat (Sketch) (with footnote)
1) Heating mat KSK 2001 (EU, AUS, CN) or KSK 2002 (US, CA, MX, BR)
Descriptions
Opening angle 90°/115°, right side stop, MasterCool (Sketch) with footnote
A) Appliance door , K 2611 Vi, KWT 2611 Vi, KWT 2611 SF, KWT 2671 ViS: 677 mm (26 2/3 inch); , K 2612 Vi, KWT 2612 Vi, KWT 2612 SF, KWT 2672 ViS: 677 mm (26 2/3 inch);, K 2811 Vi, K 2811 SF, KF 2811 Vi, KF 2811 SF: 829 mm (32 2/3 inch);, K 2812 Vi, K 2812 SF, KF 2812 Vi, KF 2812 SF: 829 mm (32 2/3 inch);, K 2911 Vi, K 2911 SF, KF 2911 Vi, KF 2911 SF: 982 mm (38 2/3 inch);, K 2912 Vi, K 2912 SF, KF 2912 Vi, KF 2912 SF: 982 mm (38 2/3 inch);, B) Furniture front (max. 38 mm) (1 1/2 inch), C) Door handle, D) Distance from the door to the wall (without furniture front and door handle): , K 2611 Vi, KWT 2611 Vi, KWT 2611 SF, KWT 2671 ViS: 296 mm (11 2/3 inch);, K 2612 Vi, KWT 2612 Vi, KWT 2612 SF, KWT 2672 ViS: 296 mm (11 2/3 inch);, K 2811 Vi, K 2811 SF, KF 2811 Vi, KF 2811 SF: 363 mm (14 1/3 inch);, K 2812 Vi, K 2812 SF, KF 2812 Vi, KF 2812 SF: 363 mm (14 1/3 inch);, K 2911 Vi, K 2911 SF, KF 2911 Vi, KF 2911 SF: 428 mm (16 7/8 inch);, K 2912 Vi, K 2912 SF, KF 2912 Vi, KF 2912 SF: 428 mm (16 7/8 inch);, E) ONLY valid for SF versions: A + 25 mm (1 inch)
Descriptions
Side-by-Side, MasterCool, footnote, installation drawings
1. KSK 2001/2002, 2. Device A, 3. Device B, A = niche device A, B = niche device B
Descriptions
Installation, MasterCool, *footnote, installation drawings
1. View from the front, 2. Mains connection cable, L = 3000 mm (118 inch), 3. No water/ELT connections permitted in this area
Descriptions
KFP2455ed/cs, KFP2454ed/cs, front panel, front dimensions, MasterCool, installation drawings
Installation drawings Open Source Licence
DownloadsPDF
- 1.Additional digital offer from Miele & Cie. KG. All smart applications are made possible with the Miele@home system. The range of functions can vary depending on the model and the country.
We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
